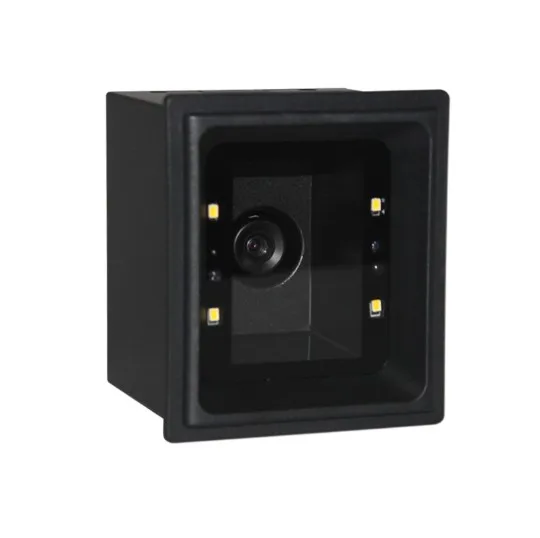

Newland FM25 FM30 Fixed Mount Scanner 1D 2D barcode reader for kiosks, ticketing machines,PDAs

Best Price Newland FM25 FM30 Fixed Mount Scanner 1D 2D barcode reader for kiosks, ticketing machines,PDAs

Product ID : 32961096912

Price : $98.89 - 205

Discount Price : $48.59

* Price Update at : Jully, 25 2019 *

VISIT WEBSITE NOW

Item specifics

•
  Novelty:
  New



•
  Interface Type:
  USB



•
  Scan Element Type:
  CMOS



•
  Scan Breadth:
  A3



•
  Scanning Light Source:
  LED



•
  Time to market:
  Mar-13



•
  Product Type:
  Portable Scanner



•
  Type:
  Barcode Scanner



•
  Scan Speed:
  200 scans/second



•
  Colour Depth:
  32 Bit



•
  Model Number:
  FM25/FM30



•
  Optical Resolution:
  >5mil


Product Description

Includes core-tec is independently designed and manufactured by Newland Autnce reaches and exceeds global standards. By using the accessories provided, the user can ideally set up the scanner to

its user environment.



Designed for OEM applications, this high performance scan engine caneasily be integrated into various solutions such as kiosks, ticketing

machines,PDAs and many more.

Specification for FM30:

​

Performance	Image Sensor	752×480 CMOS
	Light Source	White LED
	Symbologies	2D      PDF417, QR Code (QR1/2, Micro), Data Matrix (ECC200, ECC000, 050, 080, 100, 140)
		1D         Code128, UCC/EAN-128, AIM-128, EAN-8, EAN-13, ISBN/ISSN, UPC-E, UPC-A, Interleaved 2 of 5, ITF-6, ITF-4, Matrix 2 of 5, Industrial 25, Standard 25, Code 39, Codabar, Code 93, Code 11, Plessey, MSI-Plessey, GS1-DataBarTM(RSS), (RSS-14, RSS-Limited, RSS-Expand)
	Resolution	≥5mil
	Typical Depth of Field	EAN-13     10mm-55mm (13mil)
		PDF 417   15mm-35mm (6.67mil)
		Data Matrix 15mm-40mm (10mil)
		QR Code    10mm-50mm (15mil)
	Symbol Contrast	≥30% reflectance difference
	Scan Angle**	Roll: 360°,  Pitch: ±40°,  Skew: ±40°
	Field of View	Horizontal 80°,  Vertical 56°
Mechanical/ Electrical	Interface	TTL-232, USB (HID-KBW, COM Port Emulation, HID-POS)
	Operating Voltage	3.0~5.5VDC
	Current@5VDC	Operating  160mA
		Sleep       12mA
	Dimensions	65.1(D)×61.1(W)×43.6(H)mm
	Weight	41.5g
Environmental	Operating Temperature	-20℃~+60℃ (-4°F~140°F)
	Storage Temperature	-40℃~+80℃（-40°F~176°F）
	Humidity	5%~95% (non-condensing)
	Ambient Light	0~100000lux (natural light)
Accessories	USB Cable	Used to connect the NLS-EM20 to a host device.





Packaging Details

•
  Unit Type:
  piece



•
  Package Weight:
  0.8kg (1.76lb.)



•
  Package Size:
  10cm x 15cm x 10cm (3.94in x 5.91in x 3.94in)
