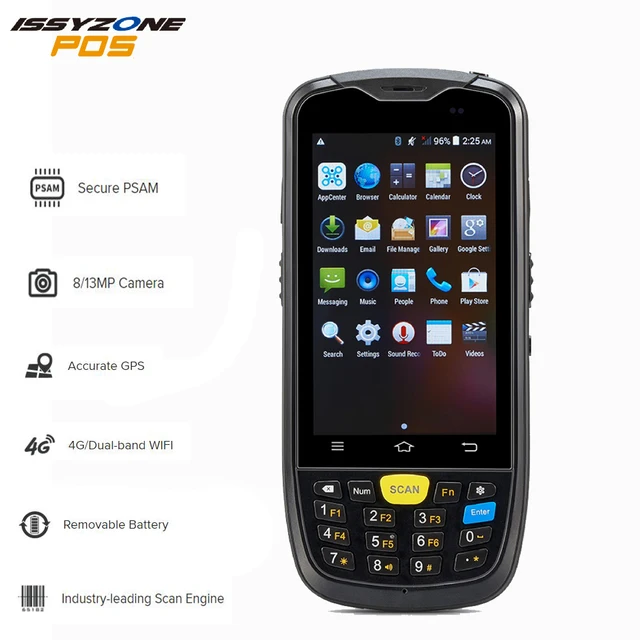

IssyzonePOS Android Touch PDA 1D/2D Scanner NFC Bluetooth GPS Secure Psam 4G Dual Band Wifi Removable Battery For Industry Line

Special Offers IssyzonePOS Android Touch PDA 1D/2D Scanner NFC Bluetooth GPS Secure Psam 4G Dual Band Wifi Removable Battery For Industry Line

Product ID : 33005287764

Price : $387.80 - 458.20

Discount Price : $329.63 - 389.47

* Price Update at : Jully, 25 2019 *

VISIT WEBSITE NOW

Item specifics

•
  Interface Type:
  USB



•
  Type:
  Barcode Scanner



•
  Colour Depth:
  48 Bit



•
  Model Number:
  IPDA050



•
  Product Type:
  Bar Code Scanner



•
  Novelty:
  New



•
  Scanning Light Source:
  Laser Light



•
  Brand Name:
  ISSYZONEPOS



•
  Optical Resolution:
  1920*1080P



•
  Scan Speed:
  116/sec



•
  Scan Element Type:
  1D/2D Scanner



•
  Scan Breadth:
  PDF417,MicroPDF417,Composite, RSS,TLC-39, Datamatrix, QR code



•
  Model Name::
  Touch Screen &Keyboard Android PDA



•
  CPU::
  MT6737T Cortex-A53 Quad-core 1.5GHz



•
  Memery+Flash:
  2GB+16GB,Supports up to 128 GB Micro SD card



•
  Display::
  5.2'' IPS FHD 1920x1080P



•
  Expansion Slot:
  1 slot for SIM card, 1 slot for SIM or TF card



•
  Continuous use:
  Over 12 hours (depending on user environment)



•
  Touch Panel:
  Corning Gorilla Glass, multi-touch panel, gloves and wet hands support



•
  Main battery:
  Li-ion, rechargeable, 4000mAh



•
  Charging time:
  2-3 hours (with standard adaptor and USB cable)



•
  Interfaces:
  USB Micro-B, OTG



•
  Audio:
  speaker, 2 microphones



•
  Camera:
  3MP autofocus rear camera with flash, optional 5MP front camera



•
  Keypad:
  3 TP soft keys, 3 side keys, numeric keyboard


Product Description













Please tell us what's your country's plug if you ordered.





Parameters



Developing Environment
Operating System	Android 6.0
SDK	Chainway Software Development Kit
Language	Java
Tool	Eclipse / Android Studio
Barcode Scanning
1D Symbologies	UPC/EAN, Code128, Code39, Code93, Code11,Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of5, Codabar, MSI, RSS, etc
2D Symbologies	PDF417, MicroPDF417, Composite, RSS, TLC-39,Datamatrix, QR code, Micro QR code, Aztec,MaxiCode; Postal Codes: US PostNet, US Planet,UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc
Note	*This function is optional
Camera
Camera	8/13MP Autofocus with flash
NFC
Frequency	13.56MHz
Protocol	ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc
Chips	M1 card (S50, S70), CPU card, NFC tags, etc
Range	2-4cm
Note	* NFC is only available for high-level confguration ，and can not coexist with the pistol grip.
Physical Characteristics
Dimensions	157.6 x 73.7 x 29mm/6.2x2.9x1.1in
Weight	292g/10.3oz
Display	4'' WVGA (480*800), 16.7M colors
Touch Panel	Rugged dual touch capacitive touch panel
Power	Main battery: Li-ion, rechargeable, 4000mAh
	Standby: over 300 hours
	Continuous use: over 12 hours (depending on user environment)
	Charging time: 3-4 hours (with standard adaptor and USB cable)
Expansion Slot	1 PSAM (protocol: ISO7816), 1 SIM, 1 MicroSD (TF) slot
Interfaces	USB Micro-B, OTG
Audio	0.5W speaker, build-in microphone
Keypad	3 TP soft keys, 3 side keys, numeric keyboard
Sensors	Light sensor, proximity sensor, gravity sensor, vibration motor
AC Adapter	Input: 100V-240V, 50-60Hz, 0.29A
	Output: 5V, 2A
Performance
High-level Configuration	CPU: Cortex A-53 1.3 GHz quad-core
	RAM+ROM: 2GB+16GB
Low-level Configuration	CPU: Cortex A-53 1.3 GHz quad-core
	RAM+ROM: 1GB+8GB
Expansion	Supports up to 128 GB Micro SD card
Communication
WLAN	IEEE802.11 a/b/g/n, 2.4G/5G dual-band, internal antenna
WWAN (Europe)	2G: 850/900/1800/1900MHz
	3G: 850/900/1900/2100MHz
	4G: B1, B3, B5, B7, B8, B20, B40
WWAN (America)	2G: 850/900/1800/1900MHz
	3G: 850/900/1700/1900MHz
	4G: B2, B4, B7, B12, B17
WWAN (China)	2G: 900/1800MHz
	3G: 900/1900/2000/2100MHz
	4G: TDD-LTE: B38, B39, B40, B41
	FDD-LTE: B1, B3
WWAN (Others)	Depending on the country's ISP
Bluetooth	Bluetooth 4.0 BLE
GNSS	GPS/AGPS, GLONASS, BeiDou; internal antenna
User Environment
Operating Temp.	-4degF to 122degF / -20degC to 50degC
Storage Temp.	-40degF to 158degF / -40degC to 70degC
Humidity	5%RH - 95%RH non condensing
Drop Specification	Multiple 2.0m/6.56ft drops to concrete across the operating temperature range
Tumble Specification	1000 x 0.5m/1.64ft falls at room temperature
Sealing	IP65 per IEC sealing specifications
ESD	plusmn15KV air discharge, plusmn6KV conductive discharge





Certificates

ISO9001/ ISO14001 /ISO18001 /CCC/CE/FCC/IMEI TAC/IP65/2m Drop Test Report/Report for Safe Transport

Application:

Jewelry,Clothing Stores,Warehouse, Factory Prdouct Lines,Retail Stores,Asset Management,Hospital,Pharmacy



Packaging Details

•
  Unit Type:
  piece



•
  Package Weight:
  1.1kg (2.43lb.)



•
  Package Size:
  26cm x 26cm x 6cm (10.24in x 10.24in x 2.36in)
