IssyzonePOS Rugged PDA Handheld Android POS Terminal Zebra barcode Scanner 2D NFC 4G WiFi data collector UHF RFID Reader

Special Price IssyzonePOS Rugged PDA Handheld Android POS Terminal Zebra barcode Scanner 2D NFC 4G WiFi data collector UHF RFID Reader

Product ID : 33024566807

Price : $455.29 - 995.70

Discount Price : $391.55 - 856.30

* Price Update at : Jully, 25 2019 *

VISIT WEBSITE NOW

Item specifics

•
  Brand Name:
  ISSYZONEPOS



•
  Scan Speed:
  200 scans/second



•
  Type:
  Barcode Scanner



•
  Optical Resolution:
  300*300



•
  Scan Element Type:
  CMOS



•
  Interface Type:
  USB



•
  Scan Breadth:
  A8



•
  Model Number:
  IPDA051



•
  Novelty:
  New



•
  Scanning Light Source:
  Laser Light



•
  Colour Depth:
  32 Bit



•
  Product Type:
  Bar Code Scanner



•
  O.S:
  Android 6.0



•
  SDK:
  Chainway Software Development Kit



•
  Memery+Flash:
  2GB RAM + 16GB Flash



•
  Barcode Scanner:
  zebra



•
  Warranty:
  12 months (except the accessories)



•
  Wireless:
  4G/3G/2G/GPS/WIFI/Bluetooth/NFC



•
  Drop test:
  1.8m drop tested



•
  Interfaces:
  USB 2.0 Type-C, OTG



•
  CPU:
  Cortex-A53 Quad-core 1.45GHz/



•
  Camera:
  13MP Autofocus with flash



•
  1D Linear Scanner:
  Zebra SE965



•
  2D Imager Scanner:
  Zebra: SE4710



•
  Main battery:
  Li-ion, rechargeable, 8000mAh



•
  Standby:
  over 500 hours


Product Description

Important Note :

1.The Device have not got the GMS ,Please make sure that it is available for you before you order it

2.The UHF Function need the RFID Tag for Scaning .
And Frequency is 860MHz to 960MHz. It always applied to Warehousing and logistics.
Need software to read the RFID and manage the merchandise .
We Support SDK to develop the software for you.

Product Feature

1. Advanced capacitive screen：5.2'' IPS FHD 1920x1080

2.Touch Panel：Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported

3.SDK：Chainway Software Development Kit

4.Language：Java

5.Expansion Slot

6.Interfaces：USB 2.0 Type-C, OTG

7.Audio：Speaker, 2 microphones

8.Keypad ：4 front keys, 1 power key, 2 scan keys, 1 multifunctional key

9.Sensors：Gravity sensor, light sensor, proximity sensor

10. Camera:13MP Autofocus with flash

Product Specification :

Processor:Android 6.0(Quad-core)

O.S:Android 6.0

Memory:RAM 2GB + ROM 16GB

Battery:8000mAh  (operation≧12 hours,Charging less than 4 hours)

SIM Card Slot:2 Micro-SIM

Expansion slot:maximum 128GB micro SD card

Interface:USB 2.0 Type-C, OTG

Power

Main battery: Li-ion, rechargeable, 8000mAh

Standby: over 500 hours

Continuous use: over 12 hours (depending on user environment)

Charging time: 3-4 hours (with standard adaptor and USB cable)



WLAN

WWAN (Europe) 2G: 850/900/1800/1900MHz ，3G: 850/900/1900/2100MHZ ，4G: B1, B3, B5, B7, B8, B20, B40

WWAN (America) 2G: 850/900/1800/1900MHz ，3G: 850/900/1700/1900MHZ ，4G: B2, B4, B7, B12, B17

WWAN (Others) Depending on the country's ISP

Bluetooth Bluetooth v2.1+EDR,3.0+HS,v4.1+HS

GNSS GPS/AGPS, GLONASS, BeiDou; internal antenna

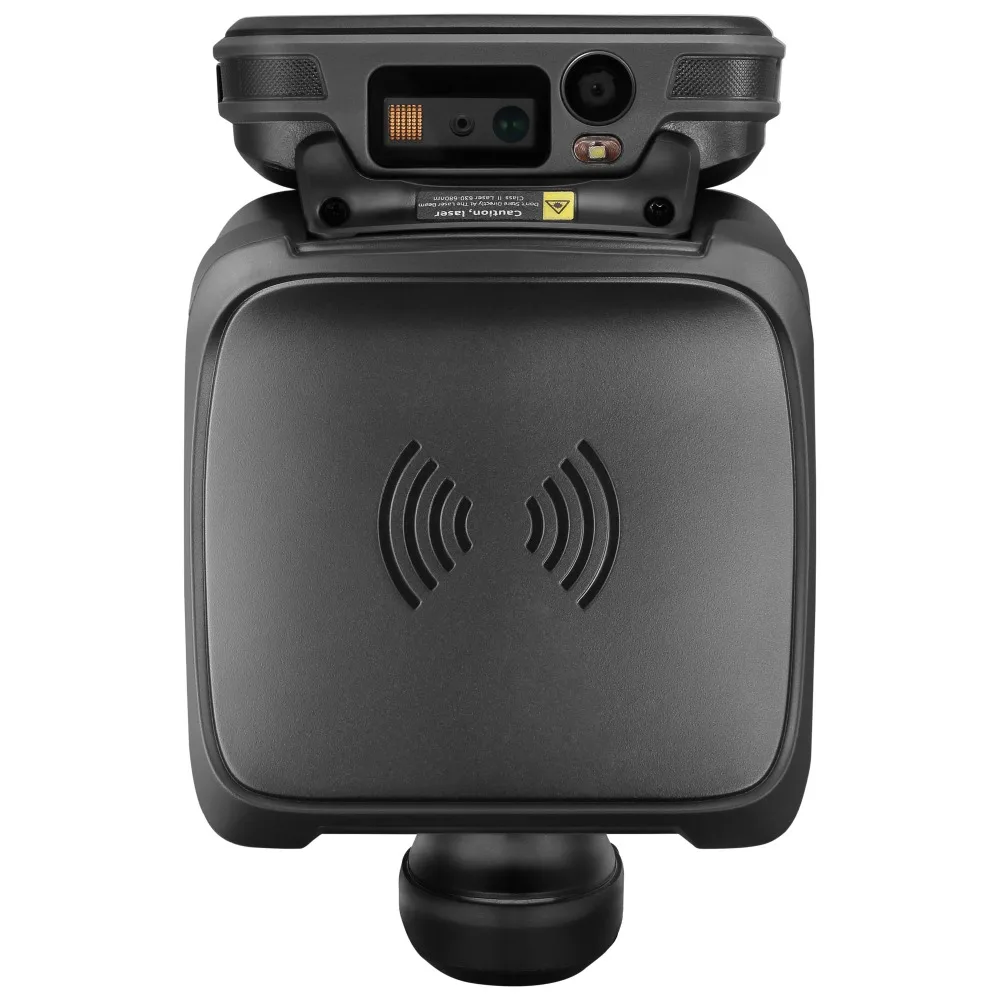

UHF RFID

Engine ：CM2000-1 module based on Impinj Indy R2000

Frequency： 865MHz-868MHz / 920-925MHz / 902-928MHz

Protocol： EPC C1 GEN2 / ISO18000-6C

Antenna： Linear polarization(1.8dBi); circular polarization (4dBi)

Power ：1W (30dBm, +5dBm to +30dBm adjustable)

R/W ranges ：＞7m (linear polarization, outdoors); ＞21m (linear polarization, indoors)

                         ＞10m (circular polarization, outdoors); ＞25m (circular polarization, indoors)

Reading rates (circular polarization) ＞200 tags/s (circular polarization)

Note ：Ranges and rates depend on tags and environment

Barcode Scanning

1D Linear Scanner ：Zebra SE965

2D Imager Scanner：Zebra: SE4710

1D Symbologies：UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.

2D Symbologies：PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc.



User environment

Operating Temp：4°F to 122°F / -20°C to 50°C

Storage Temp：-40°F to 158°F / -40°C to 70°C

Humidity：5% RH - 95% RH non condensing

Drop Specification：Multiple 1.5m/4.9ft drops (at least 20 times) to the concrete across the operating temperature range

Tumble Specification：1000 x 0.5m/1.64ft falls at room temperature

Sealing： Host IP65 per IEC sealing specifications

The different  Specification of Android 8.1

CPU:Cortex-A53 Octa-core 2.5GHz

RAM+ROM: 3GB+32GB（Octa-core）

WLAN:

WLAN IEEE802.11 a/b/g/n/ac, 2.4G/5G dual-band, internal antenna

WWAN (China)

2G: 900/1800MHz

3G: WCDMA: B1,B8  CDMA2000 EVDO: BC0  TD-SCDMA: B34,B39

4G: B1,B3,B5,B8,B34,B38,B39,B40,B41

WWAN(Overseas)

2G: 850/900/1800/1900MHz

3G: B1,B2,B4,B5,B8

4G: B1,B2,B3,B4,B5,B7,B8,B12,B17,B20,B25,B40,B66

WWAN (Others)

Depending on the country's ISP

Bluetooth:

Bluetooth v2.1+EDR,3.0+HS,v4.1+HS

GNSS:

GPS/AGPS, GLONASS, BeiDou; internal antenna

Barcode Scanning:

1D Linear Scanner Zebra SE965

2D Imager Scanner Zebra: SE4750

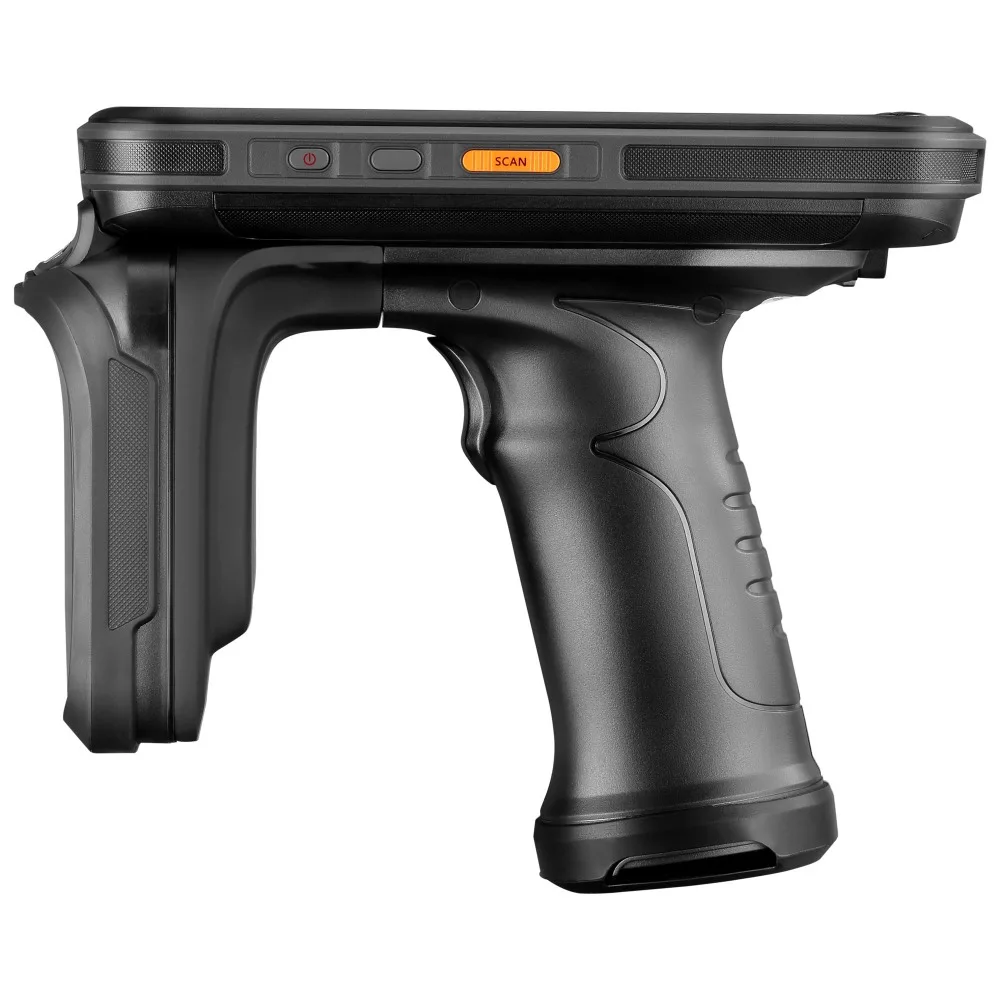

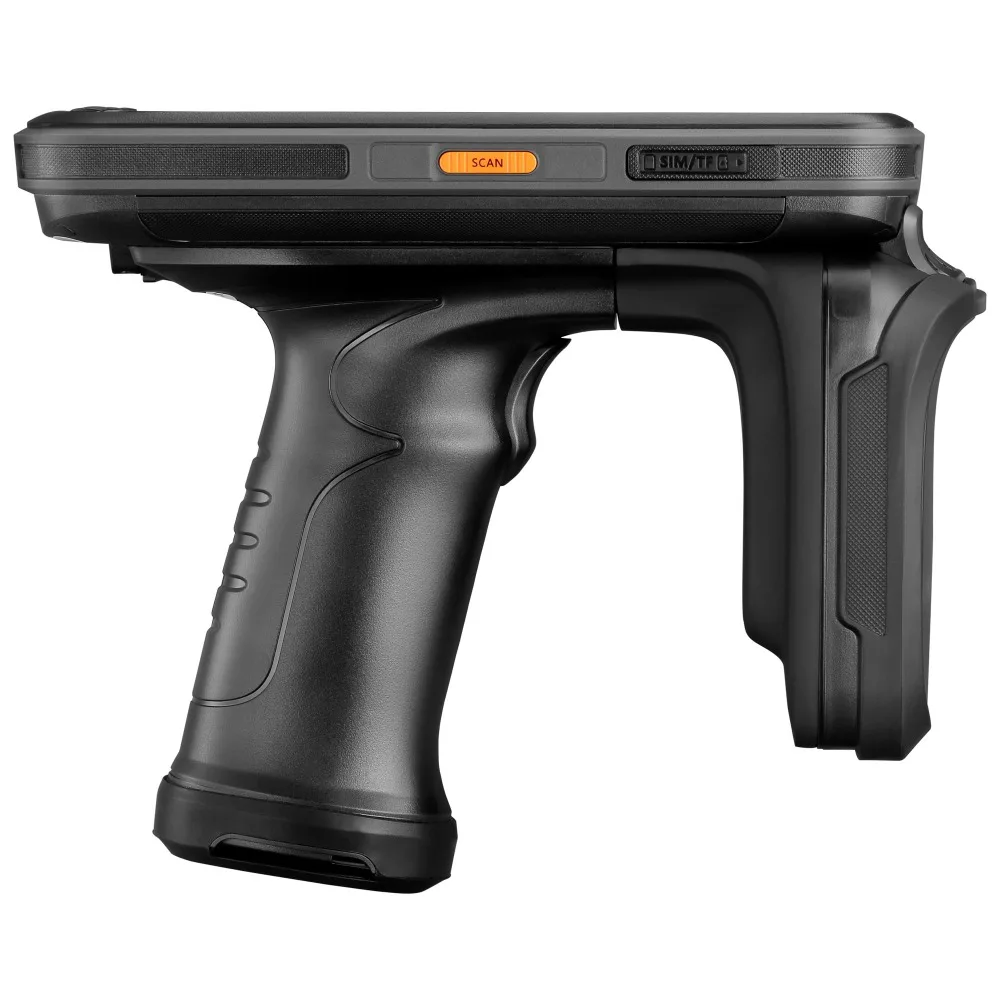

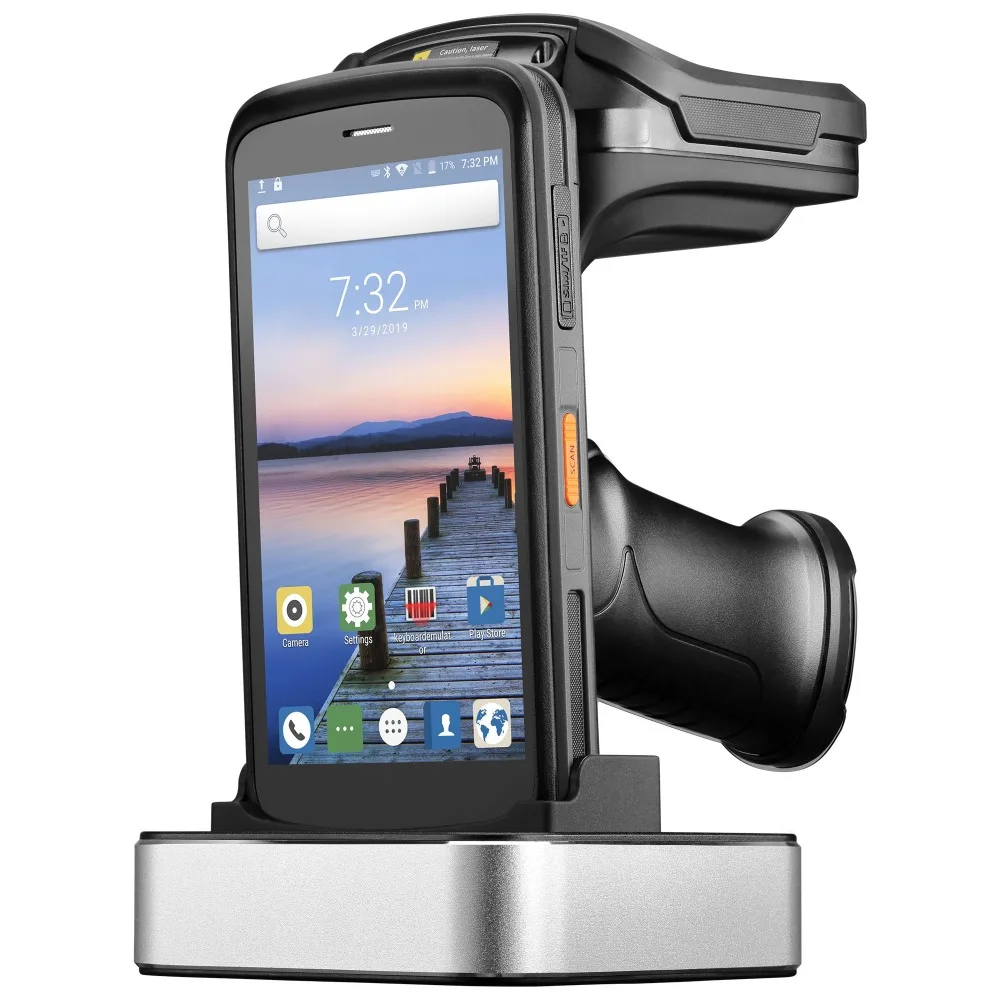

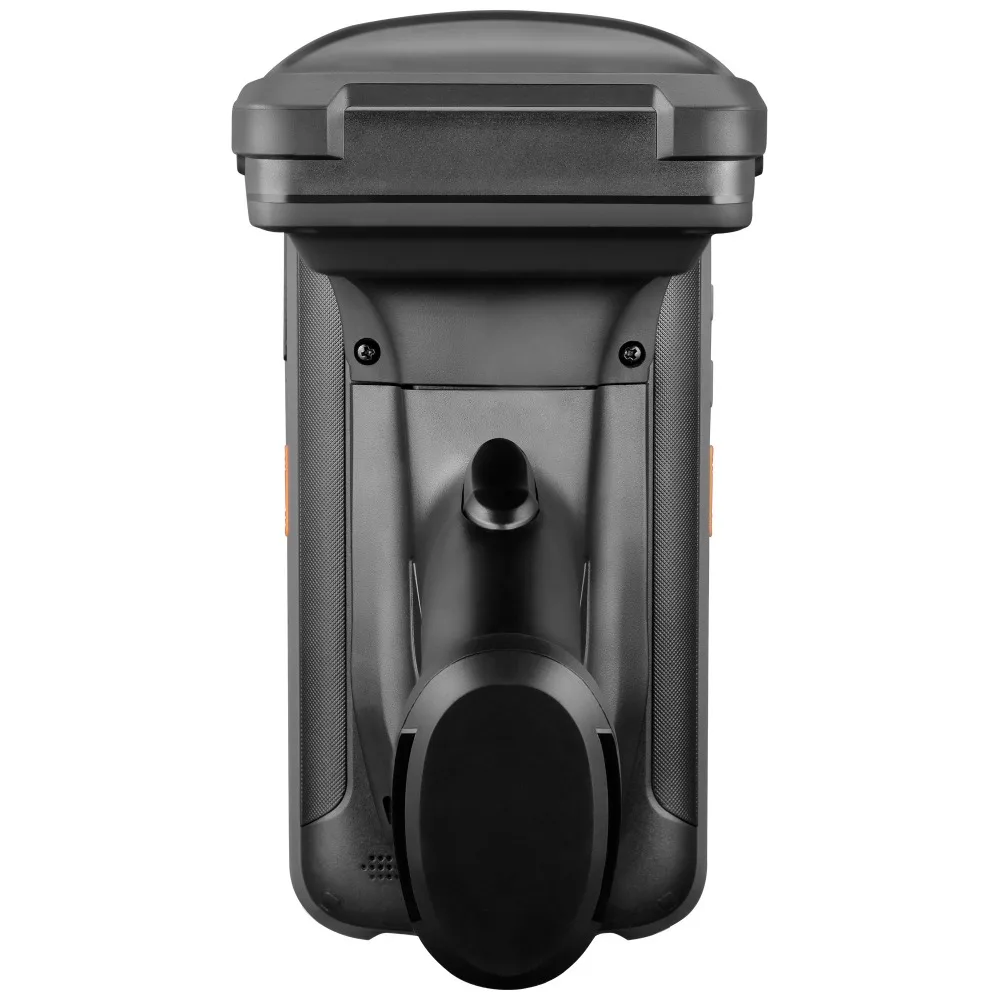

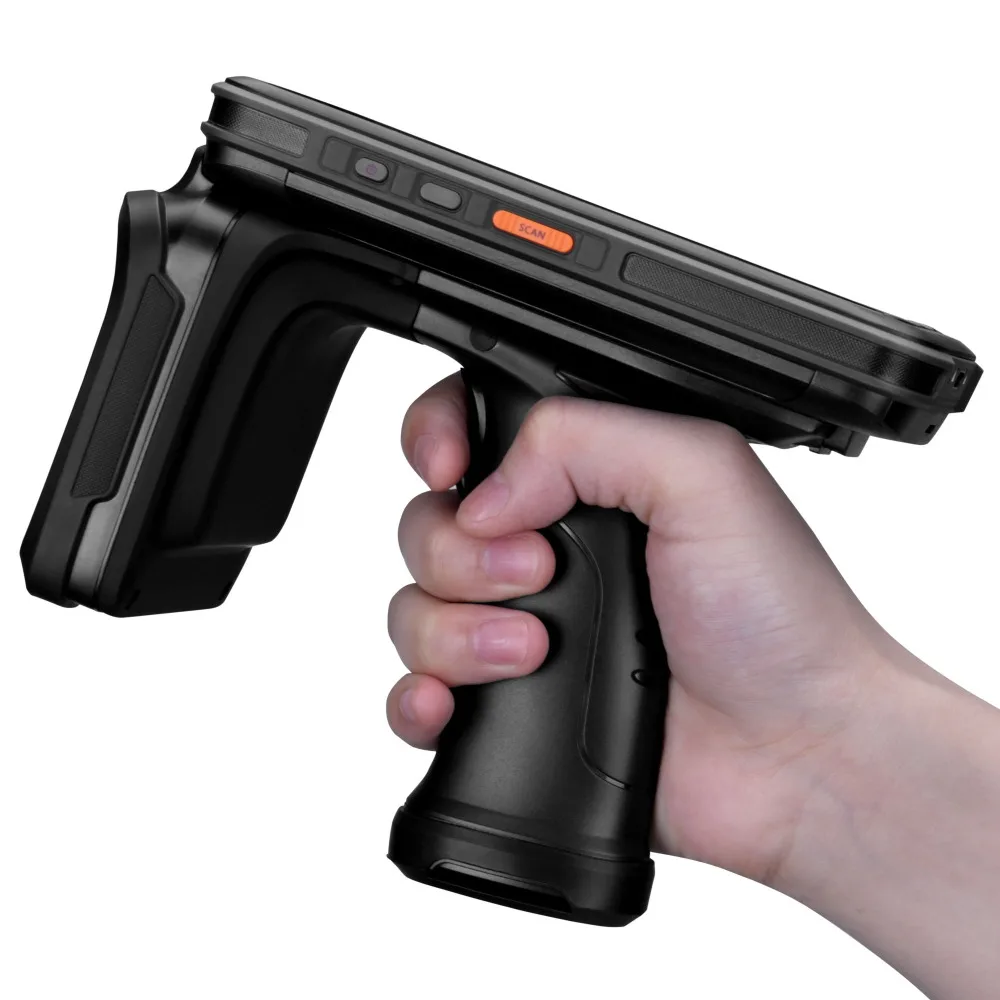

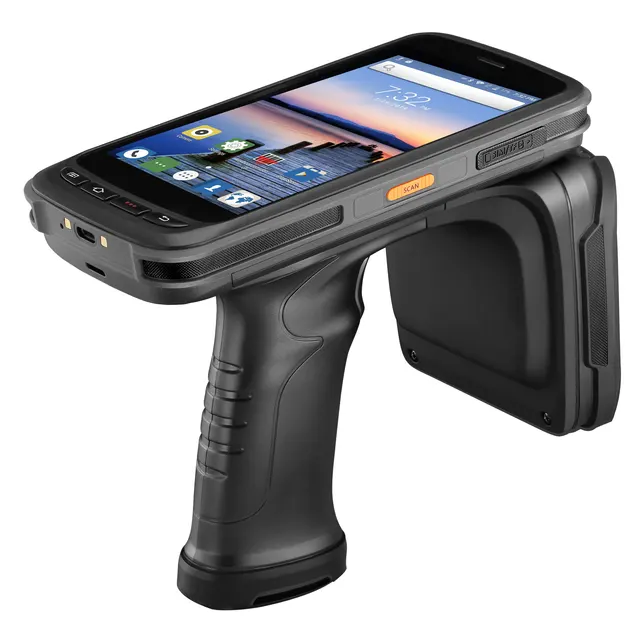

 Product show

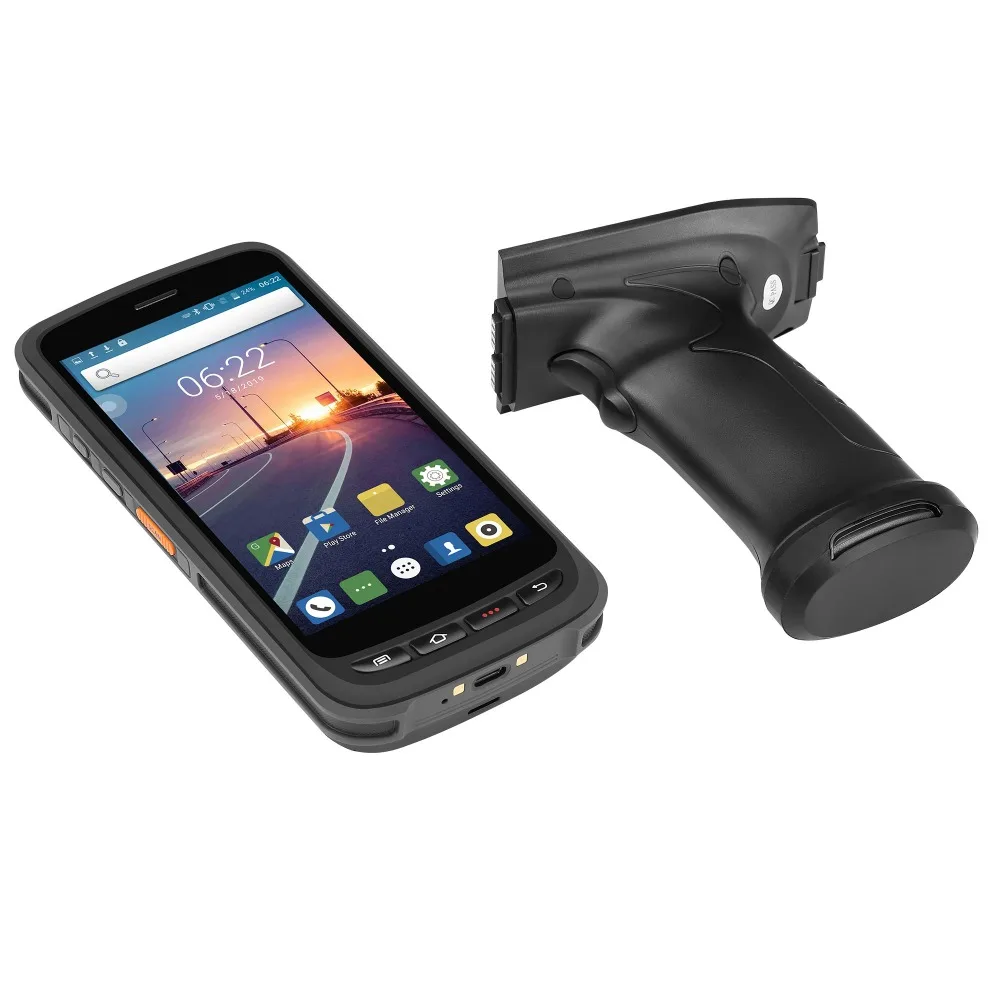

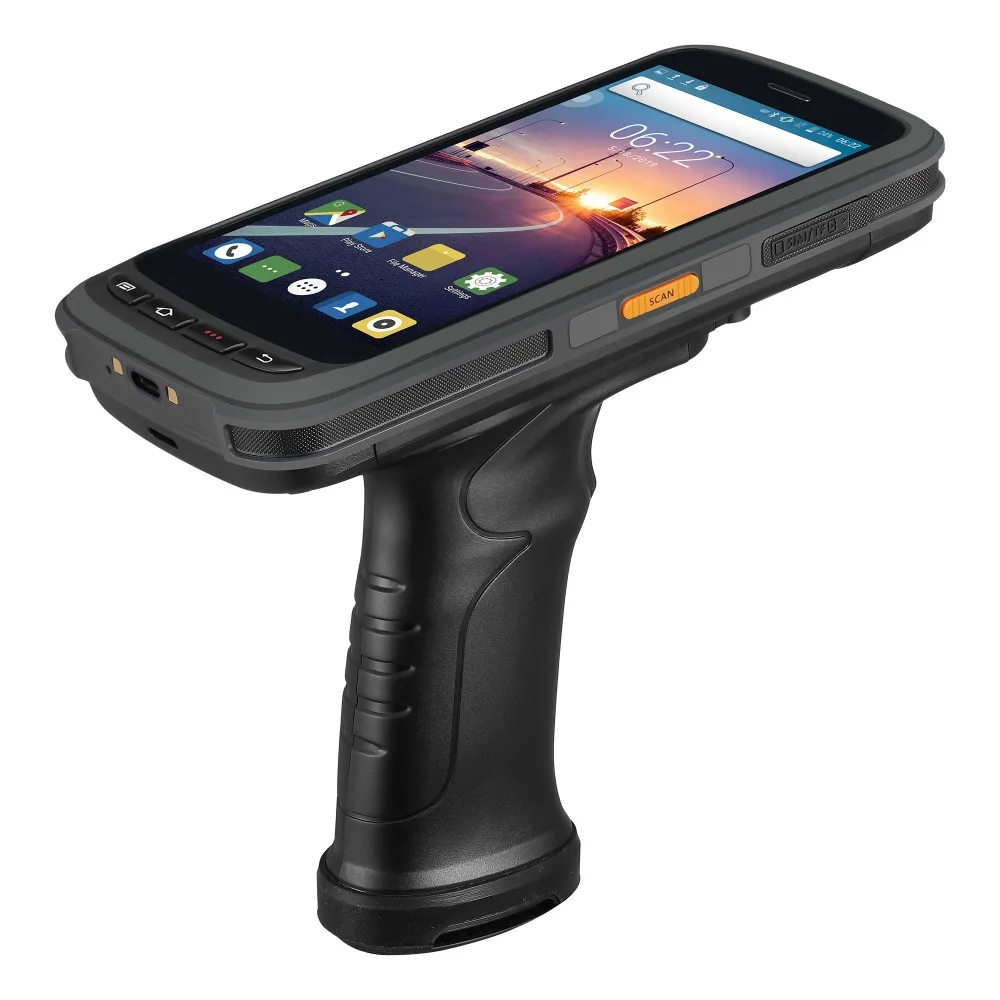

Without UHF　Without UHF RFID







Packaging Details

•
  Unit Type:
  piece



•
  Package Weight:
  1.8kg (3.97lb.)



•
  Package Size:
  23cm x 15cm x 10cm (9.06in x 5.91in x 3.94in)
