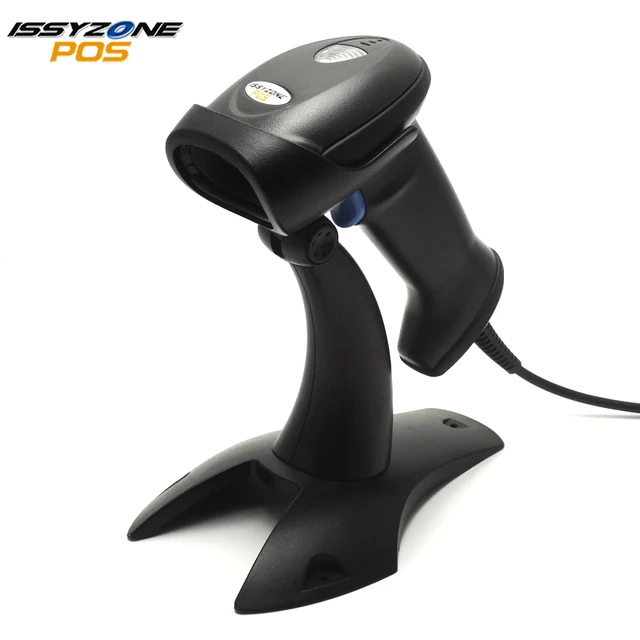

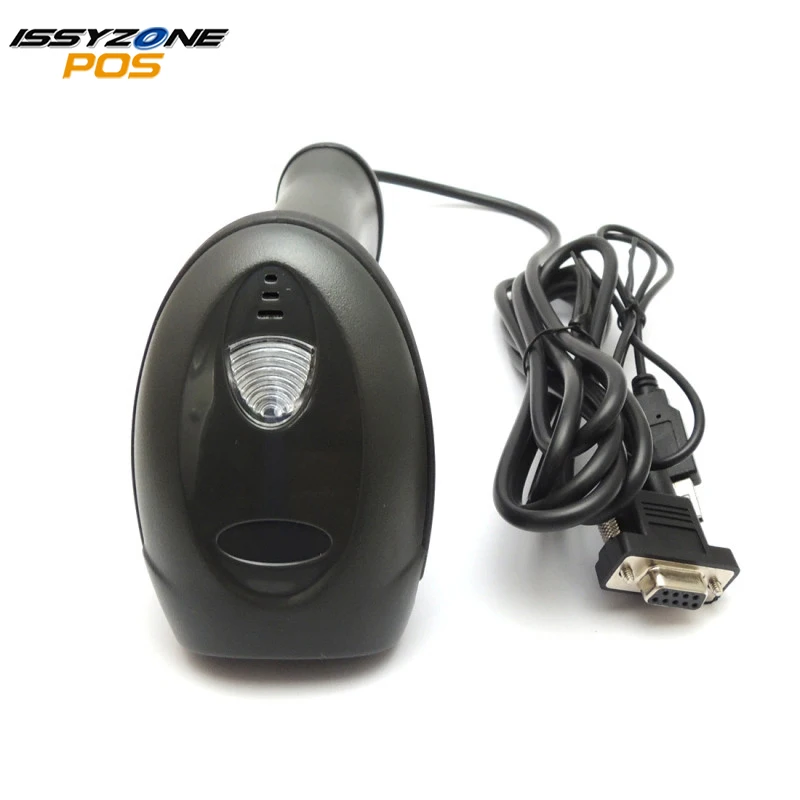

IssyzonePOS 1D Barcode Scanner with Stand Handheld USB Automatic Laser Wired Barcode Scanner Barcode Reader Bar Code Reader
Optical Resolution:
300*300
Type:
Barcode Scanner
Model Number:
IPBS036
Product Type:
Bar Code Scanner
Novelty:
New
Time to market:
Oct-11
Scanning Light Source:
Laser Light
Brand Name:
ISSYZONEPOS
Scan Speed:
150 scans/s
Scan Element Type:
Laser
Interface Type:
USB-HID,USB-COM,PS2,RS232
Scan Breadth:
1D Barcode Scanner
Light Source:
Visible Laser diode ,650nm
Scan Mode:
Manual /Automatic inductive /Successive (Optional )
Yaw/Rotation/Pitch:
65°/30°/55°
Depth of scanning field:
0-250mm(0.33mm.PCS 90%)
Interface Support:
USB Port /RS232 Com Prot /PS2 Port
Dimension:
L176mm*W100mm*H72mm
Length of Cable:
2 meters
Housing Materials:
ABS+PC
Relative Humidity:
5%~85%(Non-condensing)
EAN-8,EAN-13,UPC-A,UPC-E,CODE39, CODE128:
EAN128/Codabar/ Industrial 2 of 5/Interleave 2 of 5/ Matrix 2 of 5/MSI
IPBS036 Supports Automatic Scanning, if you need, pls contact us to change price (add $5) for you.
This Barcode Scanner standard interface is USB, if you need other interface, please contact us before you make the order. Thanks!
Main Features:
1.Linear Imaging sensitive technology:
quick scan bar codes, even in poor print quality or corrupted scanning barcodes, but also has good decoding performance.
2.User-friendly design: ergonomic design, feel more comfortable, more convenient operation, easy fatigue.
3.Durability: 100% curing technology, using imported switch button, longer life.
4.Connection is simple: one scanner with cable, more convenient and your host or PC connected.
5.Intuitive aiming line: easy to use file to scan bar codes and bar code densely packed.
Easy to Use:
This 1D barcode scanner supports all the PC systems, Plug and Play, needn't to install any driver. The below is User Manual for IPBS036, setting the use model via scan the barcode which in user manual. Easy to use!!
IPBS036 Industrial 1D Laser Barcode Scanner | |
Performance Parameter | |
Light Source | Visible Laser diode ,650nm |
Decode Capability | EAN-8,EAN-13,UPC-A,UPC-E,Code 39,Code 93,Code 128,EAN128,Codaber, Industoal 2 of 5,Interleave 2 of 5,Matrix 2 of 5,MSI,etc. |
Scan Rate | 150 scans per second |
Trigger Mode | Manual /continuous scan /auto-trigger (Optional ) |
Interface Support | USB（Standard）,PS2,RS232(Optional) |
Physical Parameter | |
Dimension | L176mm*W100mm*H72mm |
Weight | 249g |
Housing Materials | ABS+PC |
Cable Parameter | 2M |
IP Level | IP54 |
Safety | |
Laser Safety | EN60825-1,Class 1 to National Laser Safety Standards |
EMC Regulation | EN55022,EN55024 |
Certificate | ROHS ,CE , FCC |
Impact Resistance | withstands multiple 3m drops to concrete |
1.Services working time:08:30-19:00(China Time)2.If Services are not online,please buy the items directly,we will arrange shipment for you as soon as possible
1.All items have 1-year warranty,besides paper and parts.
2. We have a after service card comes with the parcel, please keep our contacts when you get the parcel so that you can contact us if items have quality issues.
3.We have a technology team can assist you for installation or development.
1.Estimated delivery time depends on which shipping company youi choose .You can check it when you place an order.
2.Please double check your address before completing your payment.If you want to make any changes,please kindly contact us asap.
3.If you haven't received your shipment within 40days from your payment,please contact us immediately for help.
1)We accept Escrow, Boleto, Visa, MasterCard, QIWI, Western Union, Maestro debit card, Paypal,WebMoney, bank transfer, credit card and any you can pay on AliExpress.
2)Escrow is the best secure payment for you.
3)This is the payment help center: https://helppage.aliexpress.com/buyercenter/index.htm
1.Your positive feedback is important to us,If you are satisfied with our products and services,please leave your postive feedback and 5 stars.
2.If you don't satisfied our products,pls contact us before you leave negative feedback.
we guarantee we will 100% slove any problem for you and make you satisfied.
Unit Type:
piece
Package Weight:
0.6kg (1.32lb.)
Package Size:
11cm x 14cm x 26cm (4.33in x 5.51in x 10.24in)
