Android PDA Barcode scanner 1D 2D QR code Honeywell Newland Scanner IP66 Wifi 4G 4.5'' screen keyboard NFC PDA Data Terminal
Brand Name:
mussels
Scan Speed:
100 scans/second
Type:
Barcode Scanner
Optical Resolution:
600*1200
Scan Element Type:
CMOS
Interface Type:
USB
Scan Breadth:
A4
Model Number:
pda with barcode scanner
Novelty:
New
Scanning Light Source:
Laser Light
Colour Depth:
48 Bit
Time to market:
Mar-13
Product Type:
Portable Scanner
CPU:
ARM CORTEX-A53 64bit Quad-Core 1.5G
Operating system:
Android 7.0
Memory:
2G RAM + 16G ROM
Battery:
3.7V 4200mAh
Interface:
Type-C USB
Screen size:
4.5 inch
Data communication:
Wifi , Bluetooth , LTE 4G / WCDMA 3G / GSM 2G
Sealed environment:
IP66
Drop resistance:
1.5 meters drop , 6 sides
Optional functions:
1D / 2D barcode scanner, RFID LF / NFC , PSAM
Android PDA Barcode scanner 1D 2D QR code Honeywell Newland Scanner IP66 Wifi 4G 4.5'' screen keyboard NFC PDA Data Terminal
The standard configuration
4.5 inch touch screen + Android 7.0 OS + Wifi + Bluetooth + GPS + FDD-TLE 4G / WCDMA / GSM + phone + Camera + Google play + 2G RAM + 16G ROM + SDK
Optional functions

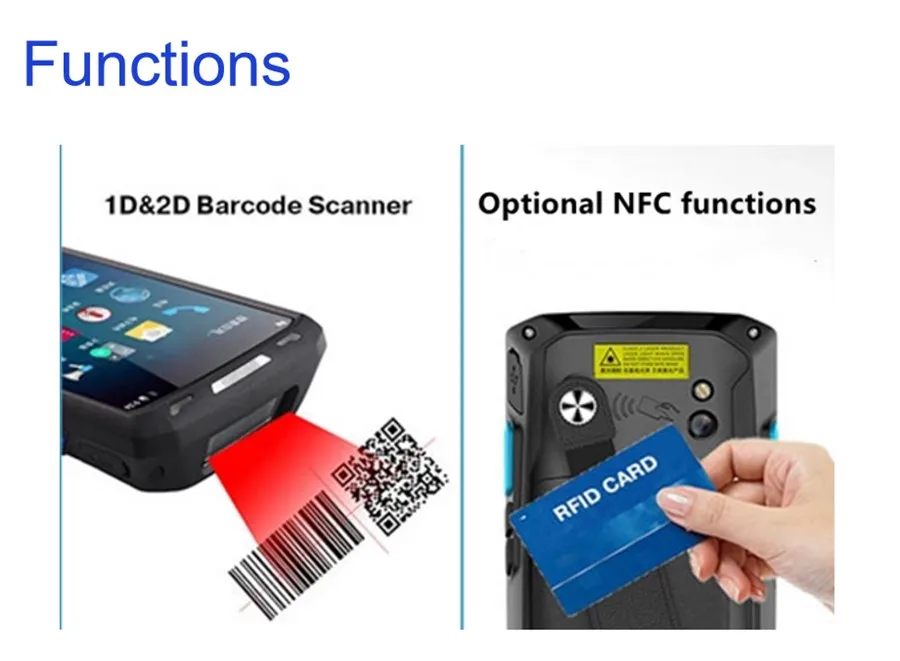

1D/ 2D barcode scanner, PSAM, or RFID LF/ HF, NFC. Please choose according to your needs.
Main Features

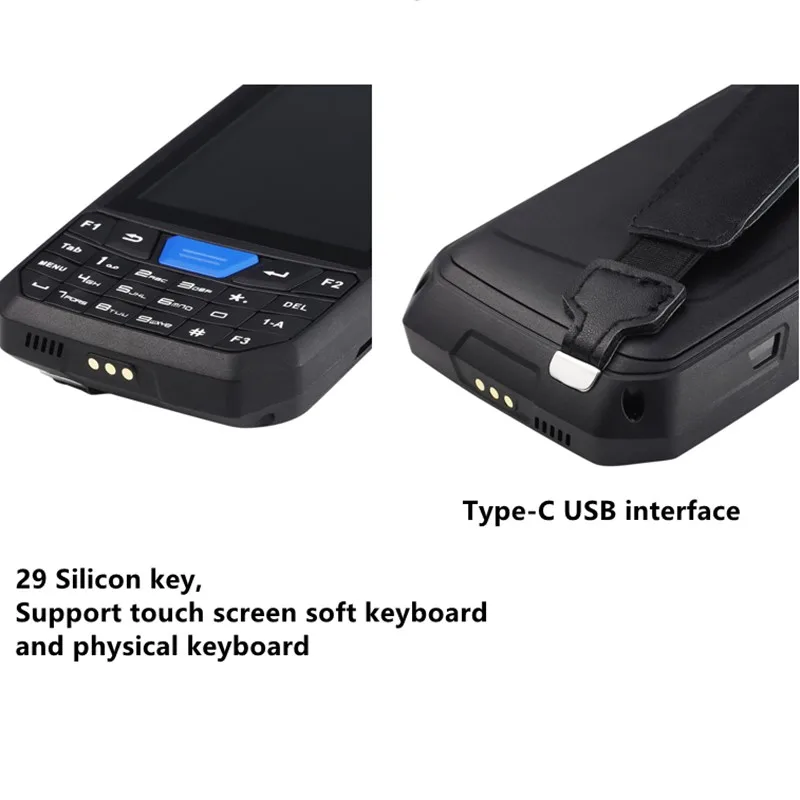

Type-C USB interface
Support Google Play store
8.0M mega pixel camera

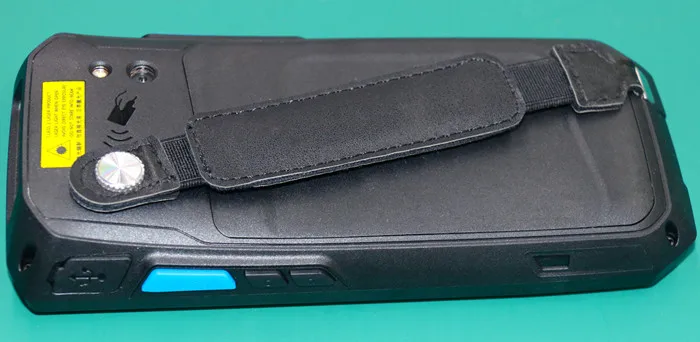

Compact and Portable Ergonomic Design with wrist strap
Safe OS (Android 7.0) Highly optimized Android operating system

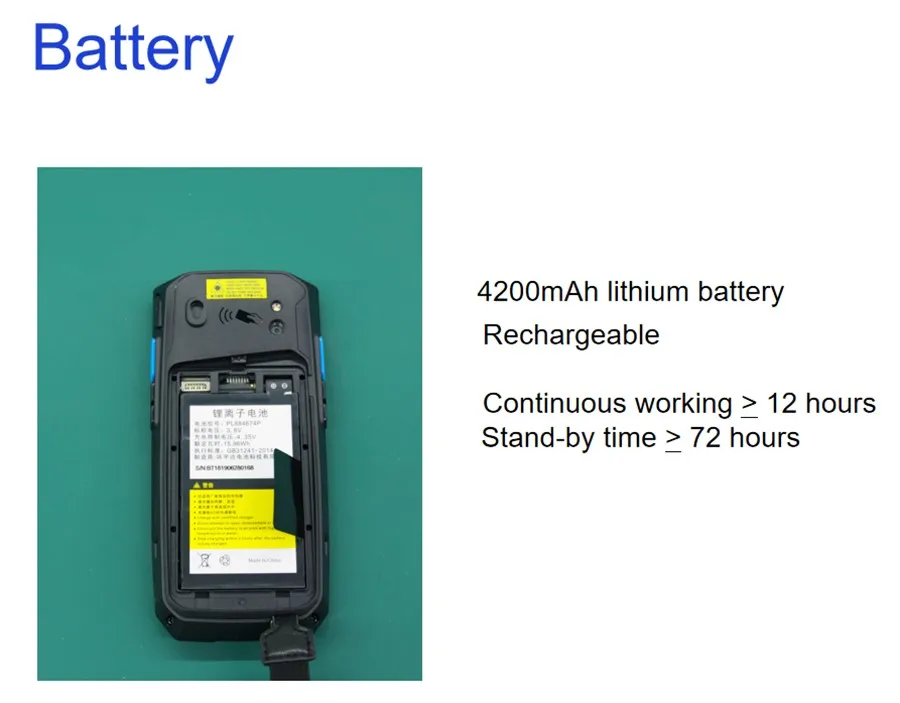

High capacity 4200mAh battery
Multiple languages supported
Industrial rugged design, waterproof and protection grade(IP66)

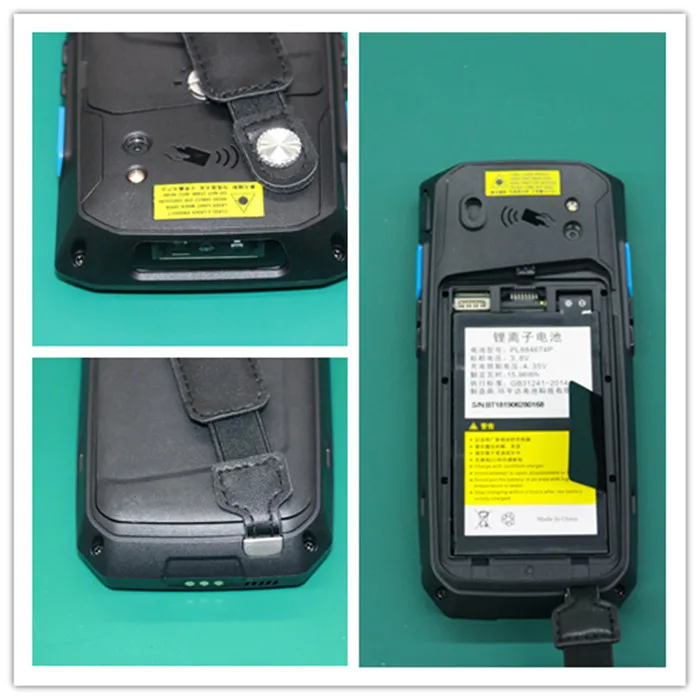

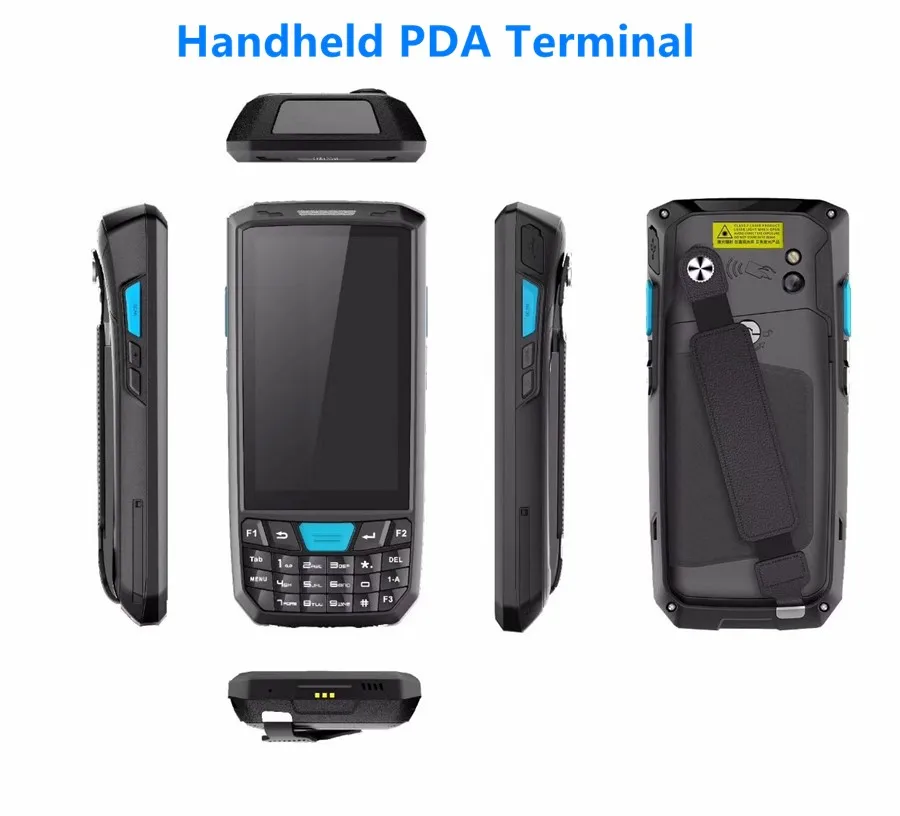

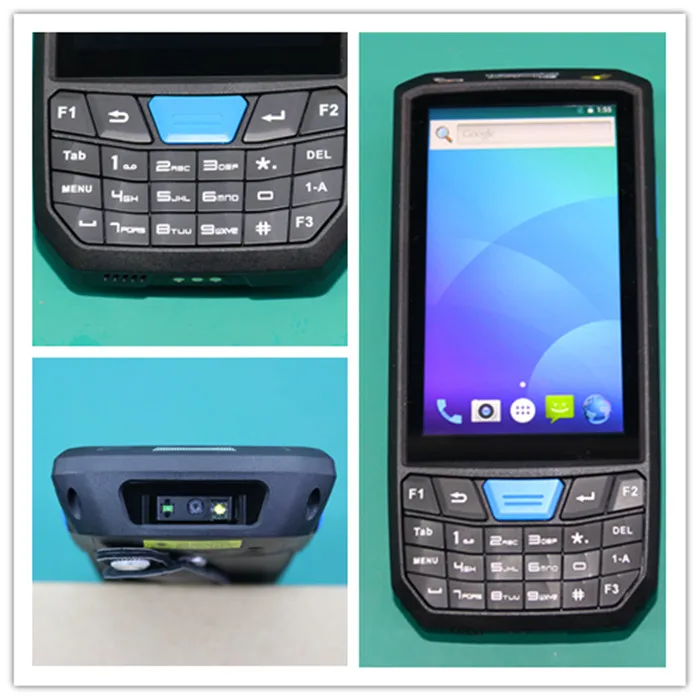

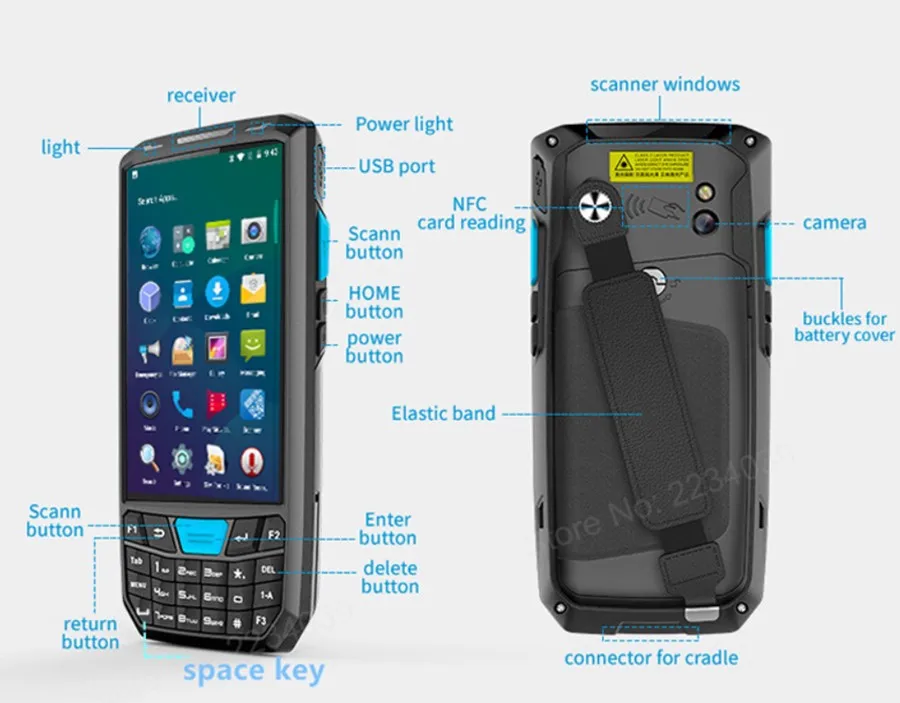

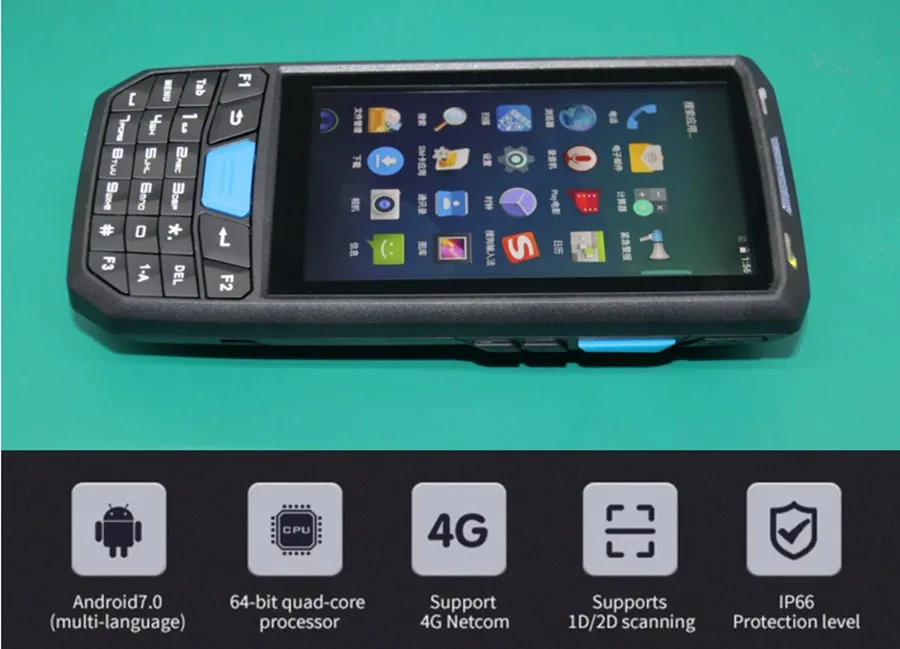

Product pictures
Technical specifications
Structural Parameter | |
Dimensions | 166mm(L)X77.5mm(W)X22mm(D) |
Weight | <500g |

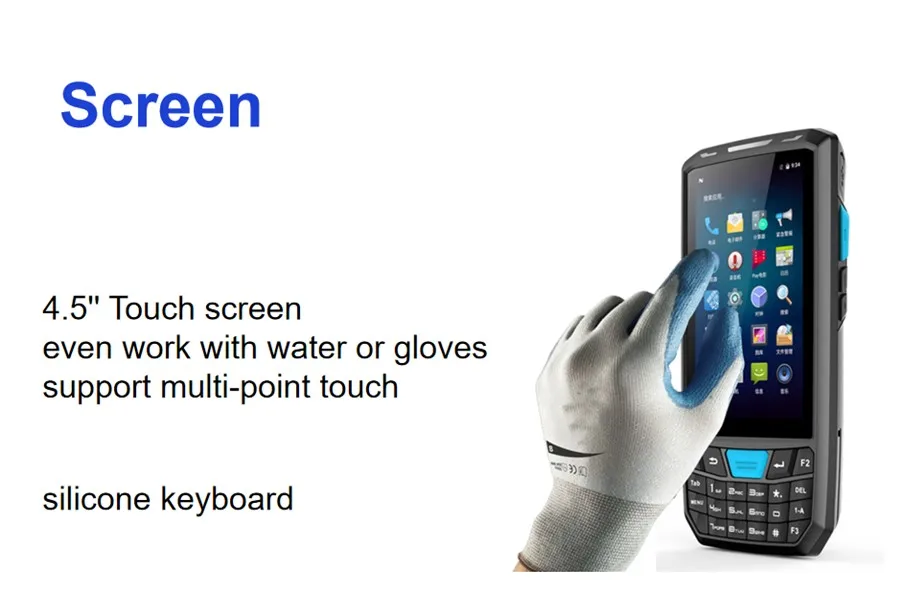

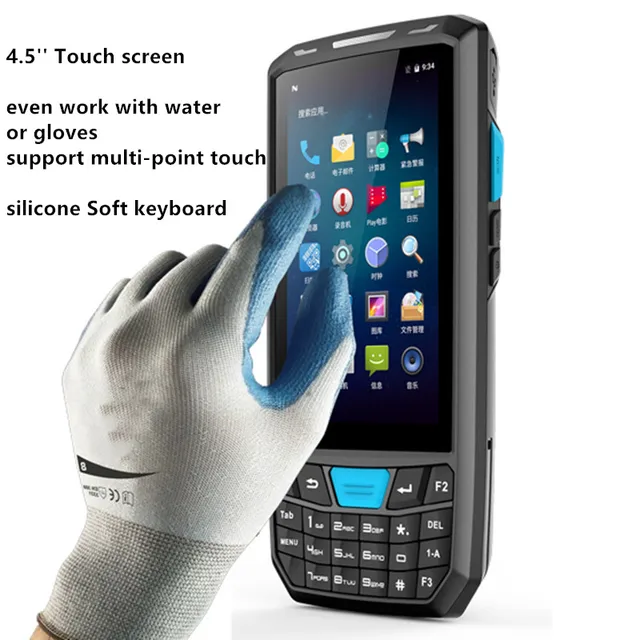

Display Screen | 4.5inch IPS 480*854 px with Multi-point touch capactive screen |
Expand Port | SIM card, micro SD (TF) Card |
Communication Interface |
|
Input Mode | Standard Stylus, Handwriting, touching input or keyboard input |
Battery Capacity | Rechargeable Li-polymer Battery 3.7V 4200mAh |
Frequency | 8ohm 1W speaker |
Key | Silicone keyboard |
Performance Parameter | |
OS | Android 7.0 |
CPU | ARM CORTEX-A53 64bit Quad-Core 1.5G |
RAM | 2G RAM Default |
Flash ROM | Standard 16G NAND Flash Storage |
micro SD/TF port (Max up to 32G) | |
Data Communication | |
WI-FI | Support IEEE802.11 a/b/G/n protocol, it need effective wireless LAN signal cover |
FDD/TDD-LTE 4G | TDD-LTE (B38,B39,B40,B41),FDD-LTE (B1,B3) |
WCDMA 3G | B1,B2,B5,B7,B8 |
GSM 2G | GSM/edge/GPRS (850,900,1800,1900MHz) |
bt | Support bt 2.0+EDR/3.0+HS/4.1+HS, transmission distance is 5-10m |
Standard Modules | |
Camera | 8MP autofocus camera with flash |
GPS | Support A-GPS |
Operating Environment | |
Operating | -20°C to 55°C |
Storage Temperature | -25°C to 70°C |
Environment Humidity | 5%RH-95%RH(no condensation) |
Drop Specifications | 6 sides can bear impact from 1.5m drop to cement floor in the range of operating temperature |
Roll Specifications | 1000 times/0.5m, roll on 6 sides contact area |
Sealed Environment | IP66 |
1D Laser Scanner (OPTIONAL) | |
1D Laser Scanner | Symbol 955, HoneywellN4313,Mingde966 |
Resolution | 4Mil minimum width |
Ambient Light | 10000ft.candles(107640 lux) |
Scanning Speed | 104(±)12/sec (bothway) |
Scanning Angle | 47o±35o(Standard) / 35o±3o(narrow angle) |
Support Bar Code Type | UPC/EAN, Code128, Code39, Code93,Code11, Interleaved 2 of 5, Discrete 2 of 5,Chinese 2 of 5, Codabar, MSI, RSS |
2D CMOS (OPTIONAL) | |
CMOS Scanner | Honeywell N6603,NewLand 3096 |
The Sensor Resolution | 752(level)×480(vertical)pels(gray level) |
Ambient Light | All dark 9000ft.candles/96900 lux |
focus element (VLD) | 655nm ± 10nm |
Support bar code type | PDF417,MicroPDF417,Composite, RSS,TLC-39, Datamatrix, QR code, micro QR code,Aztec, MaxiCode; Postal Codes: US PostNet,US Planet, UK Postal, Australian Postal, JapanPostal Dutch Postal (KIX)3 |
LF RFID Reader (Optional) | |
Frequency | 125kHz, 134kHz (FDX-B / HDX) |
Protocol | ISO11784/5, ISO18000-2 |
Range | 3-8cm |
NFC Reader (Optional) | |
Frequency | 13.56MHz |
Protocol | ISO/IEC 18092 (ECMA 340) |
Range | 2-4cm |
1 unit packing list include
1x PDA
1x battery
1x USB data cable
1x plug (US, EU, AU version for mathched counties, will ship the plug version according to your address)
1x user manuel
1) Once the order is confirmed, we will arrange shipment within 1- 5 days. To guarantee fast delivery, our company have products with normal specifications in stock.
2) Because all items with battery inside, to make sure you receive the goods successfully. normally we use Aliexpress standard shipping. This method is available for all countries, including Russia, Brazil. The delivery time is about 20 - 40 days. If you have enough time for the purchasing process, you can choose this way. It's free for the buyer. If you want to get the products within 10 days, you can choose DHL.
3) Kindly write correct and detailed delivery address for your order.
4) Service Transmit Time is provided by the carrier and excludes weekends and holidays. Transmit time may vary, particularly during the holiday season. If you havev't received the goods within 30 days after payment, please contact us. Of course, we will update you shipping status every weeks.
1) We provide 12 months warranty for our producs, since the buyer got the goods. The buyer is free to contact us anytime when there is doubts to use the device, or meet any technical problems.
2) The buyer is able to contact us by these ways. Send message via Aliexpress or Trademanager. You will get a reply within 1 natural day.
3) If there is quality problems, we will replace with new product , after the buyer provide video and the clients need to ship the device back . After we got buyer's complaint, we have colleague to contact with you soon to solve the problem until you are satisfied.
If you are satisfied with our products and service, welcome to re-order and give us a 5-Star for the transaction. If you are not satisfied, welcome to contact us and complain to us, we will solve your problem soon, until you are happy.
Enjoy your shipping.
Unit Type:
piece
Package Weight:
1.0kg (2.20lb.)
Package Size:
24cm x 20cm x 8cm (9.45in x 7.87in x 3.15in)
