Barcode Scanner PDA Warehouse Rugged Data Collector Handheld Terminal Honeywell n4313 laser 1D 2D scanner android
Scan Speed:
100 scans/second
Scan Element Type:
CMOS
Interface Type:
USB
Type:
Barcode Scanner
Colour Depth:
32 Bit
Model Number:
barcode scanner pda
Product Type:
Bar Code Scanner
Novelty:
New
Time to market:
Mar-13
Scanning Light Source:
Laser Light
Brand Name:
mussels
Optical Resolution:
480*800
Scan Breadth:
1D 2D
Operating system:
Android 7.0
Barcode scanner:
1D 2D barcode scanner
Memory:
2G RAM + 16G ROM
Data communication:
4G LTE/ 3G / 2G GSM, Wi-fi, Bluetooth
CPU:
ARM Cortex- A53 64bit Quad- Core 1.3G
Screen size:
4 inch
Battery:
3.7V 4000mAh
Professional after-sale service:
provide English SDK for secondary development
Optional functions:
NFC, RFID reader
Drop resistance:
1.5 meters for each side
Barcode Scanner PDA Warehouse Rugged Data Collector Handheld Terminal Honeywell n4313 laser 1D 2D scanner android

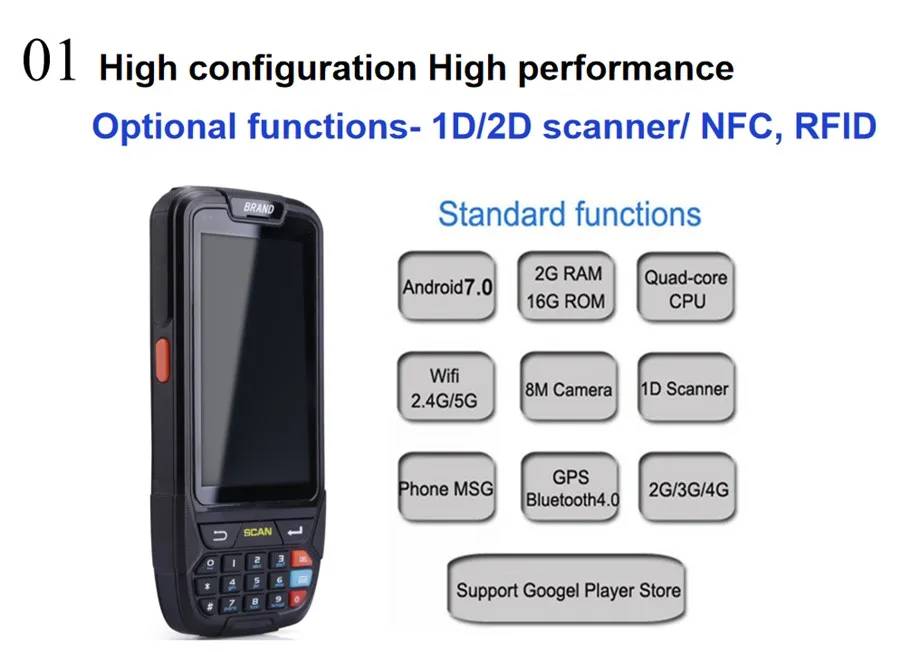

Standard Configuration.
4'' touch screen + Android 7.0 OS +2G RAM + 16G ROM +
Wifi + Bluetooth + GPS + FDD-TLE 4G / WCDMA 3G/ GSM 2G + phone + Camera + Google play + Free English SDK
Optional functions.
1D / 2D barcode scanner , RFID / NFC , extra battery , extra charger.

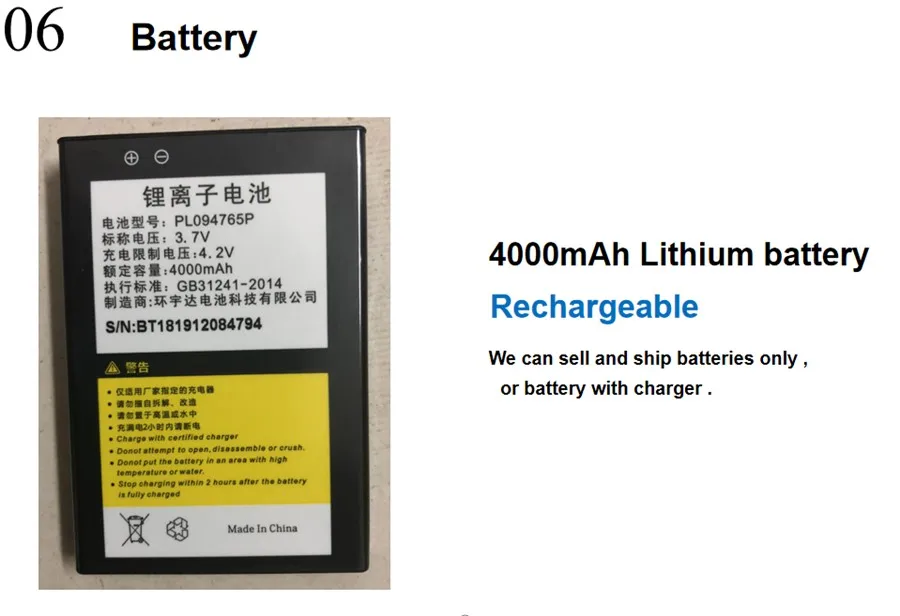

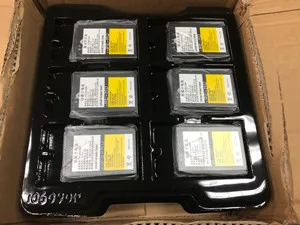

If you want to buy extra battery, please visit this link. We will ship extra batteries as seperate parcel .
https://www.aliexpress.com/store/product/3-7V-4000mah-lithium-pda-battery-for-PDA-terminal-device/4702084_32975910839.html

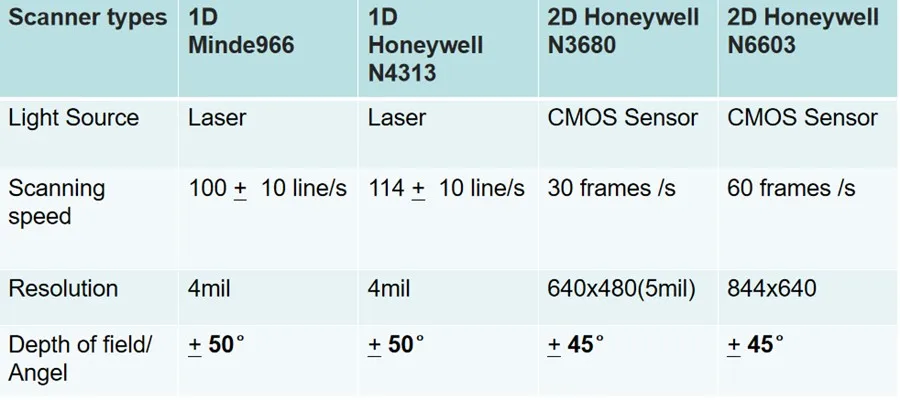

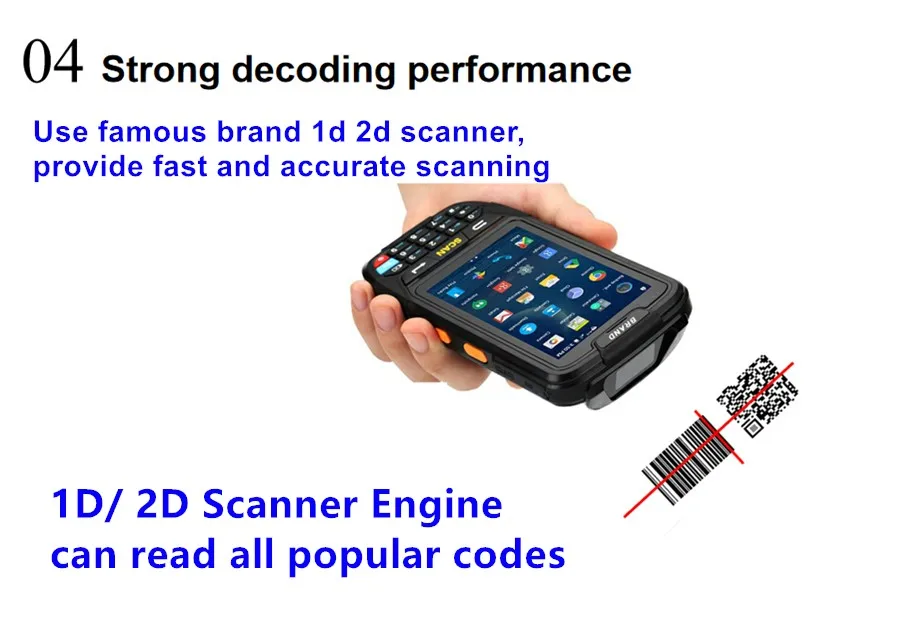

Barcode scanner
For 1D scanner, in the market, there are Minde966 and Honeywell N4313. Honeywell N4313 is higher cost than Minde966, and it works better on the scanning speed and performance.
For 2D scanner, in the market, there are HoneywellN6603 & Honeywell N3680, can meet the needs for different countries clients. N6603 is higher cost than N3680, they are able to scan different ranges of 2D code types.
Main Features

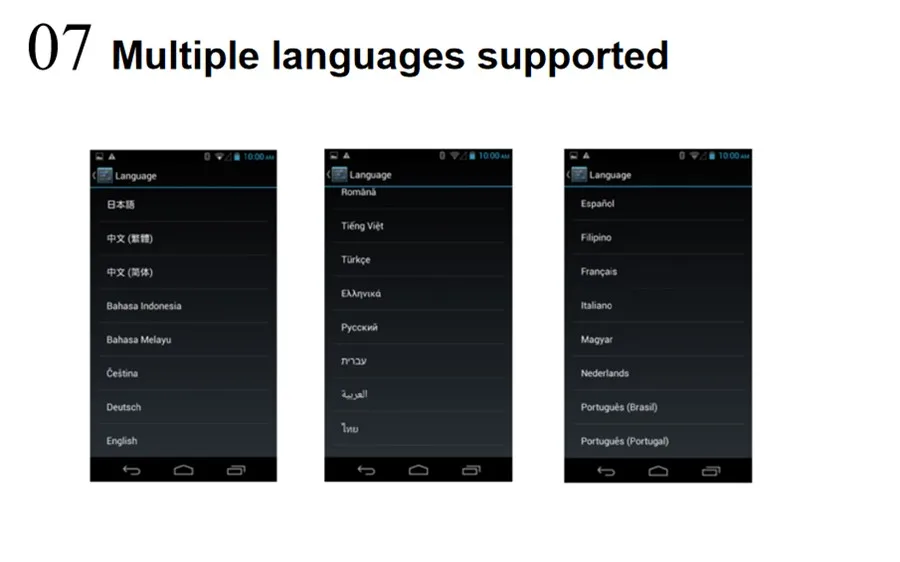

Multiple languages supported
Support Google Play store
8.0M mega pixel camera
Compact and Portable Ergonomic Design with wrist strap
Safe OS (Android 7.0) Highly optimized Android operating system
High capacity 4000mAh battery

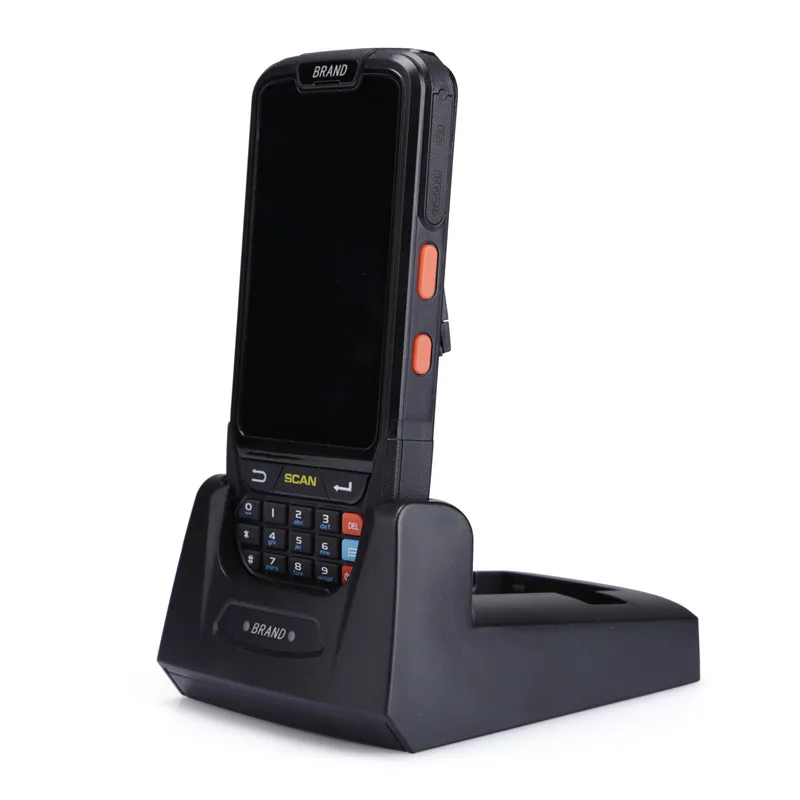

Pogo Pin interface for convenient charging with optional charge cradle

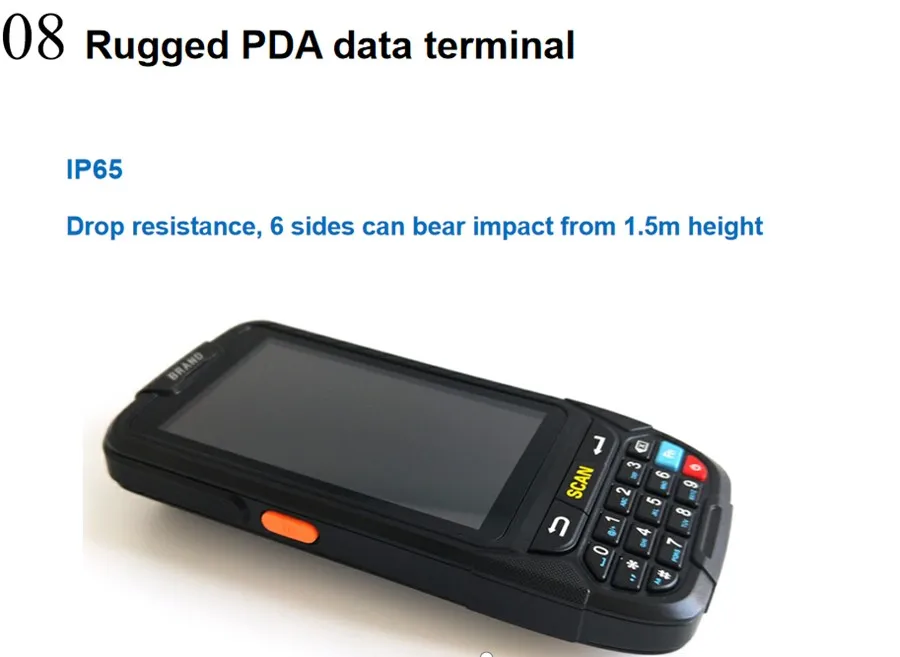

Industrial rugged design, waterproof and protection grade(IP65)

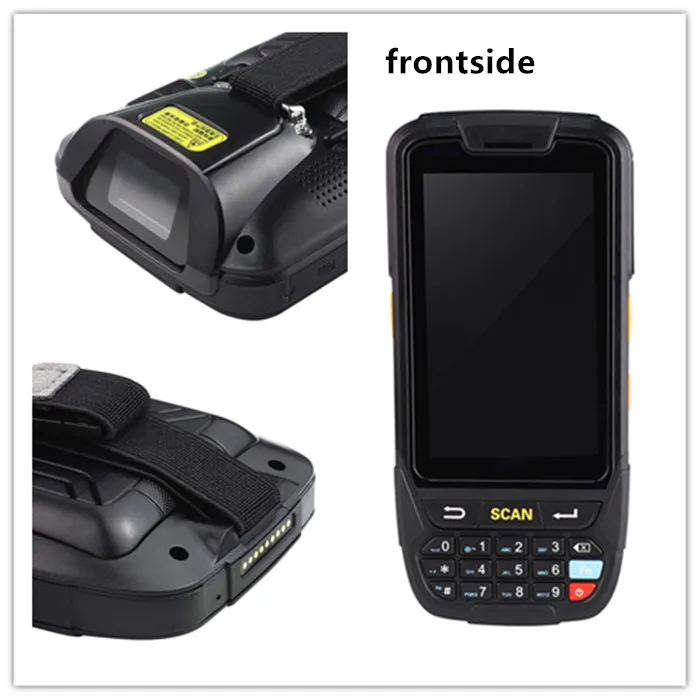

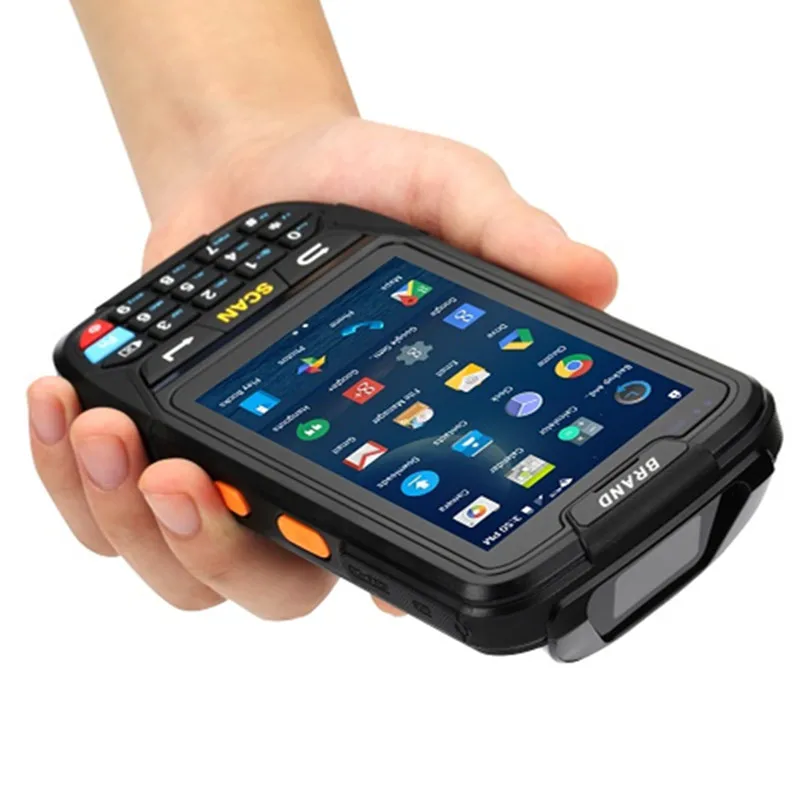

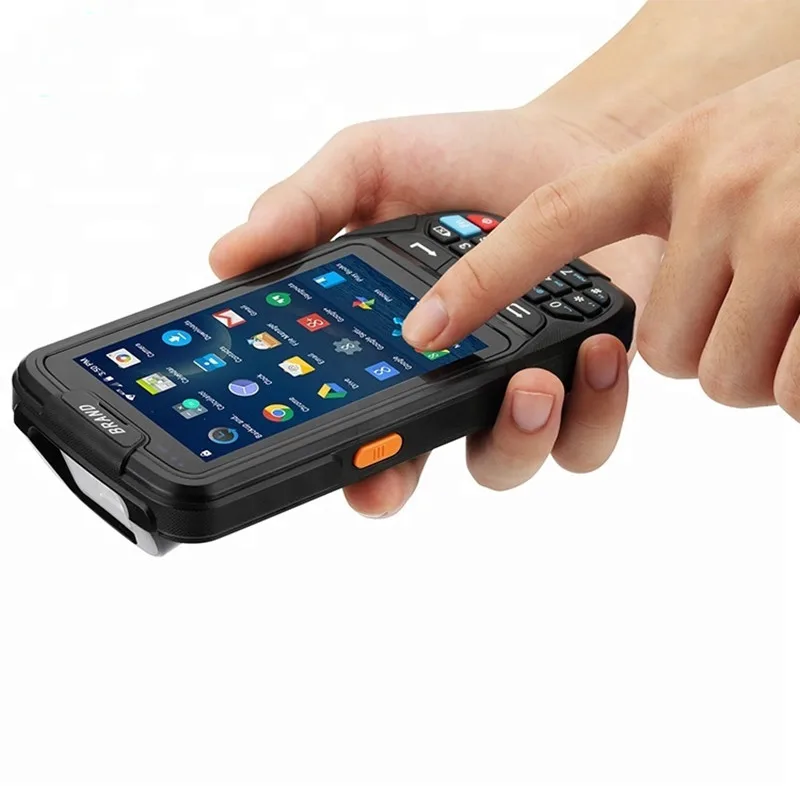

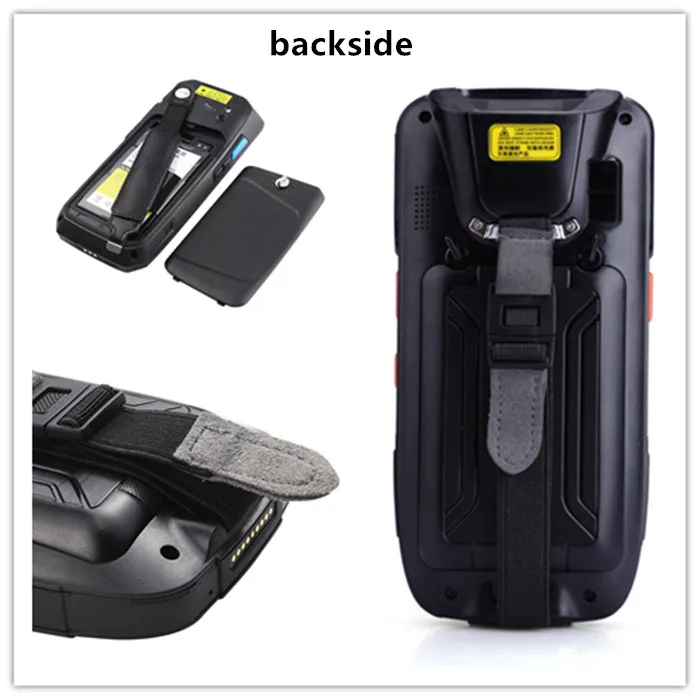

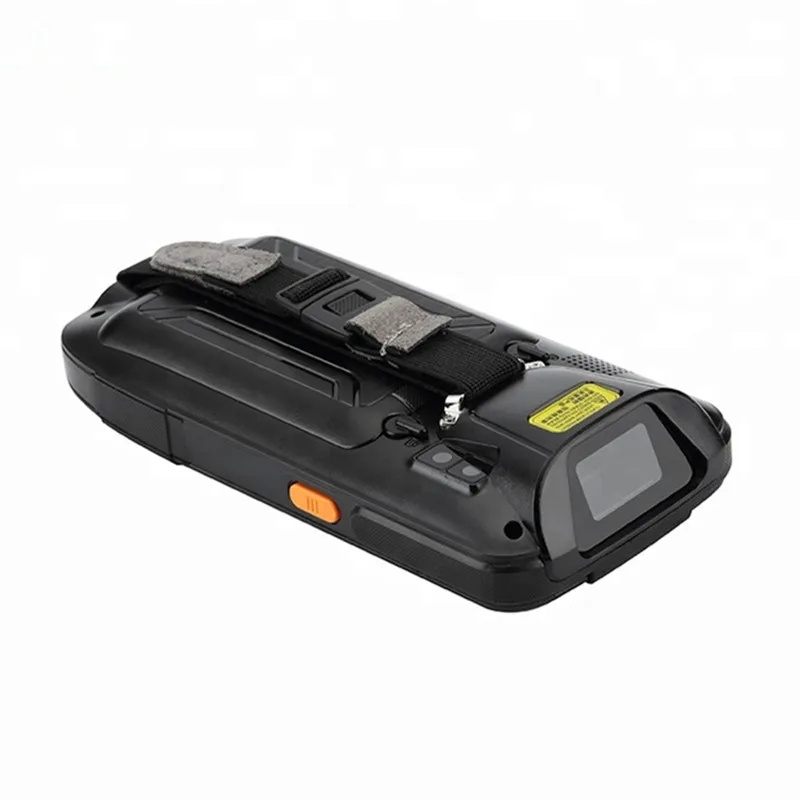

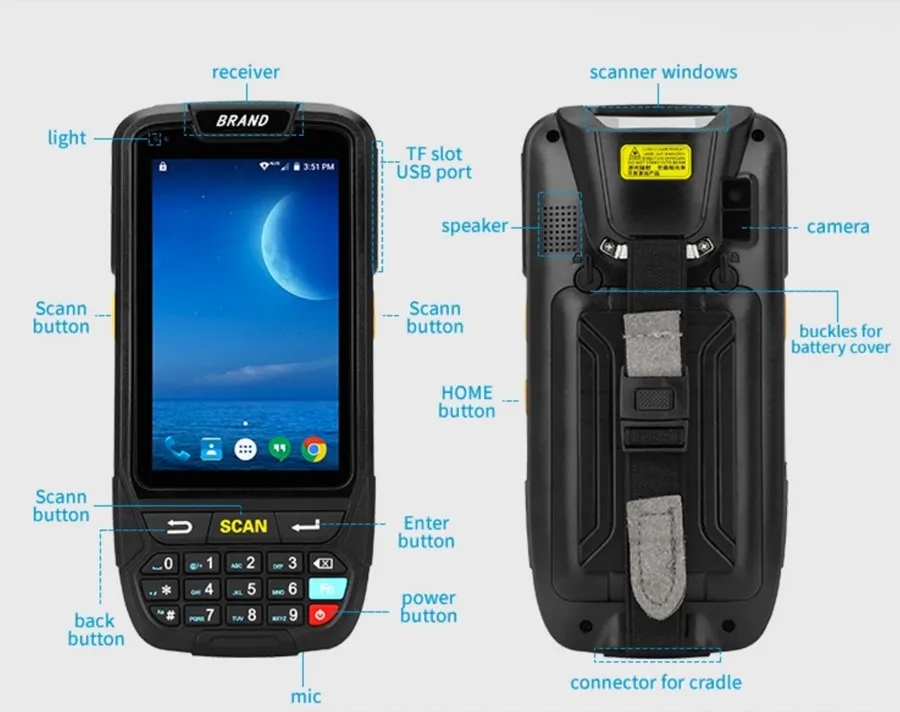

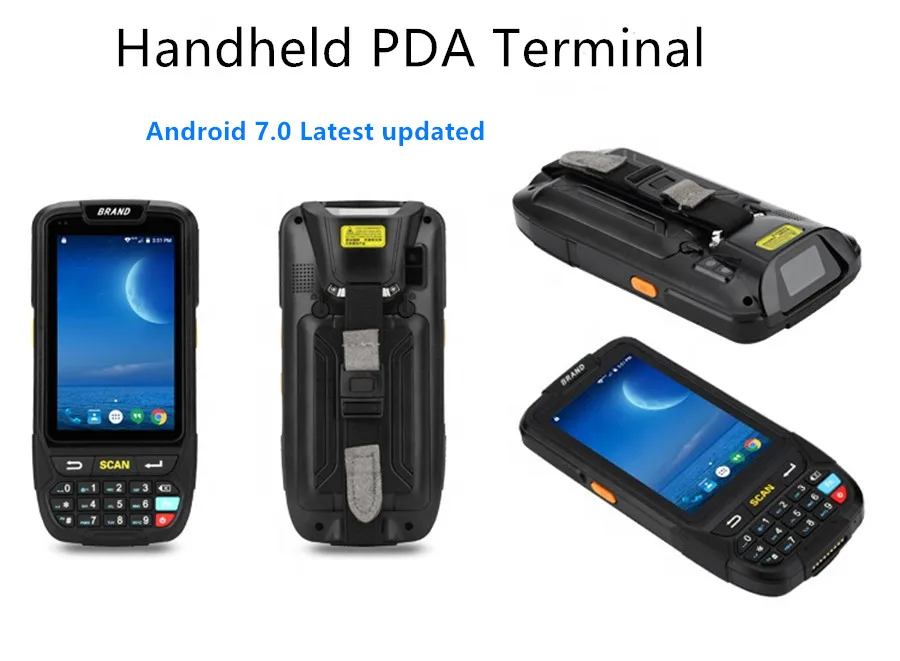

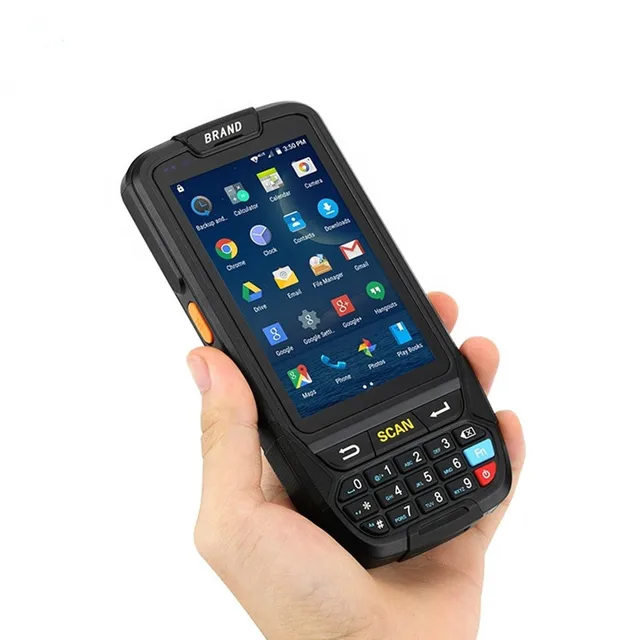

Product Show
Technical specifications
Structural Parameter | |
Dimensions | 156mm(L)X76mm(W)X26mm(D) |
Weight | <500g |

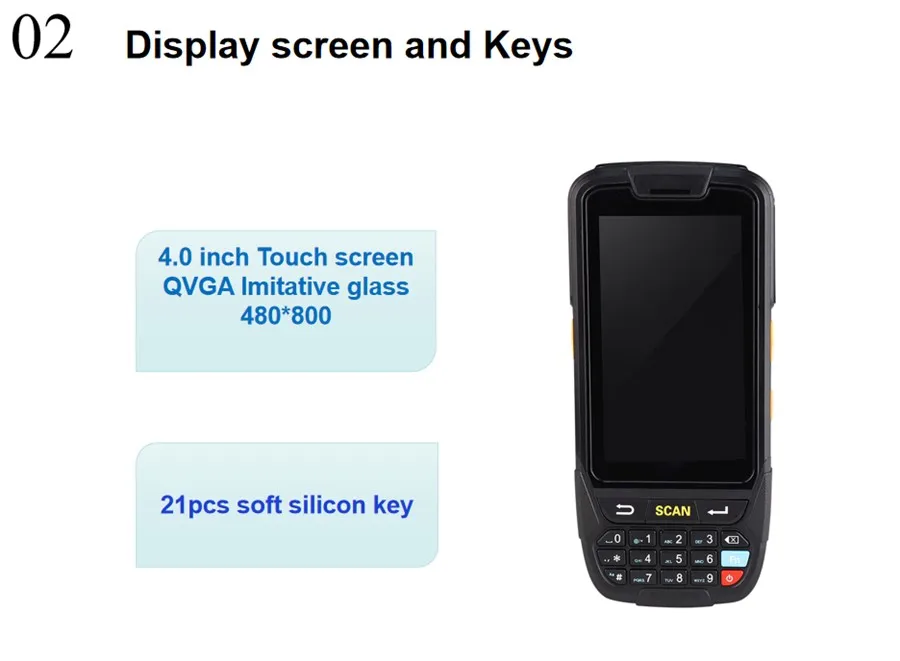

Display Screen |
|
Expand Port | SIM card, micro SD (TF) Card |
Communication Interface | USB2.0 Device |
Input Mode | Standard Stylus, Handwriting, touching input or keyboard input |
Battery Capacity | Rechargeable Li-polymer Battery 3.7V 4000mAh |
Frequency | 8ohm 1W speaker |
Key | 21pcs soft silicon key |
Performance Parameter | |
OS | Android 7.0 |
CPU | ARM CORTEX-A53 64bit Quad-Core 1.3G |
RAM | 2G RAM |
Flash ROM | Standard 16G NAND Flash Storage |
micro SD/TF port (Max up to 32G) | |

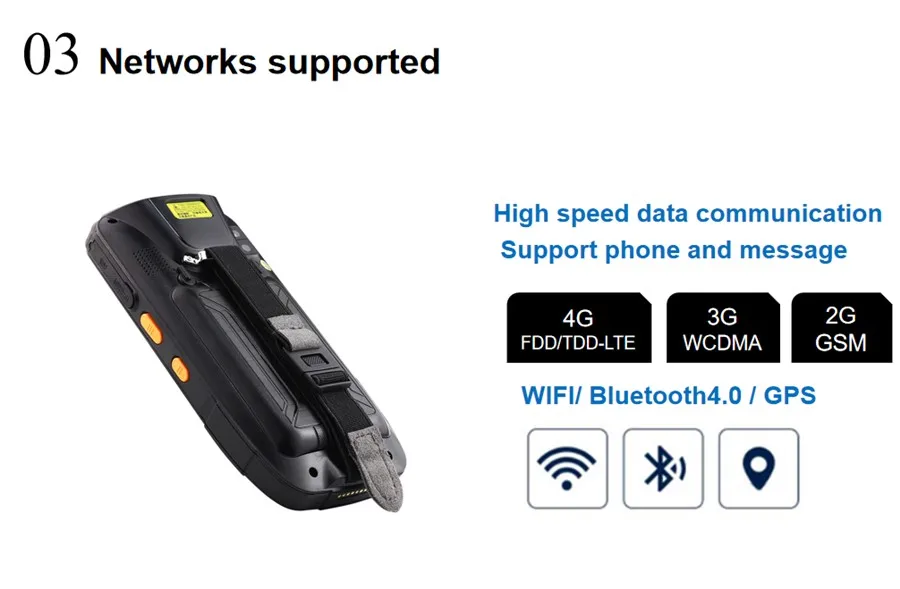

Data Communication | |
WI-FI | Support IEEE802.11 a/b/G/n protocol, it need effective wireless LAN signal cover |
FDD/TDD-LTE 4G | TDD-LTE (B38,B39,B40,B41),FDD-LTE (B1,B3) |
WCDMA 3G | B1,B2,B5,B8 |
GSM 2G | GSM/edge/GPRS (850,900,1800,1900MHz) |
bt | Support bt 2.0+EDR/3.0+HS/4.1+HS, transmission distance is 5-10m |
Standard Modules | |

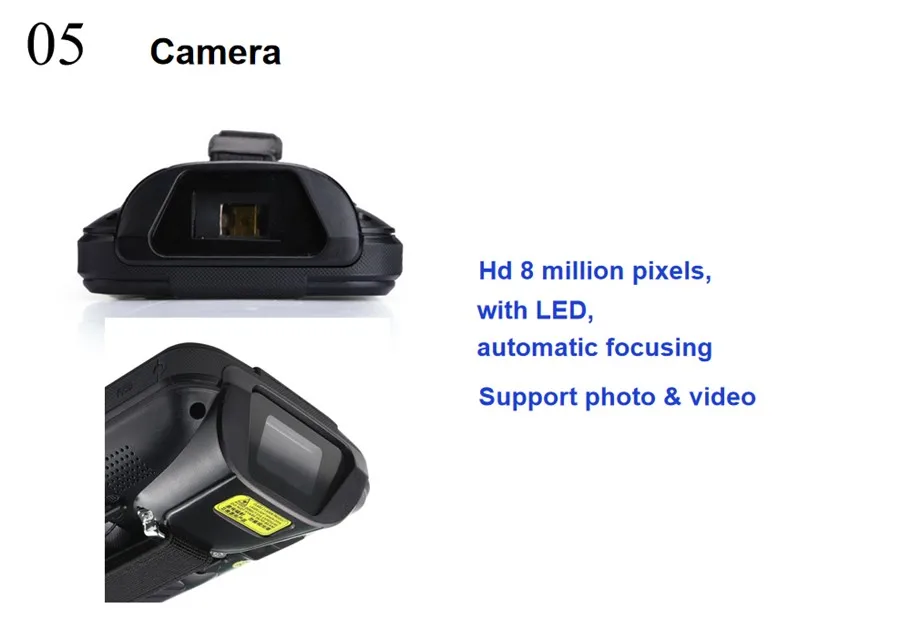

Camera | 8MP autofocus camera with flash |
GPS | Support A-GPS |
Operating Environment | |
Operating | -20°C to 50°C |
Storage Temperature | -25°C to 70°C |
Environment Humidity | 5%RH-95%RH(no condensation) |
Drop Specifications | 6 sides can bear impact from 1.5m drop to cement floor in the range of operating temperature |
Roll Specifications | 1000 times/0.5m, roll on 6 sides contact area |
Sealed Environment | IP65 |
1D Laser Scanner (OPTIONAL) | |
1D Laser Scanner | HoneywellN4313,Minde966 |
Resolution | 4Mil minimum width |
Ambient Light | 10000ft.candles(107640 lux) |
Scanning Speed | 104(±)12/sec (bothway) |
Scanning Angle | 47o±35o(Standard) / 35o±3o(narrow angle) |
Support Bar Code Type | UPC/EAN, Code128, Code39, Code93,Code11, Interleaved 2 of 5, Discrete 2 of 5,Chinese 2 of 5, Codabar, MSI, RSS |
2D CMOS (OPTIONAL) | |
CMOS Scanner | Honeywell N6603, HoneywellN3680 |
The Sensor Resolution | 752(level)×480(vertical)pels(gray level) |
Ambient Light | All dark 9000ft.candles/96900 lux |
focus element (VLD) | 655nm ± 10nm |
Support bar code type | PDF417,MicroPDF417,Composite, RSS,TLC-39, Datamatrix, QR code, micro QR code,Aztec, MaxiCode; Postal Codes: US PostNet,US Planet, UK Postal, Australian Postal, JapanPostal Dutch Postal (KIX)3 |
LF RFID Reader (Optional) | |
Frequency | 125kHz, 134kHz (FDX-B / HDX) |
Protocol | ISO11784/85, ISO18000-2 |
Range | 3-8cm |
HF RFID Reader (Optional) | |
Frequency | 13.56MHz |
Protocol | ISO14443A/B, ISO15693 |
Range | 3-8cm |
NFC Reader (Optional) | |
Frequency | 13.56MHz |
Protocol | ISO/IEC 18092 (ECMA 340) |
Range | 2-4cm |

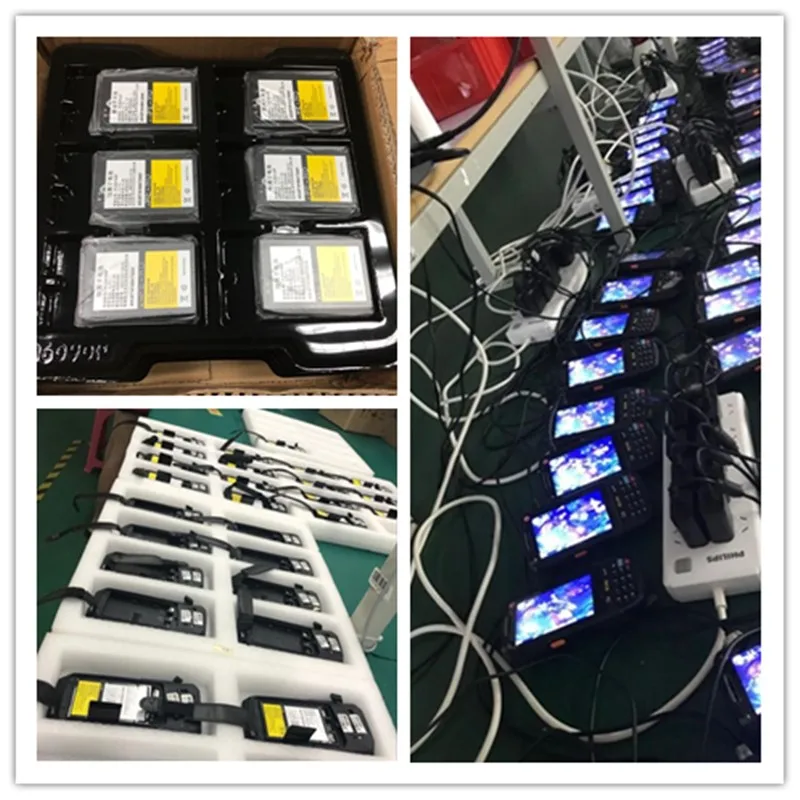

Factory production activity
All items will be inspected one by one before packed and shipped.
All items will be well-packed for safe shipment in the transportation process.

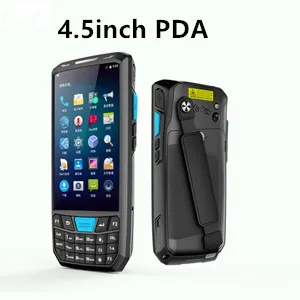

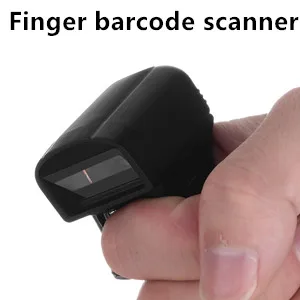

Related products

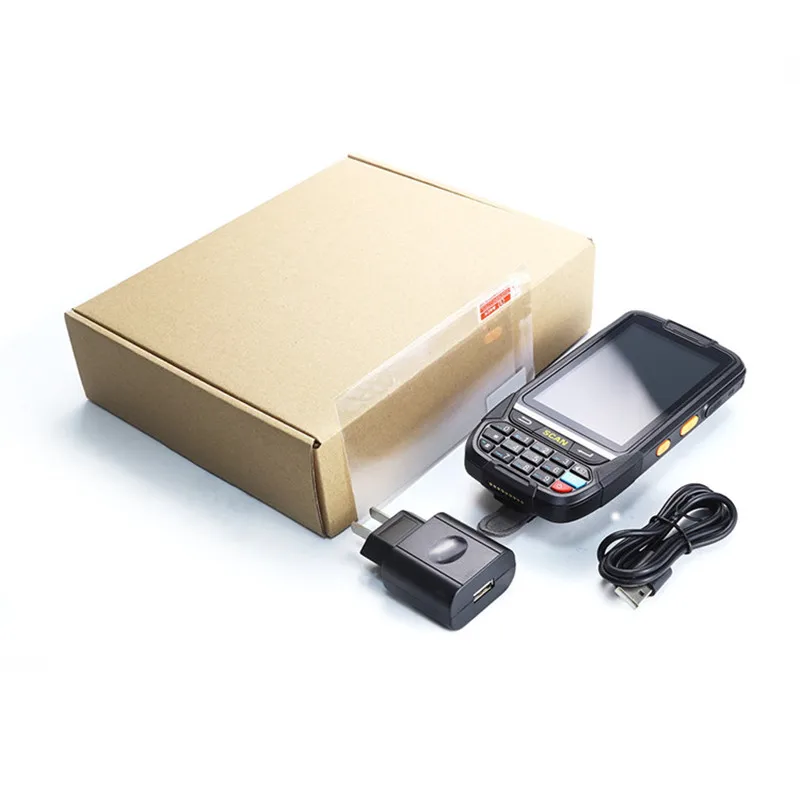

1 unit packing list include
1x PDA
1x battery
1x USB data cable
1x plug (US, EU, AU version for mathched counties, will ship the plug version according to your address)
1x user manuel

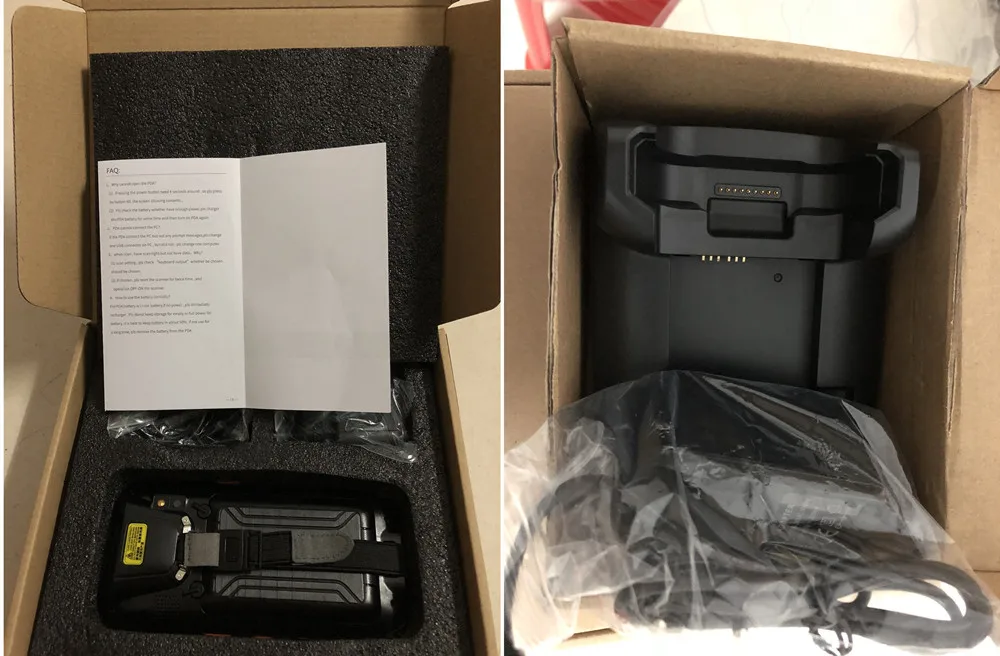

If your order is PDA with charger, eg, 1d with charger, or 2d with charger, packaging like below.
The packing list includes 1*charger, 1*PDA, 1*Battery, 1*USB cable, 1*plug, 1*user manual.
1) Once the order is confirmed, we will arrange shipment within 1- 5 days. To guarantee fast delivery, our company have products with normal specifications in stock.
2) Because all items with battery inside, to make sure you receive the goods successfully. normally we use Aliexpress standard shipping. This method is available for all countries, including Russia, Brazil. The delivery time is about 20 - 40 days. If you have enough time for the purchasing process, you can choose this way. It's free for the buyer. If you want to get the products within 10 days, you can choose DHL.
3) Kindly write correct and detailed delivery address for your order. For Brazil clients, please provide receipient's CNPJ or CPF number, otherwise, the parcel will be destoryed or returned back. Thus, please confirm that you have CNPJ or CPF number before order for Brazil buyers .
4) Service Transmit Time is provided by the carrier and excludes weekends and holidays. Transmit time may vary, particularly during the holiday season. If you havev't received the goods within 30 days after payment, please contact us. Of course, we will update you shipping status every weeks.
1) We provide 12 months warranty for our producs, since the buyer got the goods. The buyer is free to contact us anytime when there is doubts to use the device, or meet any technical problems.
2) The buyer is able to contact us by these ways. Send message via Aliexpress or Trademanager . You will get a reply within 1 natural day.
3) If there is quality problems, we will replace with new product , after the buyer provide video and the clients need to ship the device back . After we got buyer's complaint, we have colleague to contact with you soon to solve the problem until you are satisfied.
If you are satisfied with our products and service, welcome to re-order and give us a 5-Star for the transaction. If you are not satisfied, welcome to contact us and complain to us, we will solve your problem soon, until you are happy.
Enjoy your shipping.
Unit Type:
piece
Package Weight:
1.0kg (2.20lb.)
Package Size:
22cm x 18cm x 8cm (8.66in x 7.09in x 3.15in)
