Handfree auto scan QR/1D/2D YK-M4 pharmacy gs1 datamatrix cigarette alcohol PDF417 QR code39 qr scanner
Brand Name:
YK&SCAN
Scan Speed:
100 scans/second
Type:
Barcode Scanner
Optical Resolution:
600*600
Scan Element Type:
CMOS
Interface Type:
USB, RS232
Scan Breadth:
A4
Model Number:
M4
Novelty:
New
Scanning Light Source:
LED
Colour Depth:
32 Bit
Time to market:
Mar-13
Product Type:
Bar Code Scanner
Symbologies:
1D/2D
Interface:
USB/RS232
Resolution:
640*480
Light source:
White LED
Cable length:
1.8 meters
Scan Mode:
Auto Scan/ Manual Scan
Complication:

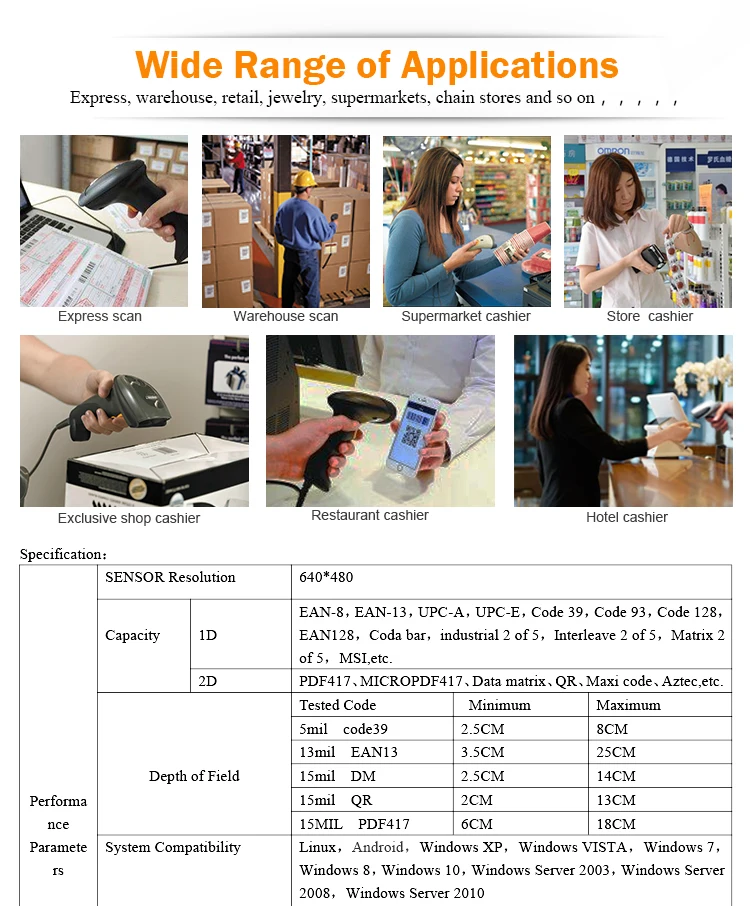

Supermarket , Store, POS, logistics , express

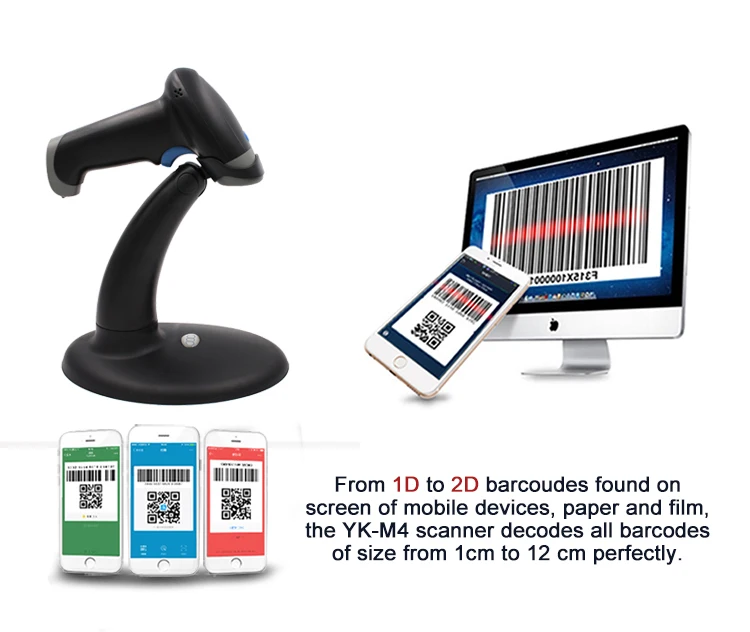

From 1D to 2D Bar codes found on paper, screen and other materials, M4 scanner decodes on all bar codes of size from 1 to 10cm perfertly.

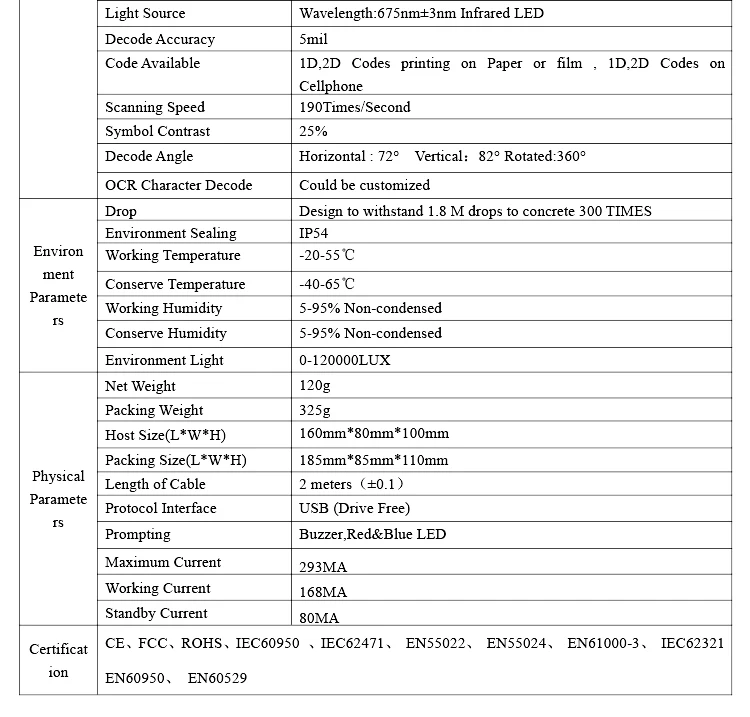

PERFORMANCE PARAMETERS
Sensor Resolution: 640x480
Symbologies:
1D:EAN- 8,EAN-13,UPC-A,UPC-E,Code 39,Code 93,Code 128,EAN128,Codebar,industrial 2 of 5,Interleave 2 of 5,Matrix 2 of 5,MSI,postal code ect.
2D:PDF417,DM,QR Code,Chinese-Sensible Code ect.
It can read GS1 Datamatrix code and Russian alcohol codes and inverse codes on new cigarette package :
Langugaes Keyboard: French (France); Italian (Italy) ; Italian 142 (Italy) ; German (Germany) ; Spanish (Spain) ; Finnish ; Russian (MS) ; Russian (typewriter); Arabic (101) ; Irish ; Polish (214) ; Polish (Programmers) ; Dutch (Netherlands) ; Czech (QWERTZ) ; Portuguese (Portugal) ; Portuguese (Brazil) ; Swedish (Sweden) ; Turkish Q ; Turkish F ; Greek (MS).
Scan Mode:
1)：Manual Trigger Scan
2) : Auto Mode;
Light Source:High Brightness, Infrared LED
Speed: 200 times/sec
Host System Interface:USB2.0
Optical Coating Technique:Gold-Plated
Optical Technique Level:V-V1 (Aerial Cameras)
LED Indicator:Buzzer and bi-color light: Red-power, Blue-decoding Successfully
ENVIRONMENTAL PATAMETER

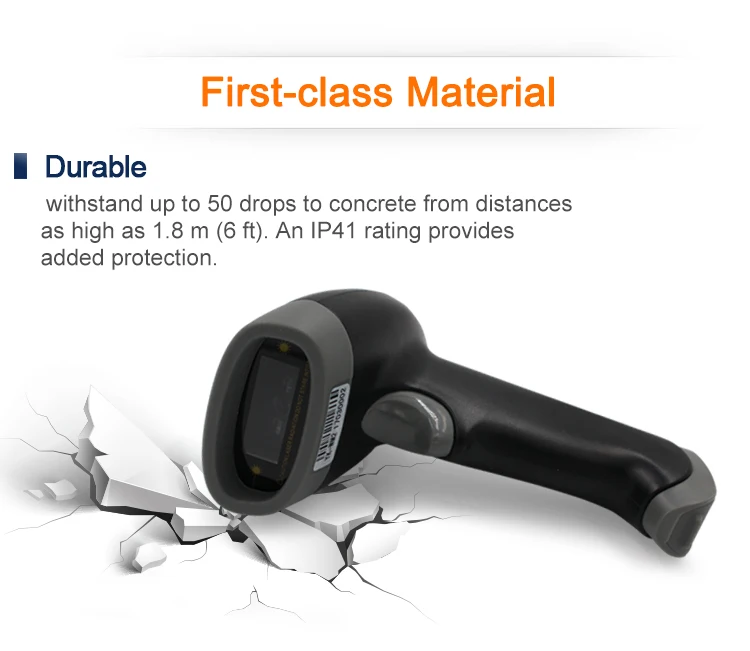

Drop :Affordable 2M free fall drop 300 times
Environmental Sealing:IP54
Operating Temperature:-20 degrees to 55 degrees
Storage Temperature:-40 degrees to 65 degrees
Temperature Humidity:5% to 95% Relative humidity, Non-condensing
Storage Humidity:5% to 95% Relative humidity, Non-condensing
Light Levels:0-120000LUX
PHYSICAL PARAMATERS
Weight (pcs):N.W: 157g/pcs G.W:349g/pcs
Size (pcs):Host: 167mm*72mm*95mm Package:190mm×115mm×80mm
ELECTRICAL PARAMETERS
Operating Voltage :5V
Operating Current :280mA
Power:1.4W
Safety Standard:EN60950-1
EMC:EN55022 EN55024
It can read GS1 Datamatrix code and Russian alcohol codes and inverse codes on new cigarette package :

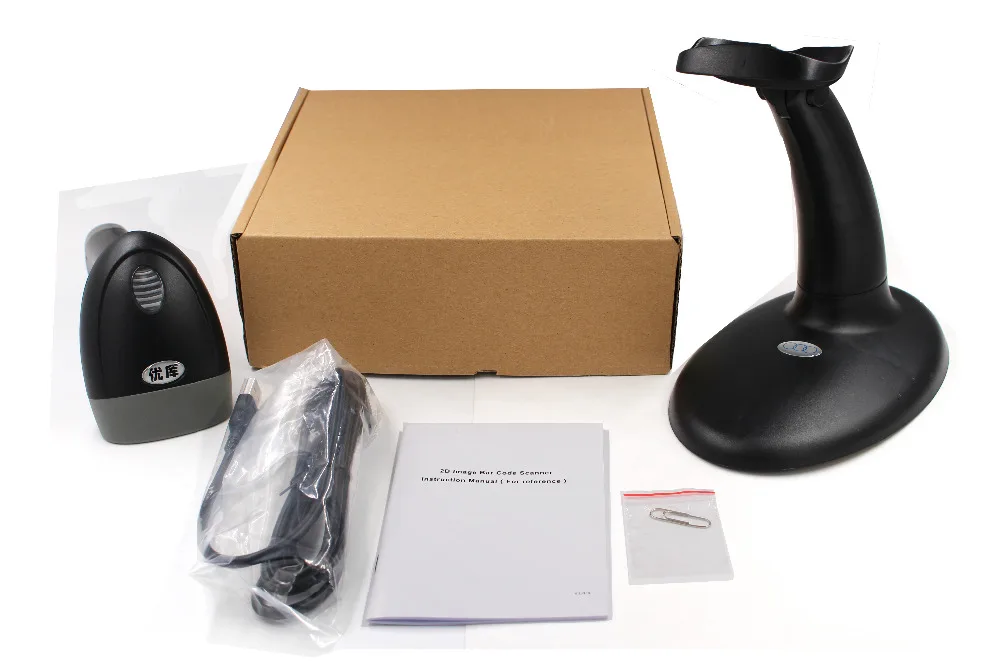

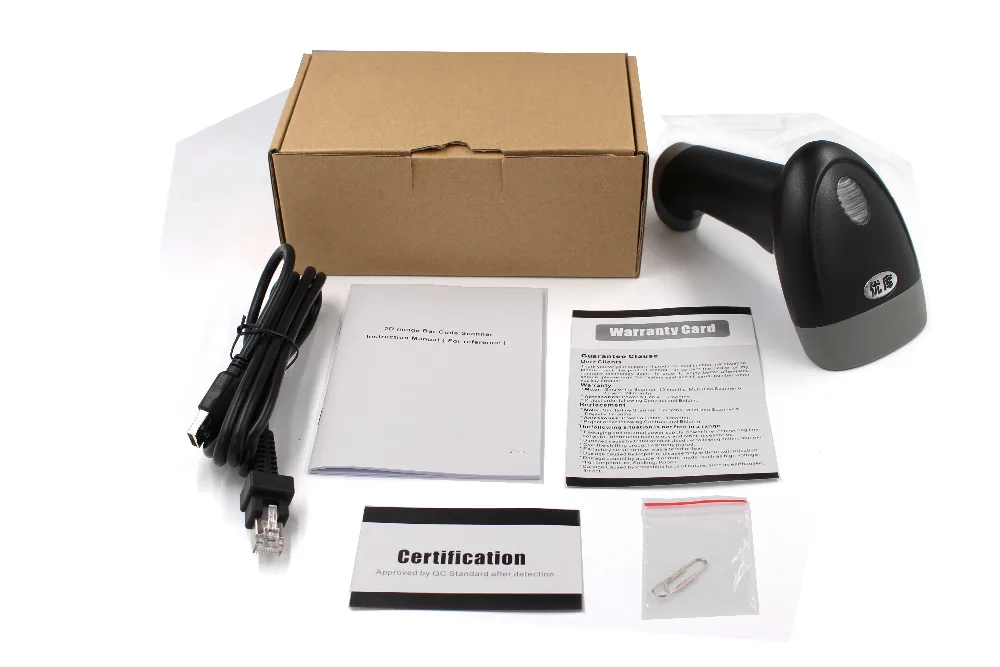

Package (without holder) :

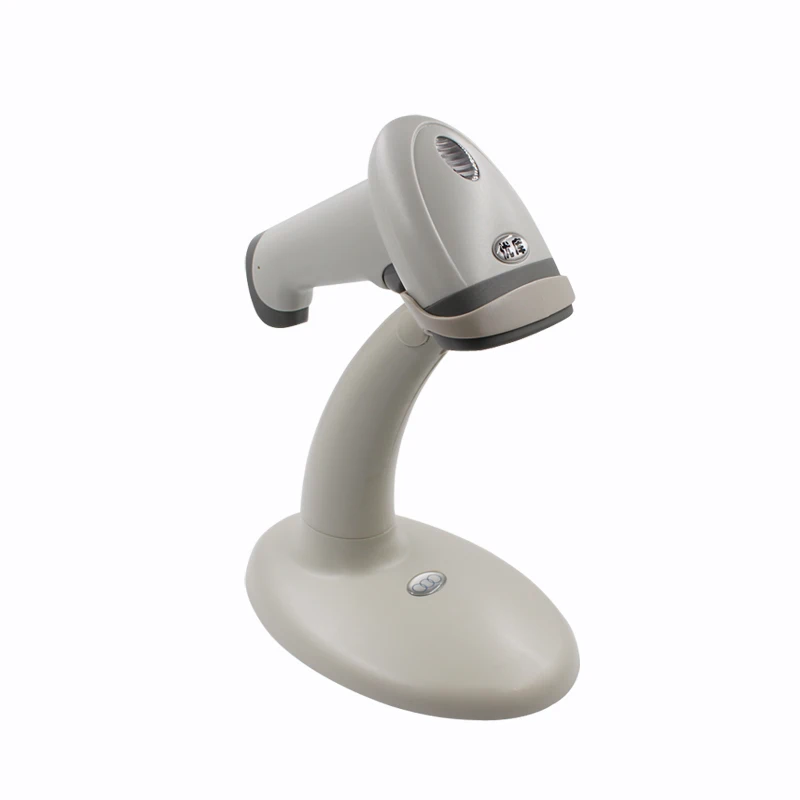

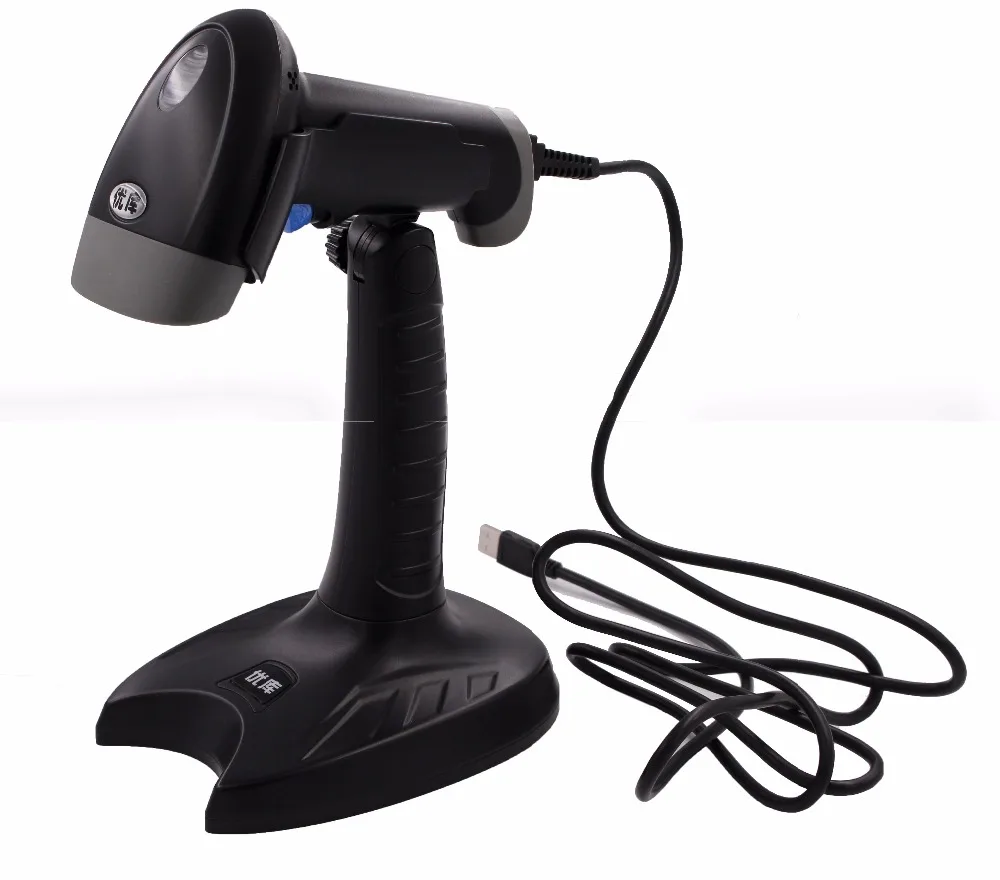

Package(With Holder):
Unit Type:
piece
Package Weight:
0.4kg (0.88lb.)
Package Size:
19cm x 12cm x 8cm (7.48in x 4.72in x 3.15in)
