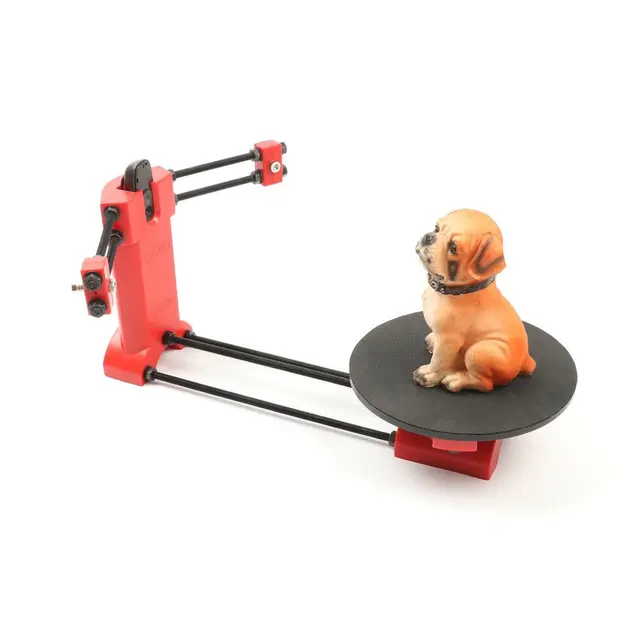

HE3D 3d scanner DIY kit, NEW red injection molding plastics,Reprap 3d Open source Portable 3d scanner for 3d printer
Scan Breadth:
200*200
Model Number:
HE3D
Brand Name:
HE3D
plastic colour:
red
Scan Element Type:
CCD
Optical Resolution:
2400*1200
Colour Depth:
48 Bit
Max Paper Size:
200*200
Scan Speed:
100/s
Product Type:
Portable Scanner
Novelty:
New
Interface Type:
USB
product id:
SM29
note: Free tax for all Russia orders!!!
Germany warehouse can ship to Cyprus, Austria, Belgium, Bulgaria, Croatia, Czech Republic, Denmark, Estonia,Finland, France, Germany, Greece, Hungary, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, United Kingdom
It is free tax for European Union countries!!!
the package:
Tips:
Ciclop belongs to desktop 3D scanners, which can not match with industrial standard scanners, and it is not suitable for scanning irregular and complex objects, only scan nearly cylindrical object, the effect will be more ideal, there are many factors affect scan result. like scanned objects, environment and light. there is a big relationship between them, so we recommend you scan in Constant Light Studio, scanning results will be better.
for installation and final you can scan object, it needs you own a certain handle ability and related knowledge, as it is open source, you can search on line and communicate with others, we can not guarantee that all the customer can operated it well, as there are too many factors affect the results, but we will try our best to provide you support, this project is also in continuous improvement, I hope we can work together.
this scanner is easy to scan:
1, object space volume is bigger than 5*5cm
2, object space volume is smaller than 20.3cm*20.3cm
3. object weight is less than 3kgs
4. still object
5. opaque object
FAQ: which things are hard to scan or can not scan ?
1.object space volume is smaller than 5*5cm
2.transparent oject (glass or organic plastics)
3.luminous object or highly reflective objects
4.dark object and fuzzy object(such as plush toys )
5.object space volume is bigger than 20.3*20.3cm
6.object weight is more than 3kgs
7.moving object
The advantage of injection molding:
1. The surface of injection molding plastic parts is more smooth and clean.
2. Compared with printed plastic parts, You do not need to fix it.
3. It is more durable than plastic parts.
the new design,adding the black non-slip mat on the platform
Integrated motherboard
the package list:
1x
Intergrated motherboard
1x USB wire
1x C270 HD webcam
1x 42 stepper motor
2x Laser
1x 12V 1.5A Power supply
1x 8mm Bobbin
4x M3*12 self-tapping screw
2x M3*20 self-tapping screw
10x M3*10 screw (Included 3 spare pieces)
6x M3 nut
(Included 3 spare pieces)
28x M8 nut
(Included 3 spare pieces)
18x M8 washer
1x Hexagon wrench 2.5mm
3x M8*30 screw
1x 16014 bearing
2x M8*382mm Screw
1x M8*302mm Screw
4x M8*152mm Screw
11x Injection molded plastics parts (red color)
1x Calibration checkered paper
1x Calibration board (3mm acrylic plate)
1x Countertop (7mm acrylic plate)
1x Black non-slip mat for the acrylic plate
Notice: if you want to buy one scanner of more higher precision,please click this link.this Einscan-SE 3d scanner doesn't need to calibration.
https://www.aliexpress.com/store/product/HE3D-Desktop-white-light-Einscan-SE-3D-Scanner-save-as-STL-file-Fast-versatile-easy-and/1832054_32840039602.html?spm=2114.12010612.8148356.11.774e58b9HZ0SsC
| SHIPPING AND DELIVERY | |||||
| shipping way | weekdays | tracking website | shipping way | weekdays | tracking website |
| china post registered air mail | 30-45 | http://www.17track.net/en | Fedex | 5-12 | https://www.fedex.com/en-us/home.html |
| e packet | 10-15 | http://www.17track.net/en | DHL | 3-7 | http://www.dhl.com/en.html |
| china post air parcel | 30-45 | http://www.17track.net/en | UPS | 6-12 | https://www.ups.com/cn/en/Home.page |
| E-EMS | 4-7 | http://www.17track.net/en | Aramex | 7-12 | https://www.aramex.com/ |
| PONY | 12-25 | http://www.ponyexpress.ru/ | TNT | 5-12 | https://www.tnt.com/express/en_us/site/home.html |
| chita | 15-35 | http://chita.dellin.ru/ | SF express | 4-7 | http://www.sf-express.com/cn/en/ |
Unit Type:
piece
Package Weight:
3.0kg (6.61lb.)
Package Size:
38cm x 23cm x 14cm (14.96in x 9.06in x 5.51in)
