ISSYZONEPOS 4G Handheld PDA Android 7.0 POS Terminal Touch Screen 2D Barcode Scanner Wireless Wifi Bluetooth GPS Barcode Reader
Brand Name:
ISSYZONEPOS
Scan Speed:
116/sec
Type:
Barcode Scanner
Optical Resolution:
480*800
Scan Element Type:
1D/2D Scanner
Interface Type:
USB
Scan Breadth:
PDF417,MicroPDF417,Composite, RSS,TLC-39, Datamatrix, QR code
Model Number:
IPDA018
Novelty:
New
Scanning Light Source:
Laser Light
Colour Depth:
48 Bit
Product Type:
Bar Code Scanner
Model Name::
Touch Screen Android PDA
CPU::
ARM Cortex-A53 64 bit quad-core(1.3GHz)
Memery+Flash:
2G+16G NAND Flash,micro-TF up to 32G
Display::
4.0'' QVGA touch panel TFT-LCD Display(480X800)
Wireless::
WIFI, Bluetooth 4.0+EDR/3.0+HS/4.1+HS
Battery::
3.7V 4,000mAh Li-battery
Optional::
QR scanner and NFC HF
1D Scanner::
Mingde966(Standard),HoneywellN4313(Optional, add $10)
2D Scanner:
Newland 3096(Standard), HONEYWELL N3680 (Optional, add $10)
Notice:
1.For IPDA018 ,If you place an order with 10 units , we will we will send you an additional battery and a charger cradle as Gifts.

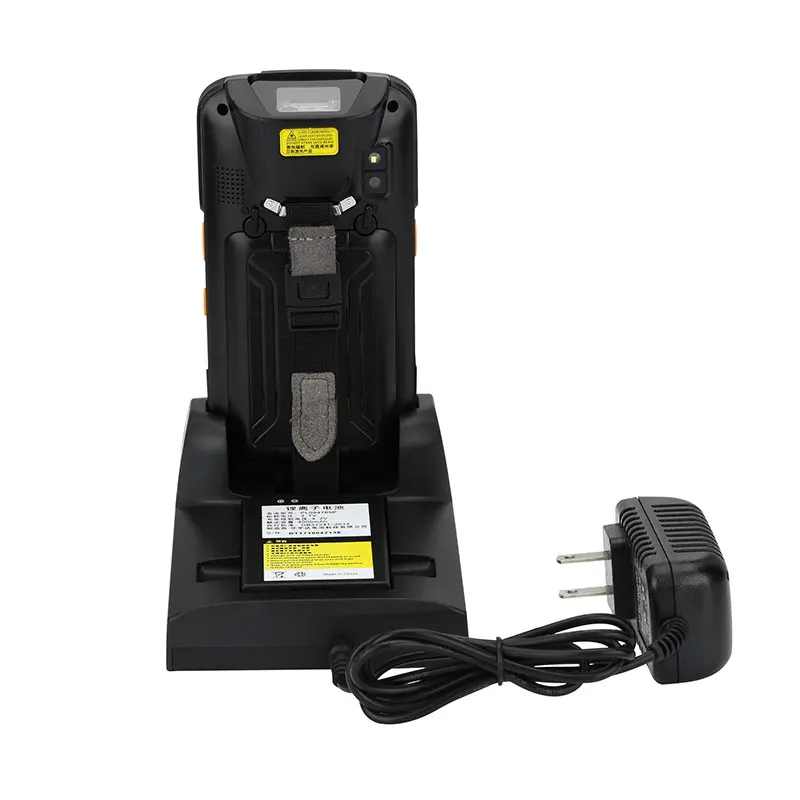

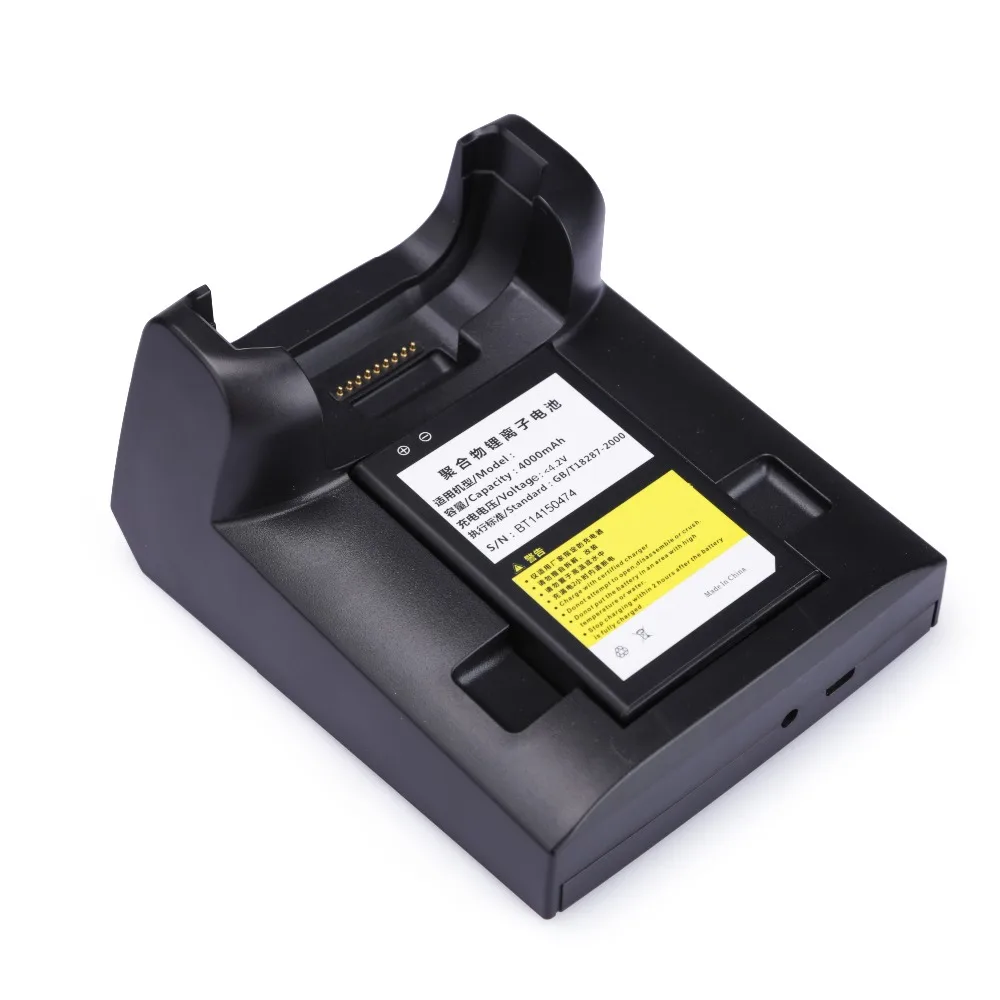

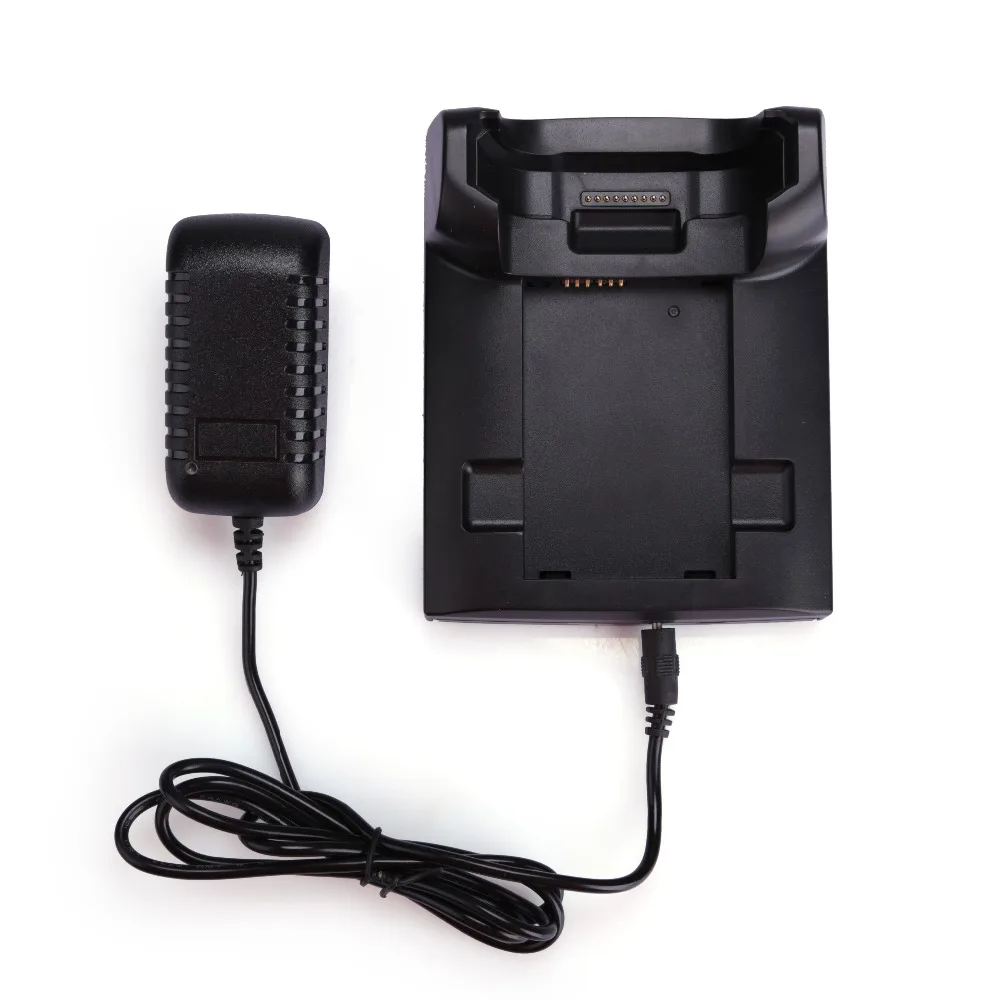

Attention:convenient charging with optional charge cradle.buy cradle pls visit this link.
https://www.aliexpress.com/store/product/Charge-Cradle-for-IPDA018/1050417_32821964475.html?spm=2114.12010615.8148356.63.aea7626afmFdPM
Attention: optional extra battery,Buy extra battery pls visit this link.
https://www.aliexpress.com/store/product/Battery-for-IPDA018-IPDA030-NOTED-Battery-need-to-buy-with-the-devices-otherwise-the-battery-can/1050417_32885273716.html?spm=2114.12010615.8148356.27.aea7626aKEnjPC
Standard Configuration:
Android 7.0+4'' Screen+2G RAM+16GROM+Wifi+Bluetooth4.0+1D/2D+3G/4G+GPS+Camera
Free SDK
Standard Accessories:
Handheld POS Terminal 1 Pcs, Battery1pcs, Usb data cable1pcs, Charger 1pcs, User Manual 1pcs,
Optional: Charge Cradle
Standard Features:
8.0M mega pixel camera
Multiple languages
Support Google Play Store
Compact and Portable Ergonomic Design with wrist strap
Safe OS (Android 7.0) Highly optimized Android operating system
High capacity 4000mA large capacity battery for critical requirements
Pogo Pin interface for convenient charging with optional charge cradle
Industrial rugged design, waterproof and protection grade(IP65)
Main Parameters:
Model Name: | Touch Screen Android PDA |
CPU | ARM Cortex-A53 64 bit quad-core(1.3GHz) |
Memery+Flash | 2G+16G NAND Flash,micro-TF up to 32G |
Display | 4.0'' QVGA touch panel TFT-LCD Display(480X800) |
Wireless | WIFI, Bluetooth 4.0+EDR/3.0+HS/4.1+HS |
Operating System | Android 7.0 |
Interface Type: | USB2.0 Device |
Scanner: | 1D/2D Scanner |
Dimension: | 152mmtimes77mmtimes29mm |
Weight: | <500g |
Battery: | 3.7V 4,000mAh Li-battery |
Optional(add money) | QR scanner and NFC |

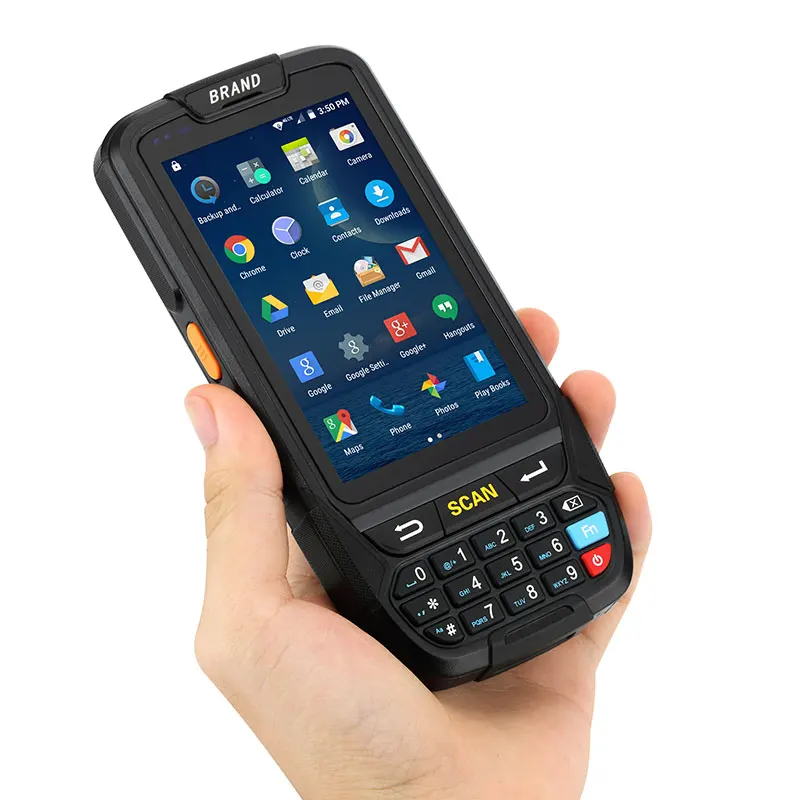

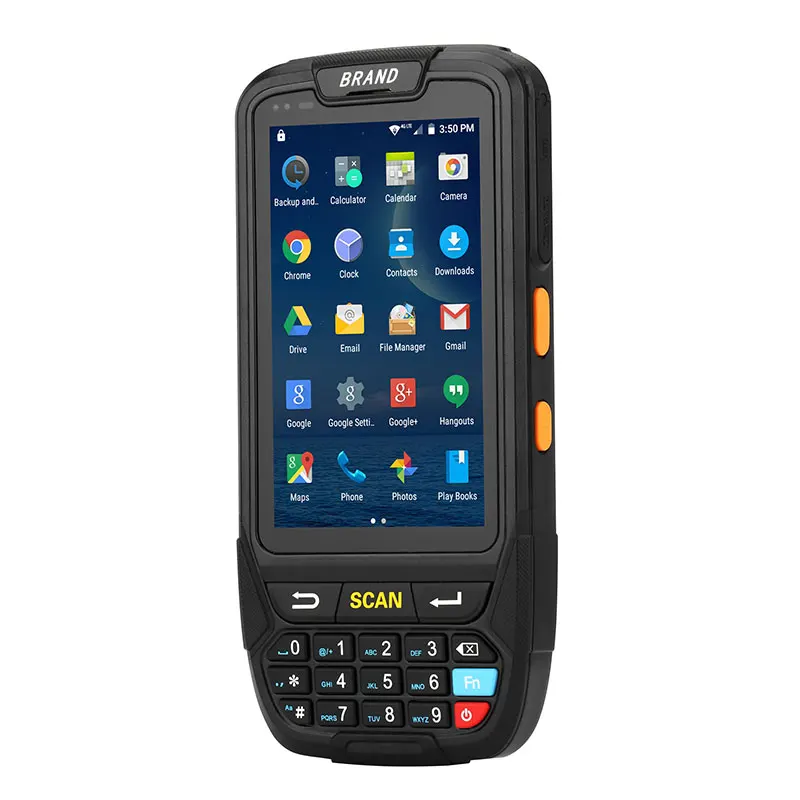

Product Show
Physical Parameter | |
Dimensions | 152mm(L)times77mm(H)times29mm(W) |
Weight | <500g |
Display Screen | Color 4.0 inch QVGA imitative glass durable touch screen |
TFT-LCD, 650000 colors, 480*800 (QVGA size) | |
The brightness of LED Backlight is adjustable | |
Expand Port | SIM card, Micro SD (TF) Card |
Communication Interface | USB2.0 Device, |
Input Mode | Standard Stylus, Handwriting, touching input or keyboard input |
Battery Capacity | Rechargeable Li-polymer Battery 3.7V 4000mAh Optional |
Frequency | 8 1W speaker |
Buttons | 21pcs soft silicon key |
Data Communication | |
WI-FI | Support IEEE802.11b/g/n protocol, it needs effective wireless LAN signal cover |
FDD-LTE 4G | Uplink: 1920MHZ-1980MHZ; Downlink: 2110MHZ-2170MHZ |
Uplink: 1710MHZ-1785MHZ; Downlink: 1805MHZ-1880MHZ | |
Uplink: 2496MHZ-2690MHZ; Downlink: 2496MHZ-2690MHZ | |
WCDMA 3G | Uplink:1850MHZ-1910MHZ; Downlink: 1930MHZ-1990MHZ |
Uplink:880MHZ-915MHZ; Downlink: 925MHZ-960MHZ | |
GSM 2G | 850MHZ, Uplink:824MHZ-849MHZ; Downlink: 869MHZ-894MHZ |
900MHZ, Uplink:880MHZ-915MHZ; Downlink: 925MHZ-960MHZ | |
1800MHZ,Uplink:1710MHZ-1785MHZ; Downlink: 1805MHZ-1880MHZ | |
1900MHZ ,Uplink:1850MHZ-1910MHZ; Downlink: 1930MHZ-1990MHZ | |
Bluetooth | Support Bluetooth 2.0+EDR/3.0+HS/4.1+HS, transmission distance is 5-10m |
Operating Environment | |
Operating Temperature | mdash20C to 50C |
Storage Temperature | mdash25C to 70C |
Environment Humidity | 5%RH--95%RH(no condensation) |
Drop Specifications | 6 sides can bear impact from 1.5m drop to cement floor in the range of operating temperature |
Roll Specifications | 1000 times/0.5m, roll on 6 sides contact area |
Sealed Environment | IP65 |
Development Environment | |
Operating System | Android 7.0 |
SDK | exclusive use software development kit |
Supported Language | JAVA |
Development Tool | Eclipse |
1D Laser Scanner | |
One dimensional laser scanner | Mingde966(Standard) Symbol 955, HoneywellN4313, |
Resolution | 4Mil minimum width |
Ambient Light | 10000ft.candles(107640 lux) |
Scanning Speed | 104(plusmn)12/sec (both way) |
Scanning Angle | 47oplusmn35o(Standard) / 35oplusmn3o(narrow angle) |
Support Bar Code Type | UPC/EAN, Code128, Code39, Code93,Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS |
2D CMOS (Optional) | |
CMOS Scanner | Newland 3096(Standard) HONEYWELL N3680 |
The Sensor Resolution | 752(level)times480(vertical)pels(gray level) |
Ambient Light | All dark 9000ft.candles/96900 lux |
Focus element (VLD) | 655nm plusmn 10nm |
Support bar code type | PDF417,MicroPDF417,Composite, RSS,TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, JapanPostal Dutch Postal (KIX)3 |
RFID(Optional) | |
NFC&HF | 13.56MHz;ISO14443A/B protocol |
UHF | 902Mhz ndash 928Mhz 、865MHz ndash 868MHz |
Camera | Hd 8 million pixels, with LED, automatic focusing |
GPS | Support A-GPS |
Android 7.0 System | |
CPU | ARM Cortex-A53 64bit Quad-Core 1.3G |
RAM | 2G RAM |
Flash ROM | Standard 16G NAND Flash Storage |
Micro SD/TF port (Max up to 32G) | |
Shipment
1.When we receive the order, we will ship in 2-5 workdays.
2.Sometimes, some shipping method like DHL/FEDEX IE cant shipping arrival to some destination like Russian, its only can sent by CDEK or others, if you cant accept it its better contact us before you place the order,or we will sent by random, thanks!
After Service
1. It comes with one year after sales service card when you got the package. Just contact our technical directly.
2. There are following ways to solve your problem: Whatsapp, TeamViewer, skype, wechat and phone call.
3. If the product is a quality problem, we will replace a new one for you after got the proof from your side by phone or video.
Feedback
1.If you feel good for the product, Please give all 5 stars feedback.Then we will do better than better.
2.Before leaving the bad feedback, Please contact us to solve the problem.We will help you solve it.
IssyzonePOS Certificate
New rule from Brazilian Customs:
All imported goods to Brazil must provide recipient's CNPJ or CPF number.
Otherwise, the goods will be destroyed or returned back.
Therefore, please confirm that you have CNPJ or CPF number before order. Seller is not responsible for any troubles caused by the lack (or incorrect) CNPJ or CPF number.
Enjoy your shopping!
Unit Type:
piece
Package Weight:
1.1kg (2.43lb.)
Package Size:
26cm x 26cm x 6cm (10.24in x 10.24in x 2.36in)
