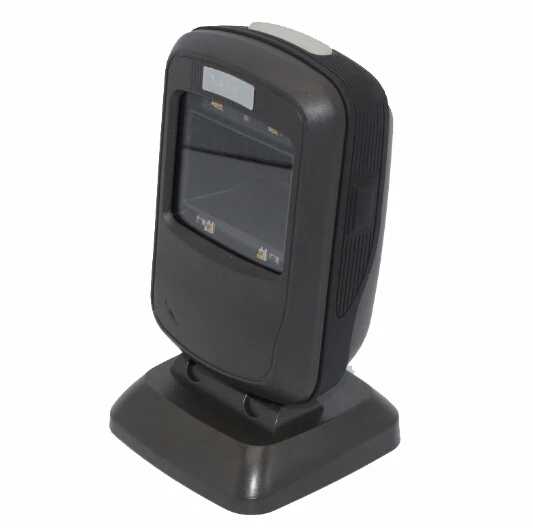

Newland 1D/2D barcode scanner FR40 desktop USB / RS232 scanner CMOS
Product Type:
Bar Code Scanner
Novelty:
New
Scan Breadth:
A4
Scan Element Type:
CMOS
Scan Speed:
200 scans/second
Type:
Flatbed Scanner
Interface Type:
USB, RS232
Time to market:
Oct-11
Model Number:
FR40
Scanning Light Source:
Natural Light+LED
Optical Resolution:
5mil
Quick to Switch Mode
The Scan Mode Switch at the top of the scanner allows users to swiftly toggle between the Regular andScreen modes.
Superior Motion Tolerance
Exceptional motion tolerance (2.5m/s) and large FOV (46°) enhance user experience.
IP50-rated Sealing
An IP50-rated seal renders the scanner impervious to dust, water and other contaminant.
Superb Reading Performance
Armed with Newland’s fifth-generation of UIMG technology, the scanner is capable of reading 1D as well as high-volume 2D
barcodes on the screen covered with protective film.
1.2m Drop Resistance
The scanner withstands multiple 1.2m drops to concrete (for six sides, one drop per side).
IR Trigger
The IR sensor in the scanner enables speedy capture of barcodes presented to it, markedly increasing throughput and productivity.
Application Scenarios
POS terminals, customer service desk, ticket validators.
| Performance | Image Sensor | 752*480 CMOS |
| Symbologies | 2D PDF417, QR Code, Data Matrix, Chinese Sensible Code | |
| 1D EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code 93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, GS1 Databar, Code 39, Code 11, MSI-Plessey, Plessey, etc. | ||
| Resolution | ≥5mil | |
| Typical Depth of Field | Code 39 40-200mm (20mil) | |
| EAN-13 5-180mm (13mil) | ||
| QR Code 10-180mm (20mil) | ||
| Motion Tolerance | 2.5m/s | |
| Scan Angle | Pitch ±60°@ 0°Roll and 0° Skew | |
| Roll ±360°@ 0°Pitch and 0° Skew | ||
| Skew ±55°@ 0°Roll and 0° Pitch | ||
| Symbol Contrast | ≥25% | |
| Interface | RS-232, USB, PS/2 (Hardware version 2.1 required) | |
| Physical/ Electric | Dimensions (L×W×H) | 83×81×148mm |
| Weight | 292g | |
| Notification | Beep, LED indicator | |
| Current | Operating 150mA | |
| Standby 120mA | ||
| Environmental | Operating Temperature | -20℃~50℃ |
| Storage Temperature | -40℃~70℃ | |
| Humidity | 5%~95% (non-condensing) | |
| ESD | ±14 kV(air discharge),±8 kV(direct discharge) | |
| Drop | 1.2m drops to concrete (for six sides, one drop per side) | |
| Sealing | IP50 | |
| Certifications | FCC Part15 Class B,CE EMC Class B | |
| Accessories | Cable | USB Used to connect the scanner to a host device. RS-232 Equipped with a power connector; used to connect the scanner to a host device. |
| Power Adapter | Used to provide power for the scanner. Output: DC5V,1.5A; Input: AC100~240V, 50~60Hz |
Unit Type:
piece
Package Weight:
1.0kg (2.20lb.)
Package Size:
20cm x 15cm x 15cm (7.87in x 5.91in x 5.91in)
