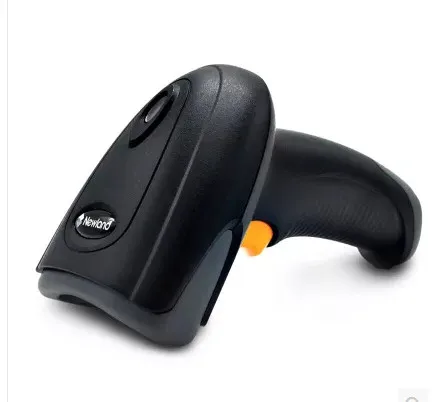

Newland NLS-HR22 hand-held barcode scanner

Cheap Newland NLS-HR22 hand-held barcode scanner

Product ID : 32840238119

Price : $64

Discount Price : $36.47 - 53.50

* Price Update at : Jully, 25 2019 *

VISIT WEBSITE NOW

Item specifics

•
  Colour Depth:
  32 Bit



•
  Scanning Light Source:
  Laser Light



•
  Scan Element Type:
  CMOS



•
  Type:
  Barcode Scanner



•
  Brand Name:
  ScanHero



•
  Scan Breadth:
  A4



•
  Scan Speed:
  200 scans/second



•
  Time to market:
  Mar-13



•
  Product Type:
  Bar Code Scanner



•
  Optical Resolution:
  600*600



•
  Interface Type:
  USB



•
  Model Number:
  Newland HR22



•
  Novelty:
  New


Product Description

NLS-HR22

Hand-held Barcode Scanner

  Outstanding Performance

  Cost- -e e ffective Solution

  Elegant Appearance

  Durable Construction

F F eatures

Application Scenarios

Product traceability, purchase-sales-inventory management, ticket/voucher management, office automation.

  Outstanding Performance

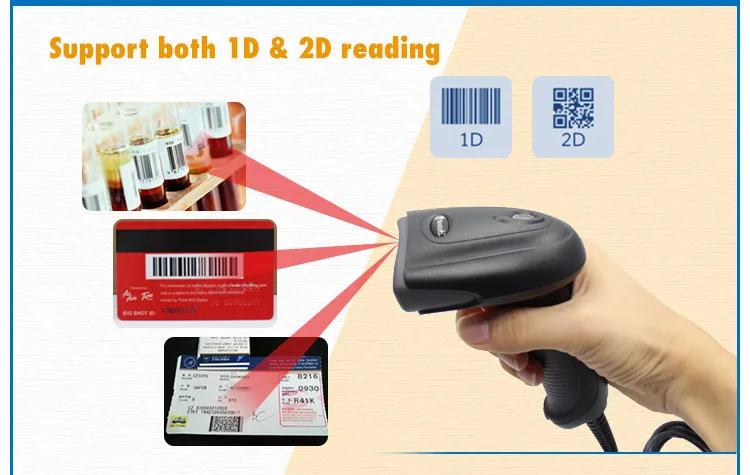

Equipped with Newland’s third-generation

decoder chip, the NLS-HR22 can effortlessly

capture high-density, high-volume and distorted

barcodes printed on paper or displayed on screen.

  Elegant Appearance

Blending ergonomics and aesthetics in its design,

the NLS-HR22 not only ensures operator comfort

and productivity for intensive hand-held scanning

but also meets the aesthetic needs of the O2O

era.

  Cost- - effective Solution

The NLS-HR22 provides a cost-effective data

capture solution that allows customers to enjoy the

capabilities of 2D barcode scanner for the price of

1D scanner.

  Durable Construction

The NLS-HR22, built into an IP42-sealed and drop

resistant (1.2m) housing with no moving parts,

fortifies itself inside and out.

NLS-HR22

Hand- - held Barcode Scanner

Performance Image Sensor 640×480 CMOS

Light Source Red LED (625±10nm)

Symbologies 2D PDF417, QR Code (QR1/2, Micro), Data Matrix (ECC200,

ECC000,050, 080, 100, 140)

1D Code 128, UCC/EAN-128, AIM-128, EAN-8, EAN-13, ISBN/ISSN,

UPC-E, UPC-A, Interleaved 2 of 5, Febraban, ITF-6, ITF-4, Matrix

2 of 5, Industrial 25, Standard 25, Code 39, Code 32, Codabar,

Code 93, Code 11, Plessey, MSI-Plessey, GS1-DataBar TM (RSS),

(RSS-14, RSS-Limited, RSS-Expand)

Resolution ≥3mil

Typical Depth of Field EAN-13 40mm-355mm(13mil)

Code 39 28mm-155mm(5mil)

PDF 417 28mm-95mm(6.67mil)

Data Matrix 25mm-95mm(10mil)

QR 25mm-150mm(15mil)

Scan Angle Pitch ±60°@ 0°Roll and 0° Skew

Roll 360°@ 0°Pitch and 0° Skew

Skew ±55°@ 0°Roll and 0° Pitch

Min. Symbol Contrast 30%

Interfaces RS-232, USB, PS/2

Physical Dimensions (L×W×H) 145×101×68mm

Weight 165g

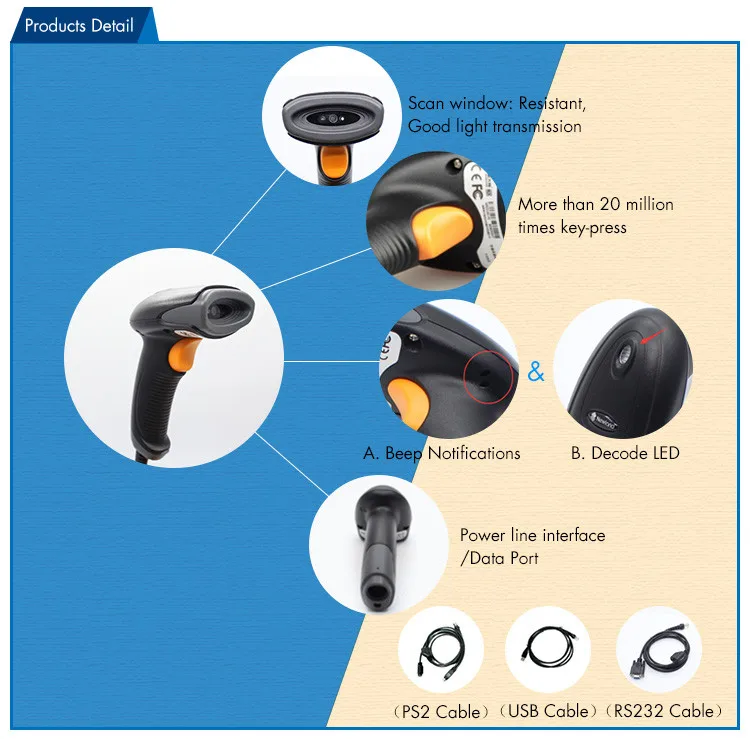

Notification Beep, LED indicator

Power Adapter (optional) Output: DC 5V, 1.5A Input: AC 100~240V, 50~60Hz

Current Maximum <270mA

Operating 140±15mA

Standby 14.3±2mA

Environmental Operating Temperature -20℃~50℃

Storage Temperature -40℃~70℃

Humidity 5%~95% (non-condensing)

ESD ±8 KV (contact discharge); ±15 KV (air discharge)

Drop 1.2m

Sealing IP42

Certifications FCC Part15 Class B，CE EMC Class B

*Specifications are subject to change without notice.* Version: V1.1





Packaging Details

•
  Unit Type:
  piece



•
  Package Weight:
  1.0kg (2.20lb.)



•
  Package Size:
  20cm x 15cm x 12cm (7.87in x 5.91in x 4.72in)
