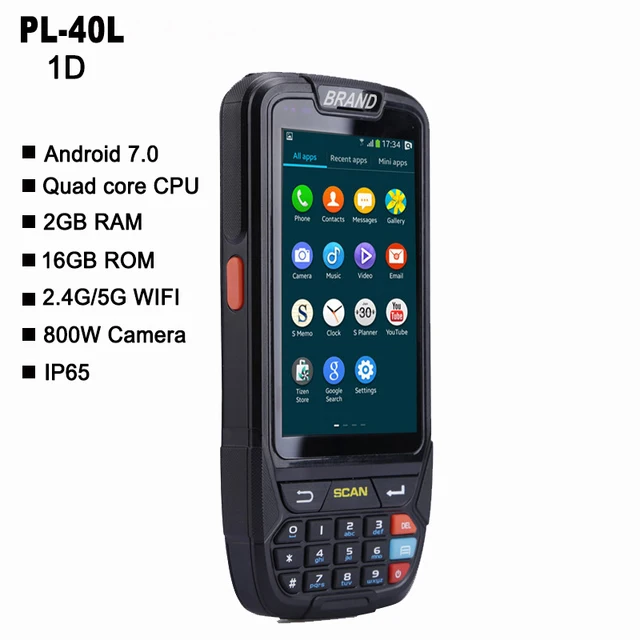

PL-40L large screen 1d bluetooth android barcode scanner pda data terminal scanner

Best Offers PL-40L large screen 1d bluetooth android barcode scanner pda data terminal scanner

Product ID : 32815714424

Price : $208.28 - 383.58

Discount Price : $187.45 - 345.22

* Price Update at : Jully, 25 2019 *

VISIT WEBSITE NOW

Item specifics

•
  Interface Type:
  USB



•
  Type:
  Barcode Scanner



•
  Scan Breadth:
  A4



•
  Colour Depth:
  48 Bit



•
  Model Number:
  PL-40L



•
  Product Type:
  Bar Code Scanner



•
  Novelty:
  New



•
  Time to market:
  Mar-13



•
  Scanning Light Source:
  Laser Light



•
  Brand Name:
  SENMONZ



•
  Optical Resolution:
  TFT-LCD 480*800



•
  Scan Speed:
  200 scans/second



•
  Scan Element Type:
  1D Laser



•
  Item Name:
  Touch screen Wireless Andorid 7.0 PDA Data collector



•
  operating system:
  Android 7.0



•
  Bar code:
  All 1d barcode



•
  Memery+Flash:
  2G+16G NAND Flash,micro-TF up to 32G



•
  Display:
  4.0'' QVGA touch panel TFT-LCD Display



•
  Battery:
  3.7V 4,000mAh Li-battery



•
  Item Type:
  Portable data terminal PDA



•
  CPU:
  ARM Cortex-A53 64 bit quad-core(1.3GHz)



•
  Optional:
  QR scanner and NFC HF



•
  Wireless:
  4G,WIFI, Bluetooth 4.0+EDR/3.0+HS/4.1+HS



•
  Product Type:
  Bar Code Scanner



•
  Scan Element Type:
  Scan Element Type:



•
  Interface Type:
  USB



•
  Optical Resolution:
  480*800



•
  Model Name:
  Touch Screen Android PDA


Product Description

PL-40L large screen 1d bluetooth android barcode scanner pda data terminal scanner



NOTHING IS IMPOSSIBLE : HIGH CONFIGURATION HIGH PERFORMANCE

The standard configuration:Android 7.0+2G RAM+16G ROM+Wifi+BT4.1+GPS+1D+FDD-TLE 4G/WCDMA/GSM

                                                       +phone+8M pixel Camera+barcode scanner 1D/2D (Support google playe store)

Standard Accessories:Battery 1pcs+usb data cable 1pcs+charger 1pcs+screen protector 1pcs+package box 1pcs



Option :NFC ,LF(125K/134.2K)

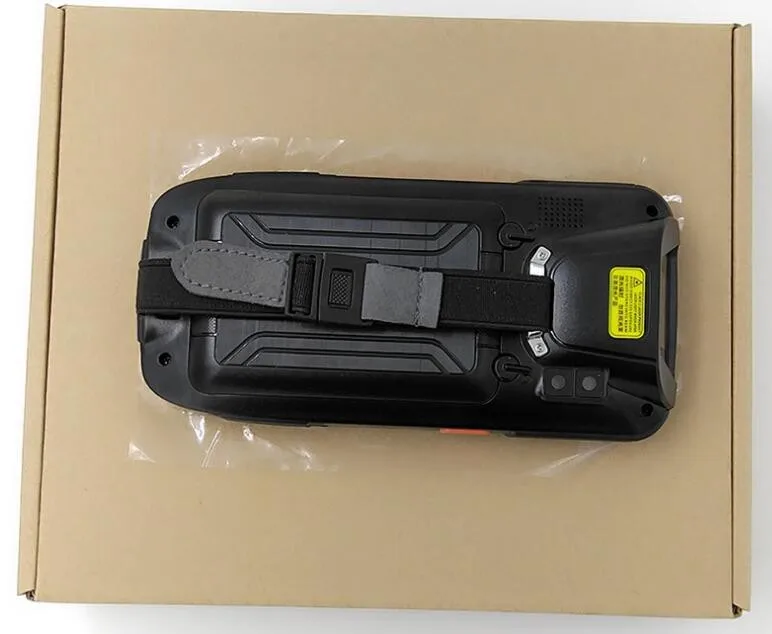

Compact and Portable Ergonomic Design with wrist strap

Safedroid OS (Android 7.0) Highly optimized Android operating system.

8.0M mega pixel camera.

High capacity 4000mA large capacity battery for critical requirements;

Pogo Pin interface for convenient charging with optional charge cradle.

Industrial rugged design, water-proof and protection grade(IP65)

Optional: NFC/RFID : ( If you need the optional function, please visit this link ) :

https://www.aliexpress.com/store/product/Android-5-1-Handheld-pos-terminal-with-NFC-UHF-RFID-reader-memory-4-inch-large-screen/2234039_32836246282.html?spm=2114.12010612.0.0.fb35c1drHXyP1



Attention: Belt Case Protect bag :( If you need the optional function, please visit this link ) :

https://www.aliexpress.com/store/product/Belt-Case-protect-bag-leather-cover-for-Handheld-PDA-Android-Terminal-scanner-Wireless-Wifi-Bluetooth-barcode/2234039_32934601424.html?spm=2114.12010612.8148356.9.7bec54c2FPUNLW

Attention:  optional extra battery,Buy extra battery pls visit this link.

https://www.aliexpress.com/store/product/Freeshipping-Battery-for-PDA-Pos-terminal-devices-Date-collector-battery-4000mAh-4200mAh-4800mAh/2234039_32963207015.html?spm=2114.12010612.8148356.7.4eac54c2mknjxT

Attention:convenient charging with optional charge cradle.buy cradle pls visit this link.

https://www.aliexpress.com/store/product/Freeshipping-Charge-Cradle-for-PDA-Barcode-Scanner-Pos-terminal-devices/2234039_32960252994.html?spm=2114.12010612.8148356.5.3adf54c23SjwrF



Standard Accessories:

Handheld POS Terminal 1 Pcs, Battery1pcs, Usb data cable1pcs, Charger 1pcs, User Manual 1pcs, screen protector 1 Pcs,device bag 1 Pcs,

Optional：Charge Cradle



Standard Features:

-8.0M mega pixel camera

-Multiple languages

-Support Google Play Store

-Compact and Portable Ergonomic Design with wrist strap

-Safe OS (Android 7.0) Highly optimized Android operating system

-High capacity 4000mA large capacity battery for critical requirements

-Pogo Pin interface for convenient charging with optional charge cradle

-Industrial rugged design, waterproof and protection grade(IP65)



Main Parameters:

Model Name:	Touch Screen Android 7.0 PDA
CPU	ARM Cortex-A53 64 bit quad-core(1.3GHz)
Memery+Flash	2G+16G NAND Flash,micro-TF up to 32G
Display	4.0'' QVGA  touch panel TFT-LCD Display(480X800)
Wireless	WIFI, Bluetooth 4.0+EDR/3.0+HS/4.1+HS
Operating System	Android 7.0
Interface Type:	USB2.0 Device
Scanner:	1D/2D Scanner
Dimension:	152mm×77mm×29mm
Weight:	<500g
Battery:	3.7V 4,000mAh Li-battery
Optional(add money)	Charge Cradle, NFC(HF), RFID(UHF)







Physical Parameter
Dimensions	152mm(L)X77mm(H)x25mm(W)
Weight	<500g
Display Screen	Color 4.0 inch QVGA imitative glass durable touch screen TFT-LCD, 650000 colors, 480*800 (QVGA size) The brightness of LED Backlight is adjustable
Expand Port	SIM card, PSAM card(optional), Micro SD (TF) Card
Communication Interface	USB2.0 Device, RS-232(Optional)
Input Mode	Standard Stylus, Handwriting, touching input or keyboard input
Battery Capacity	Rechargeable Li-polymer Battery 3.7V 4000mAh
Frequency	8Ω 1W speaker
Buttons	21pcs soft silicon key
Android 7.0 System
CPU	ARM Cortex-A53 64bit Quad-Core 1.3G
RAM	2G RAM
Flash ROM	Standard 16G NAND Flash Storage Micro SD/TF port  Max up to 32G
Data Communication
WI-FI	Support IEEE802.11b/g/n protocol, it need effective wireless LAN signal cover
4G All netcom	FDD-LTE 4G: Uplink:  1920MHZ-1980MHZ;  Downlink:  2110MHZ-2170MHZ Uplink:  1710MHZ-1785MHZ;  Downlink:  1805MHZ-1880MHZ Uplink:  2496MHZ-2690MHZ;  Downlink:  2496MHZ-2690MHZ WCDMA 3G: Uplink:1850MHZ-1910MHZ;  Downlink: 1930MHZ-1990MHZ Uplink:880MHZ-915MHZ;  Downlink: 925MHZ-960MHZ GSM 2G: 850MHZ,  Uplink:824MHZ-849MHZ;  Downlink: 869MHZ-894MHZ 900MHZ,  Uplink:880MHZ-915MHZ;  Downlink: 925MHZ-960MHZ 1800MHZ,Uplink:1710MHZ-1785MHZ;  Downlink: 1805MHZ-1880MHZ 1900MHZ ,Uplink:1850MHZ-1910MHZ;  Downlink: 1930MHZ-1990MHZ
Bluetooth	Support Bluetooth 4.0, transmission distance is 5-10m
Operating Environment
Operating Temperature	—20 to 50
Storage Temperature	—25 to 70
Environment Humidity	5%RH--95%RH(no condensation)
Drop Specifications	6 sides can bear impact from 1.5m drop to cement floor in the range of operating temperature
Roll Specifications	1000 times/0.5m, roll on 6 sides contact area
Sealed Environment	IP65
Development Environment
Operating System	Android 7.0
SDK	exclusive use software development kit
Supported Language	JAVA
Development Tool	Eclipse
1D Laser Scanner
One dimensional laser scanner	Mingde966(Standard),Symbol 955, HoneywellN4313,
Resolution	4Mil minimum width
Ambient Light	10000ft.candles 107640 lux
Scanning Speed	104(±)12/sec (bothway)
Scanning Angle	47º±35º(Standard) / 35º±3º(narrow angle)
Support Bar Code Type	UPC/EAN, Code128, Code39, Code93,Code11, Interleaved 2 of 5, Discrete  2 of 5,Chinese 2 of 5, Codabar, MSI, RSS
2D CMOS (Optional)
CMOS Scanner	Newland 3096(Standard) Honeywell 3680
The Sensor Resolution	752(level)x480(vertical)pels(gray level)
Ambient Light	All dark 9000ft.candles/96900 lux
Focus element (VLD)	655nm ± 10nm
Support bar code type	PDF417,MicroPDF417,Composite, RSS,TLC-39, Datamatrix, QR code, Micro QR code,Aztec, MaxiCode; Postal Codes: US PostNet,US Planet, UK Postal, Australian Postal, JapanPostal Dutch Postal (KIX)3
RFID(Optional)
NFC&HF	13.56MHz;ISO14443A/B protocol
UHF	902Mhz – 928Mhz 、865MHz – 868MHz
Camera	Hd 8.0 million pixels, with LED, automatic focusing
GPS	Support A-GPS
