2D/QR/1D fixed mount scanner Wiegand RS485 USB RS232 Vending access control turnstile parking lot Scanner Module Free Shipping

Special Offers 2D/QR/1D fixed mount scanner Wiegand RS485 USB RS232 Vending access control turnstile parking lot Scanner Module Free Shipping

Product ID : 32798815760

Price : $74.59 - 85

Discount Price : $59.67 - 68

* Price Update at : Jully, 25 2019 *

VISIT WEBSITE NOW

Item specifics

•
  Brand Name:
  YK&SCAN



•
  Scan Speed:
  200 scans/second



•
  Type:
  Barcode Scanner



•
  Optical Resolution:
  600*600



•
  Scan Element Type:
  CMOS



•
  Interface Type:
  USB2.0



•
  Scan Breadth:
  A4



•
  Model Number:
  EP3000



•
  Novelty:
  New



•
  Scanning Light Source:
  LED



•
  Colour Depth:
  32 Bit



•
  Time to market:
  Mar-13



•
  Product Type:
  Bar Code Scanner



•
  Products Status:
  Stock



•
  Max Paper Size:
  A4



•
  Color:
  Black



•
  Scan Distance:
  3-30 cm



•
  Interface:
  UBS / RS232/Wiegand/RS485/USB Virtual COM



•
  Product:
  2D Fixed Mount barcode scanner



•
  Symbologies:
  1D 2D Barcodes



•
  Used For:
  Kiosk, Vending, Parking Lot, Access Control


Product Description

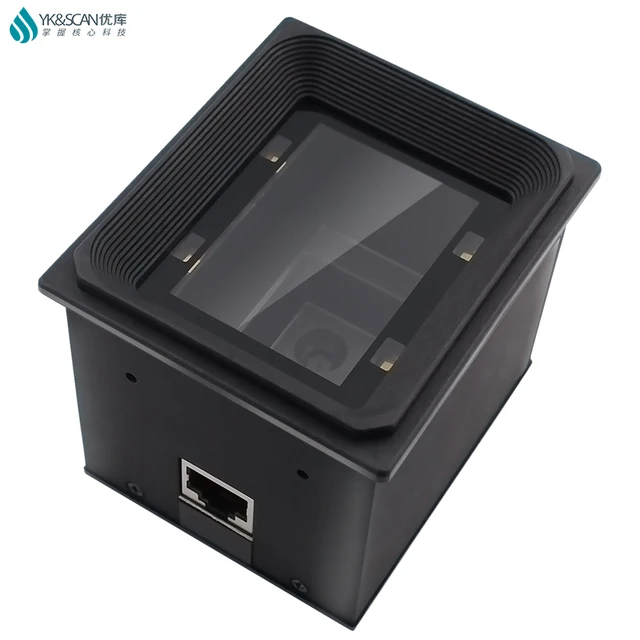

Super performance fixed mount 2D/1D Scanner YK-EP3000

The EP3000 Fixed mount 2D Imager Module provides a self-contained 1D and 2D barcode scanning solution, whether decoding mobile phone screens or paper. It offers many differentiating features that simplify installation (e.g., cable connector compatibility and more mounting options) and enhance performance (e.g., Wide Angle and Megapixel optics options, wider choice of non-laser aimers and illumination, enhanced scan time and print contrast, and higher operating temperature range). Its unique design simplifies installation and deployment for a wide range of kiosk applications.

Potential applications include medical diagnostic and analytical equipment; rail, airport, resort, event, car park    and border control access control kiosks; lottery terminals/ticket checkers; e-voting machines; retail point-of-sale self-checkout equipment; smart lockers; banking ATMs; and in-vehicle ticket validators used in buses, subways and trains.







Specification

Interface : USB / RS232  /RS485/Wiegand/TTL/ USB-Virtual COM (Option)

Scan speed : 300 Times/ second;

useage :  Embedded in koisk device ,  auto vending machine , access control etc.

Symbologies:

1D : EAN-8，EAN-13，UPC-A，UPC-E，Code 39，Code 93，Code 128，EAN128，Codabar，Industrial 2 of 5，Interleave 2 of 5，Standard 25,Matrix 2 of 5，MSI,GS1.

2D : PDF417、MicroQR, DataMatrix, QR, HanXin, Aztec

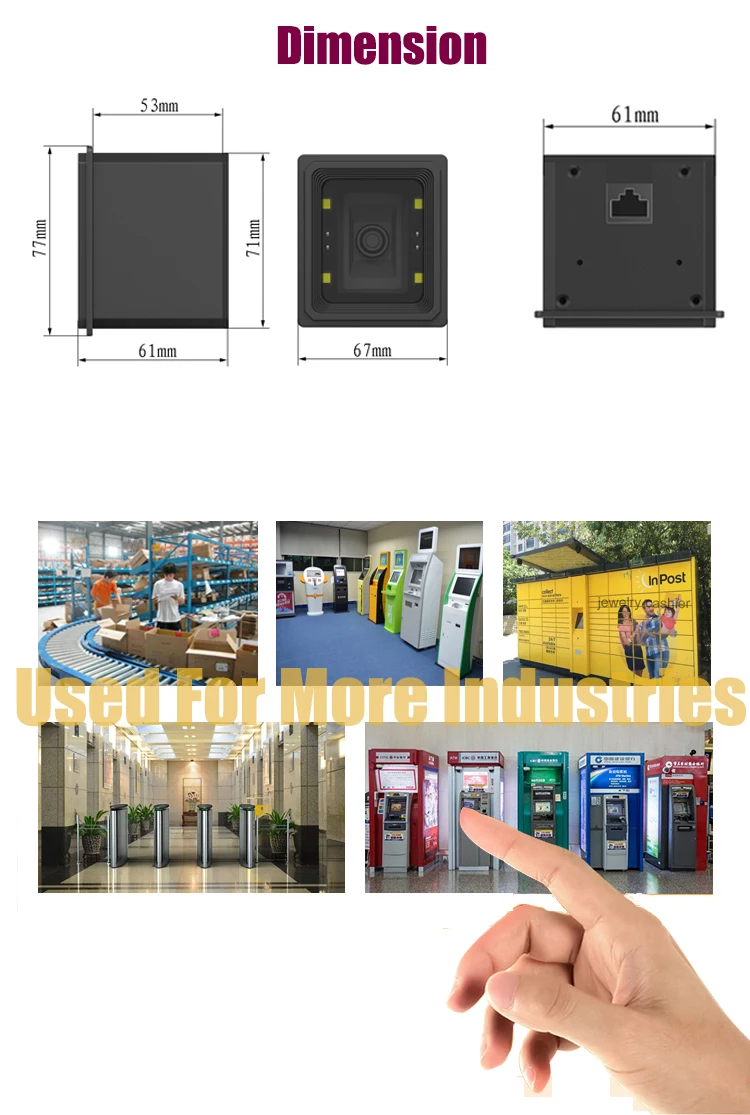

Dimension : 66mm* 76mm*63mm;

Retail packing : 185mm*110mm*80mm;

Net Weight: 165g;

Packing Weight : 330g.

Working maximum current : 373MA

Standby current : 72MA

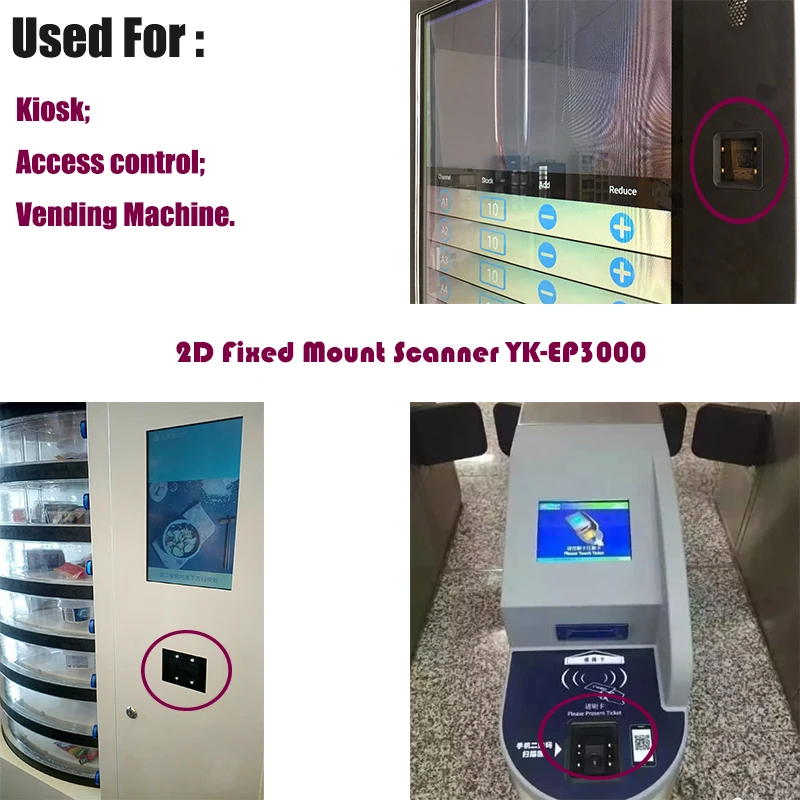

Industries :

•
  Kisok;



•
  Vending ;



•
  Access Control;



•
  Parking Lot System;



•
  Turnile.

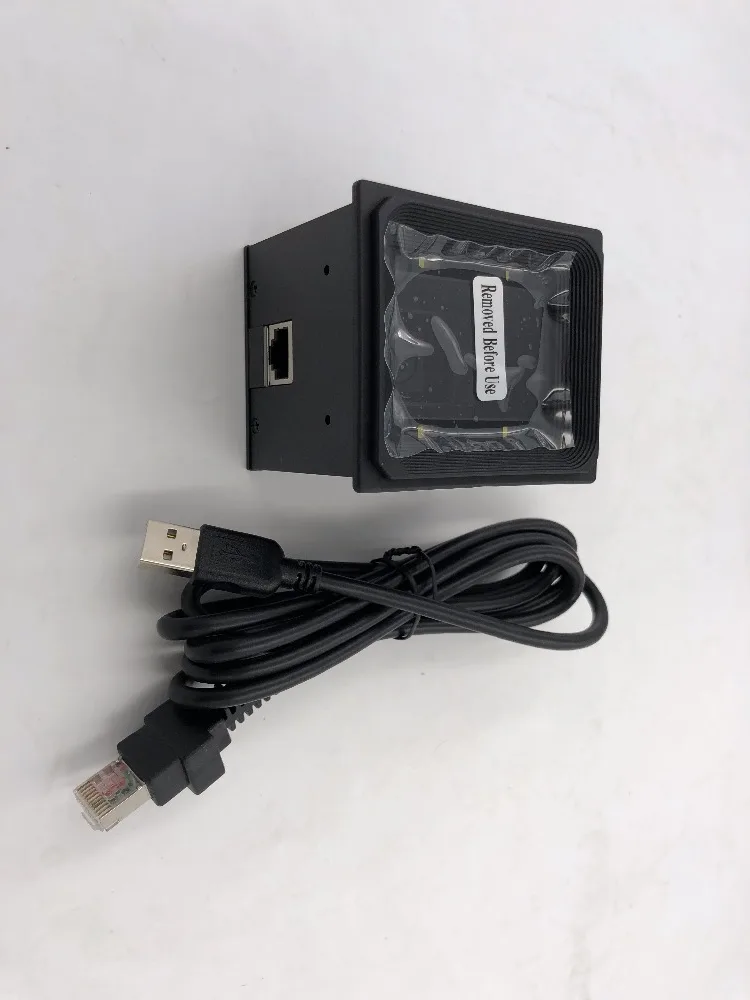

USB Interface :

Wiegand Interface :

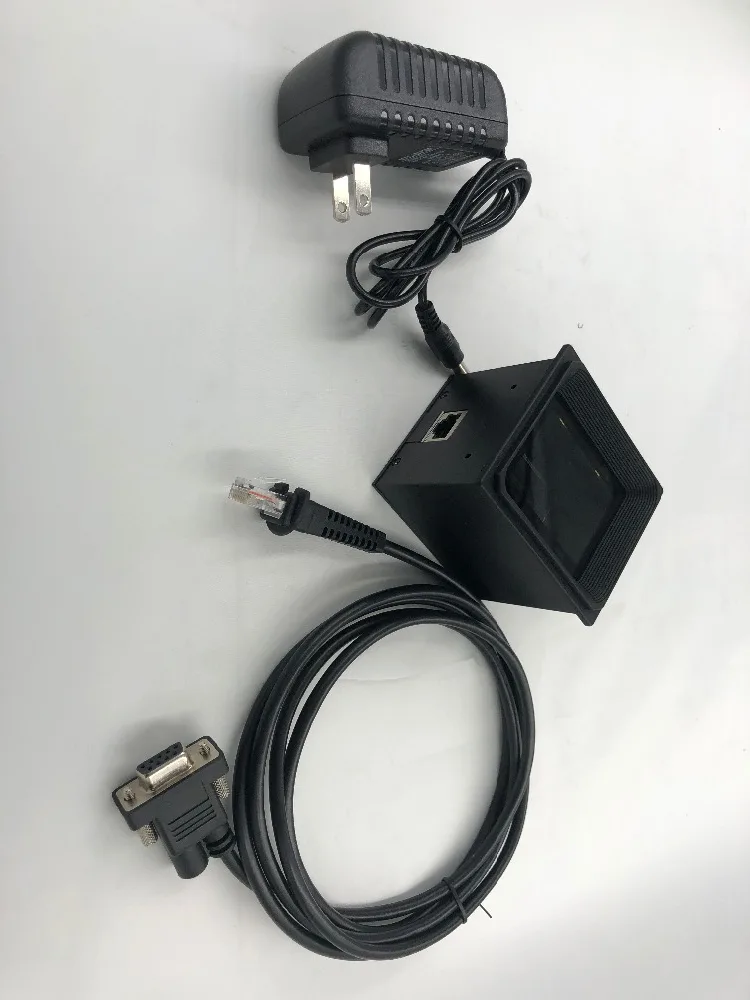

RS232 Interface:

Packaging Details

•
  Unit Type:
  piece



•
  Package Weight:
  0.5kg (1.10lb.)



•
  Package Size:
  19cm x 11cm x 8cm (7.48in x 4.33in x 3.15in)
