Barcode PDA Android 7.0 Scanner 5.5inch screen Rugged Carrier Inventory Honeywell 6603 QR code 2D Barcode scanner PDA

Special Offers Barcode PDA Android 7.0 Scanner 5.5inch screen Rugged Carrier Inventory Honeywell 6603 QR code 2D Barcode scanner PDA

Product ID : 32970094333

Price : $391.26 - 486.69

Discount Price : $332.57 - 413.69

* Price Update at : Jully, 25 2019 *

VISIT WEBSITE NOW

Item specifics

•
  Scan Speed:
  100 scans/second



•
  Scan Element Type:
  CMOS



•
  Interface Type:
  USB



•
  Type:
  Barcode Scanner



•
  Colour Depth:
  48 Bit



•
  Model Number:
  pda android with printer



•
  Product Type:
  Bar Code Scanner



•
  Novelty:
  New



•
  Time to market:
  Mar-13



•
  Scanning Light Source:
  Laser Light



•
  Brand Name:
  mussels



•
  Optical Resolution:
  720x1280



•
  Scan Breadth:
  PDF417, MicroPDF417, GS1 Composite,Aztec Code, Data Matrix, QR Code, M



•
  Operating system:
  Android 7.0



•
  Processor type:
  ARM A53 64bitQuad-core CPU(1.3GHz)



•
  Screen size:
  5.0 inch



•
  Camera:
  8MP Zoom



•
  GPS:
  Support A-GPS



•
  PDA size:
  178mm * 78mm * 24mm



•
  RFID:
  125KHZ, 134.2KHZ LF RFID, NFC HF RFID, UHF RFID



•
  Memory Capacity:
  2G RAM + 16G ROM



•
  Interface:
  SIM, TF, Micro USB, PSAM



•
  Screen:
  5.0inch IPS color display,resolution:720*1280



•
  Printer:
  Thermal printer 58mm width



•
  Product Name:
  Honeywell QR code 2D Barcode scanner handheld pda



•
  Keyword:
  barcode pda android



•
  Protection level:
  IP66



•
  Drop resistance level:
  1.5 meters



•
  Application:
  carrier , cargo transportation , logistics , industrial



•
  Use:
  data collecting and inventory



•
  Data communication:
  Wifi , FDD/TDD-LTE 4G , WCDMA 3G , GSM 2G , Bluetooth



•
  Wifi:
  Support IEEE802.11 a/b/g/n protocol, it need effective wireless LAN si



•
  Bluetooth:
  Support Bluetooth 2.0+EDR/3.0+HS/4.1+HS, transmission distance is 5-10



•
  Supported 1D bar code type:
  Code128,EAN-13,EAN-8,Code39,UPC-A,UPC-E,Codabar , etc



•
  Supported 2D bar code type:
  PDF417,MicroPDF417,Composite, RSS,TLC-39, Datamatrix, QR code, more


Product Description

Barcode PDA Android 7.0 Scanner 5.5inch screen Rugged Carrier Inventory Honeywell 6603 QR code 2D Barcode scanner PDA











Detailed introduction about this PDA



1.The standard configuration ,

5 inch touch screen + Android 7.0 OS + Wifi + Bluetooth + GPS + 4G + FDD-TLE 4G / WCDMA / GSM + phone + Camera + Google play + 2G RAM + 16G ROM + Free English SDK



2.Optional functions,

 1D/ 2D barcode scanner, or RFID LF/ HF, NFC/ UHF RFID, or Printer, or charging cradle. Please choose according to your needs.











More explanation for you to make a good choice.

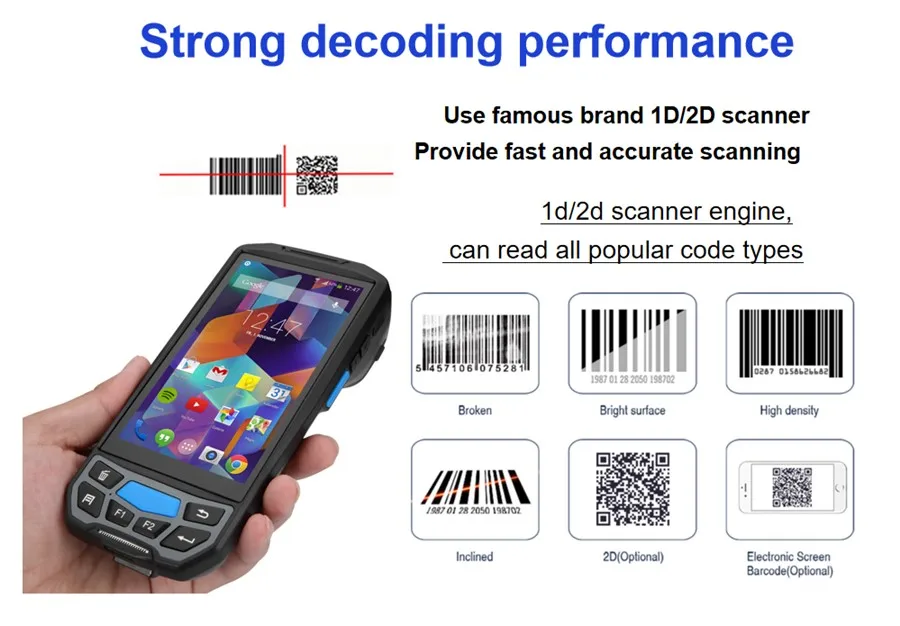

Barcode scanner

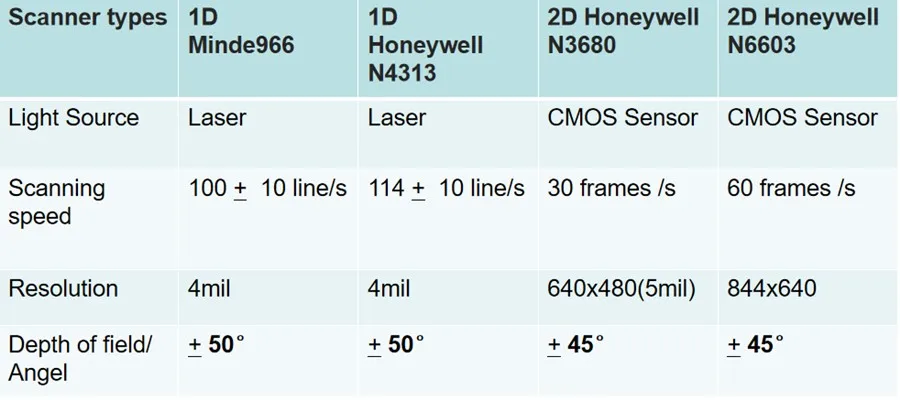

For 1D scanner, in the market, there are Minde966 and Honeywell N4313. Honeywell N4313 is higher cost than Minde 966, and it works better on the scanning speed and performance, thus we sell 1D Honeywell N4313 only.

For 2D scanner, in the market, there are HoneywellN6603 & Honeywell N3680, can meet the needs for different countries clients. N6603 is higher cost than N3680, they are able to scan different ranges of 2D code types.

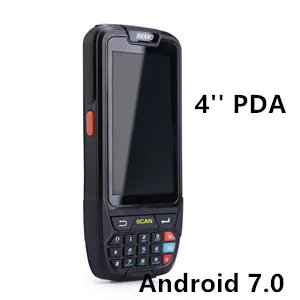

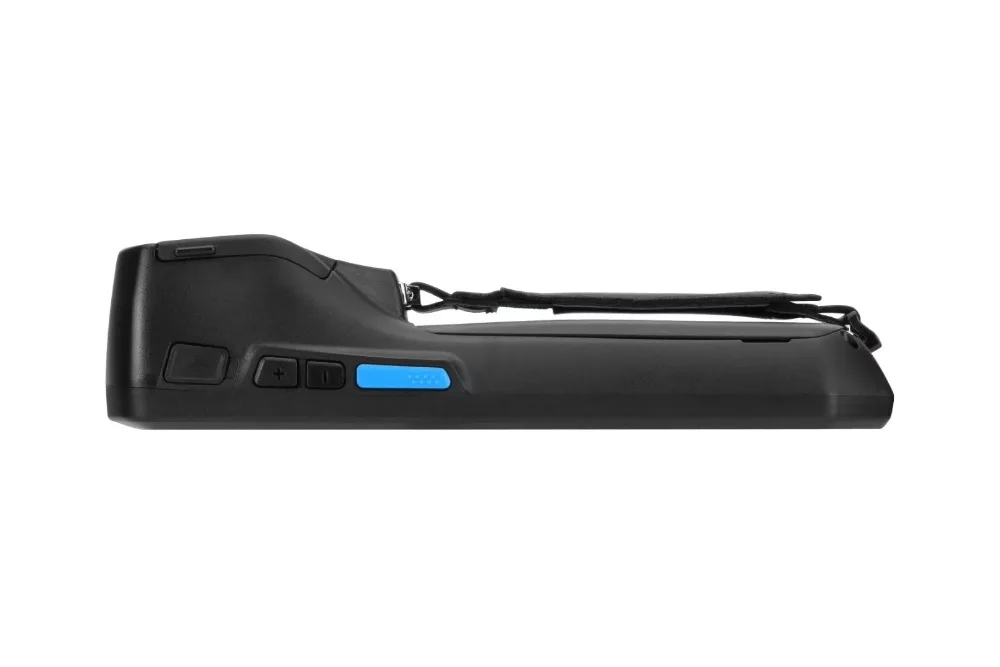

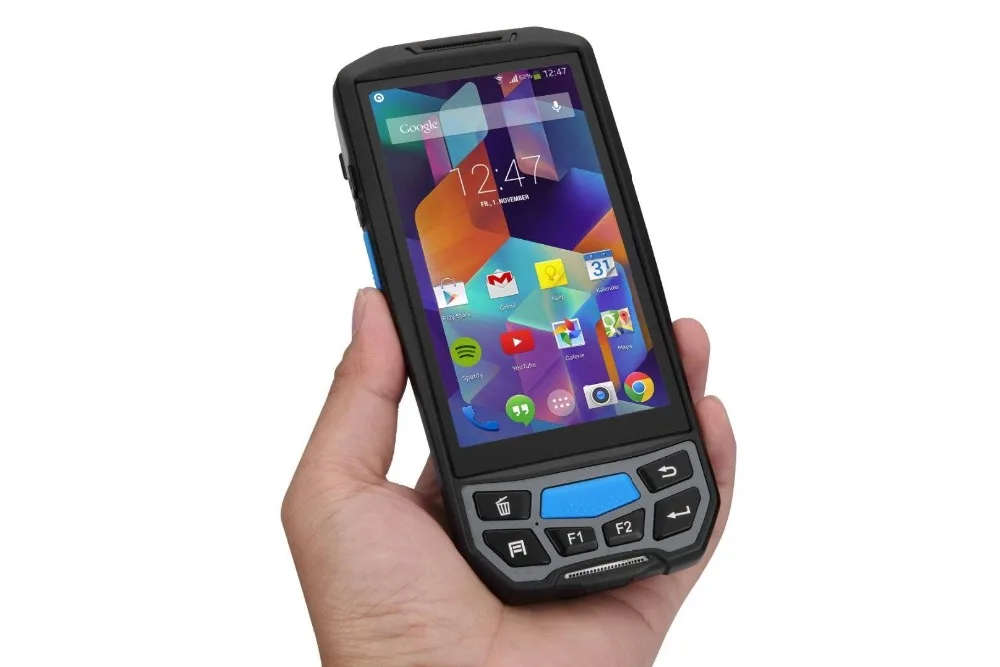

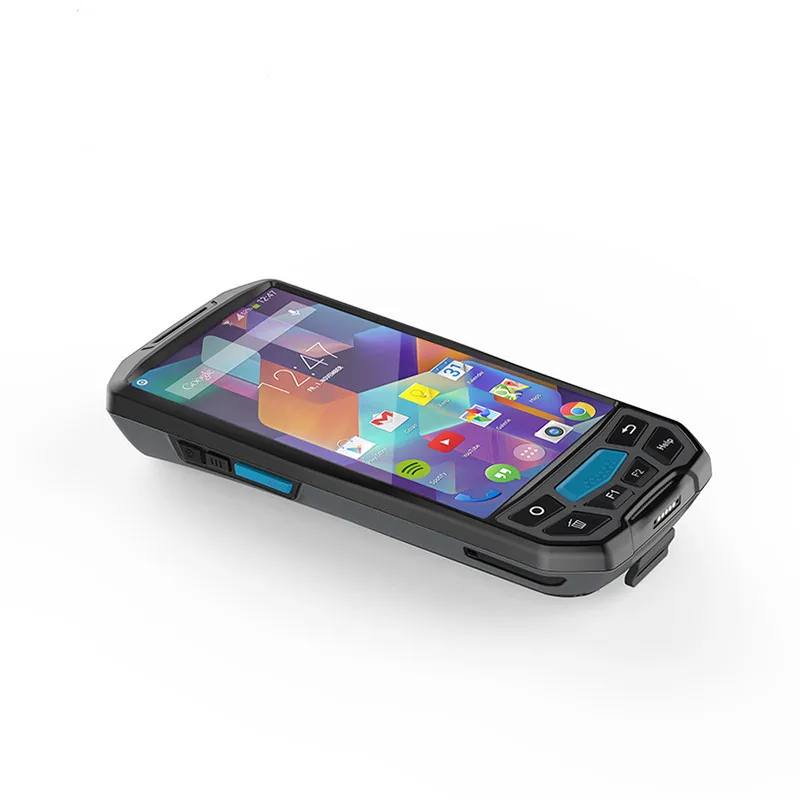

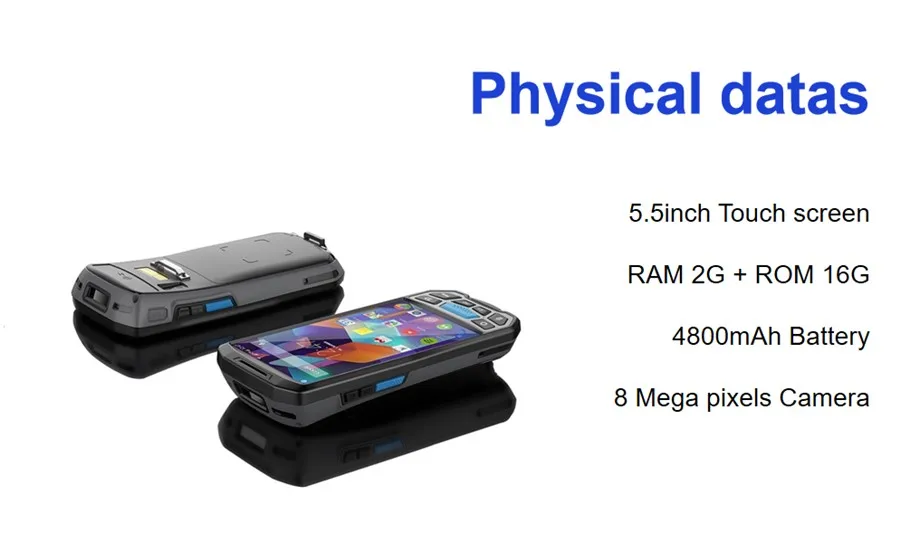

Product pictures















All technical specifications



Structure	Physical Specification	Dimension	178mm×78mm×24mm
		Weight	＜500g（with battery）
		Keypad	13 keys： 1）Front：1 scan key，1 dete key，1enter key，1 back key，1 function key，2 shortcut keys。 2）Side：Voice up and down keyscan keys，2 ，1 user-defined key，1 power key。
	External card slot	PSAM	PSAM x 2
		TF	TF x 1
		SIM	Micro SIM x 1
		POGO Pin	POGO Pin x 1
		Micro USB	Micro USB x 1
Haredware	Product performance	CPU	ARM Cortex-A53 64bitQuad-core CPU(1.3GHz)
		RAM	2GB
		eMMC	16GB ROM
	Screen	5.0inch IPS color display，resolution:720×1280
		5.0inch TP，Multi-Touch，Work even with water or Gloves
	Scanner module	1D(option)		Honeywell N4313
				Support：UPC/EAN/JAN, GS1 DataBar, Code 39, Code 128, Code 32, Code 93, Codabar/NW7, Interleaved 2 of 5,Code 2 of 5, Matrix 2 of 5, MSI, Telepen, Trioptic,etc
		2D(option)		Honeywell N6603
				Support：PDF417, MicroPDF417, GS1 Composite,Aztec Code, Data Matrix, QR Code, Micro QR Code, MaxiCode, Chinese-sensible code,etc

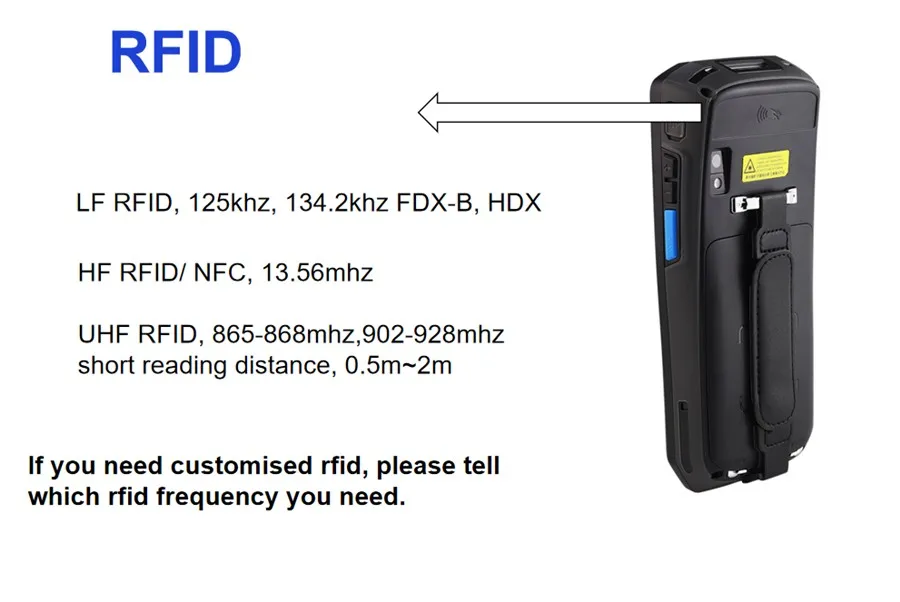

	RFID (option)	125K		Support：125K；ISO11784/5, ISO18000-2；
				Read distance:2cm-5cm；
		134.2K		Support：134.2K；ISO11784/5 FDX-B;HDX 15；
				Read distance:5cm-10cm；
		NFC		Support：13.56MHz；ISO1443A/B、ISO15693；
				Read distance:2cm-5cm；

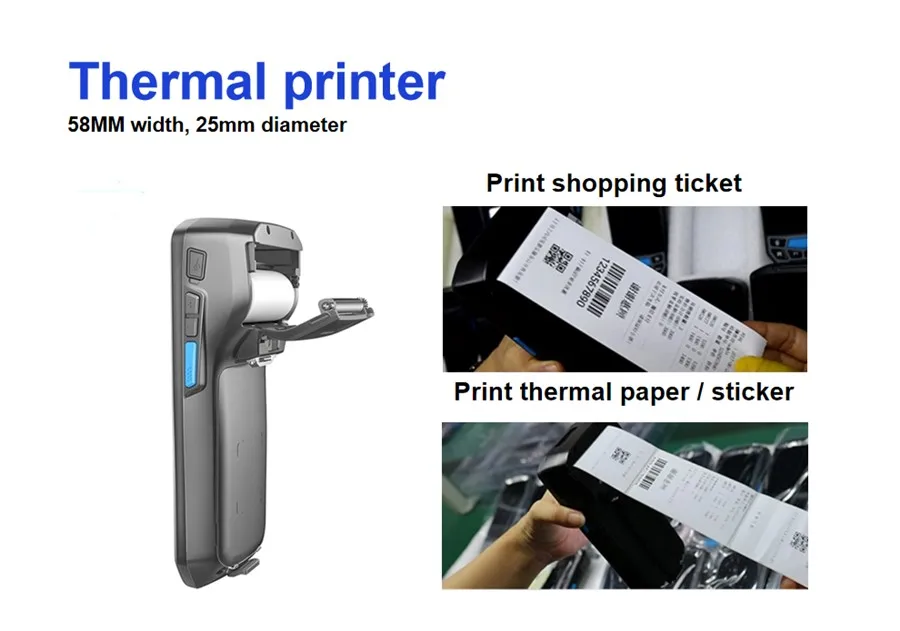

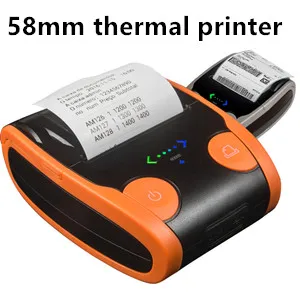

	Printer(option)	Print type		Thermal printer
		Paper width		58mm
		Paper diameter		25mm
	Data Transportation	WiFi		Support：802.11a/b/g/n
		Bluetooth		Bluetooth 4.0； Class II
		4G/3G/2G		2G：GSM（850/900/1800/1900MHz）
				2G：CDMA
				3G：CDMA2000 （800MHz）
				3G：WCDMA （850/900/1900/2100MHz）
				3G：TD-SCDMA （1880/1920/2015/2025MHz）
				4G：TDD-LTE （B38/B39/B40/B41）
				4G：FDD-LTE （B1/B3/B41）
		433M LoRa		LoRa SX1278；Transportation distance 8000m；FSK:300kdps，OOK:32kbps；
		ZigBee		IEEE802.15.4
	Extended function	Camera（option）		1、Support Zoom,anti-shake,Macro shooting； 2、8MP ；  3、Support vedeo record ；  4、Support still image and video capture。
		Flash		Flash and Flashlight
		G-sensor		1、3-Axis；
				2、Adjustle samples per second，such as 1to100times
		GPS		Support GPS and AGPS
		Beidou		Built-in Beidou compass navigation
		Voice		Mic		Support voice record
				Speaker		Support speakout
	Power	Power		1、3.7V 4600 mAh；
				2、Continuous operation≥12Hours；
				3、Stand-by time≥72Hours；
		RTC battery		Clock not lost
		Chargeing time		No more than 6 Hours（USB charger）
	Auxiliary	Wristlet		wristlet*1
		Shake		Motor*1
		LED		2 LED
		Flashlight		1、Brightness can be adjusted；
				2、Brightness is the same as flash.
		Light Sensor		Support Photosensitive sensor
Software	OS	Android 7.0
	Language	Almost all the language in the world
	Input method	English,Chinese,handwriting,soft keyboard
	Input mode	Support soft keyboard and physical keyboard
Test	Operating environment	Standby Current			≤10mA，target：8mA
		Work Temp.			–25°C to +55°C
		Storage Temp.			–40°C to +60°C
		Humidity			5%–95% (No condensation)
		Drop resistance level			1.5m
Certificate	Product specification	IP level			IP66
		Laser safety tandards			IEC2 /FDA Ⅱ,IEC60825-/EN60825-1
		Device life			No less than 5 years







Related products









1 unit packing list include

1x PDA

1x battery

1x USB data cable

1x plug (US, EU, AU version for mathched counties, will ship the plug version according to your address)

1x user manuel

1) Once the order is confirmed, we will arrange shipment within 1- 5 days. To guarantee fast delivery, our company have products with normal specifications in stock.

2) Because all items with battery inside, to make sure you receive the goods successfully. normally we use Aliexpress standard shipping. This method is available for all countries, including Russia, Brazil. The delivery time is about 20 - 40 days. If you have enough time for the purchasing process, you can choose this way. It's free for the buyer. If you want to get the products within 10 days, you can choose DHL.

3) In the commercial invoice, we will write low-value than the real unit price, so that you can pay less tax in the import custom .

4) Kindly write correct and detailed delivery address for your order. For Brazil clients, please provide receipient's CNPJ or CPF number, otherwise,  the parcel will be destoryed or returned back. Thus, please confirm that you have CNPJ or CPF number before order for Brazil buyers .

5) Service Transmit Time is provided by the carrier and excludes weekends and holidays. Transmit time may vary, particularly during the holiday season. If you havev't received the goods within 30 days after payment, please contact us. Of course, we will update you shipping status every weeks.



1) We provide 12 months warranty for our producs, since the buyer got the goods. The buyer is free to contact us anytime when there is doubts to use the device, or meet any technical problems.

2) The buyer is able to contact us by these ways. Send message via Aliexpress or Trademanager , Whats app / Wechat(+86 18898735992) ,

email ( dianaszsg@outlook.com). You will get a reply within 1 natural day.

3) If there is quality problems, we will replace with new product , after the buyer provide video and the clients need to ship the device back . After we got buyer's complaint, we have colleague to contact with you soon to solve the problem until you are satisfied.

If you are satisfied with our products and service, welcome to re-order and give us a 5-Star for the transaction. If you are not satisfied, welcome to contact us and complain to us, we will solve your problem soon, until you are happy.

Enjoy your shipping.



Packaging Details

•
  Unit Type:
  piece



•
  Package Weight:
  1.0kg (2.20lb.)



•
  Package Size:
  25cm x 15cm x 10cm (9.84in x 5.91in x 3.94in)
