Caribe Handheld PDA Barcode scanner 1D 2D Bluetooth Android Terminal PDA Wireless Mobile 1D Bar code Scanner Data Collector
Best Price Caribe Handheld PDA Barcode scanner 1D 2D Bluetooth Android Terminal PDA Wireless Mobile 1D Bar code Scanner Data Collector
Product ID : 32948003696
Price : $180 - 359.88
Discount Price : $162 - 323.89
* Price Update at : Jully, 25 2019 *
Item specifics
Scan Speed:
100 scans/second
Scan Element Type:
CMOS
Interface Type:
USB
Type:
Barcode Scanner
Colour Depth:
48 Bit
Product Type:
Portable Scanner
Novelty:
New
Time to market:
Mar-13
Scanning Light Source:
Laser Light
Brand Name:
NETUM
Optical Resolution:
800*480
Scan Breadth:
1D / 2D Barcode Scanner
weight:
0.7KG
ROM:
16GB
RAM:
2CB
Battery:
4000Mah
IP rate:
IP65
CPU:
MT6737 Quad-Core 1.5GHz
operating system:
Android 7.0
Product Description
Display Screen

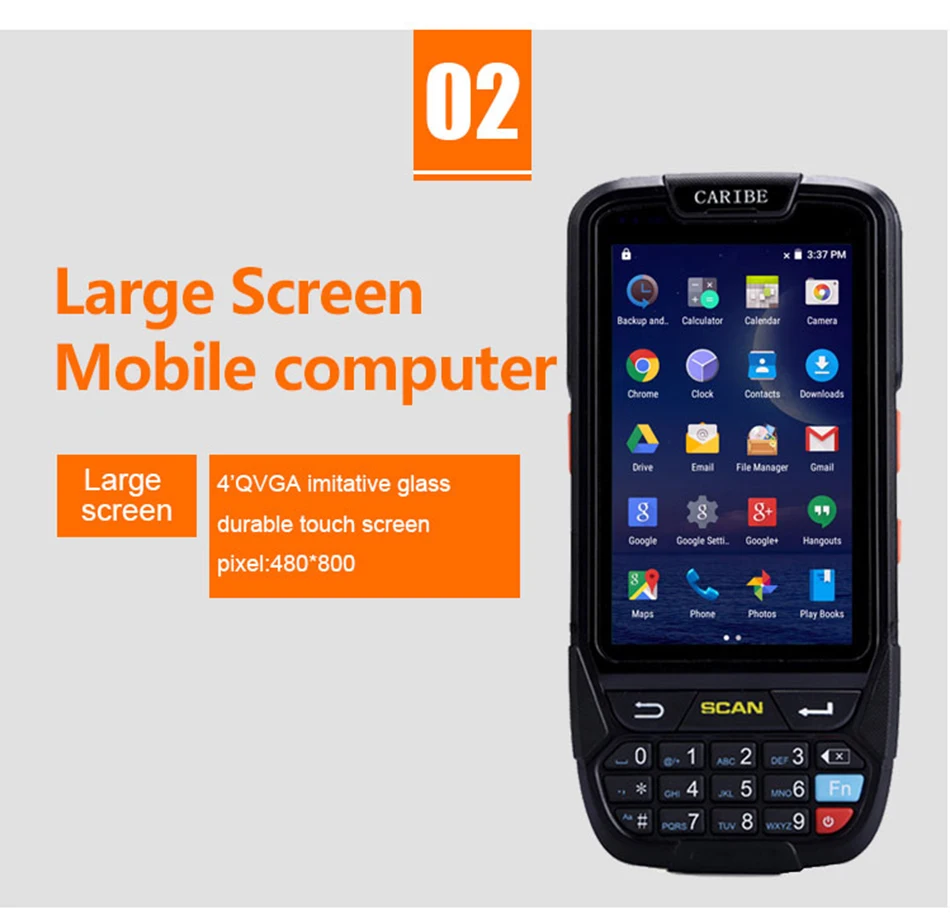

Color 4.0 inch QVGA imitative glass durable touch screen
TFT-LCD, 650000 colors, 480*800 (QVGA size)
The brightness of LED Backlight is adjustable
Expand Port: SIM card, PSAM card(optional), Micro SD (TF) Card
Communication Interface: USB2.0 Device, RS-232(Optional)
Input Mode: Standard Stylus, Handwriting, touching input or keyboard input
Battery Capacity: Rechargeable Li-polymer Battery 3.7V 4000mAh
Frequency: 8Ω 1W speaker
Key: 21pcs soft silicon key
Performance Parameter

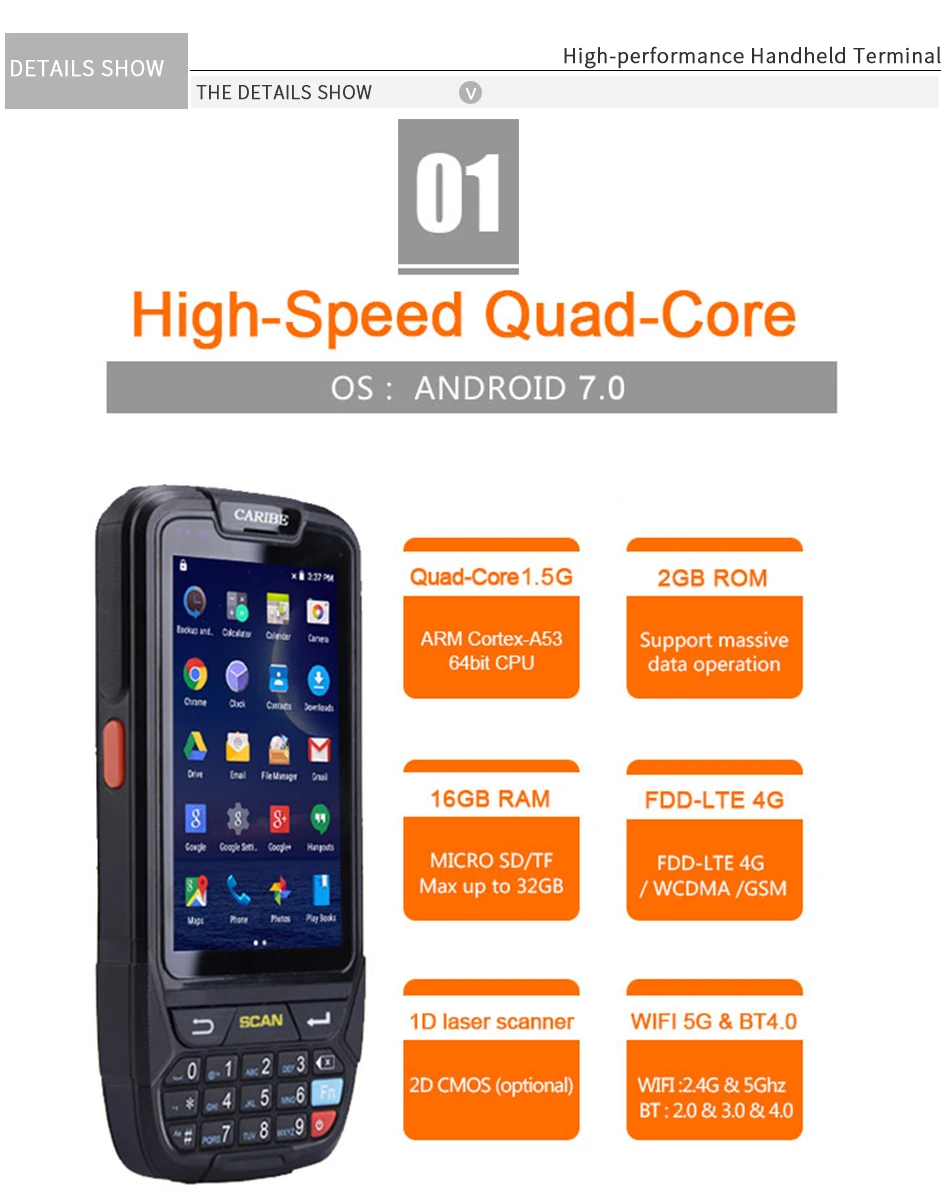

CPU: Quad-Core ARM Cortex-A53 CPU1.5G
RAM: 2G RAM
Flash ROM: Standard 16G NAND Flash Storage
Micro SD/TF port Max up to 32G
Data Communication
WI-FI: Support IEEE802.11b/g/n protocol, it need effective wireless LAN signal cover

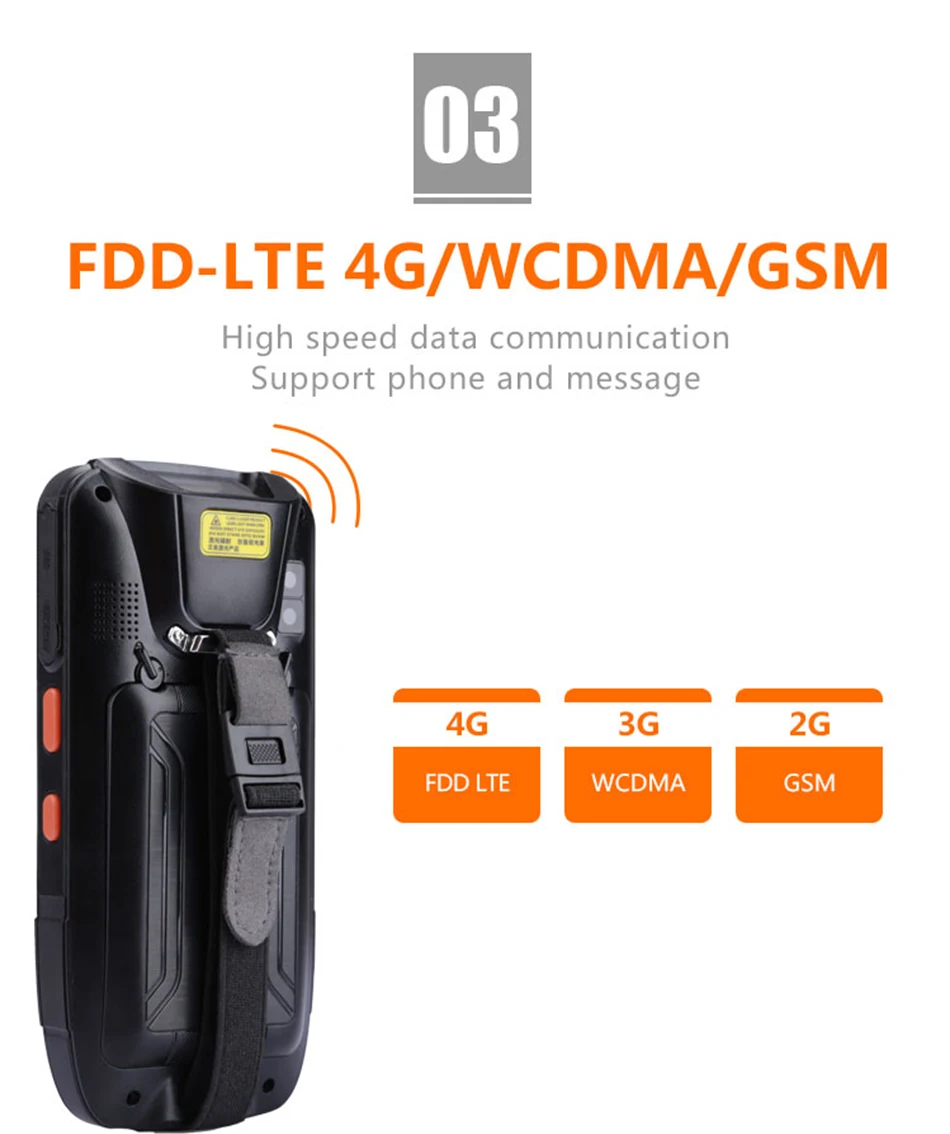

4G All netcom
FDD-LTE 4G:
Uplink: 1920MHZ-1980MHZ; Downlink: 2110MHZ-2170MHZ
Uplink: 1710MHZ-1785MHZ; Downlink: 1805MHZ-1880MHZ
Uplink: 2496MHZ-2690MHZ; Downlink: 2496MHZ-2690MHZ
WCDMA:
Uplink:1850MHZ-1910MHZ; Downlink: 1930MHZ-1990MHZ
Uplink:880MHZ-915MHZ; Downlink: 925MHZ-960MHZ
GSM:
850MHZ, Uplink:824MHZ-849MHZ; Downlink: 869MHZ-894MHZ
900MHZ, Uplink:880MHZ-915MHZ; Downlink: 925MHZ-960MHZ
1800MHZ,Uplink:1710MHZ-1785MHZ; Downlink: 1805MHZ-1880MHZ
1900MHZ ,Uplink:1850MHZ-1910MHZ; Downlink: 1930MHZ-1990MHZ
Bluetooth: Support Bluetooth 4.0, transmission distance is 5-10m
Operating Environment
Drop Specifications: 6 sides can bear impact from 1.5m drop to cement floor in the range of operating temperature
Roll Specifications: 1000 times/0.5m, roll on 6 sides contact area
Sealed Environment: IP65
Development Environment
Operating System: Android 7.0
SDK: exclusive use software development kit
Supported Language: JAVA
Development Tool: Eclipse
1D bar code collect
One dimensional laser scanner: Honeywell N43XX
Resolution: 4Mil minimum width
Ambient Light: 10000ft.candles 107640 lux
Scanning Speed: 104(±)12/sec (bothway)
Support Bar Code Type: UPC/EAN, Code128, Code39, Code93,Code11, Interleaved 2 of 5, Discrete 2 of 5,Chinese 2 of 5, Codabar, MSI, RSS
2D bar code acquisition
CMOS Scanner: Honeywell 3680
The Sensor Resolution: 752(level)x480(vertical)pels(gray level)
Ambient Light: All dark 9000ft.candles/96900 lux
Focus element (VLD): 655nm ± 10nm
Support bar code type: PDF417,MicroPDF417,Composite, RSS,TLC-39, Datamatrix, QR code, Micro QR code,Aztec, MaxiCode; Postal Codes: US PostNet,US Planet, UK Postal, Australian Postal, JapanPostal Dutch Postal (KIX)3
RFID
LF: 125K/134K;ISO11784/ISO11785 protocol
HF13.56MHz;ISO14443A/B 15693 protocol
Camera: Hd 8.0 million pixels, with LED, automatic focusing
GPS: Support A-GPS
Packaging Details
Unit Type:
piece
Package Weight:
0.7kg (1.54lb.)
Package Size:
22cm x 19cm x 8cm (8.66in x 7.48in x 3.15in)
