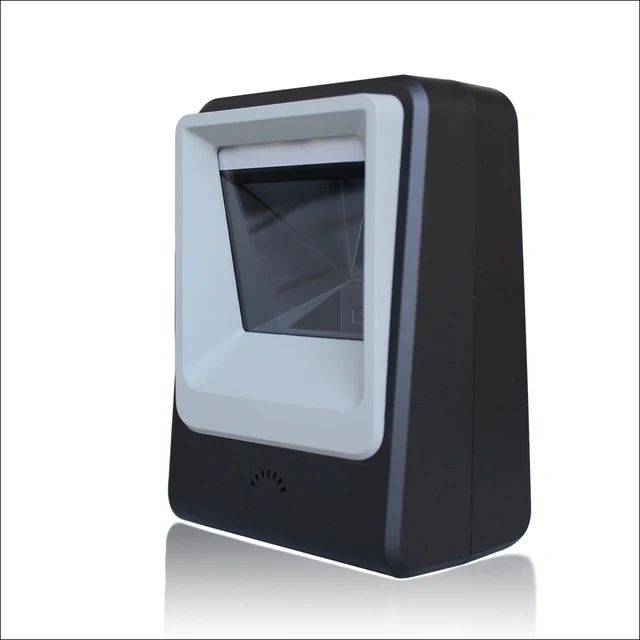

freeshipping Omni Directional Scanner 2D Scanner Ticketing QR Code Scanner USB Barcode Reader Desktop 2d scanning platform
Optical Resolution:
300*300
Scan Speed:
100 scans/second
Scan Element Type:
CCD
Interface Type:
USB
Type:
Barcode Scanner
Scan Breadth:
A4
Model Number:
7200
Product Type:
Bar Code Scanner
Novelty:
New
Time to market:
Mar-13
Scanning Light Source:
LED
Colour Depth:
none
Products Status:
Stock
Max Paper Size:
none
Product features
Super large reading window
- Objects from the induction
- Mobile phone APP barcode scanning
- A key quickly switch work mode
- Multiple language barcode message transfer
- Build in RS232 and USB interface
Typical applications
- Retail
- Cashier POS
- Medical
- Mobile coupons
- Check-in
- The pharmacy
- The lottery betting station
- Bank ect
Symbology Decode Capability
A dimensional barcode1-D:
UPC,EAN,Code128 Code39 Code93 Code11 Matrix 2 of 5 Interleaved 2 of 5 Codabar MSIplessey GS1 DataBar China Postal Korean Postal etc.
Two dimensional barcode2-D:
PDF417 MicroPDF417 Data Matrix Maxicode QR Code MicroQR,Aztec,Hanxin ect.
Decode Ranges
5MIL:0mm-30mm
13MIL:0mm-150mm
performance may be impacted by bar code quality and environmental conditions
Performance Characteristics
Light Source:Illumination: 6500K LED
Field of View:45° (H) x 35° (V)
Roll/Pitch/Yaw:360°, ±65°, ±60°
Print Contrast:25% minimum reflective difference
Interfaces supported:USB,RS232
Physical Characteristics

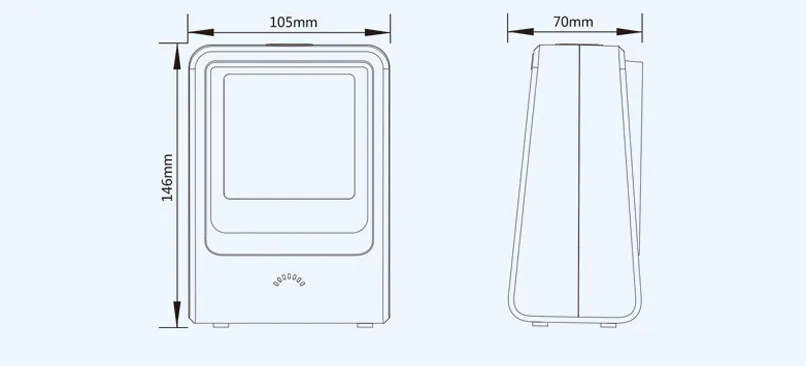

Dimensions:105mm x 146mm x 70mm
Weight:200g
Voitage:5 VDC
Current:400mA (Operating)
User Enveronment
Operating Temperature:0 to 50
Storage Temperature:-40 to 70
Humidity:0% to 95% relative humidity, non-condensing
Shock Specifications:Designde to withstand 1.5m(5’)drops
Ambient Light lmmunity:100.000 Lux.
Unit Type:
piece
Package Weight:
1.0kg (2.20lb.)
Package Size:
20cm x 20cm x 20cm (7.87in x 7.87in x 7.87in)
