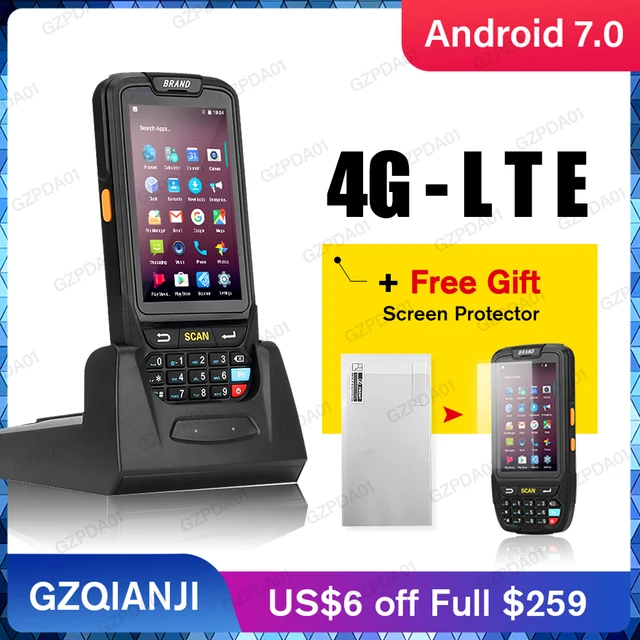

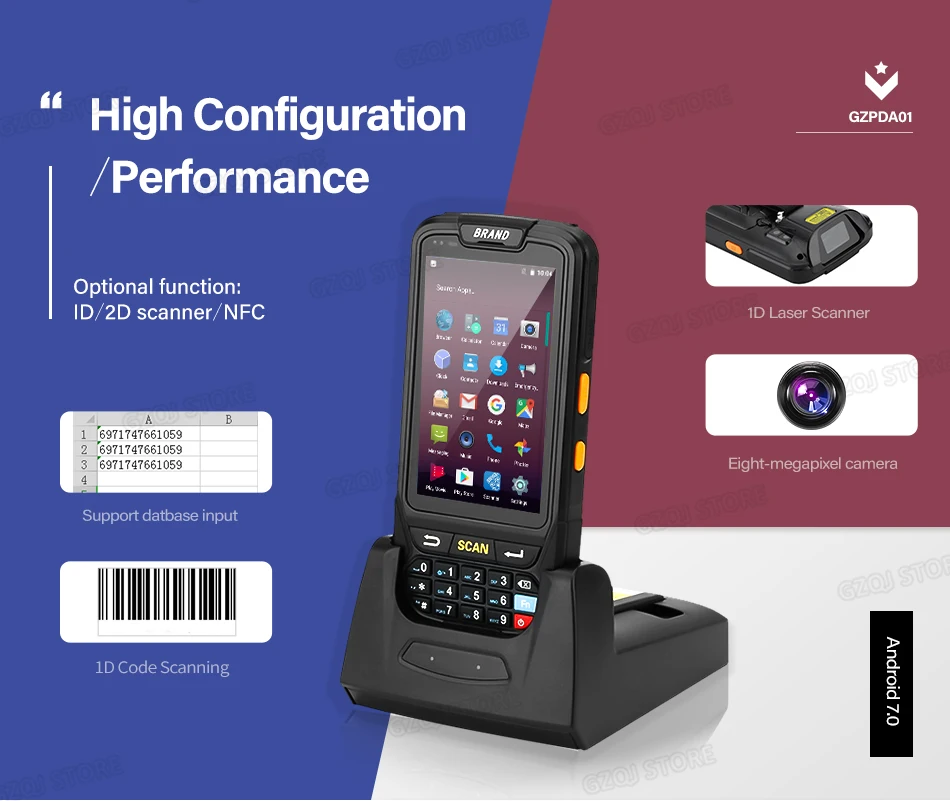

PDA Rugged Handheld Terminal Android 7.0 Data Collector Terminal Wireless 1D 2D QR Laser Barcode Scanner Reader NFC Terminal 4G
Cheap PDA Rugged Handheld Terminal Android 7.0 Data Collector Terminal Wireless 1D 2D QR Laser Barcode Scanner Reader NFC Terminal 4G
Product ID : 32862138154
Price : $327.14 - 479.14
Discount Price : $225.73 - 330.61
* Price Update at : Jully, 25 2019 *
Item specifics
Novelty:
New
Interface Type:
USB
Brand Name:
GZQIANJI
Scan Speed:
100 scans/second
Time to market:
Mar-13
Product Type:
Portable Scanner
Type:
Barcode Scanner
Colour Depth:
48 Bit
Model Number:
GZPDA01
Scanning Light Source:
Laser Light
Scan Breadth:
1D 2D QR HONEYWELL Scanner optional PDA Handheld Terminal Rugged PDA
Optical Resolution:
480X800
Scan Element Type:
1D Laser 2D CCD
Model Name::
Touch Screen Android PDA
CPU::
ARM Cortex-A53 64 bit quad-core(1.3GHz)
Memery+Flash:
2G+16G NAND Flash,micro-TF up to 32G
Display::
4.0'' QVGA touch panel TFT-LCD Display(480X800)
Wireless::
WIFI, Bluetooth 4.0+EDR/3.0+HS/4.1+HS
Battery: :
3.7V 4,000mAh Li-battery
Optional::
QR scanner and NFC HF UHF RFID

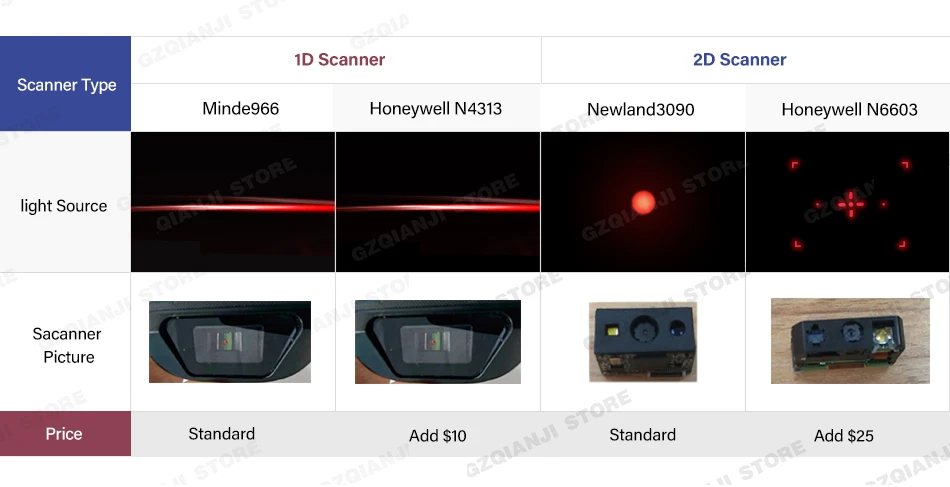

1D Scanner::
Mingde966(Standard),HoneywellN4313(Optional, add $10)
2D Scanner:
Newland 3090(Standard), HONEYWELL N6603 (Optional, add $25)

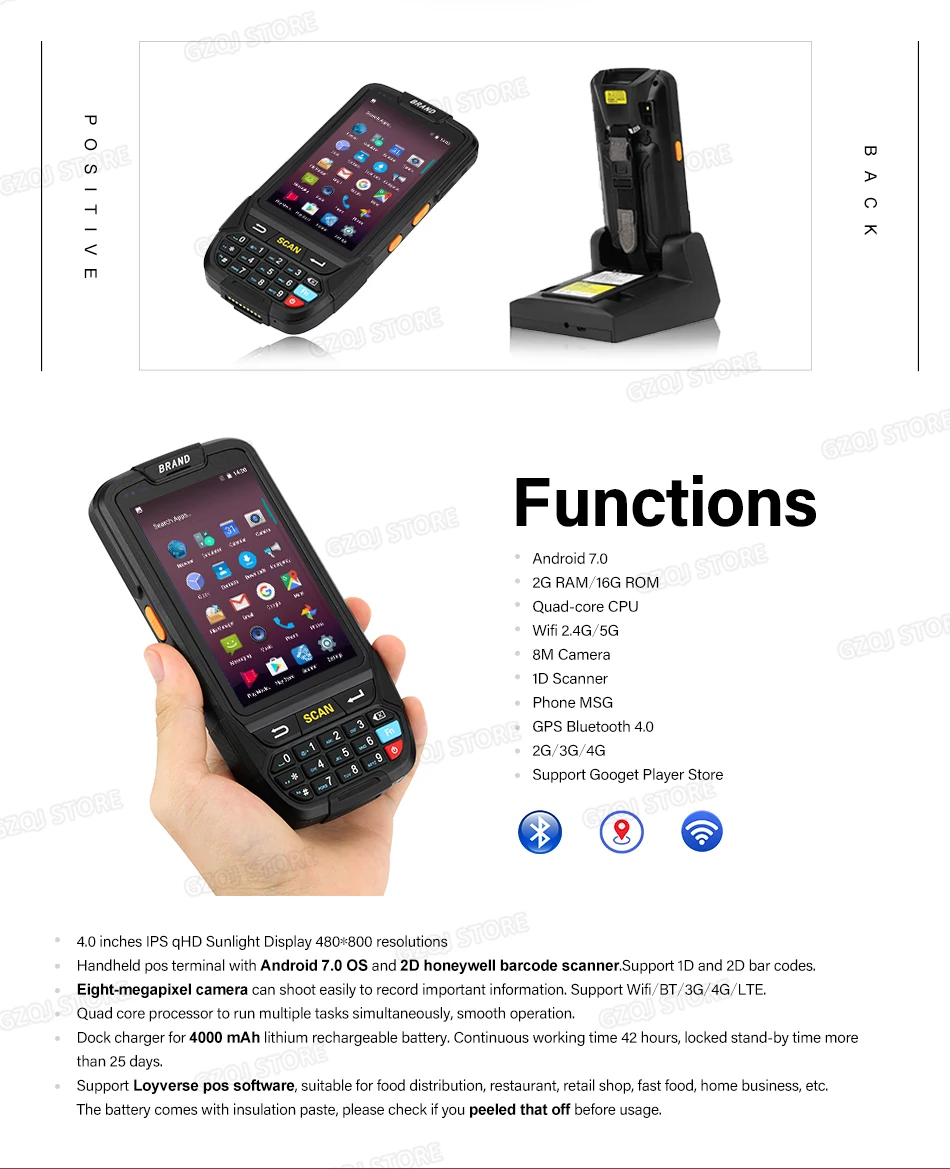

Product Description
Standard Configuration (Please noted):
- Android 7.0+4'' Screen+2G RAM+16GROM+Wifi+Bluetooth4.0+3G/4G+GPS+Camera+Free SDK
- Optional: 1D/2D Reader / Charge Cradle
Standard Configuration :
- 8.0M mega pixel camera
- Multiple languages
- Support Google Play Store
- Compact and Portable Ergonomic Design with wrist strap
- Safe OS (Android 7.0) Highly optimized Android operating system
- High capacity 4000mA large capacity battery for critical requirements
- Pogo Pin interface for convenient charging with optional charge cradle
- Industrial rugged design, waterproof and protection grade(IP65
| Physical Parameter | |
| Dimensions | 152mm(L)×77mm(H)×29mm(W) |
| Weight | <500g |
| Display Screen | Color 4.0 inch QVGA imitative glass durable touch screen |
| TFT-LCD, 650000 colors, 480*800 (QVGA size) | |
| The brightness of LED Backlight is adjustable | |
| Expand Port | SIM card, Micro SD (TF) Card |
| Communication Interface | USB2.0 Device, |
| Input Mode | Standard Stylus, Handwriting, touching input or keyboard input |
| Battery Capacity | Rechargeable Li-polymer Battery 3.7V 4000mAh Optional |
| Frequency | 8 1W speaker |
| Buttons | 21pcs soft silicon key |
| Data Communication | |
| WI-FI | Support IEEE802.11b/g/n protocol, it needs effective wireless LAN signal cover |
| FDD-LTE 4G | Uplink: 1920MHZ-1980MHZ; Downlink: 2110MHZ-2170MHZ |
| Uplink: 1710MHZ-1785MHZ; Downlink: 1805MHZ-1880MHZ | |
| Uplink: 2496MHZ-2690MHZ; Downlink: 2496MHZ-2690MHZ | |
| WCDMA 3G | Uplink:1850MHZ-1910MHZ; Downlink: 1930MHZ-1990MHZ |
| Uplink:880MHZ-915MHZ; Downlink: 925MHZ-960MHZ | |
| GSM 2G | 850MHZ, Uplink:824MHZ-849MHZ; Downlink: 869MHZ-894MHZ |
| 900MHZ, Uplink:880MHZ-915MHZ; Downlink: 925MHZ-960MHZ | |
| 1800MHZ,Uplink:1710MHZ-1785MHZ; Downlink: 1805MHZ-1880MHZ | |
| 1900MHZ ,Uplink:1850MHZ-1910MHZ; Downlink: 1930MHZ-1990MHZ | |
| Bluetooth | Support Bluetooth 2.0+EDR/3.0+HS/4.1+HS, transmission distance is 5-10m |
| Operating Environment | |
| Operating Temperature | —20C to 50C |
| Storage Temperature | —25C to 70C |
| Environment Humidity | 5%RH--95%RH(no condensation) |
| Drop Specifications | 6 sides can bear impact from 1.5m drop to cement floor in the range of operating temperature |
| Roll Specifications | 1000 times/0.5m, roll on 6 sides contact area |
| Sealed Environment | IP65 |
| Development Environment | |
| Operating System | Android 7.0 |
| SDK | exclusive use software development kit |
| Supported Language | JAVA |
| Development Tool | Eclipse |
| 1D Laser Scanner | |
| One dimensional laser scanner | Mingde966(Standard) HoneywellN4313(Add $10) |
| Resolution | 4Mil minimum width |
| Ambient Light | 10000ft.candles(107640 lux) |
| Scanning Speed | 104(±)12/sec (both way) |
| Scanning Angle | 47o±35o(Standard) / 35o±3o(narrow angle) |
| Support Bar Code Type | UPC/EAN, Code128, Code39, Code93,Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS |
| 2D CMOS (Optional) | |
| CMOS Scanner | Newland 3090(Standard) HONEYWELL N6603(Add $25) |
| The Sensor Resolution | 752(level)×480(vertical)pels(gray level) |
| Ambient Light | All dark 9000ft.candles/96900 lux |
| Focus element (VLD) | 655nm ± 10nm |
| Support bar code type | PDF417,MicroPDF417,Composite, RSS,TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, JapanPostal Dutch Postal (KIX)3 |
| RFID(Optional) | |
| NFC&HF | 13.56MHz;ISO14443A/B protocol |
| UHF | 902Mhz – 928Mhz 、865MHz – 868MHz |
| Camera | Hd 8 million pixels, with LED, automatic focusing |
| GPS | Support A-GPS |
| Android 7.0 System | |
| CPU | ARM Cortex-A53 64bit Quad-Core 1.3G |
| RAM | 2G RAM |
| Flash ROM | Standard 16G NAND Flash Storage |
| Micro SD/TF port (Max up to 32G) | |

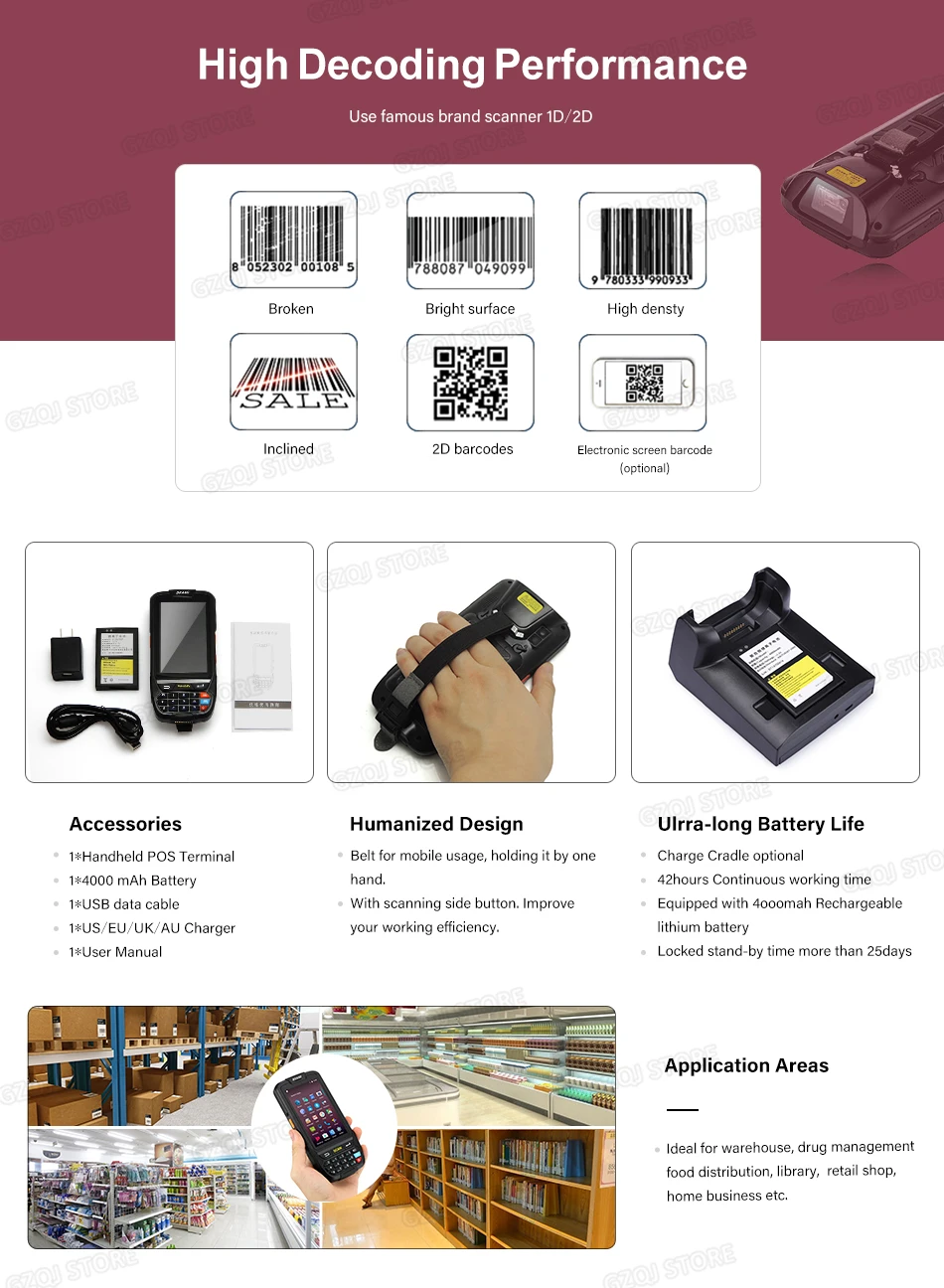

PDA Barcode scanner 1D 2D Blutooth Android PDA Handheld Terminal Rugged PDA Wireless Mobile
1D Bar code Scanner Data Collector
Attention: buy extra battery, pls visit this link(Choose GZPDA01 battery)：
https://www.aliexpress.com/item/Battery-for-GZPDA01-GZPDA02-NOTED-Battery-need-to-buy-with-the-devices-otherwise-the-battery-can/32890915906.html
Packaging Details
Unit Type:
piece
Package Weight:
1.0kg (2.20lb.)
Package Size:
36cm x 20cm x 9cm (14.17in x 7.87in x 3.54in)
