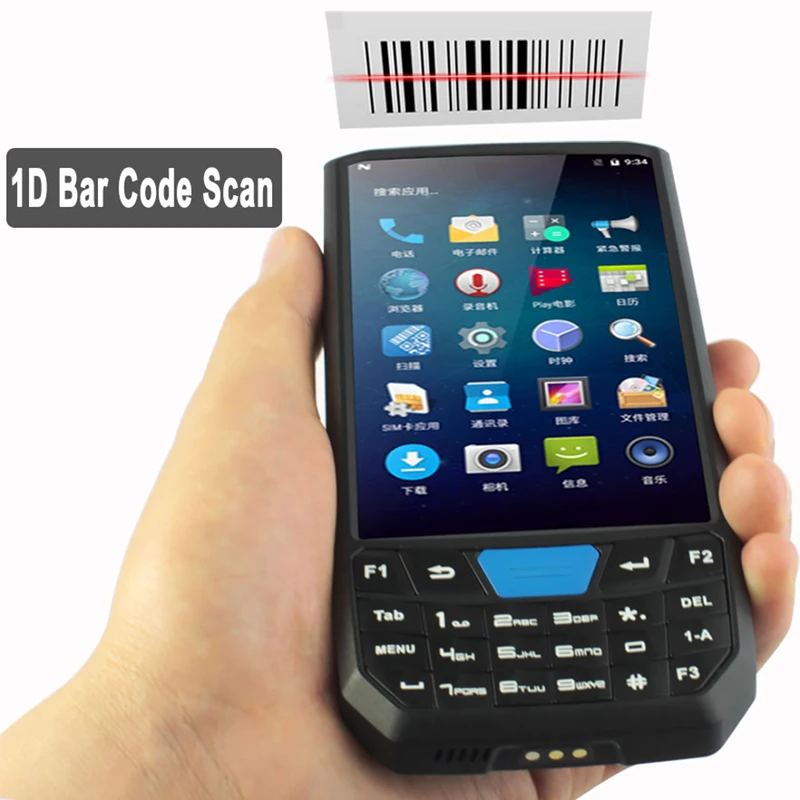

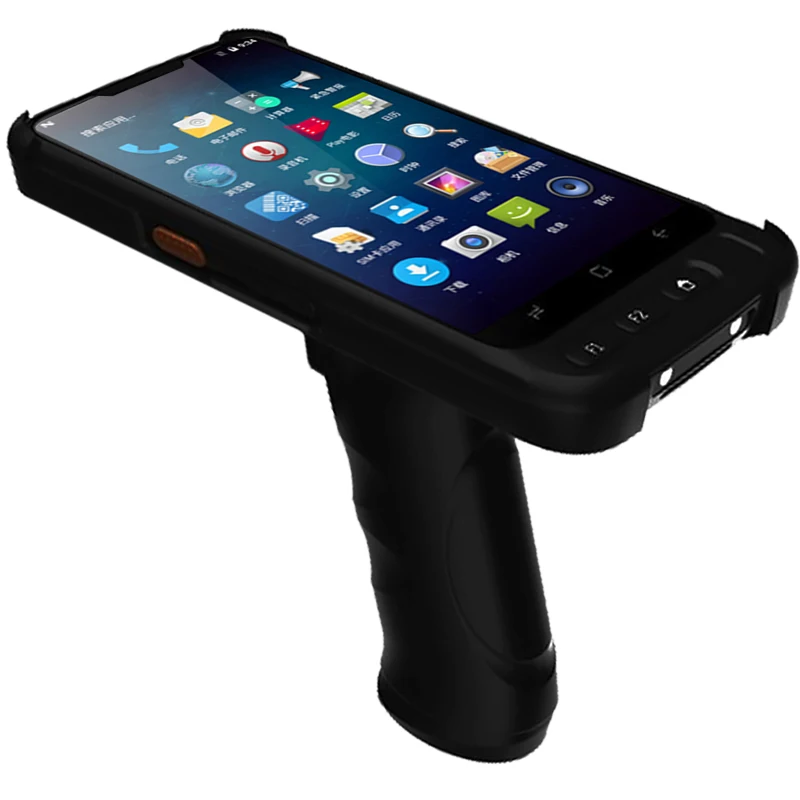

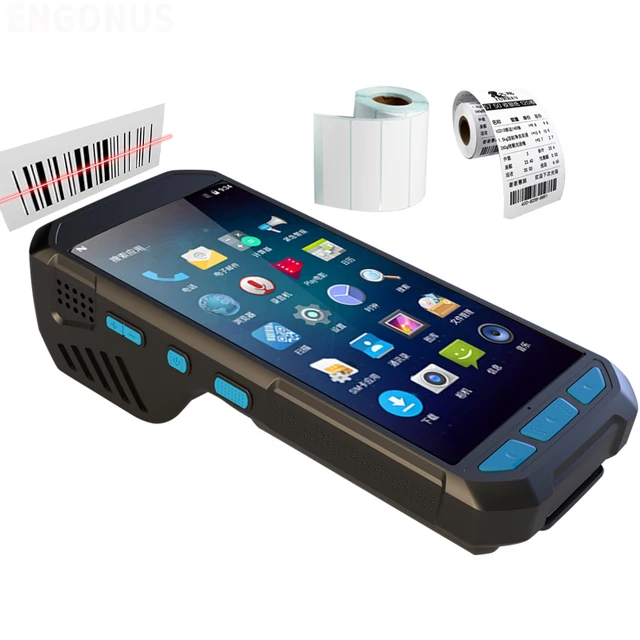

Scanner 1D / 2D QR Barcode Reader Handheld Terminal PDA with Printer 4G LTE Android6.0 for warehousing inventory logistics
Optical Resolution:
4800dpi
Scan Speed:
100 scans/second
Scan Element Type:
CMOS
Interface Type:
USB
Type:
Handheld Scanners
Scan Breadth:
A3
Colour Depth:
48 Bit
Model Number:
980
Product Type:
Portable Scanner
Novelty:
New
Scanning Light Source:
Laser Light
Brand Name:
ENGONUS
|
PRODUCT DESCRIPTION
New 2019 scanner printer two in one QR barcode handheld terminal PDA data collector 4G LTE Android OS for warehouse inventory logistics
FEATURES
PDA handheld terminal print scanning QR code barcode machine, 5.0M megapixel camera multi-language support Google Play store compact portable ergonomic design, with wristband Safe OS (Android 6.0) highly optimized Android operating system high capacity 5000mA Large-capacity battery that meets key requirements Pogo Pin interface for easy charging, optional charging base Industrial rugged design, waterproof and protection rating (IP64)
Performance Parameter
OS:Androis6.0
CPU:ARM Cortex-A53 64-bit quad-core processor (1.3GHz)
Memory (optional) Standard:1G Flash ROM and 8GB RAM (optional 8G Flash ROM and 16GB RAM), SD/TF card slot (up to 32G)
Input method:nglish, Pinyin, Wubi, handwriting input, support soft keyboard
Supported languages:Language packs in Simplified Chinese, Traditional Chinese, English, Korean, Japanese, Malaysian, Singapore, etc.
Camera:1, support zoom, anti-shake, macro shooting; 2, built-in 800W pixel auto focus camera; 3, support for live video recording; 4, camera, video requires clear and smooth picture.
GPS:Supports GPS or AGPS
NFC: supports 13.56MHz; supports ISO1443A/B, 15693 protocol; card reading distance 2cm-5cm
Physical Parameter
Machine size: 188mm (length) × 80mm (width) × 28-51mm (thickness)
Machine weight: 380g
Display: 5.0-inch IPS color display with resolution 1280*720 5.0 inch capacitor TP, support multi-touch, the screen can be operated with water or gloves
Expansion slot: PSAM×1; SIM×2; SD(TF)×1
Data interface: Micro USB×1；Mini USB×1
Battery Capacity: The optional rechargeable polymer battery (7.4V 5000MAnH) operates continuously for 10 hours.
Audio: speaker (mono) x1, microphone x1, earpiece
flashlight: Flash is compatible with flashlight
Acceleration sensor: 1, 3-Axis direction 2, sampling per second adjustable, such as 1~100 times
Basic functions: 1, motor *1; 2, status lights; 3, support light sensor; 4, barcode scanning, 2D scanning; 5, camera; 6, 58" thermal printing, ticket printing, self-adhesive printing; The brightness of the flashlight is the same as the brightness of the camera flash; 8, wristband;
Button: 7 button: front 3 button: return, scan, F3; Side 4 button: volume, boot, F1, F2; Support touch screen soft keyboard
Data communication
WI-FI: IEEE802.11a/b/g/n protocol and requires effective wireless LAN signal coverage.
4G: full Netcom
Bluetooth support: Bluetooth 2.0 + EDR / 3.0 + HS / 4.0 + HS transmission distance 5-10 meters
Thermal sticker printing
58MM thermal self-adhesive printing paper roll diameter 30MM
Scanning options:
2D scanning (optional) Honeywell N3680 . 1D barcode: UPC/EAN/JAN, GS1 DataBar, Code 39, Code 128, Code 32, Code 93, Codabar/NW7, Interleaved 2 of 5, Code 2 of 5, Matrix 2 of 5, MSI, Telepen, Trioptic , China Post, etc. 2D barcode: PDF417, MicroPDF417, GS1 Composite, Aztec Code, Data Matrix, QR Code, Micro QR Code, MaxiCode,
Use environment
Standby current: ≤10mA, and the target value is not more than 8mA. Working temperature: -20 ° C to 55 ° C Storage temperature: -25°C to 70°C Ambient humidity: 5% RH--95% RH (no condensation)
Product specification
Industrial grade： IP64 Laser Safety Specification： IEC Class 2 / FDA Class II, in accordance with IEC60825/EN60825-1 Use time： Product life is not less than 5 years
After Service
1. It comes with one year after sales service card when you got the package. Just contact our technical directly. 2. There are following ways to solve your problem: Whatsapp, TeamViewer, skype, wechat and phone call. 3. If the product is a quality problem, we will replace a new one for you after got the proof from your side by phone or video.
Feedback
1.If you feel good for the product, Please give all 5 stars feedback.Then we will do better than better. 2.Before leaving the bad feedback, Please contact us to solve the problem.We will help you solve it.
Unit Type:
piece
Package Weight:
1.0kg (2.20lb.)
Package Size:
20cm x 15cm x 10cm (7.87in x 5.91in x 3.94in)
