XT-430-E Industrial IP54 2D Fixed Mount Barcode Scanner/Passport OCR MRZ Reader Module for Kiosk and Self-service Terminal

Best Price XT-430-E Industrial IP54 2D Fixed Mount Barcode Scanner/Passport OCR MRZ Reader Module for Kiosk and Self-service Terminal

Product ID : 32977807159

Price : $137

Discount Price : $398.65 - 598.40

* Price Update at : Jully, 25 2019 *

VISIT WEBSITE NOW

Item specifics

•
  Scan Speed:
  200 scans/second



•
  Colour Depth:
  32 Bit



•
  Novelty:
  New



•
  Scan Breadth:
  A4



•
  Type:
  Barcode Scanner



•
  Product Type:
  Portable Scanner



•
  Scan Element Type:
  CMOS



•
  Interface Type:
  USB



•
  Model Number:
  XT-430-E



•
  Scanning Light Source:
  LED



•
  Brand Name:
  XTIOT



•
  Optical Resolution:
  752*480


Product Description

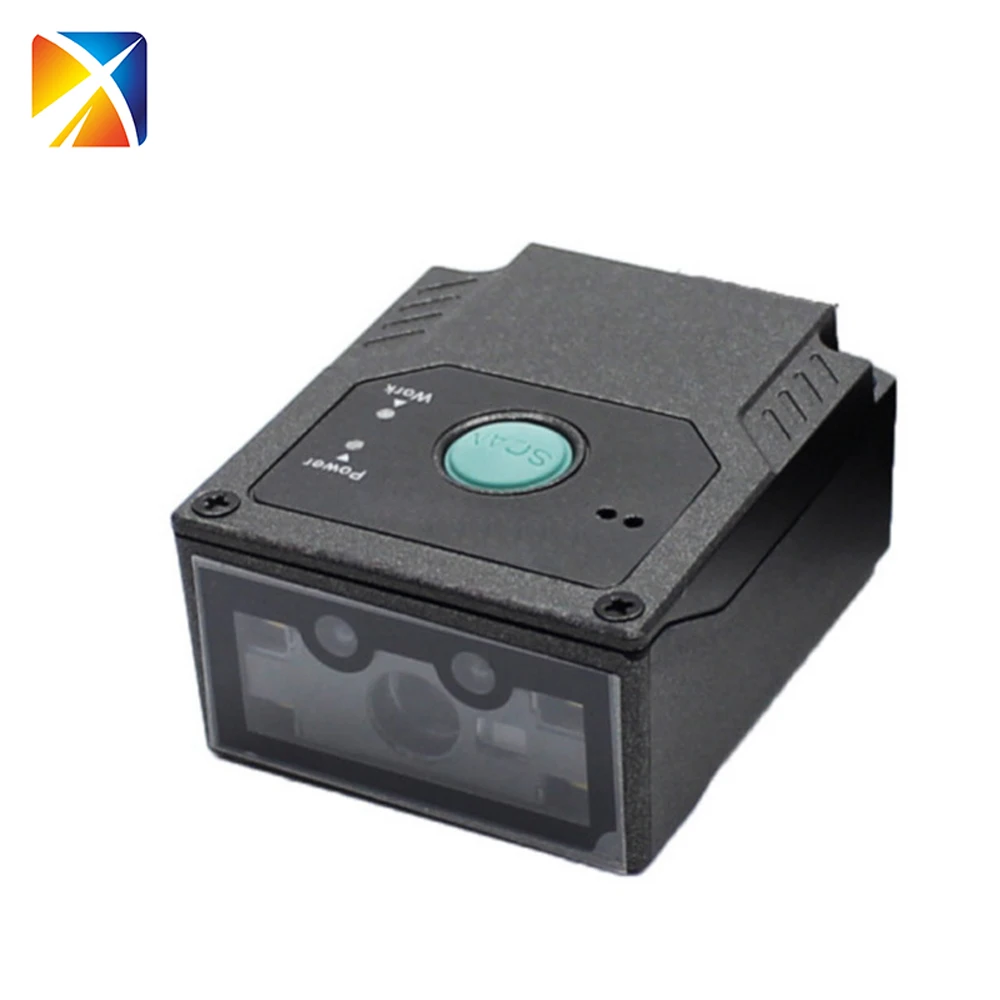

XT-430-E Industrial IP54 2D Fixed Mount Barcode Scanner

XT-430-E Industrial IP54 2D Fixed Mount Barcode Scanner with IR/Light Sensor

Wide-range in application: parcel locker, supermarket locker, ticket machine, logistics, hospital, etc.

FEATURES

IR/Light Triggers

The combination of IR sensor and light sensor exhibits an improved sensitivity in activating the scanner to scan barcodes as they are presented, to achieve higher throughput and productivity.

Automatic Exposure Control (AEC)

The sensor in the XT-430-E automatically adjusts the supplementary lighting duration based on the light reflected off barcode.

IP54-sealed Housing

The XT-430-E is environmentally sealed to an IP54 rating to prevent dust, moisture and other contaminant from entering it.

Unmatched Reading Performance

Armed with the XTIOT independent R&D UIMG technology, The XT-430-E is capable of reading 1D as well as high-volume 2D barcodes on the screen covered with protective film.

Highly Visible Laser Aimer

The XT-430-E provides a laser-generated cross hair aiming pattern that is clear and bright even in bright sunlight, ensuring first time accurate aim.

1.5m Drop Resistance

The scanner withstands multiple 1.5m drops to concrete (for six sides, three drops per side).

Pixel:	1280 x 800 CMOS
Light Source:	Lightening White LED, Green LED
Reading Code System:	2D: PDF 417, QR Code, DataMatrix, AZTEC, Hanxin Code, Maxicode, Micro QR, Micro PDF417, GM, Code One, etc.
	1D: EAN13, EAN8, UPCA, UPCE, Code 128, Code39, Codabar, UCC/EAN 128, RSS, Interleaved 25, ITF14, ITF6, Standard 25, Matrix 25, COOP25, Industrial 25, Plessey, MSI Plessey, Code 11, Code93, Code49, Code16k, etc.
Reading Accuracy:	Greater or equal to 15mil
Scan Angle	Roll: 360°, Pitch: ±55°, Skew:±55°Scan Angle
Cable	USB (Used to connect the scanner to a host device)
	RS-232 (Used to connect the scanner to a host device)
Power Adapter	DC5V adapter to power the scanners with RS-232 cable.
Operating Voltage	5VDC±5%
Min. Symbol Contrast	25%
Interface	USB HID-KBW, USB Virtual Serial Port, USB HID-POS, TTL-232, RS-232
Field of View	Horizontal 32°, Vertical 20°
Drop Height :	Six surface drop on 1.5 meters of surface of concrete (one each on six sides)
Protection Class:	IP54
Certificates:	FCC Part 15 Class B, CE EMC Class B



Packaging Details

•
  Unit Type:
  piece



•
  Package Weight:
  0.8kg (1.76lb.)



•
  Package Size:
  15cm x 15cm x 20cm (5.91in x 5.91in x 7.87in)
