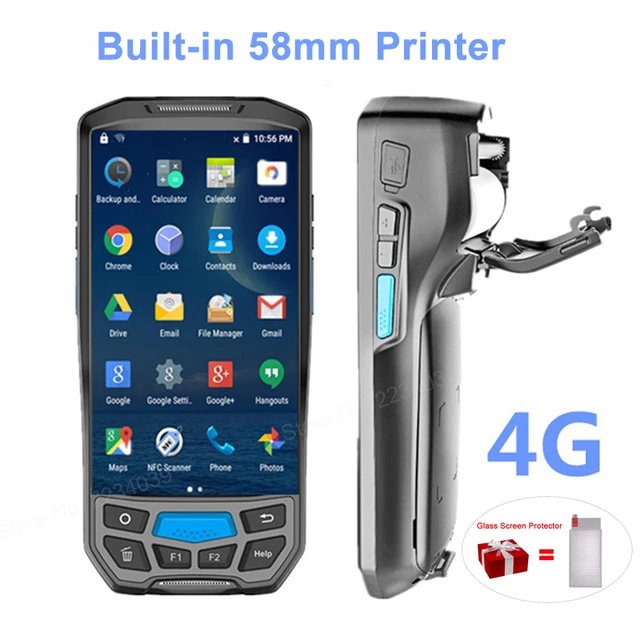

2 in 1 built-in 58mm thermal printer 4G handheld POS terminal wireless 1D/2D barcode scanner portable reader WIFI/Bluetooth PDA
Best Offers 2 in 1 built-in 58mm thermal printer 4G handheld POS terminal wireless 1D/2D barcode scanner portable reader WIFI/Bluetooth PDA
Product ID : 32958296251
Price : $228.68 - 548.88
Discount Price : $182.94 - 439.10
* Price Update at : Jully, 25 2019 *
Item specifics
Scan Speed:
200 scans/second
Interface Type:
USB
Type:
Barcode Scanner
Scan Breadth:
A4
Colour Depth:
48 Bit
Model Number:
PDA-V9000
Product Type:
Bar Code Scanner
Novelty:
New
Time to market:
Mar-13
Scanning Light Source:
Laser Light
Brand Name:
SENMONZ
Optical Resolution:
LCD(720*1280)
Scan Element Type:
1D/2D Laser
Item Name:
Touch Screen PDA Android 7.0 Pos Terminal
Printer:
Built-in 58mm thermal printer(option)
Display Screen:
5.0 inch IPS 720 * 1280 px touch screen
CPU:
ARM CORTEX-A53 64bit Quad-Core 1.3G
Memery+Flash:
2G+16G NAND Flash,micro-TF up to 32G
Scan Breadth:
PDF417,MicroPDF417,Composite, RSS,TLC-39, Datamatrix, QR code
Wireless and Communication:
4G LTE/3G/GPRS/GSM/Bluetooth/Wifi
Battery Capacity:
Rechargeable Li-polymer Battery 3.7V 4800mAh
Frequency:
8ohm 1W speaker
Sealing:
IP67,IEC compliance
Key:
13pcs soft silicon key
Optional:
Charger Cradle,QR scanner and NFC HF UHF RFID
Expand Port:
Card slot: 2*PSAM, 1*SIM, Micro SD (TF) Card
SDK:
Software Development Kit
Camera:
8M AF
Operating system:
Android 7.0
Product Description
2 in 1 built-in 58mm thermal printer 4G handheld POS terminal wireless 1D/2D barcode scanner portable reader WIFI/Bluetooth PDA

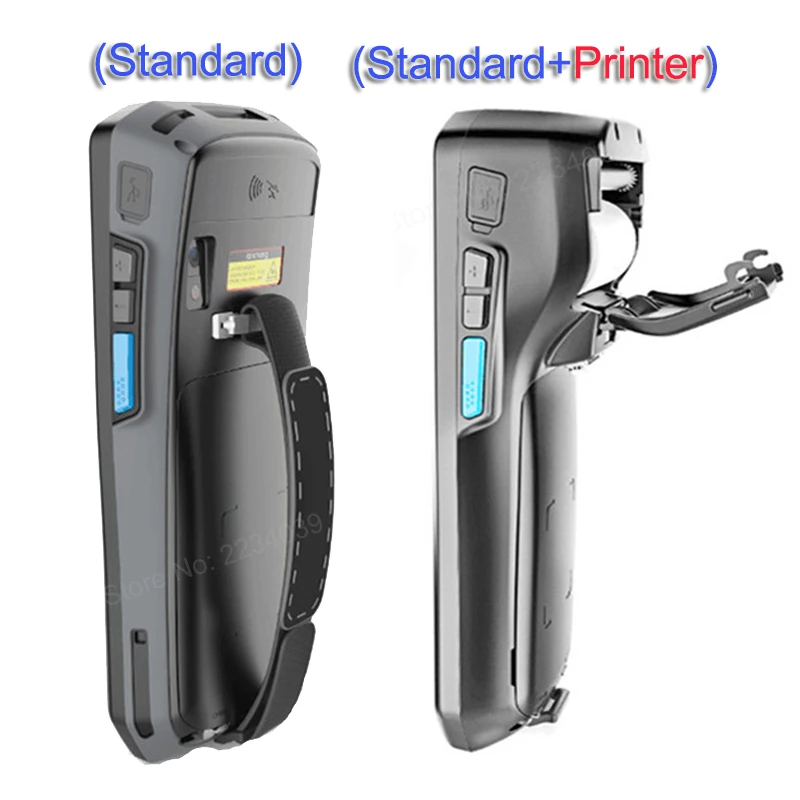

Standard Configuration:
Android 7.0+2G RAM+16G ROM+Wifi+BT4.1+GPS+FDD-TLE 4G/WCDMA/GSM +phone+8M pixel Camera+ 1D/2D Optional+Built-in 58mm thermal printer Optional
+ charger cradle Optional +Free SDK + Gift <Tempered Glass Screen Protector> (Support google play store)
Standard Accessories:
Handheld POS Terminal 1 Pcs, Battery1pcs, Usb data cable1pcs, Charger 1pcs, User Manual 1pcs,screen protector1pcs.device box 1pcs,
Gift =Tempered Glass Screen Protector 1pcs
Attention: Belt Case Protect bag :( If you need the optional function, please visit this link ) :
https://www.aliexpress.com/store/product/Belt-Case-protect-bag-leather-cover-for-Handheld-PDA-Android-Terminal-scanner-Wireless-Wifi-Bluetooth-barcode/2234039_32934601424.html?spm=2114.12010612.8148356.9.7bec54c2FPUNLW
Attention: optional extra battery,Buy extra battery pls visit this link.
https://www.aliexpress.com/store/product/Freeshipping-Battery-for-PDA-Pos-terminal-devices-Date-collector-battery-4000mAh-4200mAh-4800mAh/2234039_32963207015.html?spm=2114.12010612.8148356.7.4eac54c2mknjxT
Attention:convenient charging with optional charge cradle.buy cradle pls visit this link.
https://www.aliexpress.com/store/product/Freeshipping-Charge-Cradle-for-PDA-Barcode-Scanner-Pos-terminal-devices/2234039_32960252994.html?spm=2114.12010612.8148356.5.3adf54c23SjwrF
Standard Features:
* Default configuration :Wifi+BT+4G FDD-LTE+phone+GPS+8M camera+google player store;
* 1D ,2D ,NFC ,LF(125K/134.2K),UHF,58mm Thermal printer,Biometric Fingerprint,cradle for option;
* Remark:UHF production cycle is relatively long, please kindly communicate in advance
* Compact and Portable Ergonomic Design with wrist strap;
* Safedroid OS (Android 7.0) Highly optimized Android operating system;
* 8.0M mega pixel camera;
* High capacity 4800mA large capacity battery for critical requirements;
* Pogo Pin interface for convenient charging with optional charge cradle;
* Industrial rugged design, water-proof and protection grade(IP65);
Screen Protector : (Gift)
2D Scan Image:
Delivery Time:
* Samples 3--7 working days after placing order
* Bulk order depend on the Quantity
Our service:
* Completely SDK provided for Secondary Program
* Technical support by professional engineer
* Maintain repair
* 12months warranty
| Structural Parameter | |
| Dimensions | 172mm(L) X 80mm(W) X 27mm(D) |
| Weight | <500g |
| Display Screen | 5.0 inch IPS 720 * 1280 px with Multi-point touch capactive screen |
| Expand Port | SIM card, micro SD (TF) Card |
| Communication Interface | USB2.0 Device |
| Input Mode | Standard Stylus, touching input or keyboard input |
| Battery Capacity | Rechargeable Li-polymer Battery 3.7V 4800mAh |
| Frequency | 8ohm 1W speaker |
| Key | 13pcs soft silicon key |
| Performance Parameter | |
| OS | Android 7.0 |
| CPU | ARM CORTEX-A53 64bit Quad-Core 1.3G |
| RAM | 2G RAM |
| Flash ROM | Standard 16G NAND Flash Storage |
| micro SD/TF port (Max up to 32G) | |
| Data Communication | |
| WI-FI | Support IEEE802.11 a/b/G/n protocol, it need effective wireless LAN signal cover |
| FDD/TDD-LTE 4G | TDD-LTE (B38,B39,B40,B41),FDD-LTE (B1,B3) |
| WCDMA 3G | B1,B2,B5,B8 |
| GSM 2G | GSM/edge/GPRS (850,900,1800,1900MHz) |
| bt | Support bt 2.0+EDR/3.0+HS/4.1+HS, transmission distance is 5-10m |
| Standard Modules | |
| Camera | 8MP autofocus camera with flash |
| GPS | Support A-GPS |
| Operating Environment | |
| Operating | -20°C to 50°C |
| Storage Temperature | -25°C to 70°C |
| Environment Humidity | 5%RH-95%RH(no condensation) |
| Drop Specifications | 6 sides can bear impact from 1.5m drop to cement floor in the range of operating temperature |
| Roll Specifications | 1000 times/0.5m, roll on 6 sides contact area |
| Sealed Environment | IP65 |
| 1D Laser Scanner (OPTIONAL) | |
| 1D Laser Scanner | Mingde966, HoneywellN4313, |
| Resolution | 4Mil minimum width |
| Ambient Light | 10000ft.candles(107640 lux) |
| Scanning Speed | 104(±)12/sec (bothway) |
| Scanning Angle | 47o±35o(Standard) / 35o±3o(narrow angle) |
| Support Bar Code Type | UPC/EAN, Code128, Code39, Code93,Code11, Interleaved 2 of 5, Discrete 2 of 5,Chinese 2 of 5, Codabar, MSI, RSS |
| 2D CMOS (OPTIONAL) | |
| CMOS Scanner | NewLand 3096,Honeywell N6603 |
| The Sensor Resolution | 752(level)×480(vertical)pels(gray level) |
| Ambient Light | All dark 9000ft.candles/96900 lux |
| focus element (VLD) | 655nm ± 10nm |
| Support bar code type | PDF417,MicroPDF417,Composite, RSS,TLC-39, Datamatrix, QR code, micro QR code,Aztec, MaxiCode; Postal Codes: US PostNet,US Planet, UK Postal, Australian Postal, JapanPostal Dutch Postal (KIX)3 |
| LF RFID Reader (Optional) | |
| Frequency | 125kHz, 134kHz (FDX-B / HDX) |
| Protocol | ISO11784/5, ISO18000-2 |
| Range | 3-8cm |
| HF RFID Reader (Optional) | |
| Frequency | 13.56MHz |
| Protocol | ISO14443A/B, ISO15693 |
| Range | 3-8cm |
| NFC Reader (Optional) | |
| Frequency | 13.56MHz |
| Protocol | ISO/IEC 18092 (ECMA 340) |
| Range | 2-4cm |
| UHF RFID Reader (Optional) | |
| Frequency (China) | 865 - 868MHz / 920 - 925MHz |
| Frequency (America) | 902 - 928MHz |
| Frequency (Europe) | 865 - 868MHz (ETSI EN 302 208) |
| Frequency (Others) | Other countries for customisation |
| Protocol | EPC C1 GEN2 / ISO18000-6C |
| Antenna | Linear polarisation (1.8dBi) / Circular polarisation (2.5dBi) |
| Power | 1W (typical 24dBm, +10dBm to +30dBm) |
| Range | 1-2m |
| Biometric Fingerprint (Optional) | |
| Sensor | TCS2SS |
| Sensor type | Capacitive Sensor |
| Function | Enrollment, compare, deletion etc. |
| Resolution | 508DPI |
| Memory | 1,000 PCS fingerprints |
1.We will ship the items in 1-5 business days after verification of the payment and confirming the order.
2.Please leave completed and correct address, so as to make sure the parcel will be sent to the buyer
without any delay.
3.We do not gurantee delivery time on all international shipments due to the difference in customs clearing times in
individual countries, which may affect how quickly your product is inspected.
4.Please note that buyers are responsible for all additional customs fees, brokerage fees, duties and taxes for
importation into your country. The shipping cost does not include any import taxes, and the buyers are responsible
for customs duties.
5.Usually, we will write lower value and mark “gift” or “sample” to help you to avoid the tax or less tax. If you need full
value on the shipping bill or invoice, please let us know when you place order.
6.For all free shipping items, we will send them to the buyer via CHINA POST AIR PARCEL or HONGKONG POST
AIR PARCEL,The delivery time will be different depending on the different countries, which will be 15-50 days.
7.If buyer need the fast delivery, DHL, FEDEX,UPS,TNT,EMS are all available (5-15 Days). Buyer can select
the different shipping ways considering of the different shipping fees and delivery time when place the order.
1. It comes with one year after sales service card when you got the package. Just contact our technical directly.
2. There are following ways to solve your problem: Whatsapp,Skype, Wechat,Email,and Phone call.
3. If the product is a quality problem, we will replace a new one for you after got the proof from your side by phone or video.
1.If you feel good for the product, Please give all 5 stars feedback.Then we will do better than better.
2.Before leaving the bad feedback, Please contact us to solve the problem.We will help you solve it.
-- Thank you!
Packaging Details
Unit Type:
Set
Package Weight:
1.3kg (2.87lb.)
Package Size:
20cm x 12cm x 10cm (7.87in x 4.72in x 3.94in)
