5.2" Industrial Outdoor Waterproof Rugged IP67 Smart Phone 4G Handheld Android 6.0 1D 2D Barcode Scanner with GPS WiFi Bluetooth

Best Offers 5.2" Industrial Outdoor Waterproof Rugged IP67 Smart Phone 4G Handheld Android 6.0 1D 2D Barcode Scanner with GPS WiFi Bluetooth

Product ID : 32856608305

Price : $286 - 432

Discount Price : $243.10 - 367.20

* Price Update at : Jully, 25 2019 *

VISIT WEBSITE NOW

Item specifics

•
  Brand Name:
  RUGLINE



•
  Scan Speed:
  100 scans/second



•
  Type:
  Mobile Android Barcode Scanner



•
  Optical Resolution:
  720*1280



•
  Scan Element Type:
  CMOS



•
  Interface Type:
  USB



•
  Scan Breadth:
  2D laser barcode



•
  Model Number:
  RT700



•
  Novelty:
  New



•
  Scanning Light Source:
  Laser Light



•
  Colour Depth:
  48 Bit



•
  Time to market:
  Mar-13



•
  Product Type:
  Handheld Barcode Scanner



•
  CPU:
  Cortex-A53 Quad-core 1.3GHz



•
  OS:
  Android 6.0



•
  Memory:
  2GB RAM, 16 GB ROM



•
  Screen:
  5.2 inch



•
  Data Communication:
  4G/3G/2G,WiFi, Bluetooth,GPS



•
  IP Rating:
  IP67



•
  NFC (Optional):
  ISO14443A/B,ISO15693,NFC-IP1,NFC-IP2,etc.



•
  UHF RFID Reader (Optional):
  Support



•
  Fingerprint Reader (Optional):
  Support



•
  Barcode Scanner (Optional):
  1D / 2D barcode scanner


Product Description

5.2" Industrial Outdoor Waterproof Rugged IP67 Smart Phone 4G Handheld Android 6.0 1D 2D Barcode Scanner with GPS WiFi Bluetooth



Standard Configuration:

Android 6.0 + 5.2'' Screen + 2G RAM+16GROM + Wifi + Bluetooth4.0 + 13MP Camera + GPS + 4G

Free SDK

Optional: 1D / 2D Barcode Scanner , NFC, HF RFID , UHF RFID,  Fingerprint Reader

(Flexible customization according to your requirements, If you have any questions, please contact me on TradeManager or whatsapp :+86 18680667179 or Skype: xcl.selinna )



Standard Accessories:

Terminal 1 Pcs, Battery1pcs, Usb data cable1pcs, Charger 1pcs

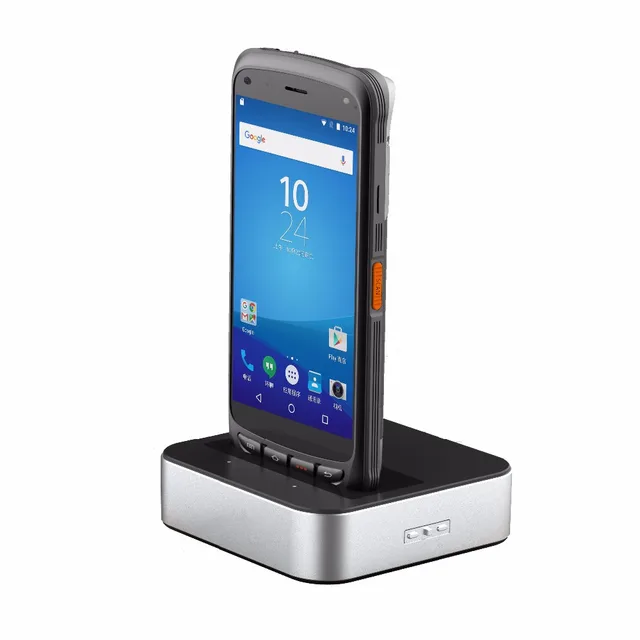

Optional: Charge Cradle , Pistol Grip , Carry Case; Thermal Printer



Standard Features:

• 13 mega pixel  rear camera with flach


• Multiple languages


• Support Google Play Store


• 2GB RAM, 16 GB ROM, MicroSD (max 32GB expansion)


• Android 6.0 OS


• 1*SIM card,1*SIM or TF card,optional PSAM card slot (2 at most,ISO7816 protocol)


• High capacity 5000mA large capacity battery for critical requirements


• Pogo Pin interface for convenient charging with optional charge cradle


• Industrial rugged design, waterproof and protection grade (IP67)









Physical Characteristics
Dimension	163.8*79.2*13.8mm/6.45*3.12*0.54in
Weight	<242g/8.5oz
Display	5.2'' IPS FHD 1920x1080
Touch Panel	Corning Gorilla Glass, multi-touch panel,gloves and wet hands supported
Expansion Slot	2 PSAM slots at most, 1 slot for SIM card, 1 slot for SIM or TF card
Keypad	4 front buttons, 1 side button, 2 scan keys, 1 multifunctional key
Power	Main battery: Li-ion, rechargeable, 4000mAh
Audio	speaker, 2 microphones
Interfaces	USB2.0 Type-C, OTG
Sensors	Proximity Sensor, Vibration Motor
Performance
CPU	Cortex-A53 Quad-core 1.3GHz
RAM+ROM	2GB+16GB
Expansion	Supports up to 32 GB Micro SD card
Developing Environment
Operating System	Android 6.0
SDK	Software Development Kit
Language	Java
Tool	Eclipse / Android Studio
User Environment
Operating Temperature	14°Fto 122°F / -10°C to 50°C
Storage Temperature	-40°F to 158°F / -40°C to 70°C
Humidity	5% - 95%RH (Non-condensing)
Sealing	IP67
Drop Specification	Multiple 1.8m/5.9ft drops (at least 20 times) to the concrete across the operating temperature range
Tumble Specification	1000 x 0.5m / 1.64ft. falls at room temperature
ESD	±8KV air discharge, ±4KV conductive discharge
Communication
WLAN	IEEE802.11 a/b/g/n, 2.4G/5G dual-band, internal antenna
WWAN(Europe)	2G: 850/900/1800/1900MHz;
	3G: 850/900/1900/2100MHz;
	4G: B1, B3, B5, B7, B8, B20, B40
WWAN(America)	2G: 850/900/1800/1900MHz;
	3G: 850/900/1700/1900MHz;
	4G: B2, B4, B7, B12, B17
WWAN (China)	2G: 900/1800MHz;
	3G:900/2100MHz ;
	4G:TDD-LTE: B38, B39, B40, B41, FDD-LTE: B1, B3, B5
WWAN (Others)	Depending on the country's ISP
Bluetooth	Bluetooth 4.0
GNSS	GPS/AGPS, GLONASS, BeiDou; internal antenna
NFC
Frequency	13.56MHz
Protocol	ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc
Chips	M1 card (S50, S70), CPU card, NFC tags, etc.
Range	2-4cm
Camera
Camera	13MP autofocus camera with flash
Barcode Scanners (Optional)
2D Imager Scanner	Zebra SE4710/Honeywell N6603
1D Symbologies	UPC/EAN, Code128, Code39, Code93, Code11, Codabar, Interleaved 2 of5,    Discrete 2 of 5, Chinese 2 of 5, MSI, RSS, etc
2D Symbologies	PDF417, MicroPDF417, Composite, RSS, TLC-      39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes:   US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, DutchPostal   (KIX), etc
Iris(Optional)
Rate	<150ms
Range	20-40cm
FAR	1/10000000

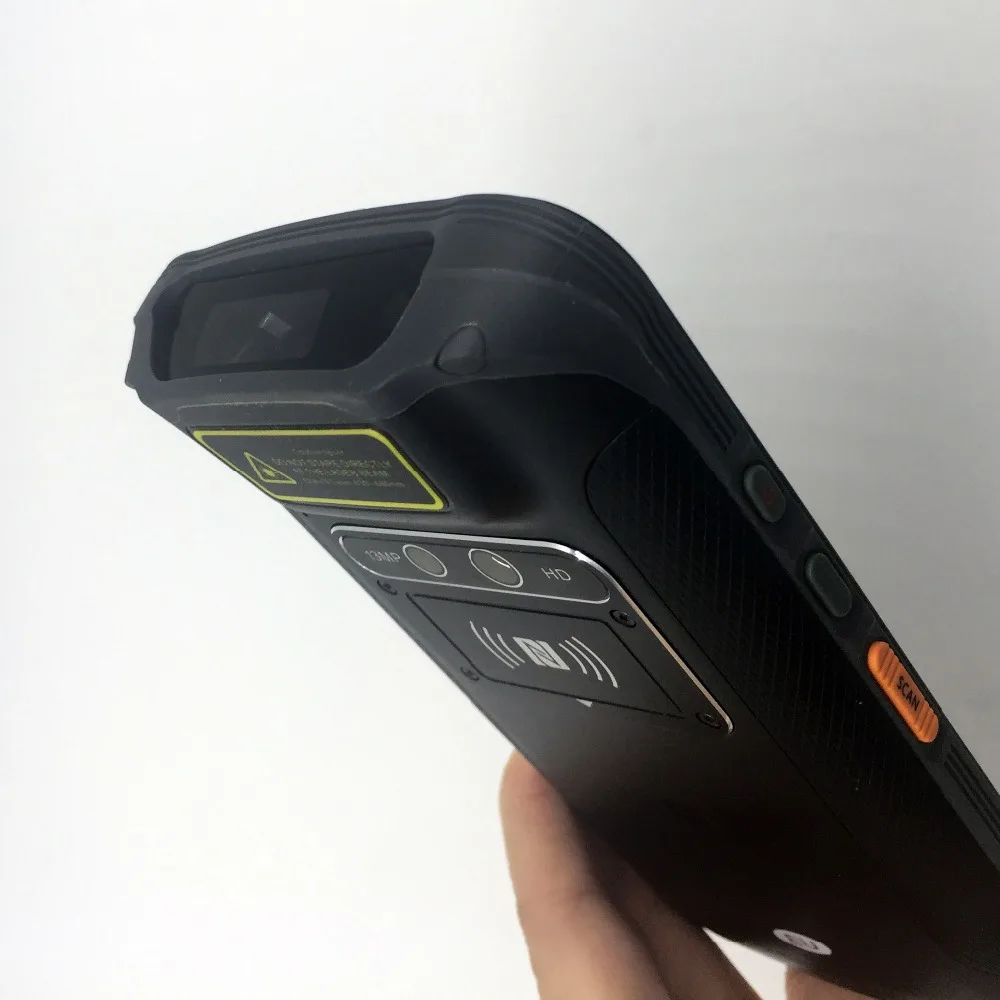

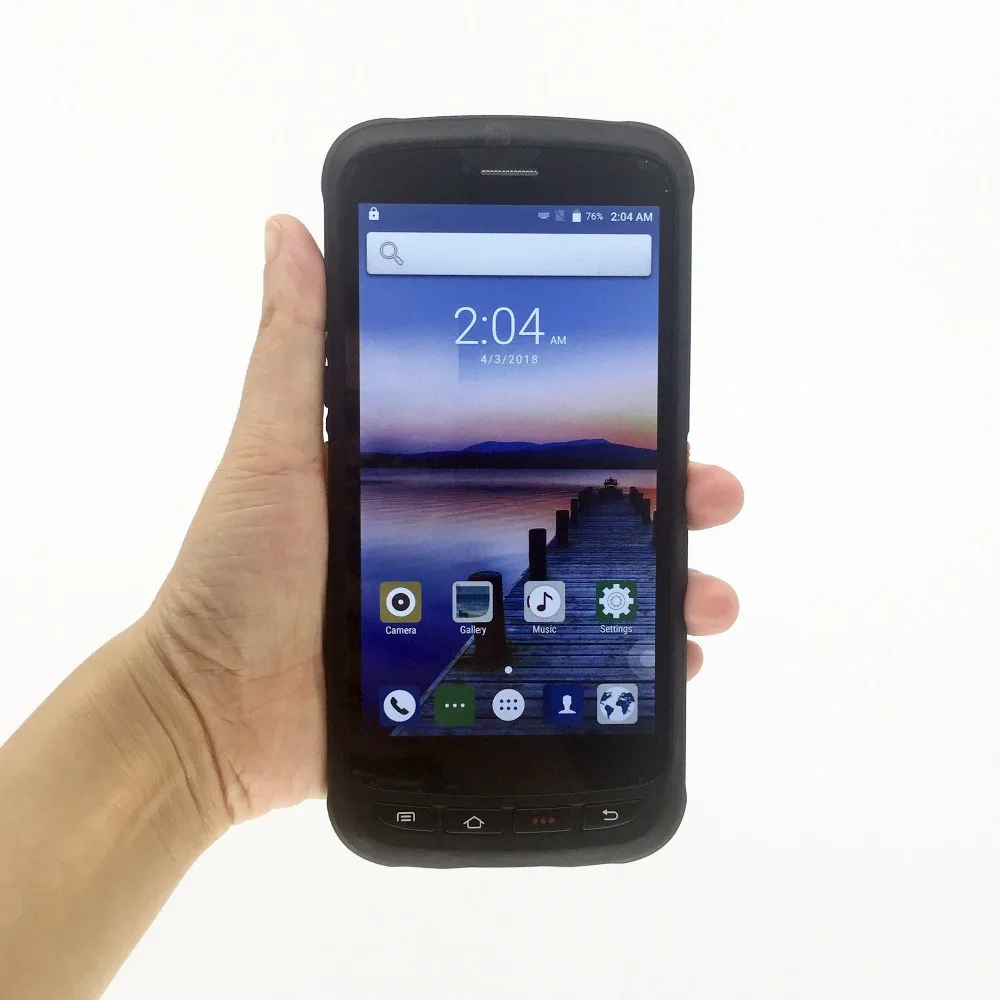

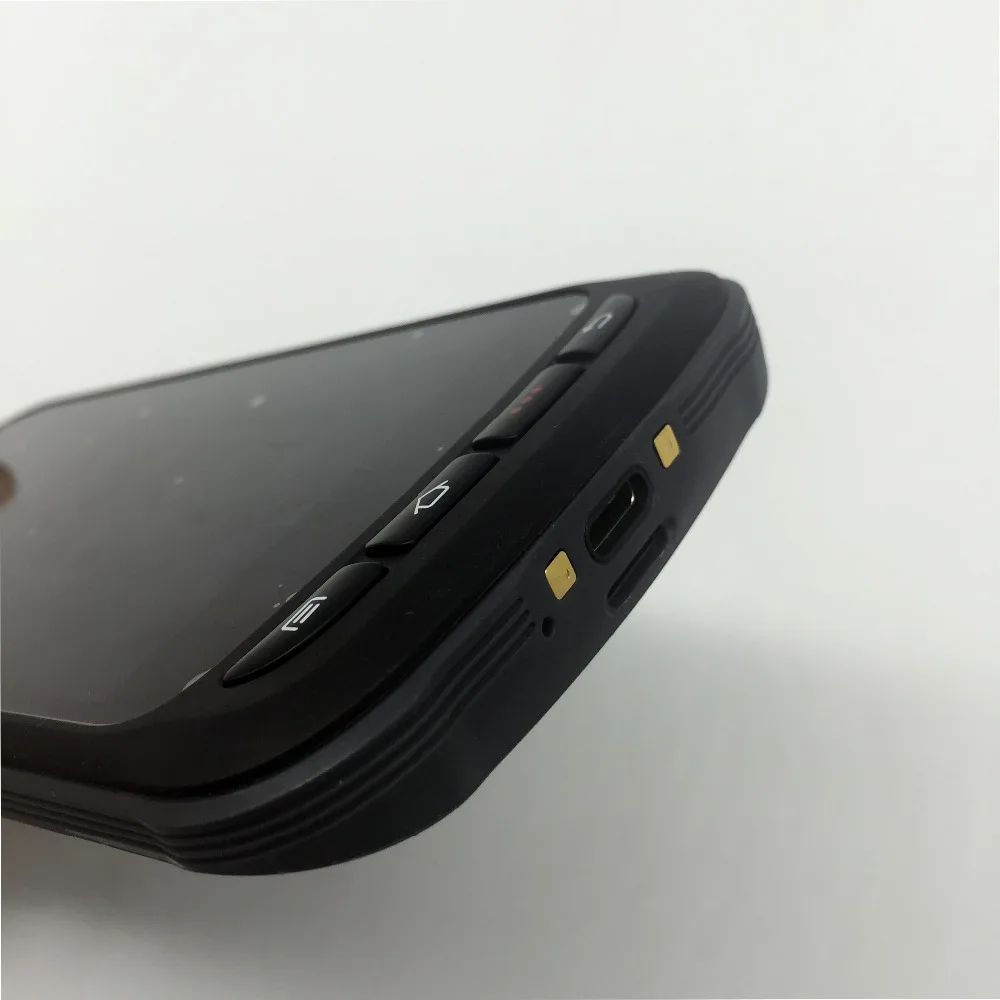

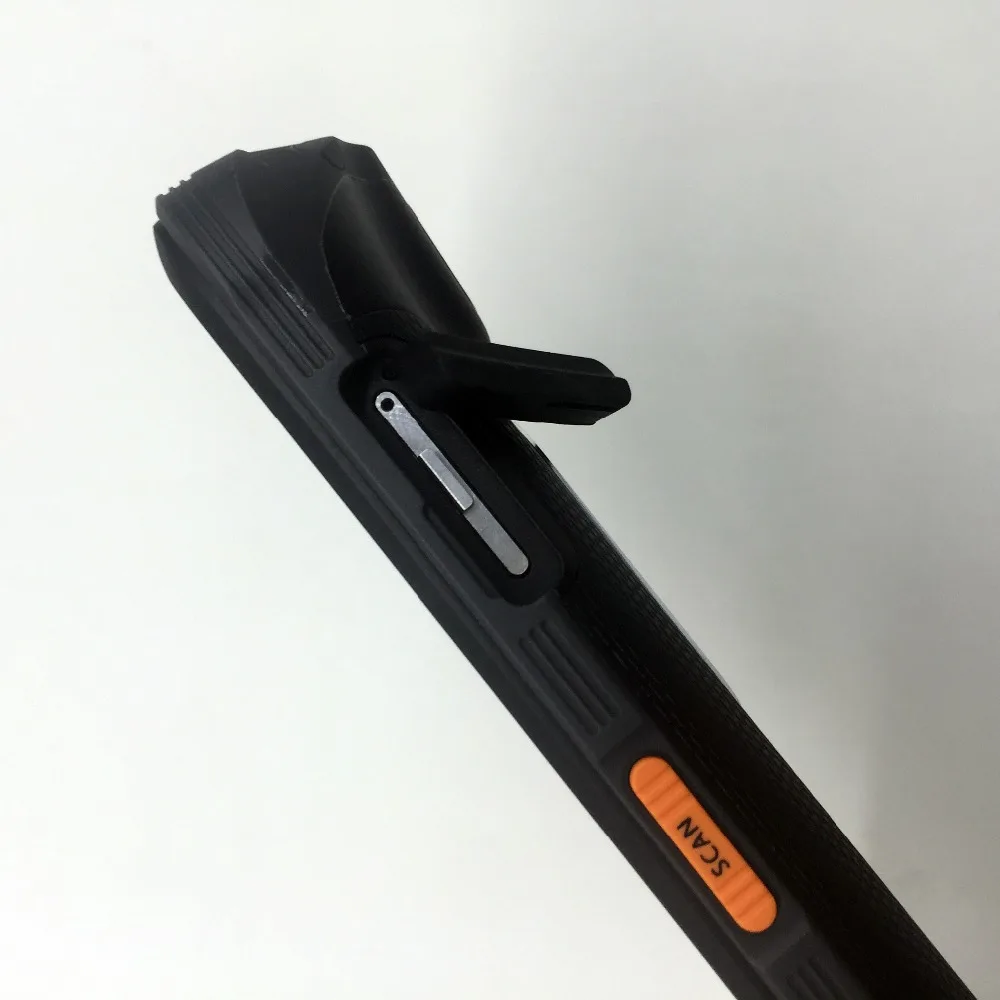

REAL PICTURES

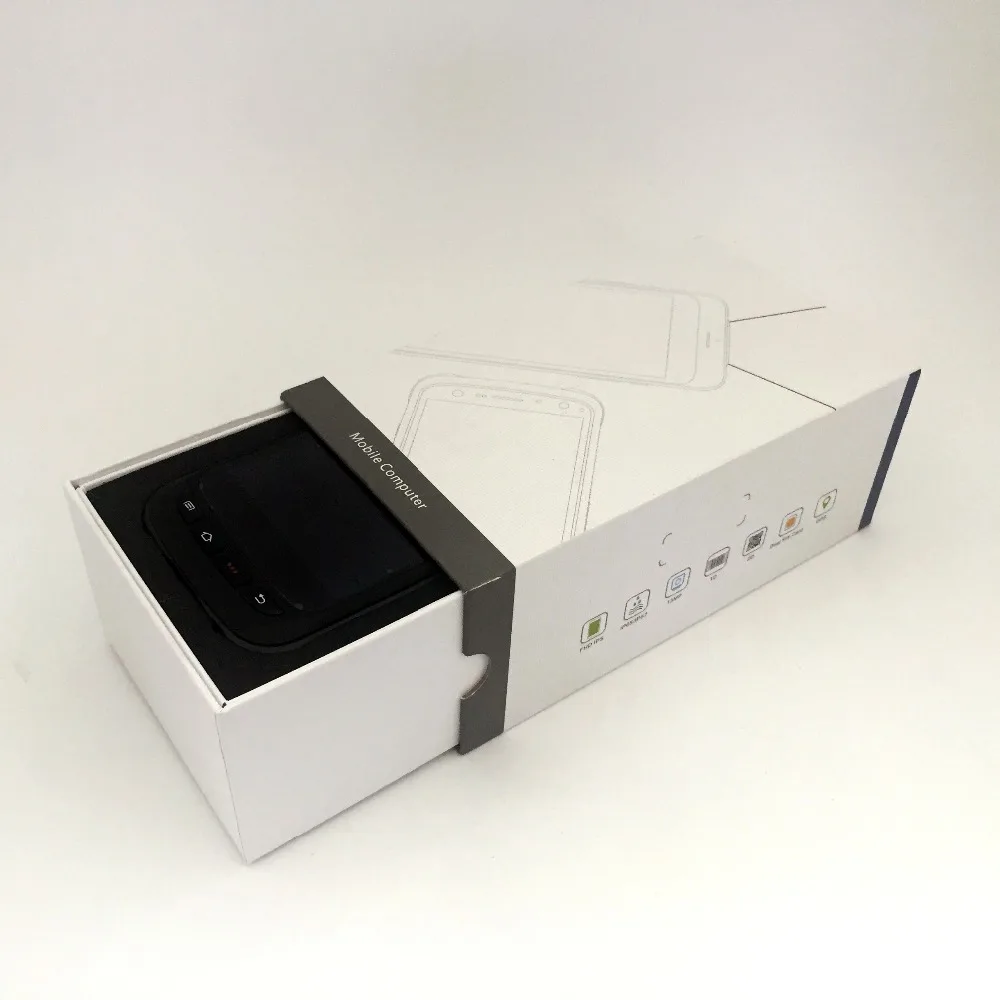

Packaging Details

•
  Unit Type:
  piece



•
  Package Weight:
  1.0kg (2.20lb.)



•
  Package Size:
  20cm x 14cm x 10cm (7.87in x 5.51in x 3.94in)
