Best Price IssyzonePOS Rugged PDA UHF RFID Reader Bluetooth Android 6 Handheld POS Terminal Zebra Barcode 2D Scanner 4G WiFi GPS Warehouse

Product ID : 33031984221

Price : $540.60 - 780.30

Discount Price : $486.54 - 702.27

* Price Update at : Jully, 25 2019 *

VISIT WEBSITE NOW

Item specifics

Brand Name:
ISSYZONEPOS

Scan Speed:
200 scans/second

Type:
Barcode Scanner

Optical Resolution:
1920*1080

Scan Element Type:
CMOS

Interface Type:
USB

Scan Breadth:
A8

Model Number:
IPDA051

Novelty:
New

Scanning Light Source:
Laser Light

Colour Depth:
32 Bit

Product Type:
Bar Code Scanner

O.S:
Android 6.0

SDK:
Chainway Software Development Kit

Memery+Flash:
2GB RAM + 16GB Flash

Barcode Scanner:
zebra

Warranty:
12 months (except the accessories)

Wireless:
4G/3G/2G/GPS/WIFI/Bluetooth

Drop test:
1.8m drop tested

Interfaces:
USB 2.0 Type-C, OTG

CPU:
Cortex-A53 Quad-core 1.45GHz/

Camera:
13MP Autofocus with flash

1D Linear Scanner:
Zebra SE965

2D Imager Scanner:
Zebra: SE4710

Main battery:
Li-ion, rechargeable, 8000mAh

Standby:
over 500 hours

Product Description

Physical Characteristics
Dimensions	164.2 x 80.0 x 24.3mm / 6.46 x 3.15 x 0.96in
Weight	654g / 23.07oz

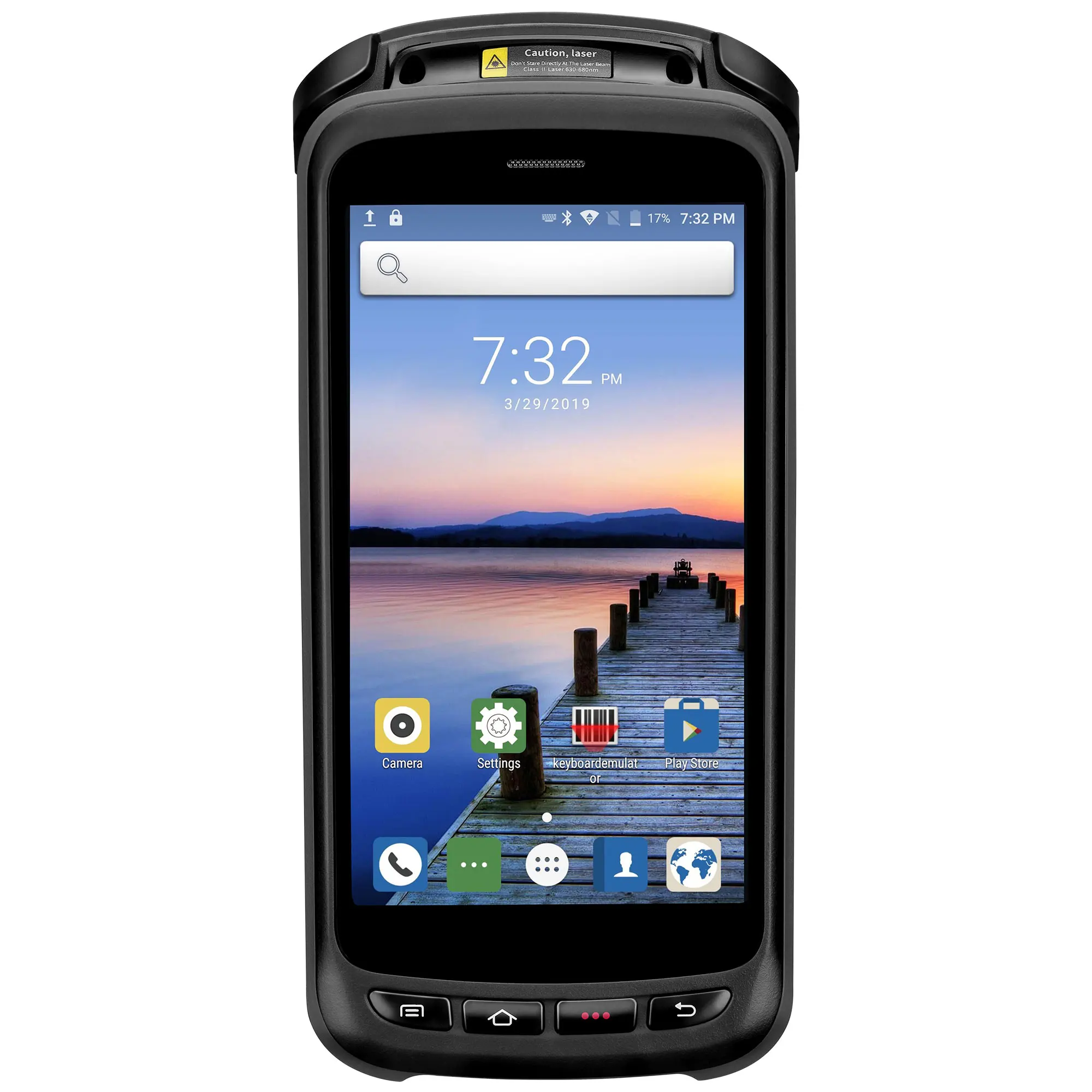

Display	5.2'' IPS FHD 1920x1080
Touch Panel	Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported
Power	Main battery: Li-ion, rechargeable, 8000mAh
	Standby: over 500 hours
	Continuous use: over 12 hours (depending on user environment)
	Charging time: 3-4 hours (with standard adaptor and USB cable)
Expansion Slot	1 slot for SIM card, 1 slot for SIM or TF card
Interfaces	USB 2.0 Type-C, OTG
Audio	Speaker, 2 microphones
Keypad	4 front keys, 1 power key, 2 scan keys, 1 multifunctional key
Sensors	Gravity sensor, light sensor, proximity sensor
Performance
CPU	Cortex-A53 Quad-core 1.45GHz/Cortex-A53 Octa-core 2.5GHz
RAM+ROM	2GB+16GB（Quad-core）/ 3GB+32GB（Octa-core）
Expansion	Supports up to 128 GB Micro SD card
Communication(Quad-core)
WLAN	IEEE802.11 a/b/g/n, 2.4G/5G dual-band, internal antenna
WWAN (China)	2G: 900/1800MHz
	3G: 900/1900/2000/2100MHz
	4G: B1, B3, B5, B38, B39, B40, B41
WWAN (Europe)	2G: 850/900/1800/1900MHz
	3G: 850/900/1900/2100MHZ
	4G: B1, B3, B5, B7, B8, B20, B40
WWAN (America)	2G: 850/900/1800/1900MHz
	3G: 850/900/1700/1900MHZ
	4G: B2, B4, B7, B12, B17
WWAN (Others)	Depending on the country's ISP
Bluetooth	Bluetooth 4.0, BLE
GNSS	GPS/AGPS, GLONASS, BeiDou; internal antenna
Note	C72 models being manufactured for Turkish Market, do not include Voice Call (Phone Call) function. WAN module included on those models only support DATA transfer.

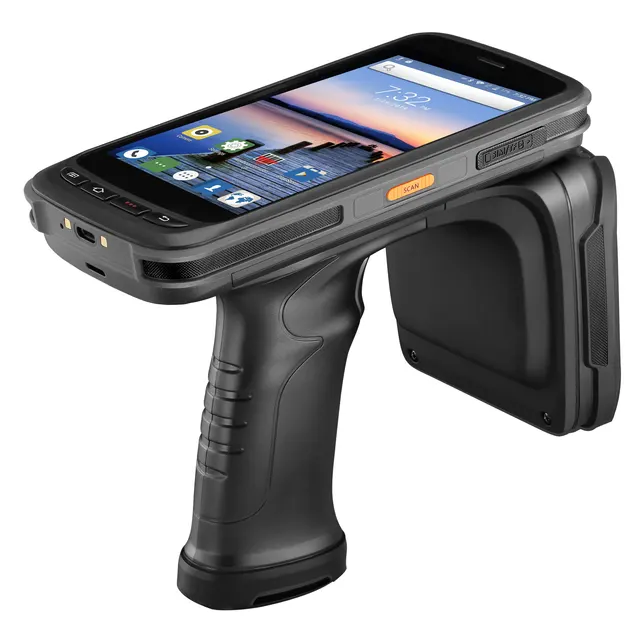

UHF RFID
Engine	CM2000-1 module based on Impinj Indy R2000
Frequency	865MHz-868MHz / 920-925MHz / 902-928MHz
Protocol	EPC C1 GEN2 / ISO18000-6C
Antenna	Linear polarization(1.8dBi); circular polarization (4dBi)
Power	1W (30dBm, +5dBm to +30dBm adjustable)
R/W ranges	＞7m (linear polarization, outdoors); ＞21m (linear polarization, indoors)
	＞10m (circular polarization, outdoors); ＞25m (circular polarization, indoors)
Reading rates (circular polarization)	＞200 tags/s (circular polarization)
Note	*Ranges and rates depend on tags and environment
Note2	*This function is optional
Camera
Camera	13MP Autofocus with flash
Iris Recognition
Rate	<150ms
Range	20-40cm
FAR	1/10000000
Note	Protocol：ISO/IEC 19794-6，GB/T 20979-2007
Note2	*This function is optional
User Environment
Operating Temp.	4°F to 122°F / -20°C to 50°C
Storage Temp.	-40°F to 158°F / -40°C to 70°C
Humidity	5% RH - 95% RH non condensing
Drop Specification	Multiple 1.5m/4.9ft drops (at least 20 times) to the concrete across the operating temperature range
Tumble Specification	1000 x 0.5m/1.64ft falls at room temperature
Sealing	Host IP65 per IEC sealing specifications
ESD	±15KV air discharge, ±6KV conductive discharge
Developing Environment
Operating System	Android 6.0(Quad-core)/Android 8.1(Octa-core)
SDK	Chainway Software Development Kit
Language	Java
Tool	Eclipse / Android Studio
Communication(Octa-core)
WLAN	IEEE802.11 a/b/g/n/ac, 2.4G/5G dual-band, internal antenna
WWAN (China)	2G: 900/1800MHz
	3G: WCDMA: B1,B8
	CDMA2000 EVDO: BC0
	TD-SCDMA: B34,B39
	4G: B1,B3,B5,B8,B34,B38,B39,B40,B41
WWAN(Europe)	2G: 850/900/1800/1900MHz
	3G: B1,B2,B4,B5,B8
	4G: B1,B3,B5,B7,B8,B20,B40
WWAN (America)	2G: 850/900/1800/1900MHz
	3G: B1,B2,B4,B5,B8
	4G: B2,B4,B7,B12,B17,B25,B66
WWAN (Others)	Depending on the country's ISP
Bluetooth	Bluetooth v2.1+EDR,3.0+HS,v4.1+HS
GNSS	GPS/AGPS, GLONASS, BeiDou; internal antenna

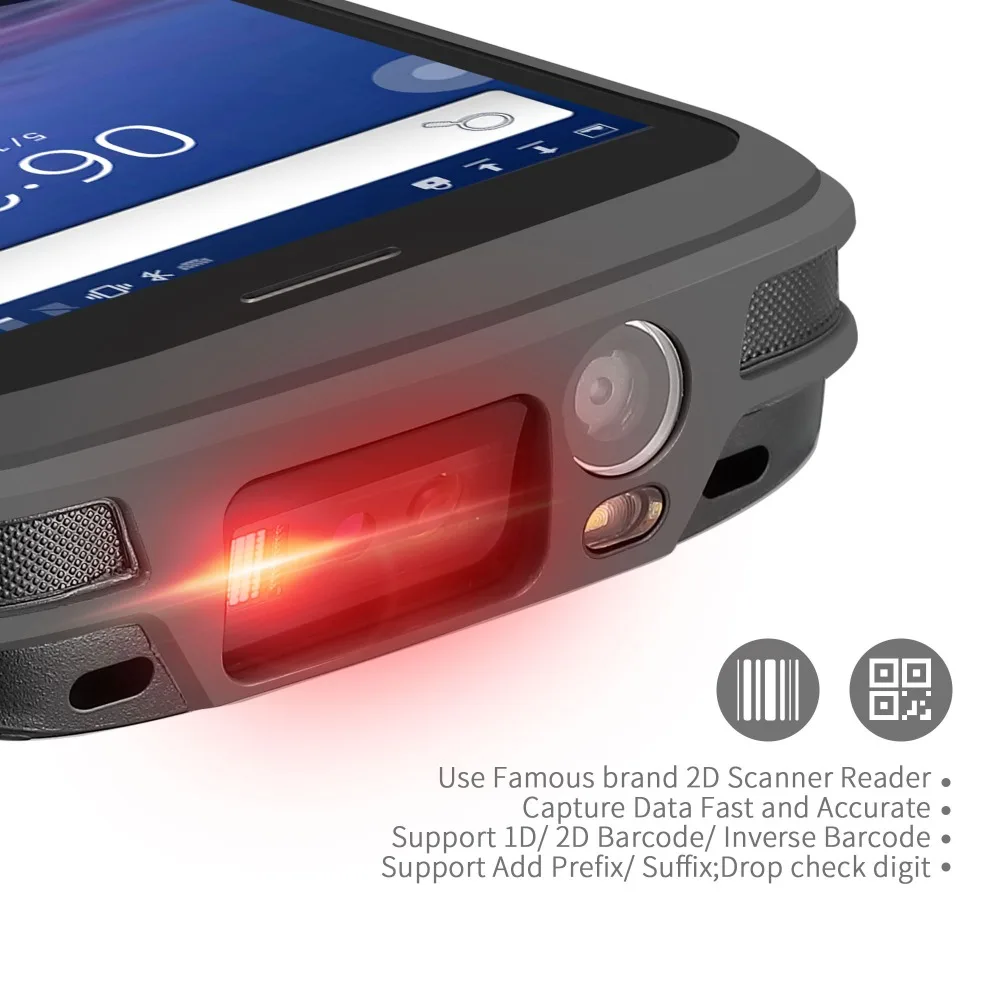

Barcode Scanning
1D Linear Scanner	Zebra SE965
2D Imager Scanner	Zebra: SE4710
1D Symbologies	UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.
2D Symbologies	PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc.
