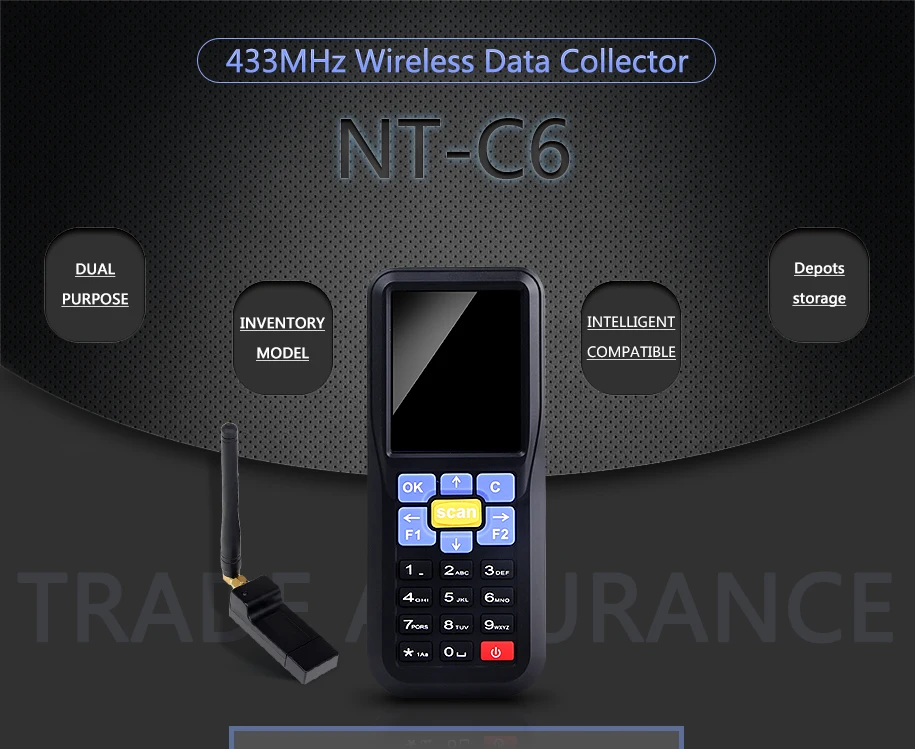

NT-C6 Wireless Mini Data Collector Handheld Barcode Scanner Reader Laser Bar Code POS Terminal NETUM
Interface Type:
USB
Type:
Barcode Scanner
Scan Breadth:
A4
Colour Depth:
32 Bit
Model Number:
NT-C6
Product Type:
Portable Scanner
Novelty:
New
Scanning Light Source:
Laser Light
Brand Name:
NETUM
Optical Resolution:
0.01mm
Scan Speed:
150 scans/second
Scan Element Type:
Laser
Type:
Data Collector

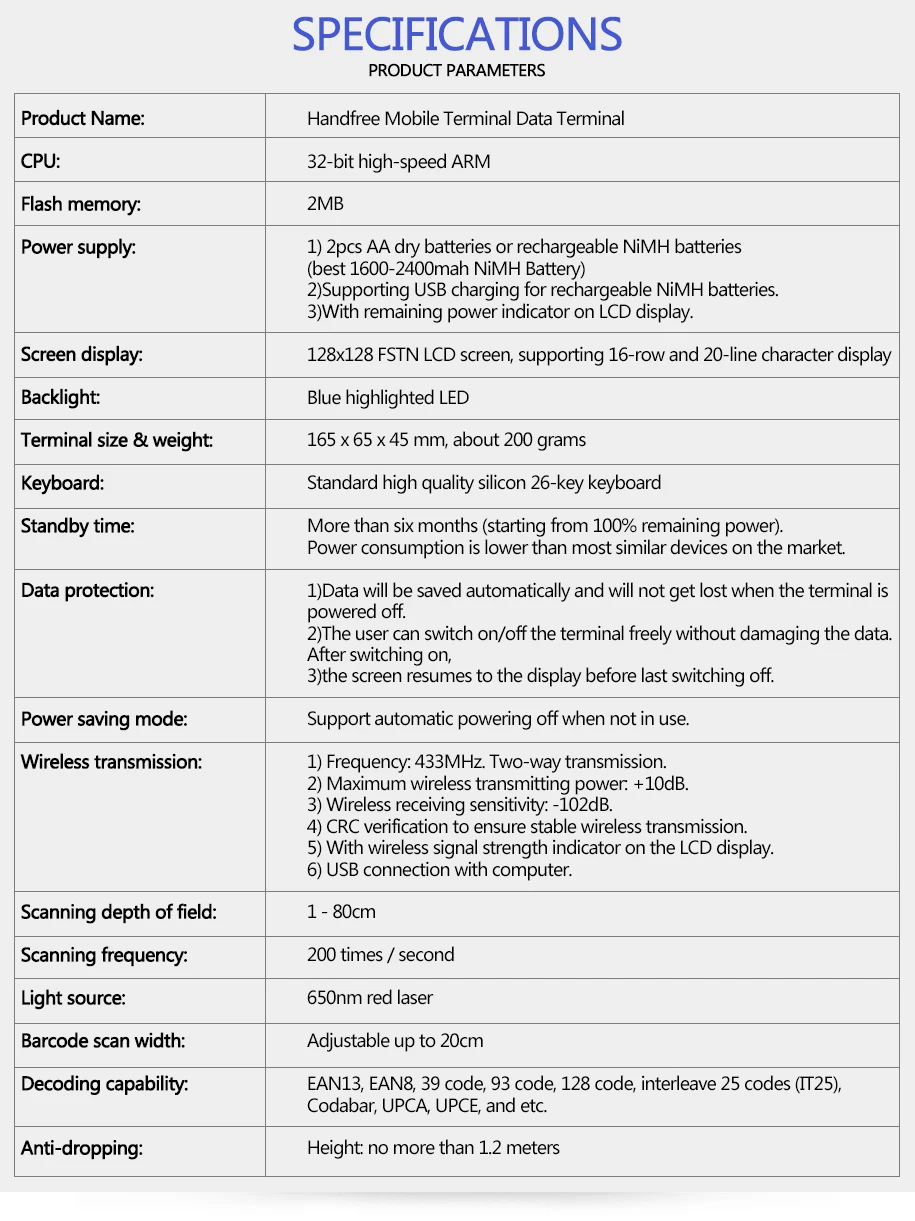

CPU:
32 bit
Keyboard:

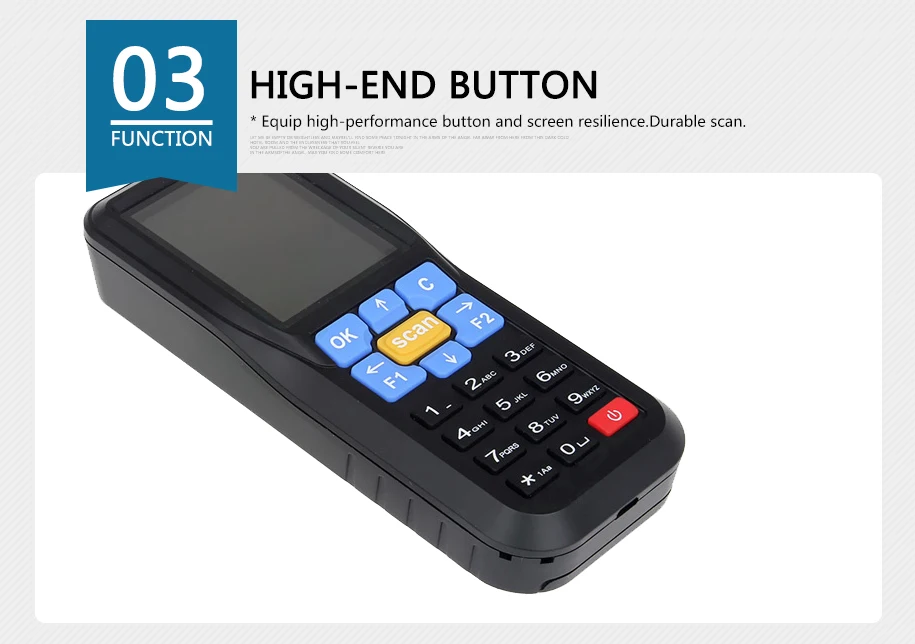

Standard high quality silicon 26-keyboard
Screen Display:
128*128 FSTN LCD screen
Signal Receiver:
USB2.0 and upgraded version
Regulatory Requirement:
CE Compliant, FCC-B
Wireless Mini Data Collector Handheld Barcode Scanner Reader Laser Bar Code POS Terminal -NT-C6

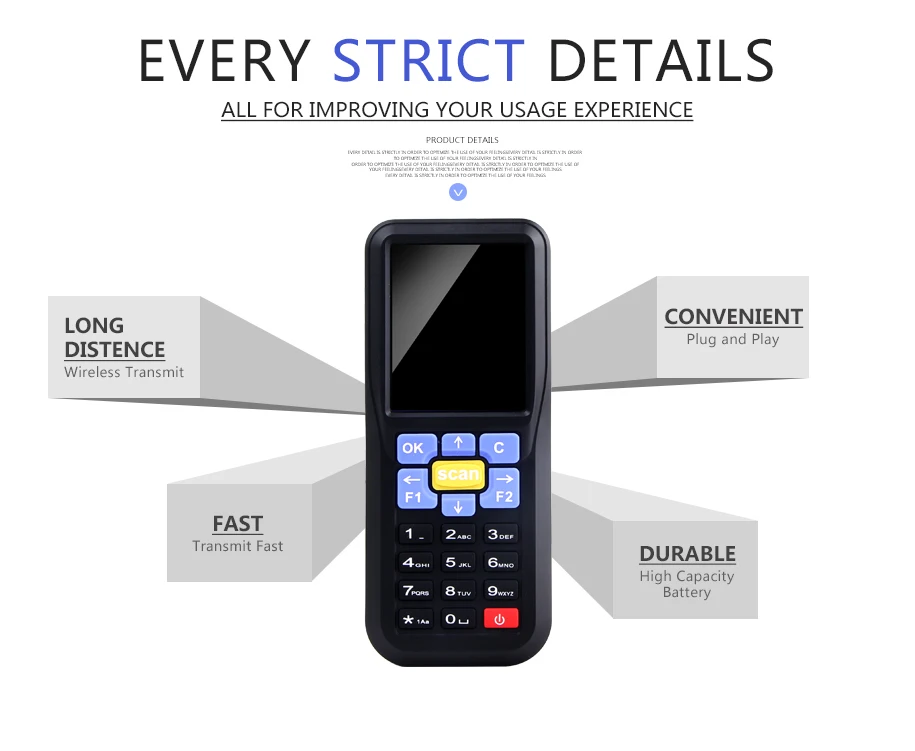

Advantages:
1. Large storage, maximum of 100,000 barcodes

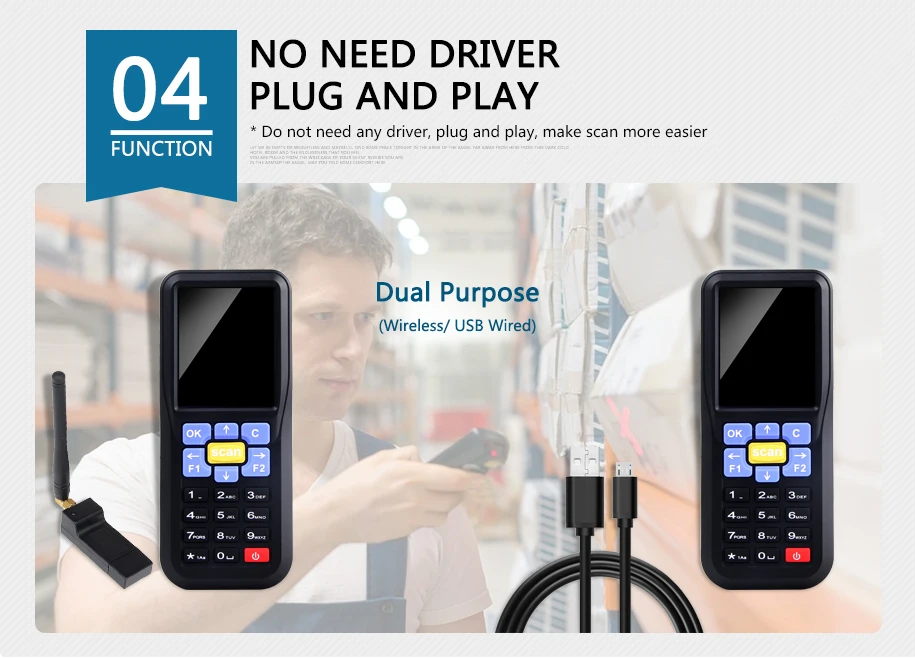

2. Function of automatic wireless transmission, offline scan.
3. Fast and accurate 433Mhz wireless two-way, transmission certification
4. Screen display of data, easy and fast operation
5. Data will be saved automatically and will not get lost after power off
6. Easily handling barcodes in bulk

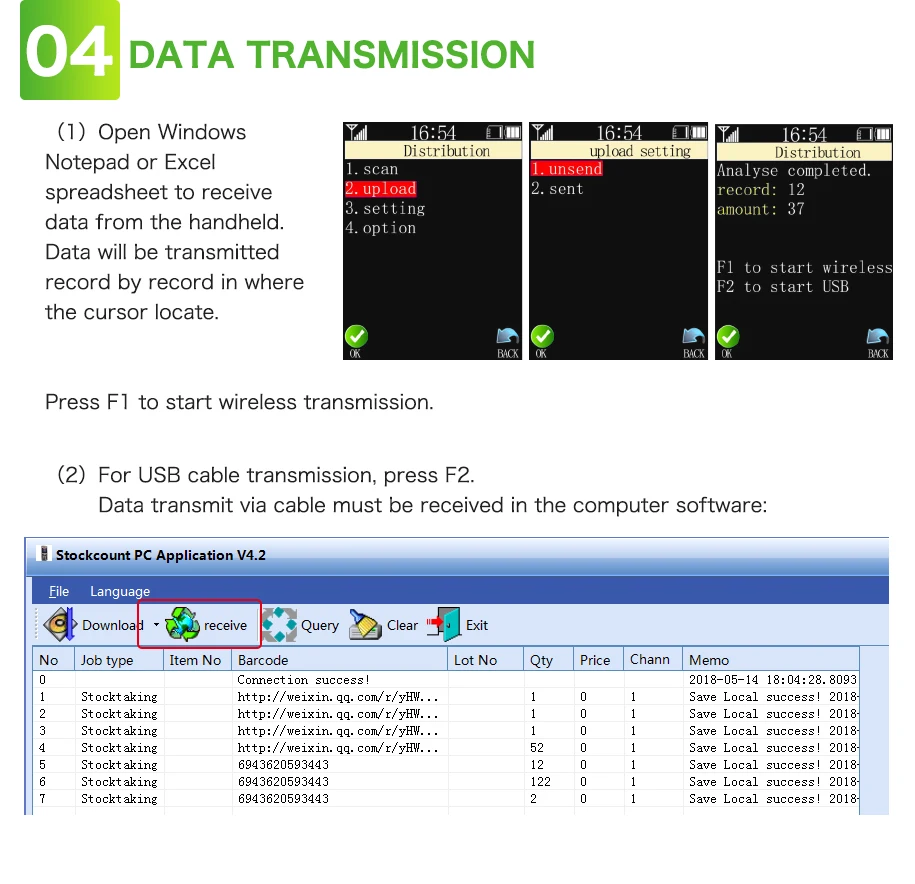

The inventory mode can save up to 30,000pcs barcode data. It works offline while collecting data. The saved inventory data can be transmitted to the base station and computer in one lot after collection of all barcode data collector.
| Items | Qty |
| Barcode Data Collector | 1pc |
| USB Receiver | 1pc |
| Sling | 1pc |
| User Manual | 1pc |

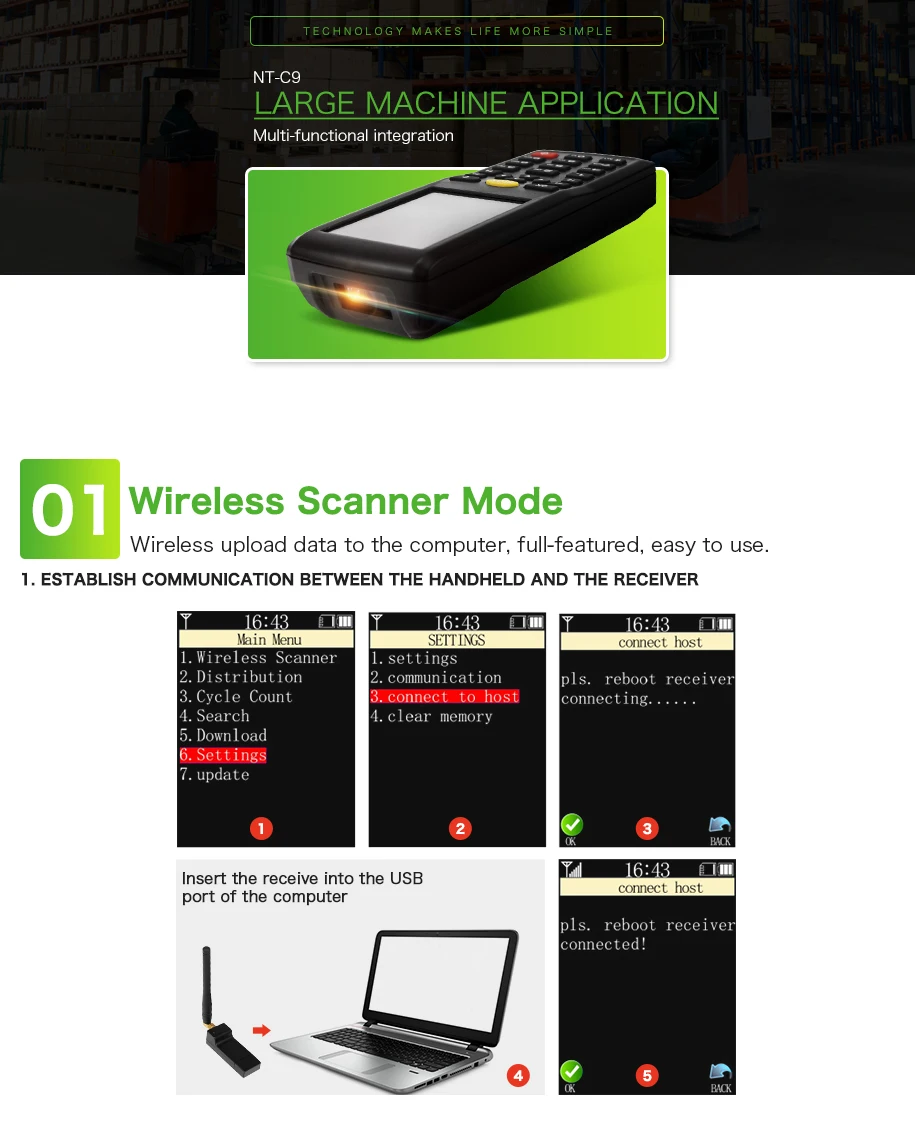

NETUM C9 Wireless Barcode Collector and Scanner Portable Data Terminal Inventory Device Bar Code Reader PDT with TFT Color LCD Screen
| Main Unit |
| |||
| Color | Frosted Black | |||
| CPU speed | 48MHz | |||
| Memory |
| |||
| RAM | 64KB | |||
| ROM | 16MB (optional 32MB) | |||
| Screen |
| |||
| size | 2.8” | |||
| color | 16bit true color（65536 colors） | |||
| resolution | 240*320 TFT | |||
| Physical |
| |||

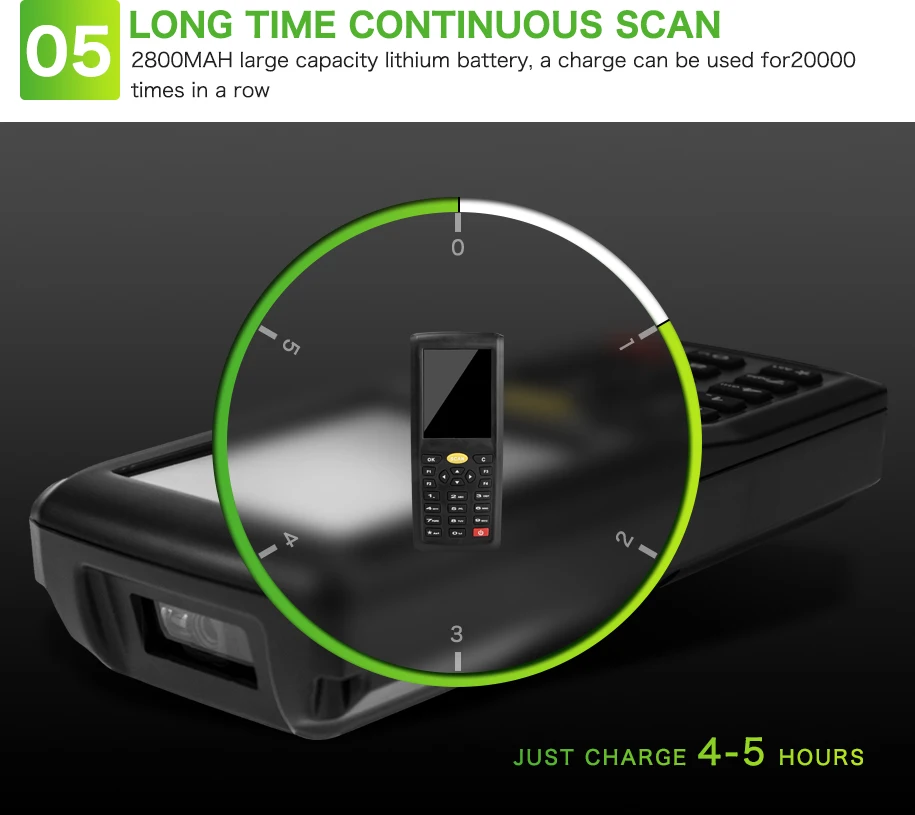

| Battery | Rechargeable Lithium-ion （3.7V，2800mAh） | |||
| Working time | 8 hours | |||
| Standby | 15 days | |||
| Dimension | 150mm×63mm×31mm | |||
|
| Material | ABS + silicone | ||
|
| Charging indicator | LCD | ||
|
| Working current | 190mA | ||
|
| Standby current | 40mA | ||
|
| EMC | CE & FCC DOC compliance | ||
|
| Scanning | |||
|
| Aiming Light Source | 617 nm LED | ||
|
| Light Source | 625 nm LED | ||
|
| Scanning Area | 39° (H) x 25° (V) | ||
|
| Roll(Till) | 0 - 360° | ||
|
| Pitch | ± 65° | ||
|
| Skew(Yaw) | ± 60° | ||
|
| Print contrast | Not less than 25% | ||
|
| 1D | EAN-8，EAN-13，UPC-A，UPC-E，Code 39，Code 93，Code 128，EAN128，Codaber，Industoal 2 of 5，Interleave 2 of 5，Matrix 2 of 5，MSI | ||
|
| 2D | PDF417, MicroPDF417, Composite Codes, TLC-39,Data Matrix, Maxicode, QR Code, MicroQR, Aztec | ||
| Transmission |
| |||
| cable | USB 2.0 | |||
| wireless | 433MHz (max. 300m) |
| ||
|
| Environment | |||
|
| Working Temperature | 0℃～45℃ |
| |
|
| Storing Temperature | -20℃～60℃ | ||
|
| Humidity | 5%～95% | ||
|
| Lumination | Max.5,000 Lux（Fluorescence） | ||
Unit Type:
piece
Package Weight:
0.6kg (1.32lb.)
Package Size:
21cm x 15cm x 7cm (8.27in x 5.91in x 2.76in)
