PDA Android with built in thermal printer Handheld 2D Honeywell 6603 QR code PDA Barcode Scanner and printer pos terminal
Scan Speed:
100 scans/second
Scan Element Type:
CMOS
Interface Type:
USB
Type:
Barcode Scanner
Scan Breadth:
A4
Colour Depth:
48 Bit
Product Type:
Portable Scanner
Novelty:
New
Time to market:
Mar-13
Scanning Light Source:
Laser Light
Brand Name:
mussels
Optical Resolution:
1280*720
Model Number:
android pda with printer
Operating system:
Android 7.0
CPU:
ARM CORTEX-A53 64bit Quad-Core 1.3G
Memory:
2G RAM + 16G ROM
Data communication:
Wifi , 4G , Bluetooth 4.0
Optional printer:
58mm thermal printer
Feature:
high-end PDA, multi-functional
Screen:
5 inch touch screen
PDA Android with built in thermal printer Handheld 2D Honeywell 6603 QR code PDA Barcode Scanner and printer pos terminal
Kindly noted
1.The standard configuration ,
5 inch touch screen + Android 7.0 OS + Wifi + Bluetooth + GPS + 4G + FDD-TLE 4G / WCDMA / GSM + phone + Camera + Google play + 2G RAM + 16G ROM + SDK
2.Optional functions,
1D/ 2D barcode scanner, or RFID LF/ HF, NFC/ UHF RFID, or Printer, or charging cradle. Please choose according to your needs.
If there is no optional specifications you need, like 2D and uhf RFID, or extra batteries, or other else, please send us message, we will send you new link. Thanks.
Barcode scanner
For 1D scanner, in the market, there are Minde966 and Honeywell N4313. Honeywell N4313 is higher cost than Minde966, and it works better on the scanning speed and performance.
For 2D scanner, in the market, there are HoneywellN6603 & Honeywell N3680, can meet the needs for different countries clients. N6603 is higher cost than N3680, they are able to scan different ranges of 2D code types.

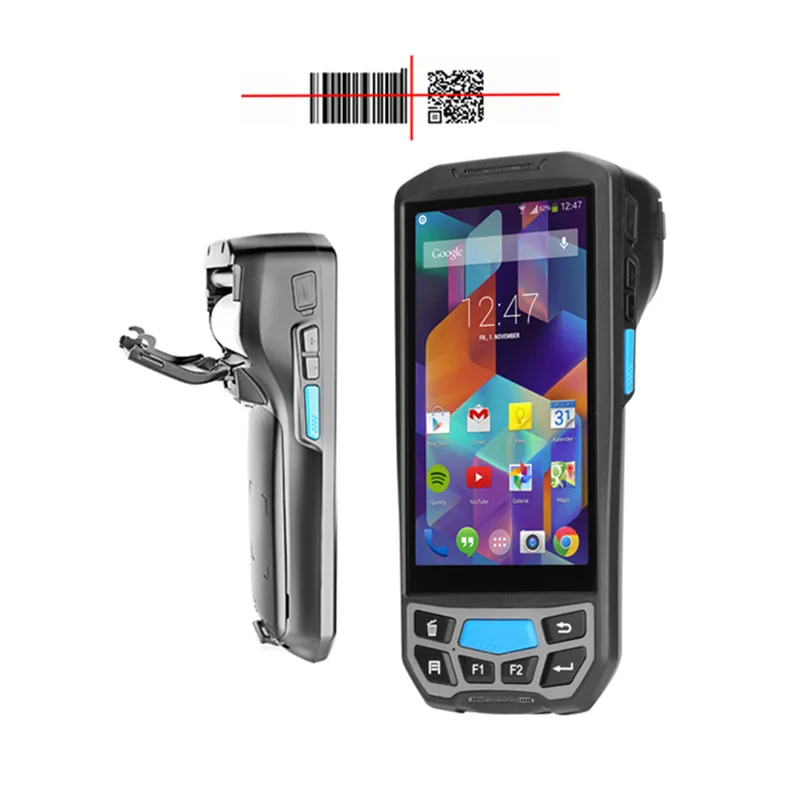

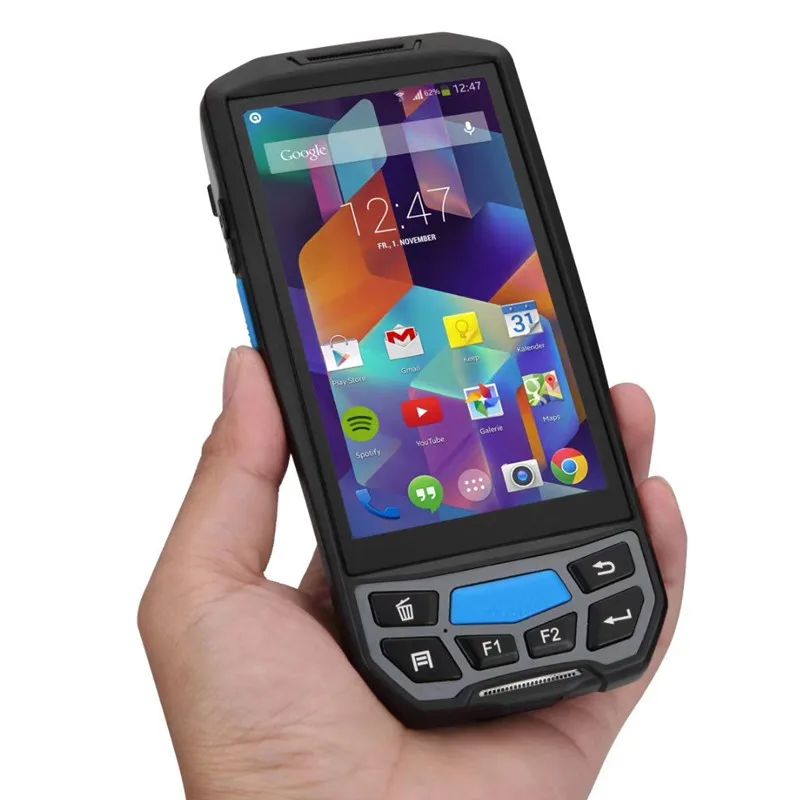

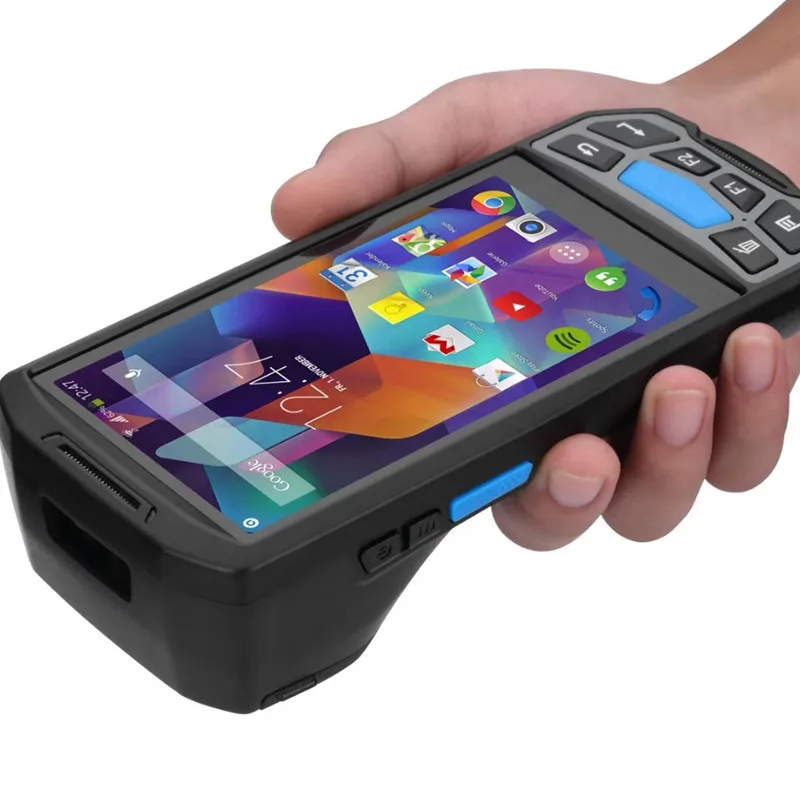

Product Show
Technical Specifications

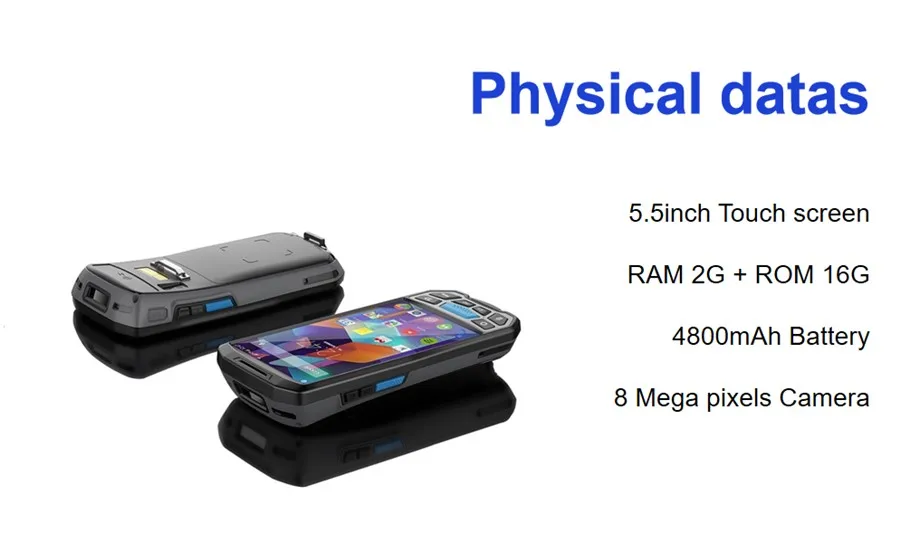

Structural Parameter | |
Dimensions | 172mm(L) X 80mm(W) X 27mm(D) |
Weight | <500g |
Display Screen | 5.0 inch IPS 720 * 1280 px with Multi-point touch capactive screen |
Expand Port | SIM card, micro SD (TF) Card |
Communication Interface | USB2.0 Device |
Input Mode | Standard Stylus, Handwriting, touching input or keyboard input |
Battery Capacity | Rechargeable Li-polymer Battery 3.7V 4800mAh |
Frequency | 8ohm 1W speaker |
Key | 13pcs soft silicon key |
Performance Parameter | |
OS | Android 7.0 |
CPU | ARM CORTEX-A53 64bit Quad-Core 1.3G |
RAM | 2G RAM |
Flash ROM | Standard 16G NAND Flash Storage |
micro SD/TF port (Max up to 32G) | |
Data Communication | |
WI-FI | Support IEEE802.11 a/b/G/n protocol, it need effective wireless LAN signal cover |
FDD/TDD-LTE 4G | TDD-LTE (B38,B39,B40,B41),FDD-LTE (B1,B3) |
WCDMA 3G | B1,B2,B5,B8 |
GSM 2G | GSM/edge/GPRS (850,900,1800,1900MHz) |
bt | Support bt 2.0+EDR/3.0+HS/4.1+HS, transmission distance is 5-10m |
Standard Modules | |
Camera | 8MP autofocus camera with flash |
GPS | Support A-GPS |
Operating Environment | |
Operating | -20°C to 50°C |
Storage Temperature | -25°C to 70°C |
Environment Humidity | 5%RH-95%RH(no condensation) |
Drop Specifications | 6 sides can bear impact from 1.5m drop to cement floor in the range of operating temperature |
Roll Specifications | 1000 times/0.5m, roll on 6 sides contact area |
Sealed Environment | IP66 |
2D CMOS (OPTIONAL) | |
CMOS Scanner | Honeywell N6603, Honeywell N3680 |
The Sensor Resolution | 752(level)×480(vertical)pels(gray level) |
Ambient Light | All dark 9000ft.candles/96900 lux |
focus element (VLD) | 655nm ± 10nm |
Support bar code type | PDF417,MicroPDF417,Composite, RSS,TLC-39, Datamatrix, QR code, micro QR code,Aztec, MaxiCode; Postal Codes: US PostNet,US Planet, UK Postal, Australian Postal, JapanPostal Dutch Postal (KIX)3 |

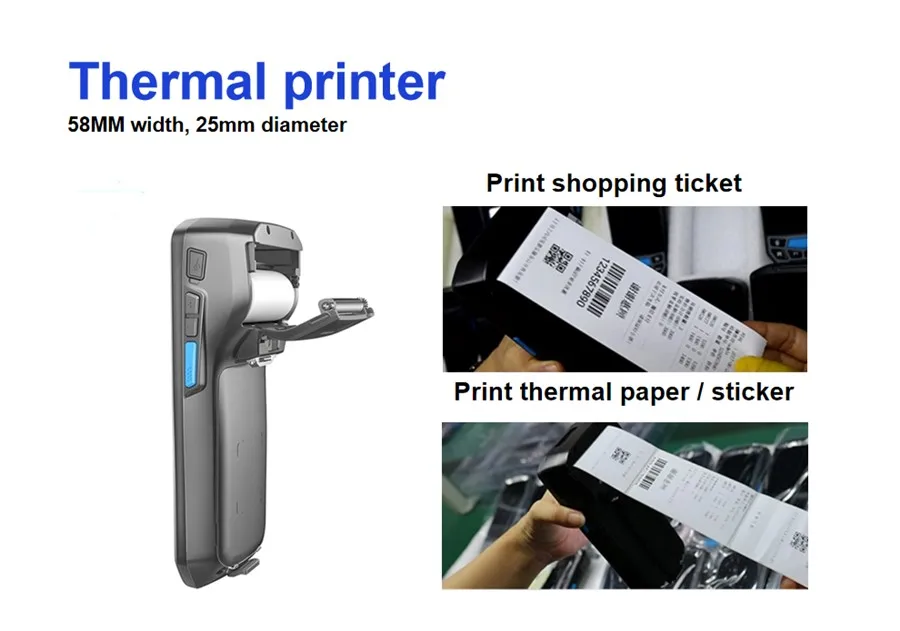

Printer | |
Thermal Printer 58mm | |
Biometric Fingerprint (Optional) | |
Sensor | TCS2SS |
Sensor type | Capacitive Sensor |
Function | Enrollment, compare, deletion etc. |
Resolution | 508DPI |
Memory | 1,000 PCS fingerprints |

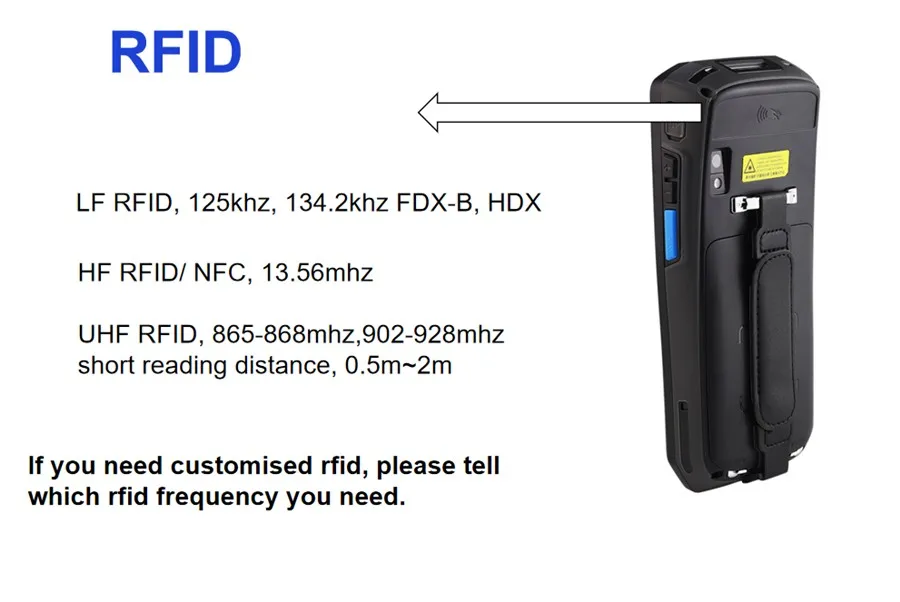

LF RFID Reader (Optional) | |
Frequency | 125kHz, 134kHz (FDX-B / HDX) |
Protocol | ISO11784/5, ISO18000-2 |
Range | 3-8cm |
HF RFID Reader (Optional) | |
Frequency | 13.56MHz |
Protocol | ISO14443A/B, ISO15693 |
Range | 3-8cm |

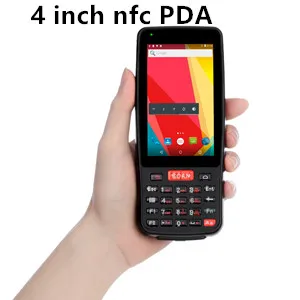

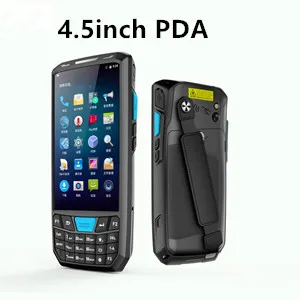

Related Products

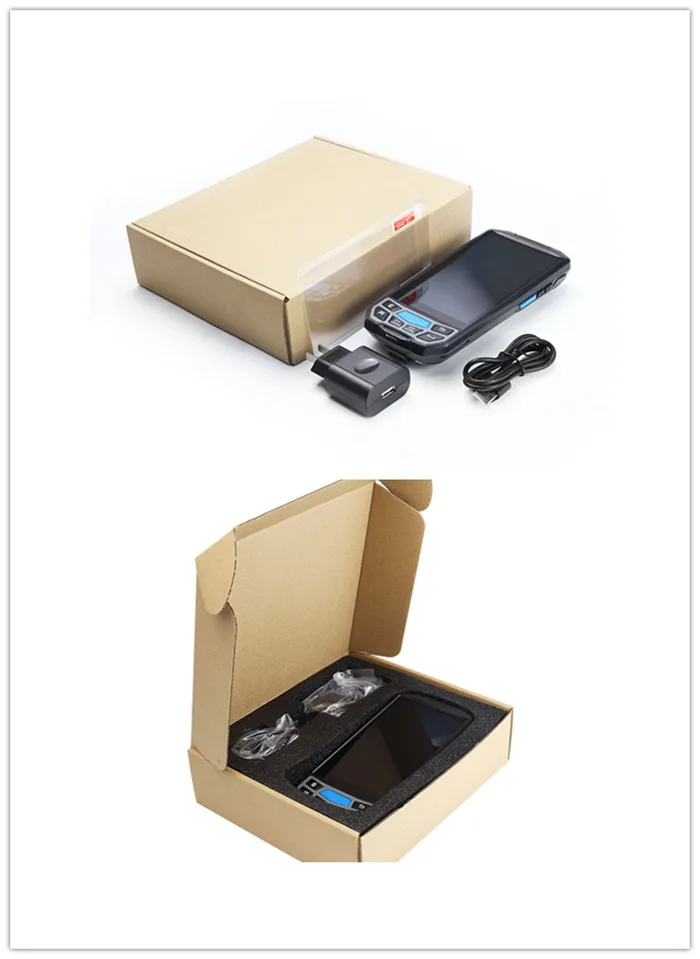

1 unit packing list include
1x PDA
1x battery
1x USB data cable
1x plug (US, EU, AU version for mathched counties, will ship the plug version according to your address)
1x user manuel
1) Once the order is confirmed, we will arrange shipment within 1- 5 days. To guarantee fast delivery, our company have products with normal specifications in stock.
2) Because all items with battery inside, to make sure you receive the goods successfully. normally we use Aliexpress standard shipping. This method is available for all countries, including Russia, Brazil. The delivery time is about 20 - 40 days. If you have enough time for the purchasing process, you can choose this way. It's free for the buyer. If you want to get the products within 10 days, you can choose DHL.
3)Kindly write correct and detailed delivery address for your order. For Brazil clients, please provide receipient's CNPJ or CPF number, otherwise, the parcel will be destoryed or returned back. Thus, please confirm that you have CNPJ or CPF number before order for Brazil buyers .
4) Service Transmit Time is provided by the carrier and excludes weekends and holidays. Transmit time may vary, particularly during the holiday season. If you havev't received the goods within 30 days after payment, please contact us. Of course, we will update you shipping status every weeks.
1) We provide 12 months warranty for our producs, since the buyer got the goods. The buyer is free to contact us anytime when there is doubts to use the device, or meet any technical problems.
2) The buyer is able to contact us by these ways. Send message via Aliexpress or Trademanager. You will get a reply within 1 natural day.
3) If there is quality problems, we will replace with new product , after the buyer provide video and the clients need to ship the device back . After we got buyer's complaint, we have colleague to contact with you soon to solve the problem until you are satisfied.
If you are satisfied with our products and service, welcome to re-order and give us a 5-Starfor the transaction. If you are not satisfied, welcome to contact us and complain to us, we will solve your problem soon, until you are happy.
Enjoy your shipping.
Unit Type:
piece
Package Weight:
1.0kg (2.20lb.)
Package Size:
25cm x 18cm x 8cm (9.84in x 7.09in x 3.15in)
