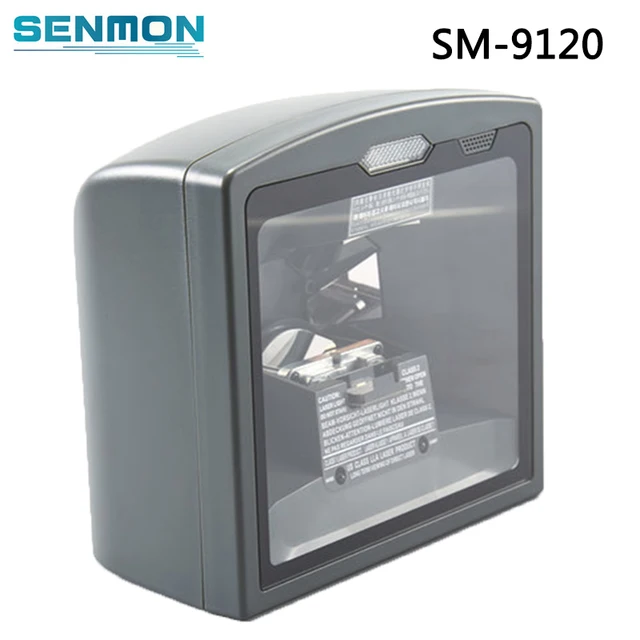

SM-9120 Fixed Mount Vertical 1D Barcode Scanner Handfree Omnidirectional Laser Barcode Reader
Novelty:
New
Scan Element Type:
CMOS
Optical Resolution:
600*600
Scanning Light Source:
LED
Time to market:
Mar-13
Product Type:
Flatbed Scanner
Type:
Barcode Scanner
Brand Name:
SENMON
Scan Breadth:
A4
Colour Depth:
32 Bit
Interface Type:
USB, RS232
Model Number:
SM-9120
Scan Speed:
1500 times/s
Item:
laser barcode reader
Interface:
USB
resolution:
3mil
scanning model :
20 lines5 directional scanning
weight :
680g
Visual Indicators:
led blue &red
light levels:
4500Lux
current :
270mA
dimention :
155*150*75mm
color :
black
Support:
1D codes
SM-9120 Fixed Mount Vertical 1D Barcode Scanner Handfree Omnidirectional Laser Barcode Reader
Details
1.20lines/5 direction scanning
2.32Bit-CPU
3.Visible laser diode 650nm
4.1500scans/Second
5.RS232,HID USB,KB Interfaces Supported
6.0.127mm(5mil)@Code 93,Minimum
7.Weight:680g
8.Cable Length:2m
9.CE ,ROSH
Features
1)Support both omni-directional and single-line scan
2)20 laser scan line make the scan rate up to 1500 scan/s and 75 scan/s on single-line scan mode omni-directional barcode scanner machine
3)self-developed decoder chip and high performance omni-directional barcode scanner
4)hardware decode technology omni-directional omni-directional barcode scanner
5)Support Keyboard, RS-232, USB interface port.
6)Support more than 20 countries' keyboard output.
| Features | Description |
| Light source | High performance laser diode 650nm |
| Beeper Operation | Programmable tone & volume |
| CPU | 32Bit hardware decoder |
| Scanning mode | 20scan lines ,5 directional scanning |
| Scan type | Omnidirectional and single line scanning |
| Visual Indicators | Two color LED (blue & red) |
| Depth of Field | 0-220mm for 0.33mm UPC/EAN 100% |
| Interface | USB.RS232,Keyboard wedge |
| scanning speed | 1500scans/second ,75 scan lines per second- single line |
| scanning lines | 20lines |
| Minimum resolution | 0.127mm(5mil)@Code 39, PCS=90% |
| Printe contrast | >30%(UPC/EAN 100%) |
| Physical |
|
| Dimemsion | 155*150*75mm |
| weight | 680g |
| cable length | 2M |
| Electrical |
|
| Input Voltage | 5VDC ± 10% |
| Operating current | 270mA |
| Standby power? | 1.0watts |
| Safety |
|
| Laser Class | CDRH class II,IEC 60825-1 class 1 |
| EMC | CE EN55022 B, FCC Part 15 Class B, VCCI, BSMI |
| Environmental |
|
| Operating temperature | 0 ° C~50 ° C(32 ° F-122 ° F) |
| Operating humidity | 5%~95%relative humidity, non-condensing |
| Storage temperature | 20 ° C~+60 ° C(-4 ° F-140 ° F) |
| Light Levels | 4500Lux |
| Drops | Designed to withstand 1.0m drops |
| Decode capability | UPC/EAN/JAN, UPC/EAN with supplementary, JAN 8& JAN 13 ISBN/ISSN, EAN,Code 39, Code 39 with full ASCII, Code 93, Code 128,Codabar (NM7),trioptic Code 39, MSI/Plessy, Interleaved 2 of 5 (ITF), Addendum 2 of 5,IATA Code,China Postal Code, Code 32, Industrial 2 of 5, Standard 2 of 5,discrete2 of 5,Matrix 2 of 5, Code 11, UPC/EAN RSS, RSS ariants. |
Unit Type:
piece
Package Weight:
1.5kg (3.31lb.)
Package Size:
30cm x 25cm x 12cm (11.81in x 9.84in x 4.72in)
