1902GHD Bluetooth 2D Wireless Barcode Scanner
Novelty:
New
Interface Type:
USB
Scan Element Type:
CMOS
Model Number:
240scan/second
Scan Speed:
100 scans/second
Brand Name:
SwiftAutoID
Product Type:
Portable Scanner
Type:
Barcode Scanner
Scanning Light Source:
Natural Light+LED
Optical Resolution:
3mil
Scan Breadth:
None
Max Paper Size:
Other

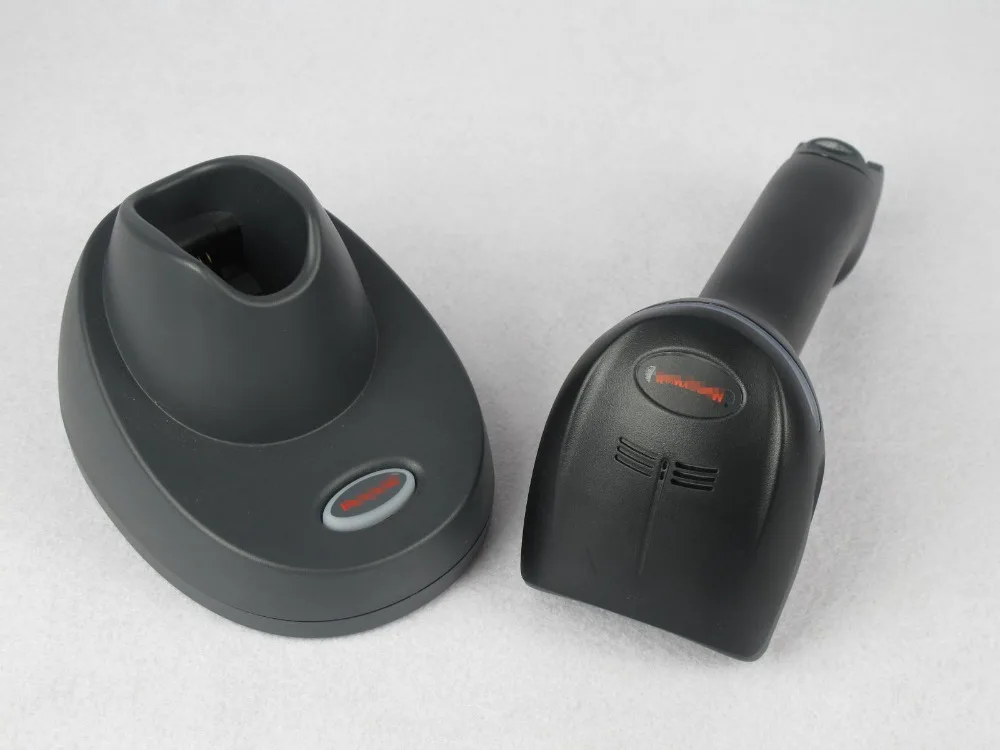

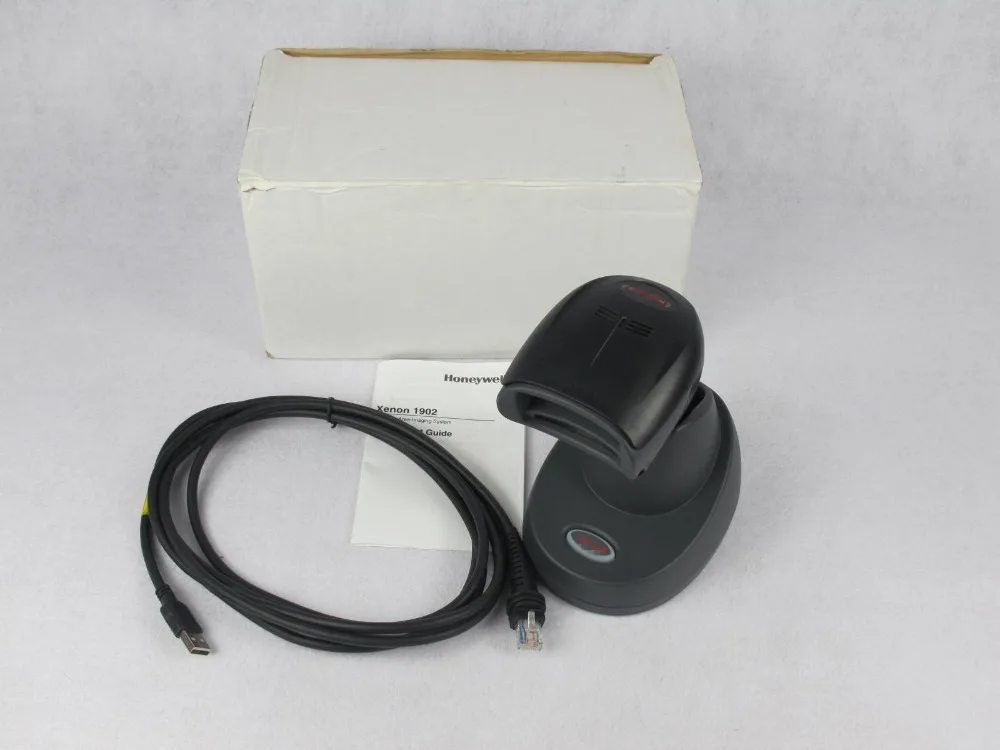

Honywell 1902GHD Bluetooth 2D Wireless Barcode Scanner
Xenon 1902, Honeywell?s sixth-generation of area-imaging technology, is redefining the standard for hand-held scanners. Featuring a custom sensor that is optimized for bar code scanning, Xenon 1902 offers industry-leading performance and reliability for a wide variety of applications that require the versatility of area-imaging technology plus the freedom of Bluetooth® wireless connectivity. A revolutionary decoding architecture that combines Adaptus® Imaging Technology 5.5 and Omniplanar?s SwiftDecoder® software enables extended depth of field, faster reading, and improved scanning performance on poor quality bar codes.
Xenon 1902 Technical Specifications
Radio/Range 2.4 to 2.5 GHz (ISM Band) Adaptive Frequency Hopping Bluetooth v2.1;
Class 2: 10 m (33?) line of sight
Data Rate 3 Mbit/s (2.1 Mbit/s) Battery 1800 mAh Li-ion minimum Number of Scans
Up to 50,000 scans per charge Expected Hours of Operation 14 hours
Expected Charge Time 4.5 hours
Mechanical/Electrical
|
| Scanner | Charger/Communication Base |
| Dimensions (LxWxH) | 104 mm x 71 mm x 160 mm (4.1x 2.8 x 6.3inch) | 132 mm x 102 mm x 81 mm (5.2 x 4 x 3.2inch) |
| Weight | 214 g (7.5 oz) | 179 g (6.3 oz) |
| Operating Power (Charging) | N/A | 5 W (1A @ 5 V) |
| Non-Charging Power | N/A | 0.5 W (0.1A @ 5 V) |
| Host System Interfaces | N/A | USB, Keyboard Wedge, RS232, IBM 46xx (RS485) |
Scan Performance
Scan Pattern Area Image (838 x 640 pixel array)
Motion Tolerance Up to 610 cm/s (240 in/s) for 13 mil UPC at optimal focus
Scan Angle (HD): Horizontal: 41.4°; Vertical: 32.2° (SR): Horizontal:
42.4°; Vertical: 33° (ER): Horizontal: 31.6°; Vertical: 24.4°
Print Contrast 20% minimum reflectance difference
Pitch, Skew 45°, 65°
Decode Capabilities Reads standard 1D, stacked, 2D and postal symbologies; limited OCR font reading
Unit Type:
piece
Package Weight:
2.0kg (4.41lb.)
Package Size:
27cm x 16cm x 16cm (10.63in x 6.30in x 6.30in)
