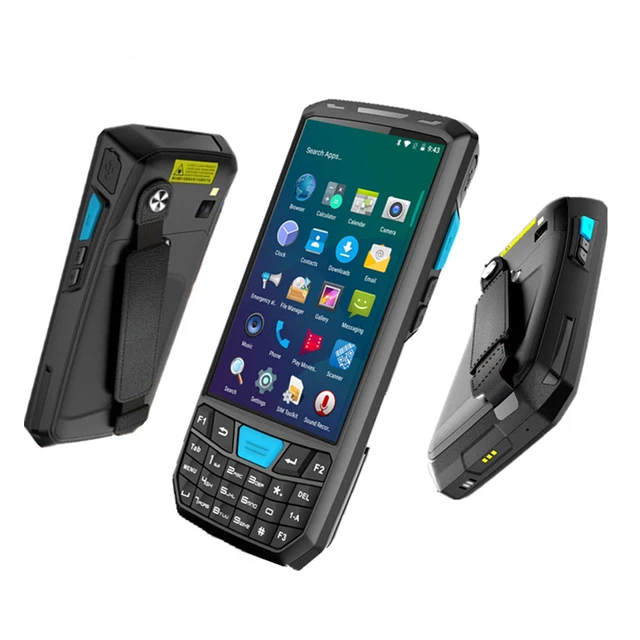

4G LTE portable android PDA 1D/2D bar code reader wireless wifi/bluetooth/Gps barcode scanner mobile Data collector
Special Offers 4G LTE portable android PDA 1D/2D bar code reader wireless wifi/bluetooth/Gps barcode scanner mobile Data collector
Product ID : 32957709001
Price : $225.22 - 433.38
Discount Price : $180.18 - 346.70
* Price Update at : Jully, 25 2019 *
Item specifics
Scan Speed:
200 scans/second
Interface Type:
USB
Type:
Barcode Scanner
Scan Breadth:
A4
Colour Depth:
48 Bit
Model Number:
PDA-V80
Product Type:
Bar Code Scanner
Novelty:
New
Time to market:
Mar-13
Scanning Light Source:
Laser Light
Brand Name:
SENMONZ
Optical Resolution:
LCD(720*1280)
Scan Element Type:
1D/2D Laser
Item Name:
PDA T80 POS terminal wireless 1D/2D Data collector
Operating system:
Android 7.0
Scan Element Type:
1D/2D Scanner
Memory:
2GB RAM, 16GB ROM, MicroSD(max 64GB expansion)
Display:
4.5 inch IPS 480 * 854 px with Multi-point touch capactive screen
Battery:
3.8V 4,200mAh Li-battery
Wireless and Communication:
4G LTE/3G/GPRS/GSM/Bluetooth/Wifi
CPU:
ARM Cortex-A53 64bit Quad-Core 1.3G
Key:
29pcs soft silicon key
Dimensions:
166mm(L) X 77.5mm(W) X 22mm(D)
Expand Port:
SIM card, Micro SD (TF) Card
Communication Interface:
Type-C
Camera:
8MP autofocus camera with flash
SDK:
Software Development Kit
Sealed Environment:
IP66
Resolution:
4Mil minimum width
2D CMOS (OPTIONAL):
Newland 3085,HONEYWELL N6603 ((OPTIONAL))
1D Laser Scanner:
Mingde966
Product Description
4G LTE portable android PDA 1D/2D bar code reader wireless wifi/bluetooth/Gps barcode scanner mobile Data collector
Standard Configuration:
Android 7.0+4.5'' Screen+2G RAM+16GROM+Wifi+Bluetooth4.0+1D/2D+2G/3G/4G+GPS+Camera + Free SDK
Standard Accessories:
Handheld POS Terminal 1 Pcs, Battery1pcs, Usb data cable1pcs, Charger 1pcs, User Manual 1pcs,built-in screen protector 1pcs,
device box 1pcs,
Attention: optional extra battery,Buy extra battery pls visit this link.
https://www.aliexpress.com/store/product/Freeshipping-Battery-for-PDA-Pos-terminal-devices-Date-collector-battery-4000mAh-4200mAh-4800mAh/2234039_32963207015.html?spm=2114.12010612.8148356.7.4eac54c2mknjxT
Attention: Belt Case Protect bag ,Buy extra case pls visit this link.
https://www.aliexpress.com/store/product/Belt-Case-protect-bag-leather-cover-for-Handheld-PDA-Android-Terminal-scanner-Wireless-Wifi-Bluetooth-barcode/2234039_32934601424.html?spm=2114.12010612.8148356.9.7bec54c2FPUNLW
Attention:convenient charging with optional charge cradle.buy cradle pls visit this link.
https://www.aliexpress.com/store/product/Freeshipping-Charge-Cradle-for-PDA-Barcode-Scanner-Pos-terminal-devices/2234039_32960252994.html?spm=2114.12010612.8148356.5.3adf54c23SjwrF
Standard Features:
* Default configuration :Wifi+BT+4G FDD-LTE+phone+GPS+8M camera+google player store;
* 1D ,2D ,NFC , ( 1G RAM + 8G ROM ) OR ( 2G RAM + 16 ROM ) ,Cradle for option,
* Compact and Portable Ergonomic Design with wrist strap;
* Safedroid OS (Android 7.0) Highly optimized Android operating system;
* 8.0M mega pixel camera;
* High capacity 4200mA large capacity battery for critical requirements;
* Pogo Pin interface for convenient charging with optional charge cradle;
* Industrial rugged design, water-proof and protection grade(IP66);
* Multiple languages
* Support Google Play Store
* Compact and Portable Ergonomic Design with wrist strap
2D Scan Image:
Delivery Time:
* Samples 3--7 working days after placing order
* Bulk order depend on the Quantity
Our service:
* Completely SDK provided for Secondary Program
* Technical support by professional engineer
* Maintain repair
* 12months warranty
Structural Parameter | |
Dimensions | 166mm(L) X 77.5mm(W) X 22mm(D) |
Weight | <450g |
Display Screen | 4.5 inch IPS 480 * 854 px with Multi-point touch capactive screen |
Expand Port | SIM card, Micro SD (TF) Card |
Communication Interface | Type-C |
Input Mode | Standard Stylus, Handwriting, touching input or keyboard input |
Battery Capacity | Rechargeable Li-polymer Battery 3.7V 4200mAh |
Frequency | 8ohm 1W speaker |
Key | 29pcs soft silicon key |
Performance Parameter | |
OS | Android 7.0 |
CPU | ARM Cortex-A53 64bit Quad-Core 1.3G |
RAM | 1G RAM (OPTIONAL) 2G RAM |
Flash ROM | 8G ROM (OPTIONAL) 16G RAM |
Micro SD/TF port (Max up to 64G) | |
Data Communication | |
WI-FI | Support IEEE802.11 a/b/g/n protocol, it need effective wireless LAN signal cover |
GSM 2G | 2G:GSM(850/900/1800/1900Mhz) |
WCDMA 3G | 3G:WCDMA(850/900/1900/2100Mhz) |
FDD/TDD-LTE 4G | 4G:FDD-LTE(B1/B2/B3/B5/B7/B8/B20) TDD-LTE(B40) |
Bluetooth | Support Bluetooth 2.0+EDR/3.0+HS/4.1+HS, transmission distance is 5-10m |
Standard Modules | |
Camera | 8MP autofocus camera with flash |
GPS | Support A-GPS |
Operating Environment | |
Operating | -25°C to 55°C |
Storage Temperature | -40°C to 70°C |
Environment Humidity | 5%RH-95%RH(no condensation) |
Drop Specifications | 6 sides can bear impact from 1.5m drop to cement floor in the range of operating temperature |
Roll Specifications | 1000 times/0.5m, roll on 6 sides contact area |
Sealed Environment | IP66 |
1D Laser Scanner (OPTIONAL) | |
1D Laser Scanner | Mingde966 |
Resolution | 4Mil minimum width |
Ambient Light | 10000ft.candles(107640 lux) |
Scanning Speed | 104(±)12/sec (bothway) |
Scanning Angle | 47o±35o(Standard) / 35o±3o(narrow angle) |
Support Bar Code Type |
|
2D CMOS (OPTIONAL) | |
CMOS Scanner | Newland 3085,HONEYWELL N6603 |
The Sensor Resolution | 752(level)×480(vertical)pels(gray level) |
Ambient Light | All dark 9000ft.candles/96900 lux |
Focus element (VLD) | 655nm ± 10nm |
Support bar code type |
|
NFC Reader (Optional) | |
Frequency | 13.56MHz |
Protocol | ISO/IEC 18092 (ECMA 340) |
Range | 2-5cm |
PSAM Interface(Optional) | |
ISO 7816-compliant SAM slot,2 SAM slots | |
1.We will ship the items in 1-5 business days after verification of the payment and confirming the order.
2.Please leave completed and correct address, so as to make sure the parcel will be sent to the buyer
without any delay.
3.We do not gurantee delivery time on all international shipments due to the difference in customs clearing times in
individual countries, which may affect how quickly your product is inspected.
4.Please note that buyers are responsible for all additional customs fees, brokerage fees, duties and taxes for
importation into your country. The shipping cost does not include any import taxes, and the buyers are responsible
for customs duties.
5.Usually, we will write lower value and mark “gift” or “sample” to help you to avoid the tax or less tax. If you need full
value on the shipping bill or invoice, please let us know when you place order.
6.For all free shipping items, we will send them to the buyer via CHINA POST AIR PARCEL or HONGKONG POST
AIR PARCEL,The delivery time will be different depending on the different countries, which will be 15-50 days.
7.If buyer need the fast delivery, DHL, FEDEX,UPS,TNT,EMS are all available (5-15 Days). Buyer can select
the different shipping ways considering of the different shipping fees and delivery time when place the order.
1. It comes with one year after sales service card when you got the package. Just contact our technical directly.
2. There are following ways to solve your problem: Whatsapp,Skype, Wechat,Email,and Phone call.
3. If the product is a quality problem, we will replace a new one for you after got the proof from your side by phone or video.
1.If you feel good for the product, Please give all 5 stars feedback.Then we will do better than better.
2.Before leaving the bad feedback, Please contact us to solve the problem.We will help you solve it.
-- Thank you!
Packaging Details
Unit Type:
Set
Package Weight:
1.3kg (2.87lb.)
Package Size:
20cm x 12cm x 10cm (7.87in x 4.72in x 3.94in)
