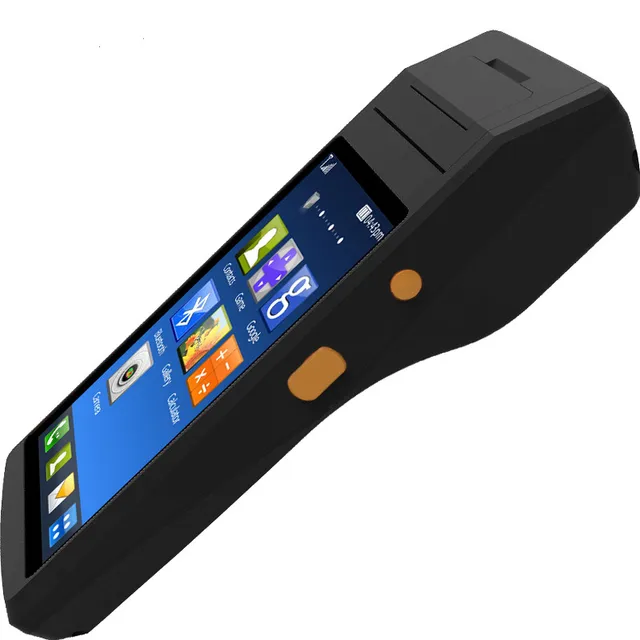

Android PDA with built in thermal printer 5.5 inch Touch screen Smart NFC 1D 2D barcode scanner handheld Android PDA Terminal
Brand Name:
mussels
Scan Speed:
100 scans/second
Type:
Handheld Scanners
Optical Resolution:
720x1280 High Resolution
Scan Element Type:
CMOS
Interface Type:
USB
Scan Breadth:
1D/ 2D barcode
Model Number:
android pda
Novelty:
New
Scanning Light Source:
Laser Light
Colour Depth:
32 Bit
Time to market:
Mar-13
Product Type:
Bar Code Scanner
Processor:
ARM Cortex A53 Quad-core 64bits 1.3GHz
Operating system:
Android 6.0
Memory:
16GB ROM+2GB RAM
Screen size:
5.5 inch touch screen
Camera:
8 million auto focusing with LED flash light
Battery:
7.4V 5500mah
Interface:
Micro USB / Serial Port ( TTL )
SDK:
will provide SDK for your further development
Data communication:
4G / Wifi / Bluetooth
Product Name:
NFC 1D 2D barcode scanner handheld Android PDA Terminal
Printer type:
built-in thermal printer
Printer width:
58mm
Android PDA with built in thermal printer 5.5 inch Touch screen Smart NFC 1D 2D barcode scanner handheld Android PDA Terminal
1.The standard configuration is Camera scanner version,
5.5 inch touch screen + Android 6.0 OS + Wifi + Bluetooth + GPS + FDD-TLE 4G / WCDMA 3G / GSM 2G + Camera + 2G RAM + 16G ROM + NFC reader + Printer
The camera can scan 1D or 2D barcode as well, but the speed is not very fast , and code range is not wider than 1D / 2D barcode scanner. The camera only can scan very normal 1D/ 2D bar code.
2.Optional functions,
1D or 2D barcode scanner, Fingerprint reader , UHF RFID reader. Please choose according to your needs.
Please leave message, if you need other options.
3.About the pda device color
3 colors you can choose , that is Orange / Blue / Black. Please remark which color you want, when you order. Thanks.
Technical Specifcations
| |

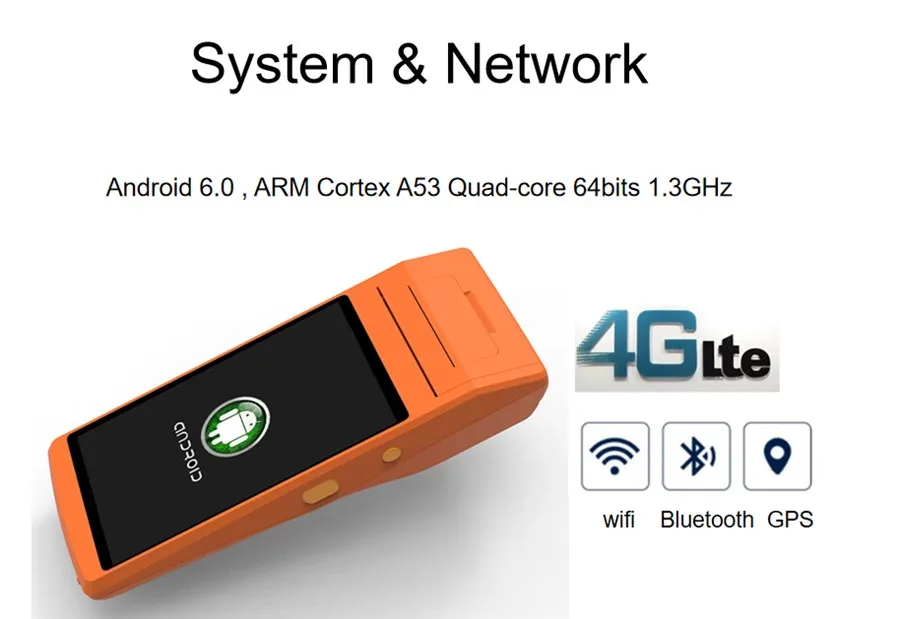

Processor | ARM Cortex A53 Quad-core 64bits 1.3GHz |
O.S | Android 6.0 |
Memory | 8GB ROM+1GB RAM |
Ex-Storag | Micro SD (Up to 64GB) |

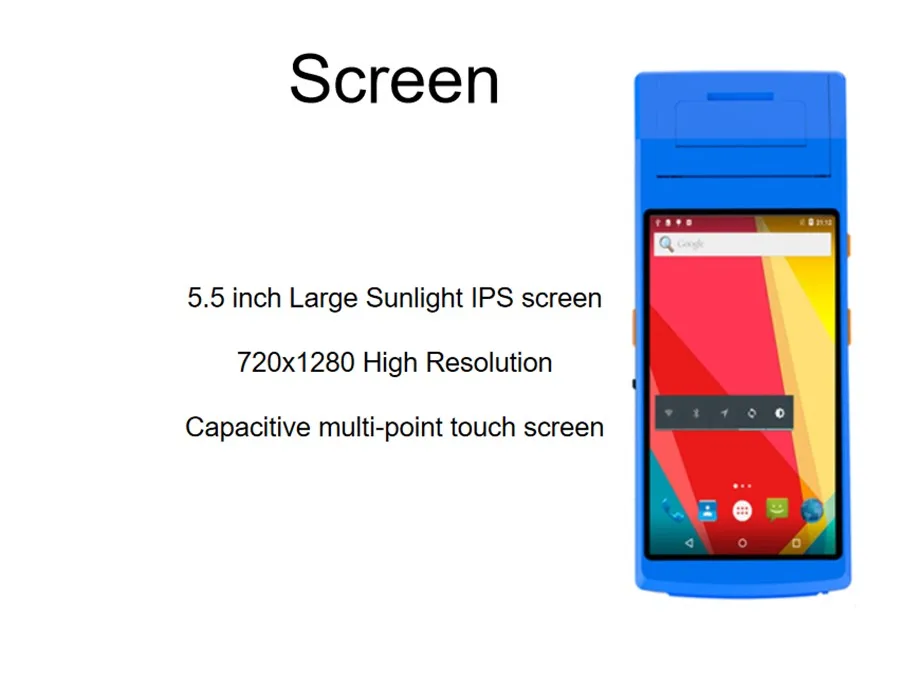

Display | 5.5inch IPS 720x1280 High Resolution |
Camera | AF 8.0M Pixels with LED flash light |
Touch Panel | Industrial-grade capacitive touch panel |
Keypad | 2 side keys,Power key |
Notification | Vibrator/LED/Speaker |

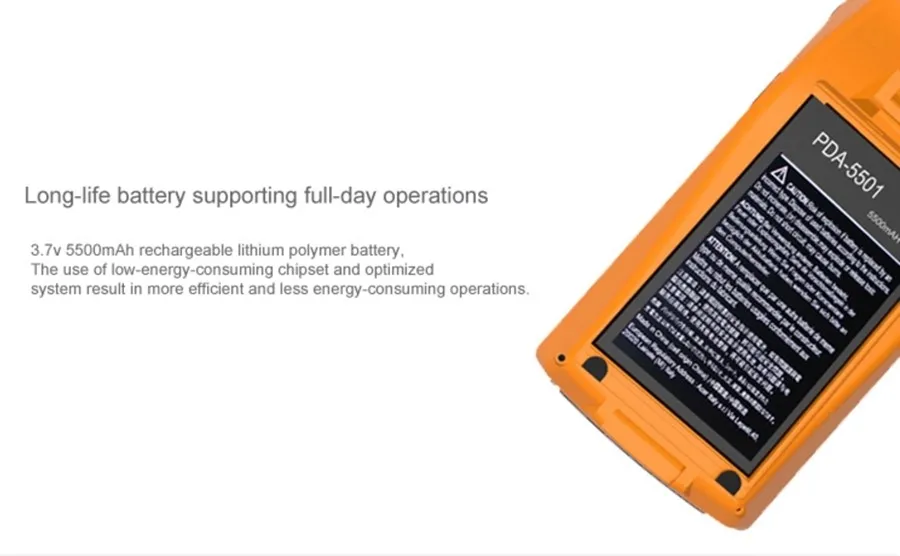

Battery | 7.4v 5500mAh rechargeable lithium battery |
Audio | Built-in microphone/Headphone slot |
Sensor | G-sensor |
Interface | Micro USB/Serial Port(TTL) |
Structural Parameters | |

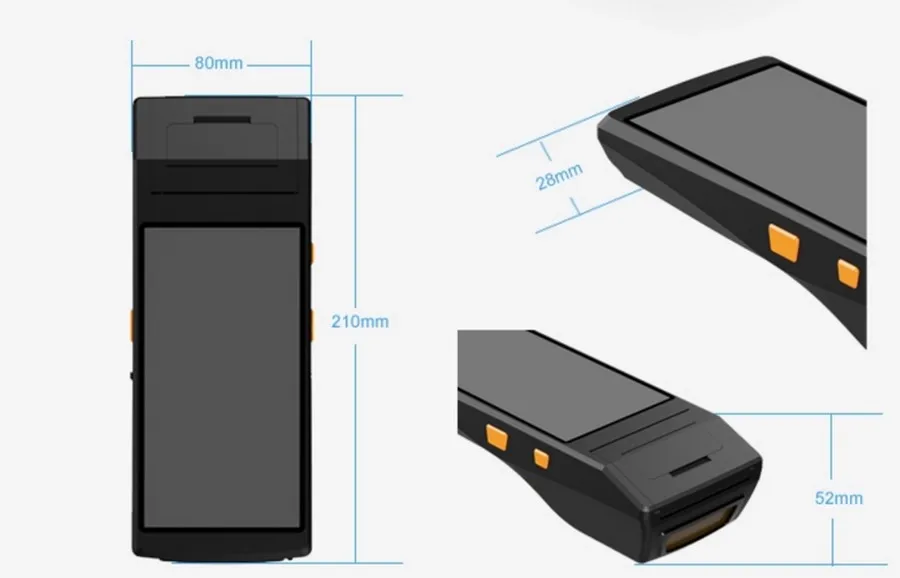

Dimensions(LxWxD) | 210*80*42mm |
Weight | 505g ( battery included ) |
Communication Transmission | |
Mobile Network | 3G: WCDMA:850/900/1900/2100MHz CDMA/EVDO 800MHz |
GSM: 850/900/1800/1900MHz | |
4G:LTE-FDD:B1/B3/B7/B8/B28 LTE-TDD:B38/B39/B40/B41 | |
Wi-Fi | IEEE 802.11 b/g/n |
Bluetooth | Bluetooth 4.0 |
GPS | Supporting GPS/AGPS |

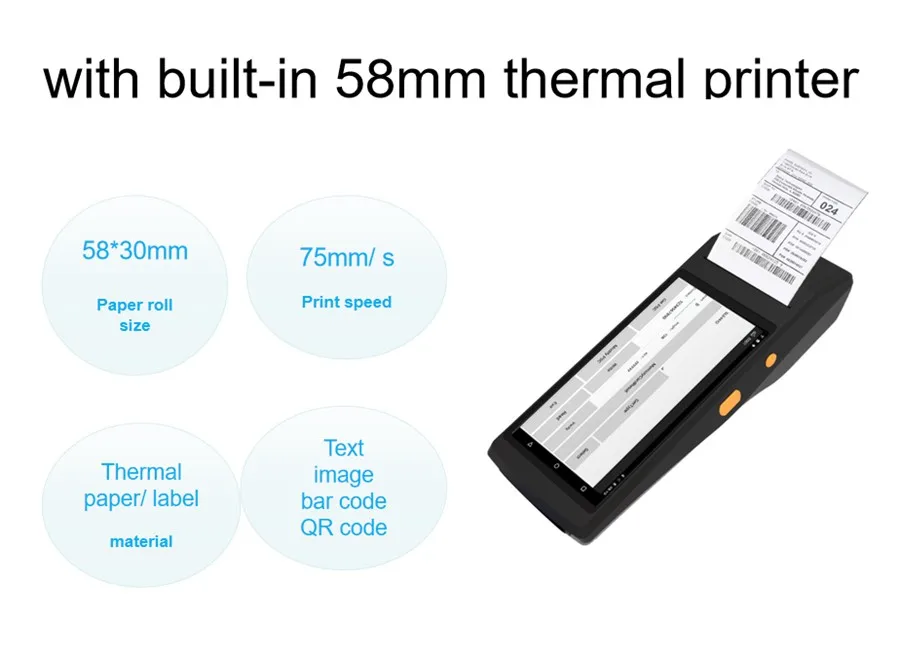

Printer | |
Method | Direct Thermal |
Speed | 70mm/sec |
Width | 48mm(384 Dots/lines) |
Sensor | Black mark / out of paper / overheat over-voltage protection |
Medium | Thermal paper and label |
Type | Text/image/bar code/QR cod |

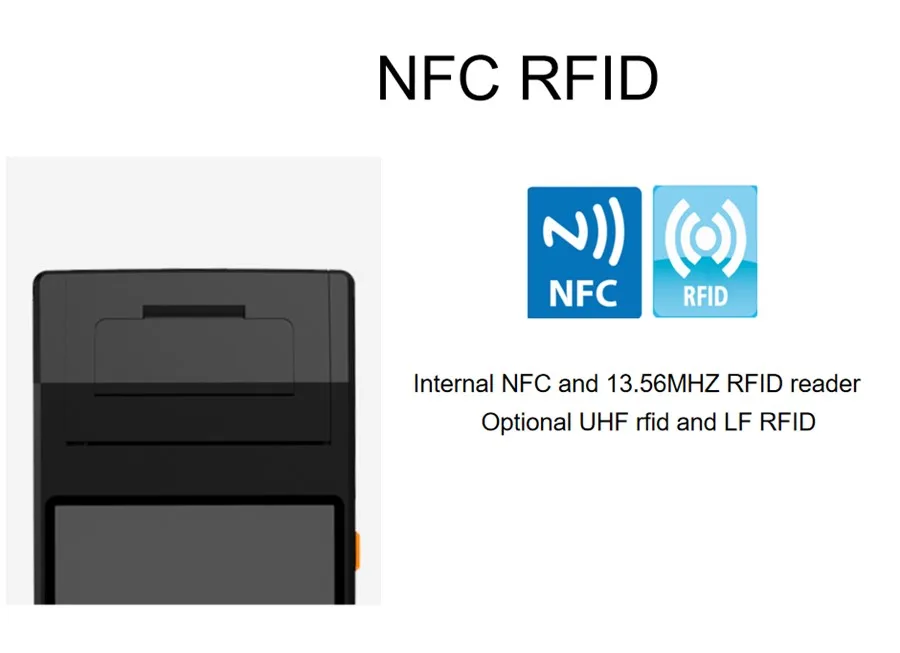

NFC/HF RFID | |
Protocol | ISO/IEC 14443A/B,ISO15693 |
Frequency | 13.56MHz |
NFC type | Type1-4Tag/Mifare/Felica |
PSAM/ Contact Card | |
PSAM | IS0/IEC 7816 1-4 |
Contact chip card | IS0/IEC 7816 (optional) |

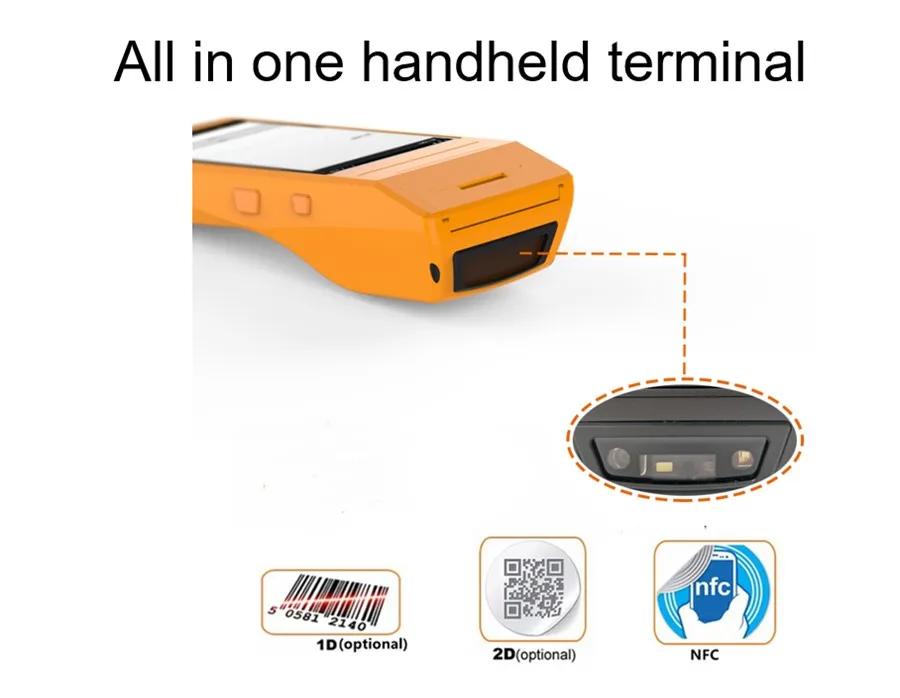

1D Laser Scanner ( optional ) | |
Speed | 100 lines/sec |
Scan Angle | ±50° |
Identification accuracy | ≥4mi |
Decoding Type | UPC-A,UPC-E,UPC-E1,EAN-13,EAN-8,ISBN/ISSN, |
Code 39,code39 (ASCII full), Interleaved 2 of 5, | |
Industrial 2 of 5,Matrix 25,Codebar(NW7), | |
Code 128,UCC/EAN 128,ISBT128,code 93, | |
MSI/Plessey,UK/Plessey,China post,GS1 Data Bar | |
2D Image Scanner ( optional ) | |
Method | CMOS Image |
Scan Speed | Scan Speed |
Scan Angle | 360 ° angle, Elevation angle ± 55 °, Eeflection angle ± 55 ° |
Identification | 2D≥7.5mil,1D≥5mil |
accuracy | |
Decoding Type | QR Code, Data Matrix, PDF417,UPC-A, UPC-E, |
EAN-8, EAN-13, ISBN, Code 128, GS1 128, | |
ISBT 128, Code 39, Code93,Code 11, Interleaved 2 of 5, | |
Industrial 2 of 5,Matrix 25, Standard 25, Coda bar, | |
MSI/MSI PLESSEY, GS1 Data Bar | |
DPM | Support DPM scanner (optional) |
Fingerprint(Optional) | |
Method | Flat surface press to semiconductor sensor |
Sensor | FPC1020 |
Image | 242*266 pixels |
Image resolution | 508dpi |
Storage | 2000 pieces |
UHF RFID(Optional) | |
Frequency | 902Mhz-928Mhz,865MHz-868MHz(optional) |
Protocol | EPC global UHF Class 1 Gen 2/ISO 18000-6C |
Capture Range | 1-2m |
Output Power | 18-26dBm |
Operating Environment | |
Develop Tools | Android SDK + JDK + Eclipse |
P-Language | Java |
Operating Temp | -10°~ 50°C |
Storage Temp | -20°~ 70°C |
Humidity | 0 ~ 95% (non-condensing) |

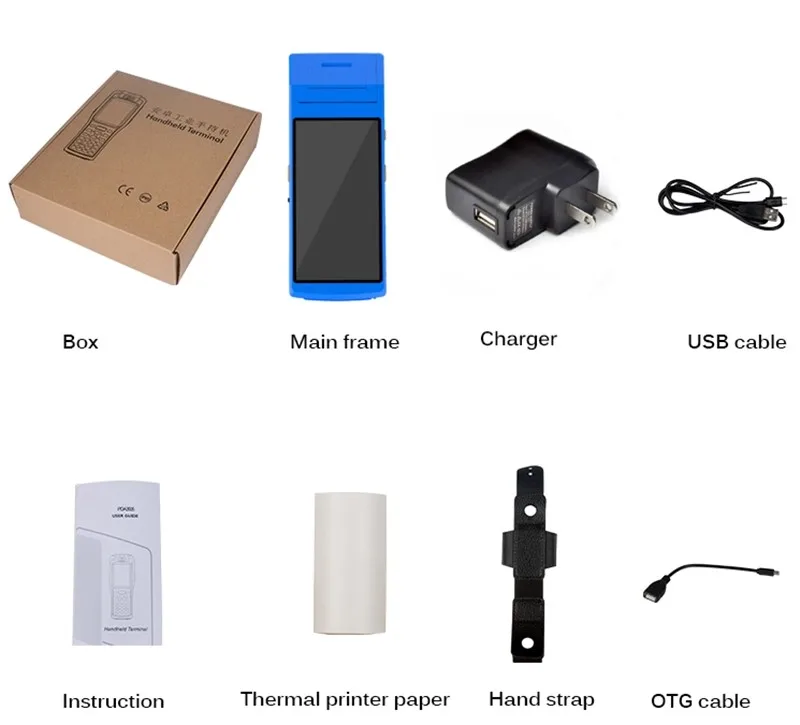

1 unit packing list include
1x PDA machine
1x battery
1x charger
1x USB data cable
1x user manuel
1x roll of thermal paper
1x hand strap
1x OTG cable
1) Once the order is confirmed, we will arrange shipment within 1- 5 days. To guarantee fast delivery, our company have products with normal specifications in stock.
2) Because all items with battery inside, to make sure you receive the goods successfully. normally we use Aliexpress standard shipping. This method is available for all countries, including Russia, Brazil. The delivery time is about 20 - 40 days. If you have enough time for the purchasing process, you can choose this way. It's free for the buyer. If you want to get the products within 10 days, you can choose DHL.
3) Kindly write correct and detailed delivery address for your order.
4) Service Transmit Time is provided by the carrier and excludes weekends and holidays. Transmit time may vary, particularly during the holiday season. If you havev't received the goods within 30 days after payment, please contact us. Of course, we will update you shipping status every weeks.
1) We provide 12 months warranty for our producs, since the buyer got the goods. The buyer is free to contact us anytime when there is doubts to use the device, or meet any technical problems.
2) The buyer is able to contact us by these ways. Send message via Aliexpress or Trademanager . You will get a reply within 1 natural day.
3) If there is quality problems, we will replace with new product , after the buyer provide video and the clients need to ship the device back . After we got buyer's complaint, we have colleague to contact with you soon to solve the problem until you are satisfied.
If you are satisfied with our products and service, welcome to re-order and give us a 5-Star for the transaction. If you are not satisfied, welcome to contact us and complain to us, we will solve your problem soon, until you are happy.
Enjoy your shopping.
Unit Type:
piece
Package Weight:
1.0kg (2.20lb.)
Package Size:
25cm x 11cm x 10cm (9.84in x 4.33in x 3.94in)
