FS02 Wearable 2D Barcode Scanner MINI Bluetooth Bar code Reader for Andriod/ IOS

Best Offers FS02 Wearable 2D Barcode Scanner MINI Bluetooth Bar code Reader for Andriod/ IOS

Product ID : 32651202257

Price : $223

Discount Price : $211.85

* Price Update at : Jully, 25 2019 *

VISIT WEBSITE NOW

Item specifics

•
  Scan Element Type:
  CMOS



•
  Colour Depth:
  32 Bit



•
  Scan Breadth:
  A4



•
  Novelty:
  New



•
  Product Type:
  Bar Code Scanner



•
  Interface Type:
  USB



•
  Scan Speed:
  100 scans/second



•
  Brand Name:
  Postech



•
  Time to market:
  Mar-13



•
  Model Number:
  FS02



•
  Type:
  Barcode Scanner



•
  Scanning Light Source:
  Laser Light



•
  Optical Resolution:
  20 mil



•
  Products Status:
  Stock



•
  Max Paper Size:
  A4


Product Description

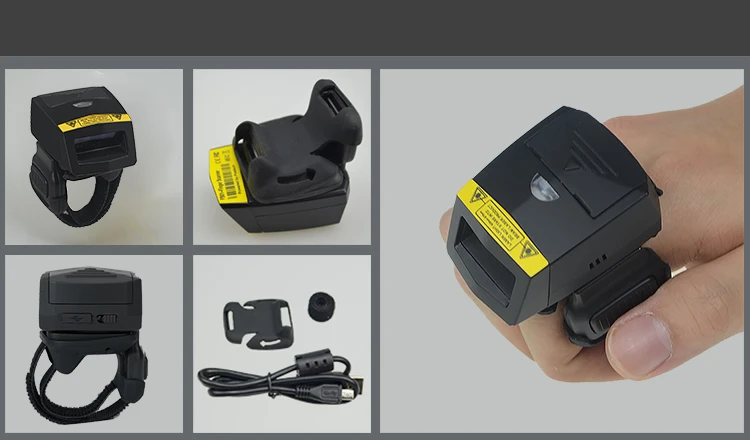

FS02 Android USB Bluethooth 1D/2D Barcode Scanner QR Code Reader Ring Wearable

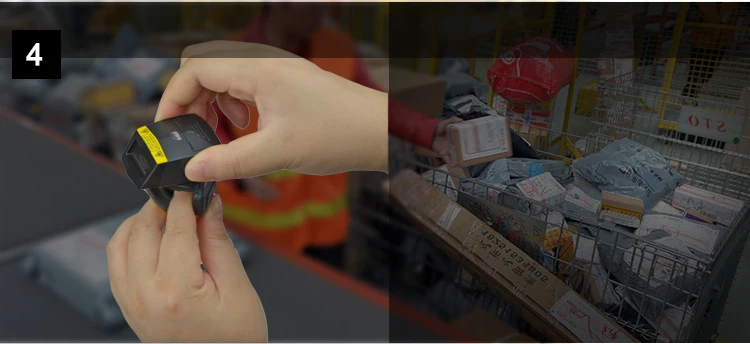

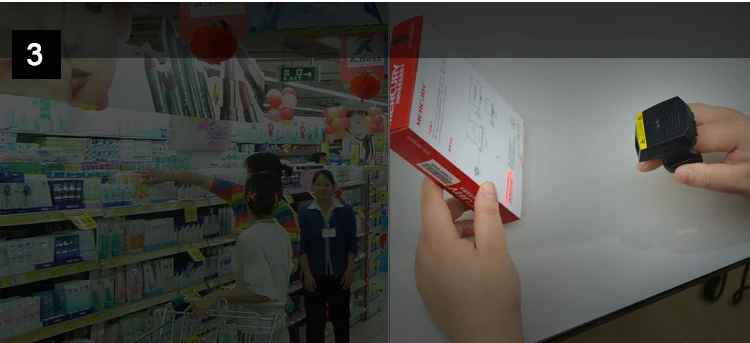

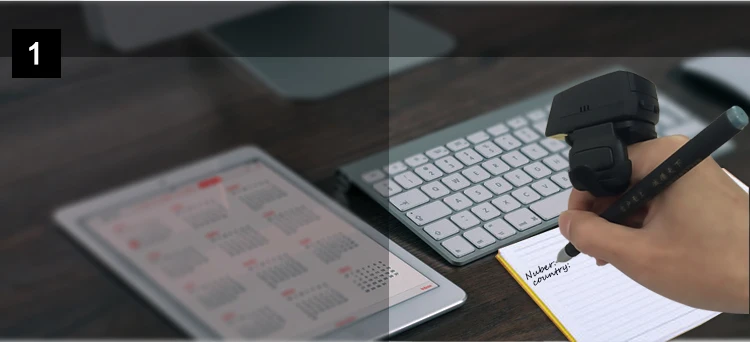

2D Bluetooth Wearable Ring-style Barcode Scanner UL-FS02 is a powerful new generation barcode scanner with small size and charming appearance. it can read 1D and 2D barcode. It is designed for picking and sorting application, enable your operator to free hand and improve operational efficiency in your warehouse, distribution center and retail store. You never need setting an item down to check paper work order or picking up handheld scanner. Operator even no need to put heavy package to the desktop for scan, it will save more time and physical strength. Compare with common wired handheld scanner, UL-FS02 can increase 15%-30% productivity!

Main parameters



Specification	FS02 Wearable Ring 2D Laser Scanner

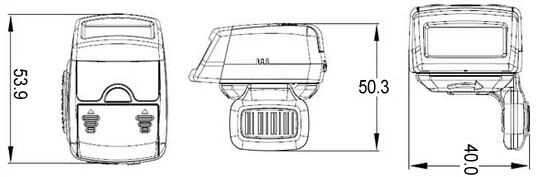

Mechanical	Length:53.9mm, Width: 40.0mm, Height:50.3mm
Weight	60g
Electrical	Power: DC5V Typical: 75mA DC5V
CPU	32bit ARM CPU
Data storage	100KB for offline mode: 6000 15 bytes barcodes(Other flash is optional).
Working mode	Bluetooth mode, USB mode, offline mode and RS232 mode(optional)
Scan mode	Manual mode, Continuous, Host, Sense mode
Ambient illumination	0~100,000 lux
Scanner performance	Sensor Type: 752×480 CMOS Light: RED LED 625±10nm Scanner Rate: 30 times Scanner Angle: ±50°,±50°,±360°(skew, pitch, Roll) View angle: horizontal: 36°, Vertical: 23°. Contrast: ≥30% Reading accuracy: ≥5mil

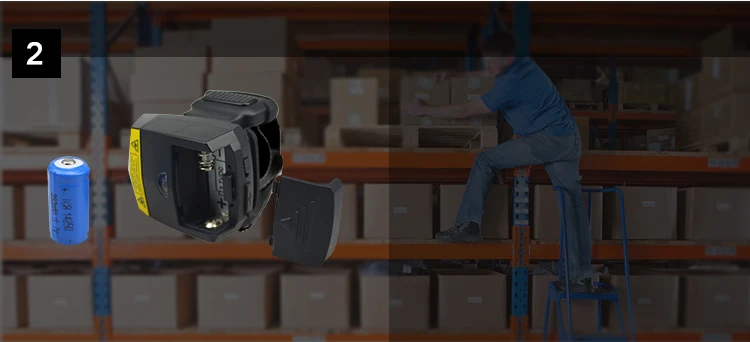

Battery power	Internal Battery: Changeable 350mAh Li-ion Battery, Standby 5 days, working time after full charge with good decode as below: Continuous trigger scanning interval Decoding number Working time 1S 12200 3.4hours 5S 6300 8.8hours 10S 5600 15.6hours Charge Time: About 1.5hours.
Barcode Type	1D: EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128 (including FNC1, FNC2 and FNC3), Code 93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, GS1 Databar (RSS-Expand, RSS-Limited, RSS-14), Code 39, Code 11, MSI-Plessey, Plessey. 2D: PDF417,QR Code(Model 1/2, Micro),Data Matrix (ECC200,ECC000,050,080,100,140)
Decoding depth & Max. resolution	(1 mil = 0.0254 mm) UPC-A (13mil):         55mm - 270mm Code 39 (20mil):      50mm - 340mm PDF 417 (6.67mil):   70mm - 165mm Data Matrix (10mil):  55mm - 180mm QR Code (20mil):     35mm - 275mm

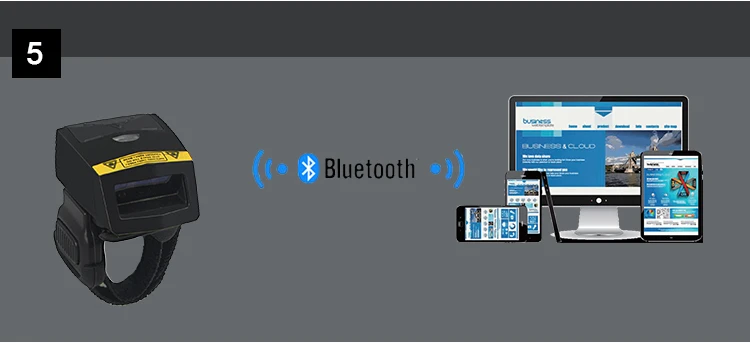

Communication	Class 3 Bluetooth HID, SPP with 20M distance, USB, RS232 cable(optional)
OS	IOS, Android, Windows, Mac

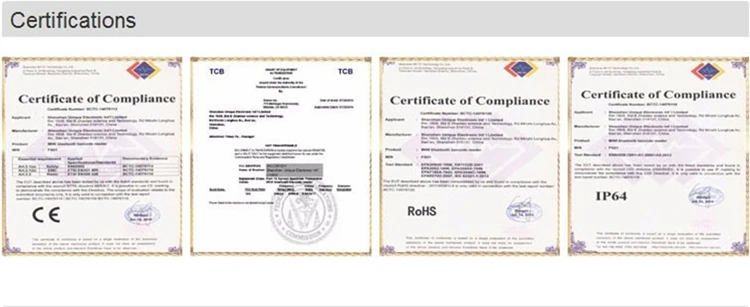

Certificate	CE, Rohs, FCC, EN60950, IEC60825, IP64, EMC, 1.2m drop test(500 times). Utility Model Patent No.: ZL201420211350.8
Laser safety	IEC60825-1-2007, Class 1
Temperature	Operating: -10°C to 60°C (-4°F to 140°F); Storage: -40°C to 70°C (-40°F to 158°F)
Humidity	5% to 90% (non-condensing)

Main parameters   Specification FS02 Wearable Ring 2D Laser Scanner Mechanical Length:53.9mm, Width: 40.0mm, Height:50.3mm Weight 60g Electrical Power: DC5V Typical: 75mA DC5V CPU 32bit ARM CPU Data storage 100KB for offline mode: 6000 15 bytes barcodes(Other flash is optional). Working mode Bluetooth mode, USB mode, offline mode and RS232 mode(optional) Scan mode Manual mode, Continuous, Host, Sense mode Ambient illumination 0~100,000 lux Scanner performance Sensor Type: 752×480 CMOS Light: RED LED 625±10nm Scanner Rate: 30 times Scanner Angle: ±50°,±50°,±360°(skew, pitch, Roll) View angle: horizontal: 36°, Vertical: 23°. Contrast: ≥30% Reading accuracy: ≥5mil Battery power Internal Battery: Changeable 350mAh Li-ion Battery, Standby 5 days, working time after full charge with good decode as below: Continuous trigger scanning interval Decoding number Working time 1S 12200 3.4hours 5S 6300 8.8hours 10S 5600 15.6hours Charge Time: About 1.5hours.   Barcode Type 1D: EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128 (including FNC1, FNC2 and FNC3), Code 93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, GS1 Databar (RSS-Expand, RSS-Limited, RSS-14), Code 39, Code 11, MSI-Plessey, Plessey. 2D: PDF417,QR Code(Model 1/2, Micro),Data Matrix (ECC200,ECC000,050,080,100,140)   Decoding depth & Max. resolution (1 mil = 0.0254 mm) UPC-A (13mil):         55mm - 270mm Code 39 (20mil):      50mm - 340mm PDF 417 (6.67mil):   70mm - 165mm Data Matrix (10mil):  55mm - 180mm QR Code (20mil):     35mm - 275mm Communication Class 3 Bluetooth HID, SPP with 20M distance, USB, RS232 cable(optional) OS IOS, Android, Windows, Mac Certificate CE, Rohs, FCC, EN60950, IEC60825, IP64, EMC, 1.2m drop test(500 times). Utility Model Patent No.: ZL201420211350.8 Laser safety IEC60825-1-2007, Class 1 Temperature Operating: -10°C to 60°C (-4°F to 140°F); Storage: -40°C to 70°C (-40°F to 158°F) Humidity 5% to 90% (non-condensing) Accessories 1X FS02: 1X 3.7V 14250 Li-ion battery:  1X Velcro:  1X Silicone Case: 1X USB cable

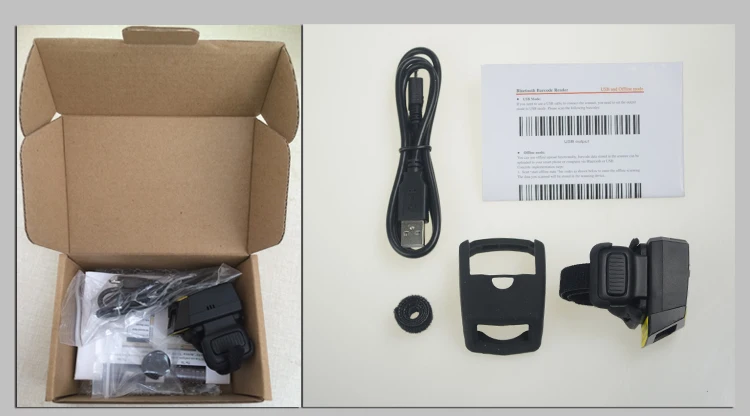

Packing



1. 1X FS02 Barcode Scanner
2. 1X 3.7V 14250 Li-ion battery
3. 1X Velcro x1
4 1X Silicone Case
5. 1X USB cable
6. 1X User Manual



Shipping:

For United States buyers, the package will be delivered by HK DHL, it will take 3-5 days, buyer can track the package status via Aliexpress system.



 For buyers from Brazil or Russia, the shipping charges is much expensive than other countries. Please kindly contact our customer service staff before you buy.

Please kindly check it before you buy or contact our customer service staff for confirm.



Import duties, taxes, and charges are not included in the item price or shipping cost. These charges are the buyer's responsibility. Please check with your country's customs office to determine what these additional costs will be prior to bidding or buying. (For United States buyers, you will not be charged tax if the total value of your items is less than $200.)

Shipping may be influenced by holidays, events and other uncertainties. We could not guarantee the exact arrival time. Please understand we could not control how the post offices and customs work. If you very care about the seemingly shipping time, please don't bid. Thanks you for your cooperation.

Customer Service:

We reply your messages within 24 hours. Please feel free to let us know your questions.

For any dissatisfied with your purchase, please contact us first before you post low ratings (such like 1 or 2 stars on any of the fields) or Neutral and Negative feedback, the feedbacks and ratings can not be revised once you post it, what's more, it solves nothing of your problem. We will always trying our best to solve your problem. Thank you for your cooperation.


Return police:

We provide 30-days return polices.

Seller is responsible for return shipping charges in following conditions:

1. Buyer found any problems on product internal quality or wrong product we shipped within 7 days after receiving the goods

Buyer should be responsible for return shipping charges in following conditions:

1. Buyer found the product had been broken within 8-30 days after receiving the goods.
2. Buyer had purchased the wrong product themselves.



Packaging Details

•
  Unit Type:
  piece



•
  Package Weight:
  0.5kg (1.10lb.)



•
  Package Size:
  15cm x 8cm x 6cm (5.91in x 3.15in x 2.36in)
