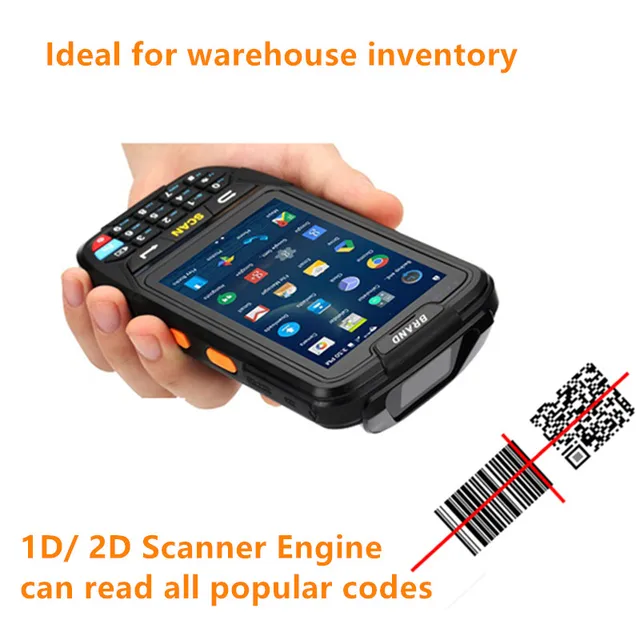

Handheld inventory PDA GPS tracking QR code 2D barcode android 7.0 OS honeywell 6603 PDA scanner
Novelty:
New
Scan Element Type:
CMOS
Scan Speed:
100 scans/second
Time to market:
Mar-13
Product Type:
Portable Scanner
Colour Depth:
48 Bit
Scan Breadth:
A4
Interface Type:
USB2.0
Model Number:
PDA scanner
Brand Name:
mussels
Scanning Light Source:
Laser Light
Type:
Handheld Scanners
Optical Resolution:
480*800
Operating system:
Android 7.0
CPU:
ARM Cortex- A53 64bit Quad- Core 1.3G
Memory:
2G RAM + 16G ROM
Battery:
Rechargeable Li-polymer Battery 3.7V 4000mAh
Camera:
Hd 8 million pixels, with LED, automatic focusing
Barcode scanner:
1D or 2D barcode scanner
1d scanner:
Minde966 , Honeywell4313
2D scanner :
Honeywell3680 , Honeywell6603
Supported 1D code type:
UPC/EAN, Code128, Code39, Code93,Code11
Supported 2D code type:
qr code, PDF417,MicroPDF417,Composite, RSS,TLC-39, etc
RFID:
NFC 13.56mhz, LF RFID 125khz / 134.2khz
Functions:
standard configuration + 1D/ 2D + RFID optional
Use:
data collecting and inventory
PDA device size:
152mm L X 77mm H X 29mm W
Screen size :
4.0 inch
Card slot:
SIM card, Micro SD (TF) Card, PSAM *2 ( optioanl )
Input mode:
Standard Stylus, Handwriting, touching input or keyboard input
Key:
21pcs soft silicon key

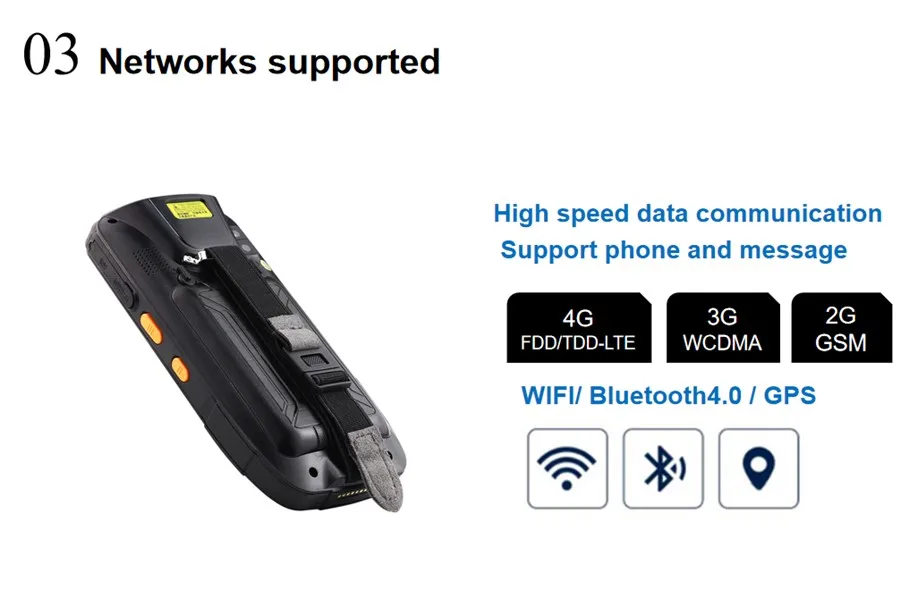

Data communication:
4G LTE/ 3G / 2G GSM, Wi-fi, Bluetooth
Sealed environment:
IP65
GPS:
support A-GPS
Applied fields:
industry, warehouse, clothing , logistics
Handheld inventory PDA GPS tracking QR code 2D barcode android 7.0 OS honeywell 6603 PDA scanner
If you want to buy extra battery, please visit this link. We will ship extra batteries as seperate parcel .
https://www.aliexpress.com/store/product/3-7V-4000mah-lithium-pda-battery-for-PDA-terminal-device/4702084_32975910839.html
Detailed introduction about this PDA

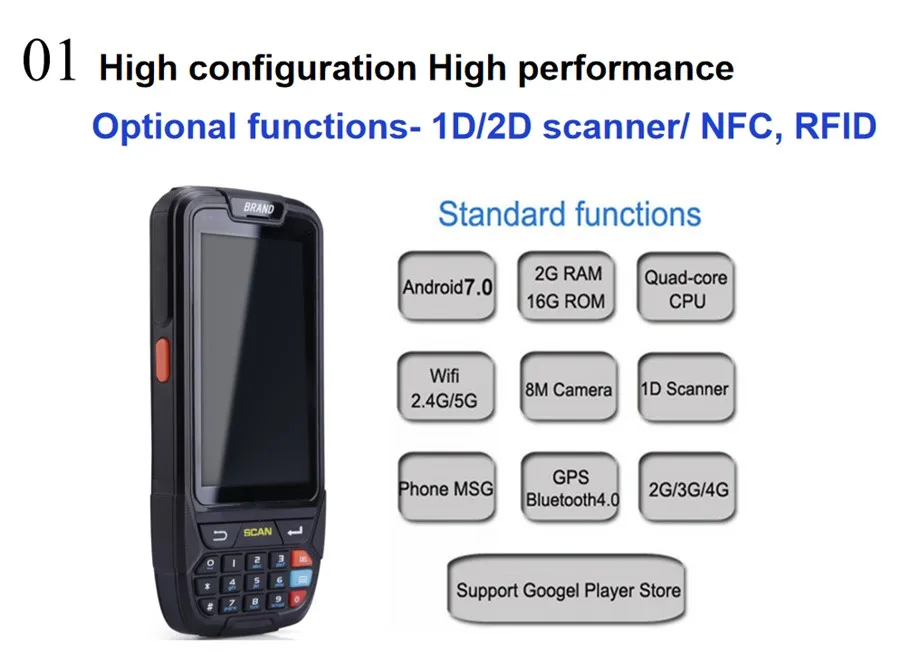

1.The standard configuration ,
4 inch touch screen + Android 7.0 OS + Wifi + Bluetooth + GPS + FDD-TLE 4G / WCDMA / GSM + phone + Camera + Google play + 2G RAM + 16G ROM + SDK
2.Optional functions,
1D/ 2D barcode scanner, or RFID LF/ HF, NFC/ UHF RFID, or charging cradle. Please choose according to your needs.
If there is no optional specifications you need, like 2D or RFID, or extra batteries, or other else, please send us message, we will send you new link. Thanks.
More explanation for you to make a good choice.

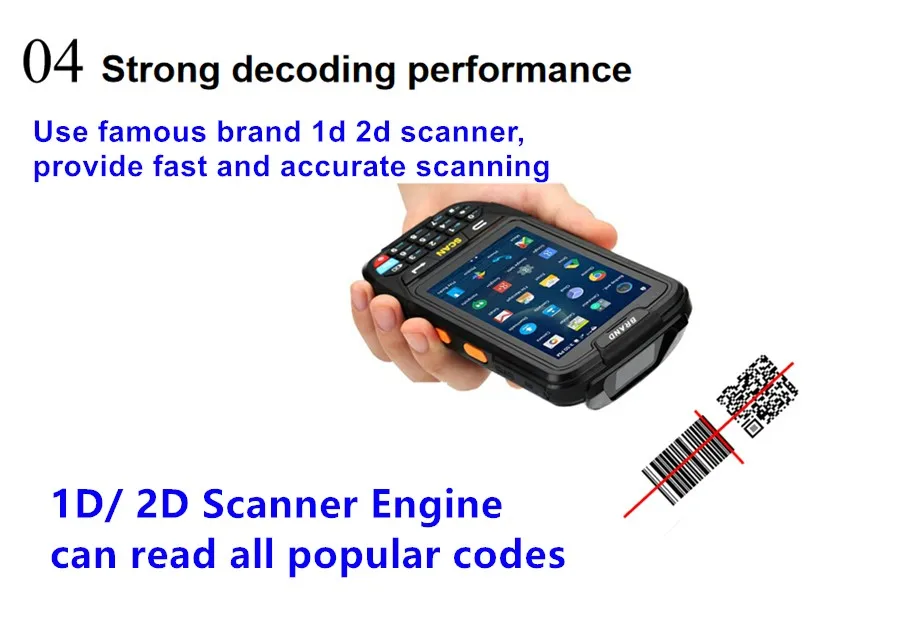

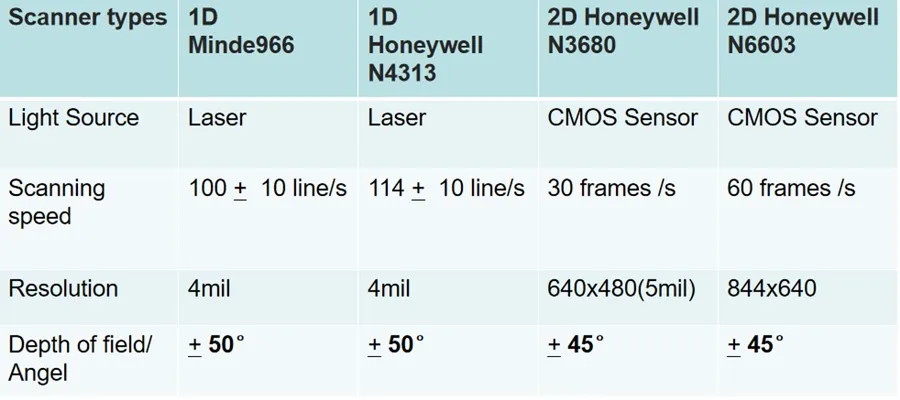

Barcode scanner
For 1D scanner, in the market, there are newland 966 and Honeywell N4313. Honeywell N4313 is higher cost than Newland 966, and it works better on the scanning speed and performance.
For 2D scanner, in the market, there are HoneywellN6603 & Honeywell N3680, can meet the needs for different countries clients. N6603 is higher cost than N3680, they are able to scan different ranges of 2D code types.
Main Features

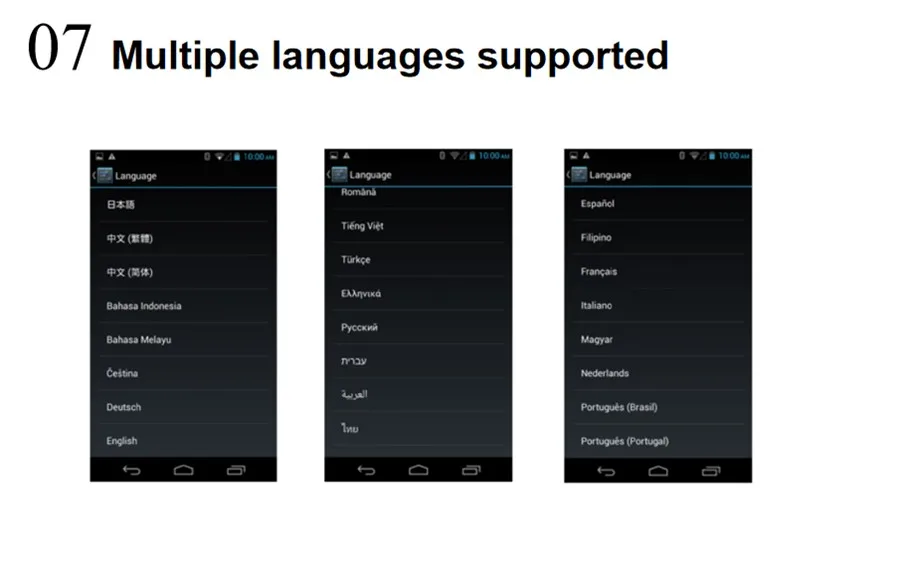

- Multiple languages supported
- Support Google Play store
- 8.0M mega pixel camera
- Compact and Portable Ergonomic Design with wrist strap
- Safe OS (Android 7.0) Highly optimized Android operating system
- High capacity 4000mAh battery
- Pogo Pin interface for convenient charging with optional charge cradle
- Industrial rugged design, waterproof and protection grade(IP65)

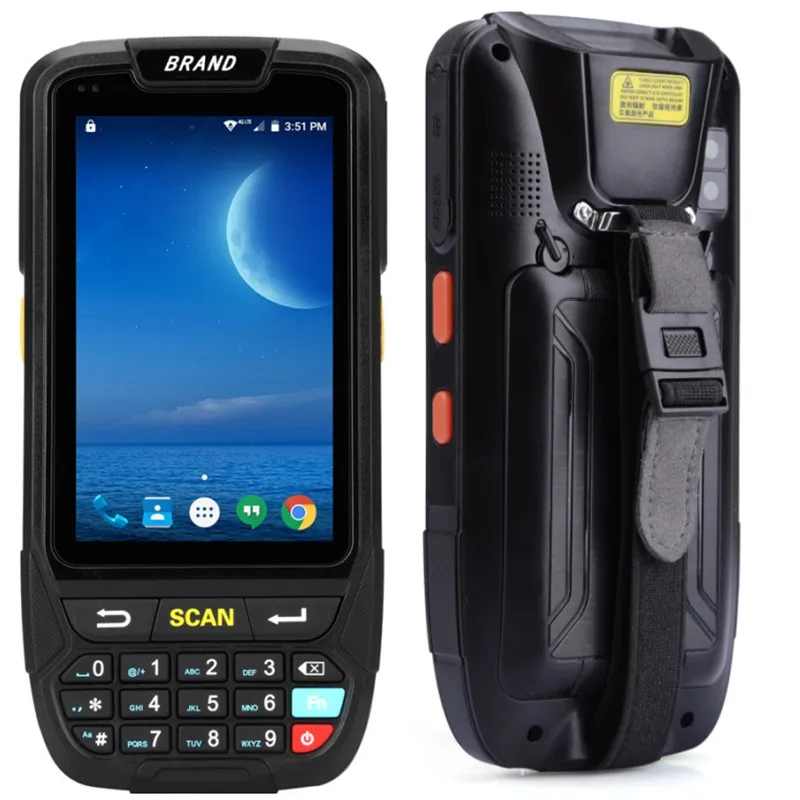

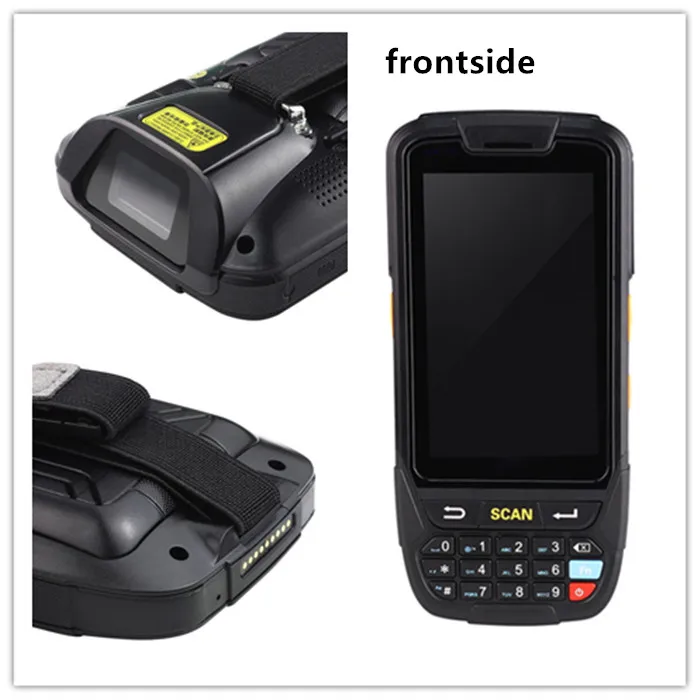

Product Pictures
All technical specifications
| Physical Parameter | |
| Size | 152mm(L)×77mm(H)×29mm(W) |
| Weight | <500g |

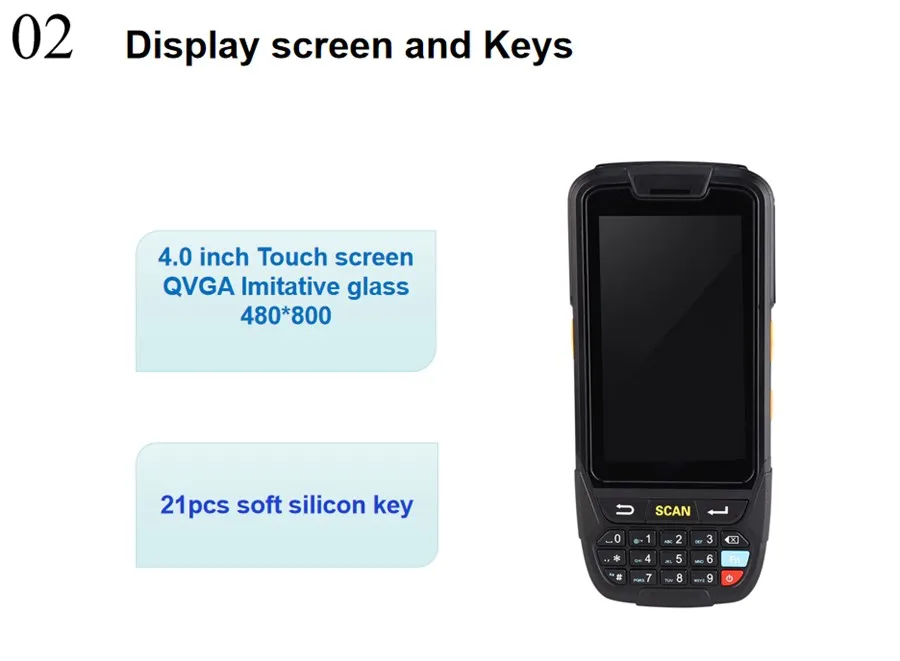

| Display Screen | Color 4.0 inch QVGA imitative glass durable touch screen TFT-LCD, 650000 colors, 480*800 (QVGA size) The brightness of LED Backlight is adjustable |
| Expand Port | SIM card, (TF) Card |
| Communication Interface | USB2.0 Device, |
| Input Mode | Standard Stylus, Handwriting, touching input or keyboard input |
| Battery Capacity | Rechargeable Li-polymer Battery 3.7V 4000mAh Optional |
| Frequency | 8 1W speaker |
| Key | 21pcs soft silicon key |
| Performance Parameter | |
| CPU | ARM A53 64bit Quad-Core 1.3G |
| RAM | 2G RAM |
| Flash ROM | Standard 16G NAND Flash Storage /TF port (Max up to 32G) |
| Data Communication | |
| WI-FI , FDD-LTE, WCDMA /GSM, BT | |
| Operating Environment | |
| OperatingTemperature | —20C to 50C |
| Storage Temperature | —25C to 70C |
| Environment Humidity | 5%RH--95%RH(no condensation) |

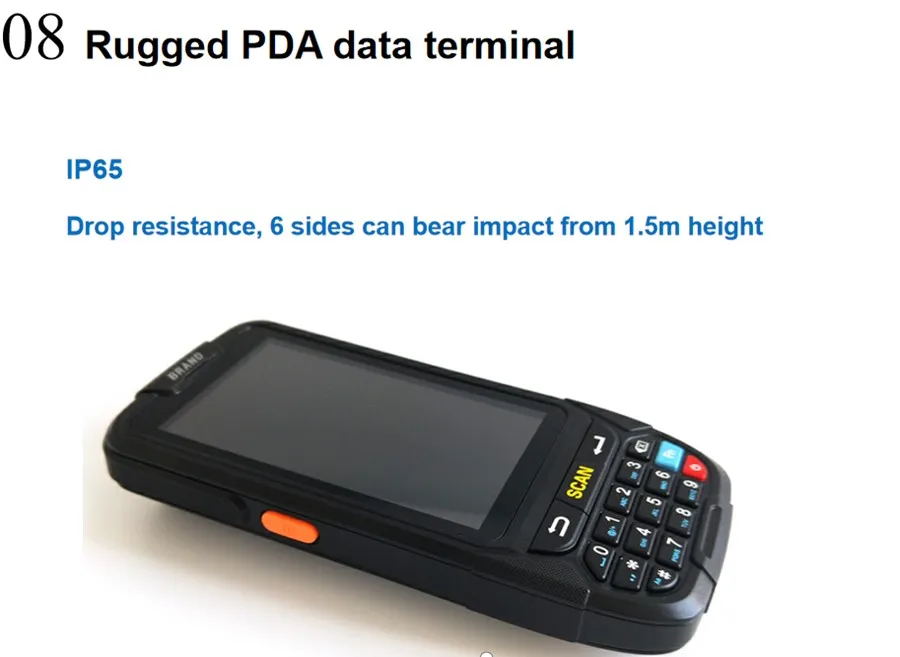

| Drop Specifications | 6 sides can bear impact from 1.5m drop to cement floor in the range of operating temperature |
| Roll Specifications | 1000 times/0.5m, roll on 6 sides contact area |
| Sealed Environment | IP65 |
| Development Environment | |
| Operating System | Android7.0 |
| SDK | exclusive use software development kit |
| Supported Language | JAVA |
| Development Tool | Eclipse |
| A one-dimensional bar code collect | |
| One dimensional laser scanner | Symbol 955, HoneywellN4313,Mingde966 |
| Resolution | 4Mil minimum width |
| Ambient Light | 10000ft.candles(107640 lux) |
| Scanning Speed | 104(±)12/sec (bothway) |
| Scanning Angle | 47o±35o(Standard) / 35o±3o(narrow angle) |
| Support Bar Code Type | UPC/EAN, Code128, Code39, Code93,Code11, Interleaved 2 of 5, Discrete 2 of 5,Chinese 2 of 5, Codabar, MSI, RSS |
| Two-dimensional bar code acquisition | |
| CMOS Scanner | HONEYWELL N3680 , Honeywell6603 |
| The Sensor Resolution | 752(level)×480(vertical)pels(gray level) |
| Ambient Light | All dark 9000ft.candles/96900 lux |
| Focus element (VLD) | 655nm ± 10nm |
| Support bar code type | PDF417,MicroPDF417,Composite, RSS,TLC-39, Datamatrix, QR code, Micro QR code,Aztec, MaxiCode; Postal Codes: US PostNet,US Planet, UK Postal, Australian Postal, JapanPostal Dutch Postal (KIX)3 |
| RFID | |
| LF | 125K,ISO11784/ISO11785 protocol |
| HF | 13.56MHz,ISO14443A/B protocol |
| Camera | Hd 8 million pixels, with LED, automatic focusing |
| GPS | Support A-GPS |

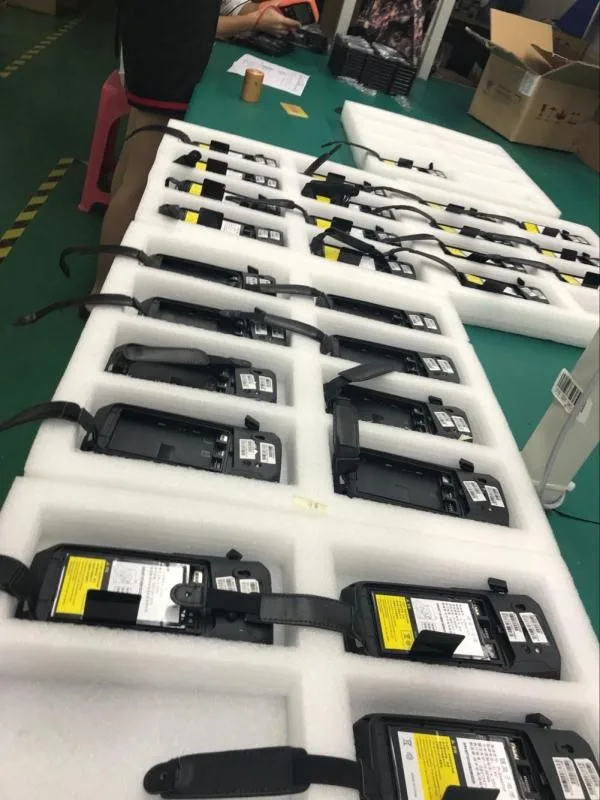

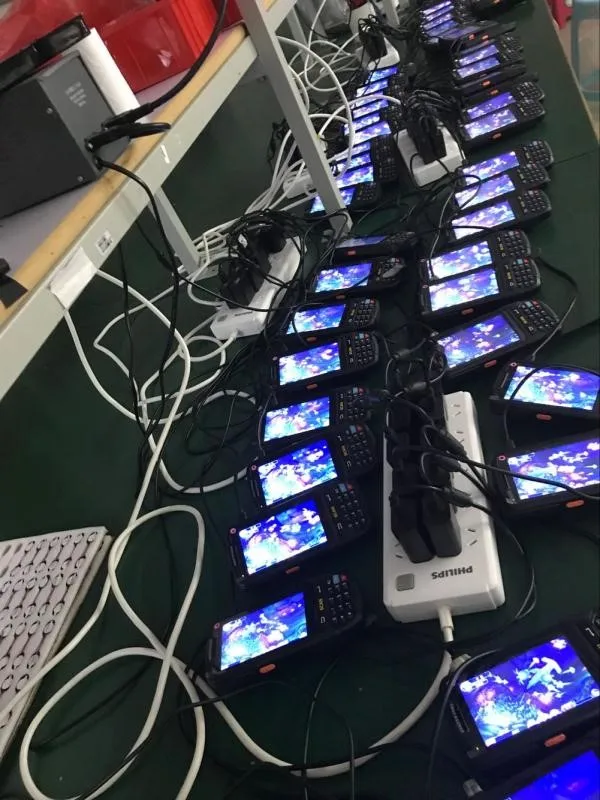

Factory production activity
Quality Inspection for each pda device , before packaging.

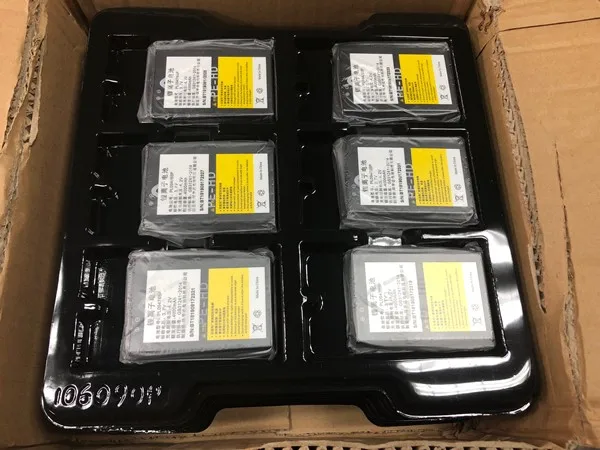

1 unit packing list include
1x PDA
1x battery
1x USB data cable
1x plug (US, EU, AU version for mathched counties, will ship the plug version according to your address)
1x user manuel
1) Once the order is confirmed, we will arrange shipment within 1- 5 days. To guarantee fast delivery, our company have products with normal specifications in stock.
2) Because all items with battery inside, to make sure you receive the goods successfully. normally we use Aliexpress standard shipping. This method is available for all countries, including Russia, Brazil. The delivery time is about 20 - 40 days. If you have enough time for the purchasing process, you can choose this way. It's free for the buyer. If you want to get the products within 10 days, you can choose DHL.
3) In the commercial invoice, we will write low-value than the real unit price, so that you can pay less tax in the import custom .
4) Kindly write correct and detailed delivery address for your order. For Brazil clients, please provide receipient's CNPJ or CPF number, otherwise, the parcel will be destoryed or returned back. Thus, please confirm that you have CNPJ or CPF number before order for Brazil buyers .
5) Service Transmit Time is provided by the carrier and excludes weekends and holidays. Transmit time may vary, particularly during the holiday season. If you havev't received the goods within 30 days after payment, please contact us. Of course, we will update you shipping status every weeks.
1) We provide 12 months warranty for our producs, since the buyer got the goods. The buyer is free to contact us anytime when there is doubts to use the device, or meet any technical problems.
2) The buyer is able to contact us by these ways. Send message via Aliexpress or Trademanager , Whats app / Wechat(+86 18898735992) ,
email ( dianaszsg@outlook.com). You will get a reply within 1 natural day.
3) If there is quality problems, we will replace with new product , after the buyer provide video and the clients need to ship the device back . After we got buyer's complaint, we have colleague to contact with you soon to solve the problem until you are satisfied.
If you are satisfied with our products and service, welcome to re-order and give us a 5-Star for the transaction. If you are not satisfied, welcome to contact us and complain to us, we will solve your problem soon, until you are happy.
Enjoy your shipping.
Unit Type:
piece
Package Weight:
1.0kg (2.20lb.)
Package Size:
22cm x 18cm x 8cm (8.66in x 7.09in x 3.15in)
