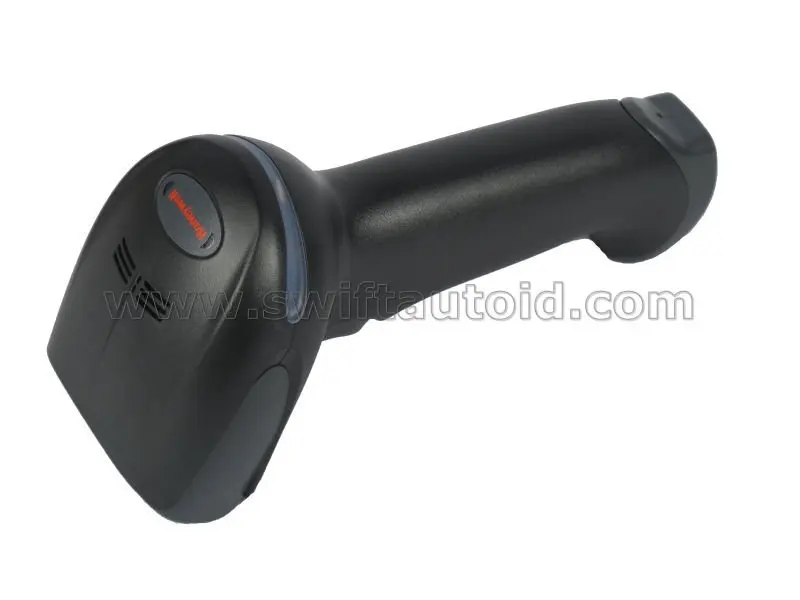

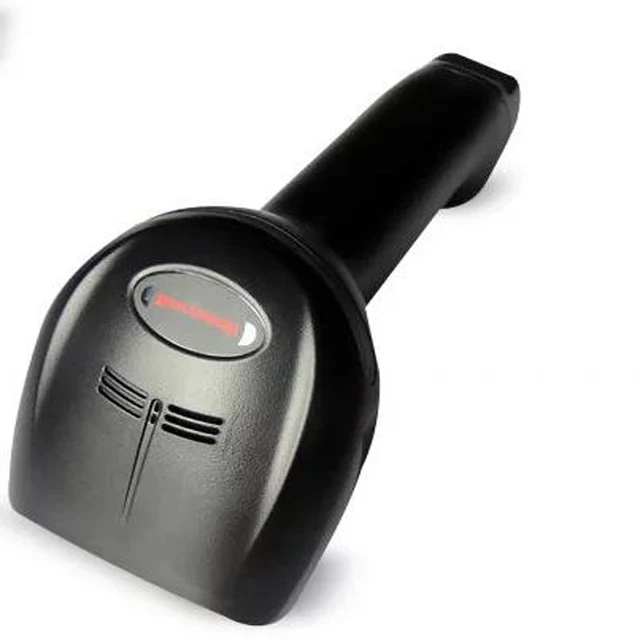

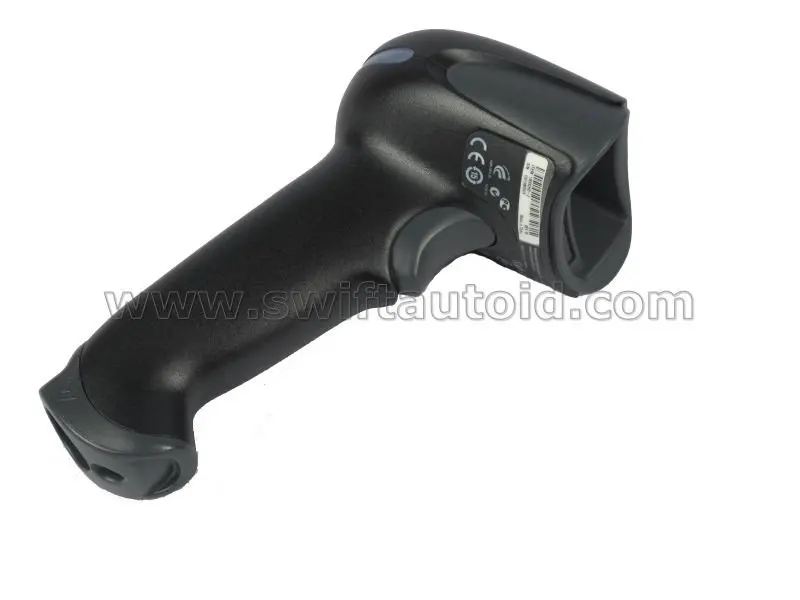

Honeywell Xenon 1900gsr Area-Imaging 2D Barcode Scanner
Model Number:
Xenon 1900
Novelty:
New
Interface Type:
USB
Scan Element Type:
CMOS
Product Type:
Portable Scanner
Type:
Barcode Scanner
Scanning Light Source:
Natural Light+LED
Scan Speed:
200 scans/second
Colour Depth:
32 Bit
Brand Name:
SwiftAutoID
Time to market:
Mar-09
Optical Resolution:
3mil
Scan Breadth:
None
Max Paper Size:
Other
Honeywell Xenon 1900gsr Area-Imaging 2D Barcode Scanner
Product description
Xenon 1900 is redefining the standard for hand-held scanners. Featuring a custom sensor that is optimized for bar code scanning, Xenon 1900 offers industry-leading performance and reliability for a wide variety of applications that require the versatility of area-imaging technology. Powered by Adaptus® Imaging Technology 6.0, Xenon 1900 delivers superior bar code scanning and digital image capture. Xenon 1900 incorporates a revolutionary decoding architecture that combines Adaptus Imaging Technology 5.5 and Omniplanar’s SwiftDecoder® software along with a custom sensor, enabling extended depth of field, faster reading, and improved scanning performance on poor quality bar codes.
Custom sensor optimized for bar code scanning improves scanning aggressiveness and protects investment by providing supply chain stability
• Three focal options (high density, standard range and extended range) provide application-specific scanning, leading to improved productivity
• Image processing software offers advanced editing functionality—cropping, brightening, rotating, sharpening and more—to produce high-quality digital images
•TotalFreedom® 2.0 development platform enables the loading and linking of multiple applications on the scanner to enhance image processing, decoding or data formatting functionality, eliminating the need for host system modifications
• Remote MasterMind® scanner management software provides a quick and convenient solution for IT administrators seeking to manage all scanners within their network from a single remote location
• Optional disinfectant-ready housing protects investment with durable construction that is better able to resist the harmful effects of harsh chemicals
Specification
Mechanical
Dimensions (LxWxH) 104 mm x 71 mm x 160 mm (4.1 x 2.8x 6.3inch)
Weight 147 g (5.2 oz)
Electrical
Input Voltage 4 VDC to 5.5 VDC Operating Power 2.3 W (450mA @ 5 VDC) Standby Power 0.45 W (90mA @ 5 VDC)
Host System Interfaces USB, Keyboard Wedge, RS232, IBM 46xx (RS485)
Environmental
Operating Temperature 0°C to 50°C (32°F to 122°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Humidity 0% to 95% relative humidity, non-condensing
Drop Designed to withstand 50 1.8 m (6´) drops to concrete
Ratchet stand: Designed to withstand 50 1.2 m (4´) drops to concrete on each of the faces
Environmental Sealing IP41
Light Levels 0 to 100,000 lux (9,290 foot-candles)
Ratchet Cycles The ratchet stand shall support 10,000 cycles (each cycle is one full movement of the scanner either up or down)
without losing its ability to keep the scanner in any ratchet position
Scan Performance
Scan Pattern Area Image (838 x 640 pixel array)
Motion Tolerance Up to 610 cm/s (240 in/s) for 13 mil UPC at optimal focus
Scan Angle HD Focus: Horizontal 41.4°; Vertical: 32.2° SR Focus: Horizontal: 42.4°; Vertical: 33° ER Focus: Horizontal: 31.6°; Vertical: 24.4°
Symbol Contrast 20% minimum reflectance difference
Pitch, Skew 45°, 65°
Decode Capability Reads standard 1D, stacked, 2D and postal symbologies; limited OCR font reading

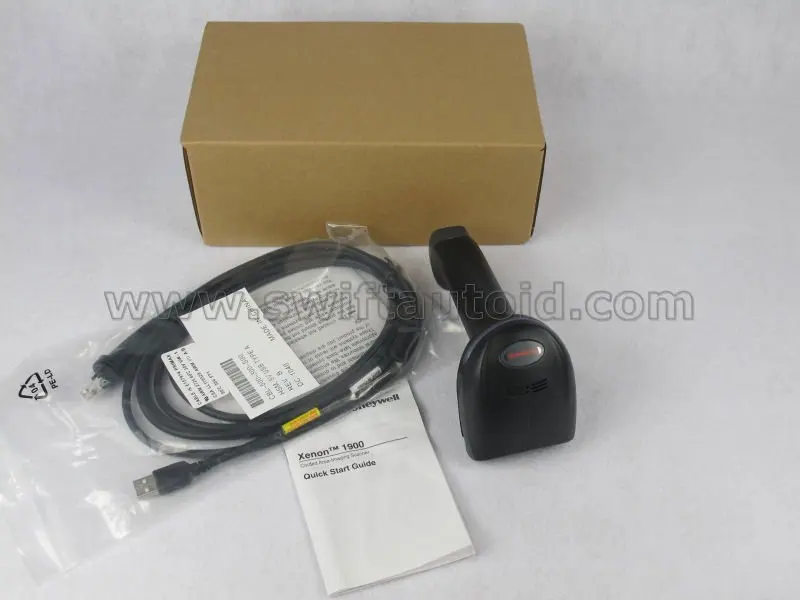

Package includes
1PCS without stand
Payment
We only accept Alipay, T/T, etc.
Please send payment within 7 days after bids end. If you expect any delays in payment, please let me know.
Shipping
1. We deliver this item to worldwide via regular HK or Singapore Post registered air mail freely.
The item will be sent out 1 -5 working day after the payment confirmed. The shipment usually takes 7-15 business days to reach most of other destinations around the world, but in some rare circumstances or a custom delay it may take longer, especially these countries, Russia, Brazil, Italy, etc. Please contact us if you have not received your package after 3 weeks.
2. You can also choose DHL, UPS as fast delivery, but it is not free. It usually takes 5~7 working days.
PS: Please make sure the shipping address is correct when making payment. We will not be responsible for item loss because of wrong or undeliverable address.
Buyers are responsible for the local handling charge of shipping and import/sales tax in your country/state if there is.
Return policy
We supply original new products, not copy, so if you want to buy copy, please don’t contact with us.
If your order has been received and it is not what you ordered, or if your item has a manufacturer defect, please contact us within 7 business days.
If it is proved to be a wrong item or have a manufacturer defect, please send back the item and we will send you a replacement for free. Buyer needs to pay the return freight charge.
Customer service
If you have any questions, please send us a message on eBay. Because time zone is different, we will answer your questions within 24 hours.
Unit Type:
piece
Package Weight:
0.5kg (1.10lb.)
Package Size:
24cm x 17cm x 12cm (9.45in x 6.69in x 4.72in)
