Low price CCD Barcode Scan engine 1D ttl rs232 usb small barcode scanner

Best Price Low price CCD Barcode Scan engine 1D ttl rs232 usb small barcode scanner

Product ID : 32850591519

Price : $16 - 25

Discount Price : $15.20 - 23.75

* Price Update at : Jully, 25 2019 *

VISIT WEBSITE NOW

Item specifics

•
  Brand Name:
  YK&SCAN



•
  Scan Speed:
  100 scans/second



•
  Type:
  Barcode Scanner



•
  Optical Resolution:
  600*600



•
  Scan Element Type:
  CCD



•
  Interface Type:
  USB, RS232



•
  Scan Breadth:
  A4



•
  Model Number:
  E1005



•
  Novelty:
  New



•
  Scanning Light Source:
  LED



•
  Colour Depth:
  32 Bit



•
  Time to market:
  Mar-13



•
  Product Type:
  Bar Code Scanner


Product Description

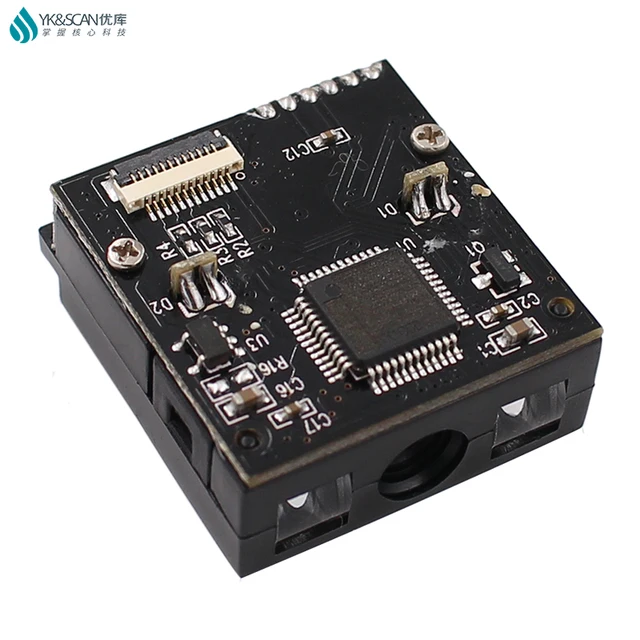

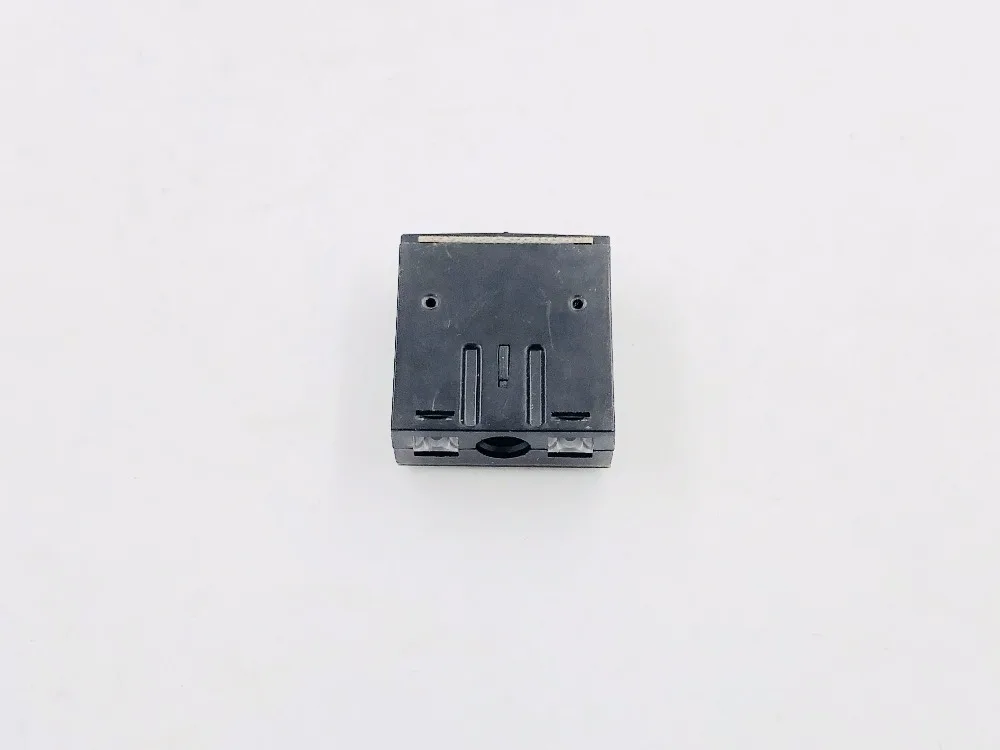

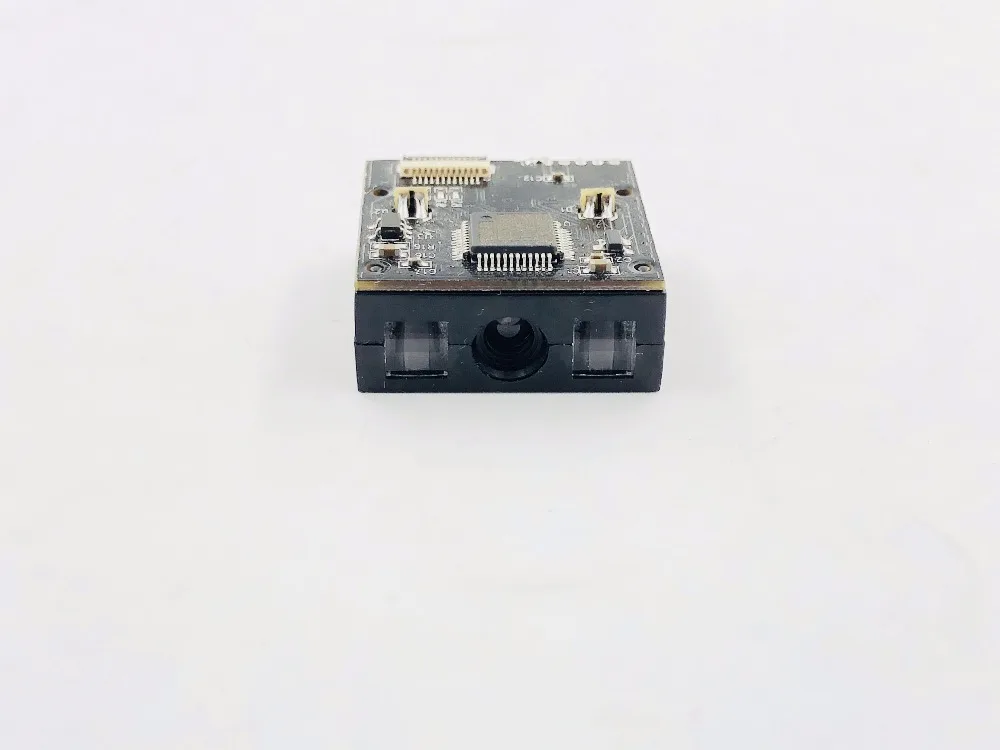

1D Barcode scanner engine module E1005 :

Introduction:

•
  Now kiosks, medical instruments, diagnostic equipment, lottery terminals, vending machines and countless other appliances can all equipped with leading-edge scanning technology and reliability



•
  Designed to provide highest scanning in smallest package possible



•
  For added versatility, allowing for fast, cost-effective interchangeability when upgrading or modifying your OEM device for specialized applications



•
  Designed with industrial standard size, mounting options and output to facilitate integration into existing applications



•
  Scanner module's miniature size makes E1005 barcode scanner ideal for integration into data terminals and other small devices



•
  E1005  barcode scanner is supplied as an assembled module with mounting bracket or as separate components for custom mounting



•
  Scanner module's unique open system architecture allows E1005 barcode scanner to accept third party and custom plug-in, giving E1005 barcode scanner virtually unlimited application flexibility



•




•




•



















































































  PIN#	Signal Name	I/O	Instruction
  1	BOOT0	Input	Low level FLASH to startup
  2	VDD	-	5V  Input
  3	GND	-	GND
  4	RX	Input	TTL-232  Input
  5	TX	Output	TTL-232  Output
  6	USB_D-	Input/Output	USB_D-Singal
  7	USB_D+	Input/Output	USB_D+ Singal
  8	NG	-	Null
  9	Buzz	Output
  10	LED	Input
  11	NG	-	Null
  12	nTrig	Input	Trigger Input Signal ,  Keep low level 10ms input can trigger the scan button.


  ​



•
  Symbologies :  1D : EAN-8，EAN-13，UPC-A，UPC-E，Code 39，Code 93，Code 128，EAN128，Codebar，industrial 2 of 5，Interleave 2 of 5，Matrix 2 of 5，MSI,etc




•
  Operating Mode :  Auto Scan /  Trigger Scan/ Continuous Scan




•
  OS compability :Linux，Android,Mac，Windows XP，Windows 7，Windows 8，Windows 10;




•
  Voltage :   5V or 3.3V;




•

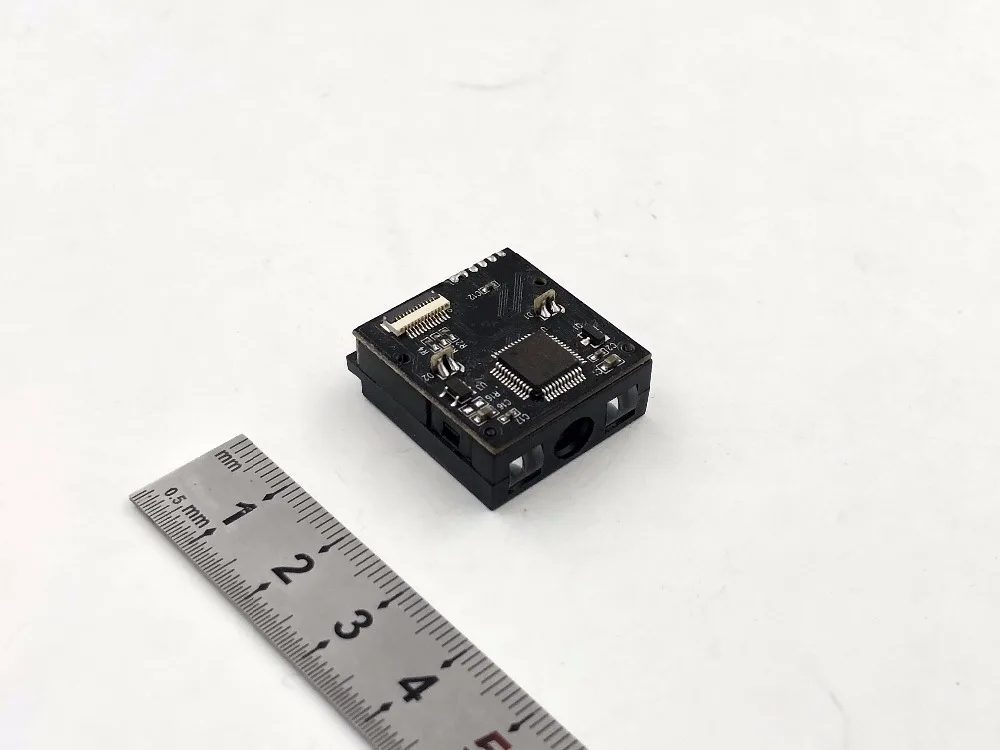

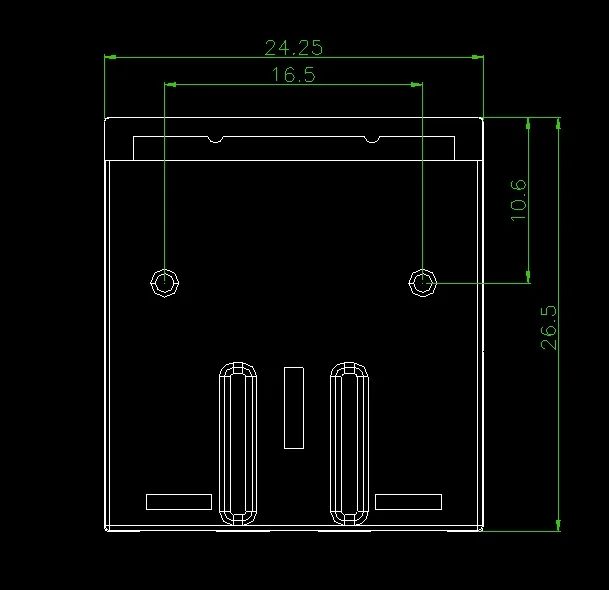

  Dimension :   26.8*24.4*11.7mm;




•
  Interface : USB, RS2232 ,TTL-232;




•
  Currect :  Operating Currect :  167MA;   Max Currect : 185MA ;  Standby Currect : 62MA




•
  Language Keyboard :  American English/ Franch / Germany / Turkish / Belgium / Spainish




•
  Net Weight :7g.




Shipping package :

TTL 3.3V  or 5V(Without interface board) :

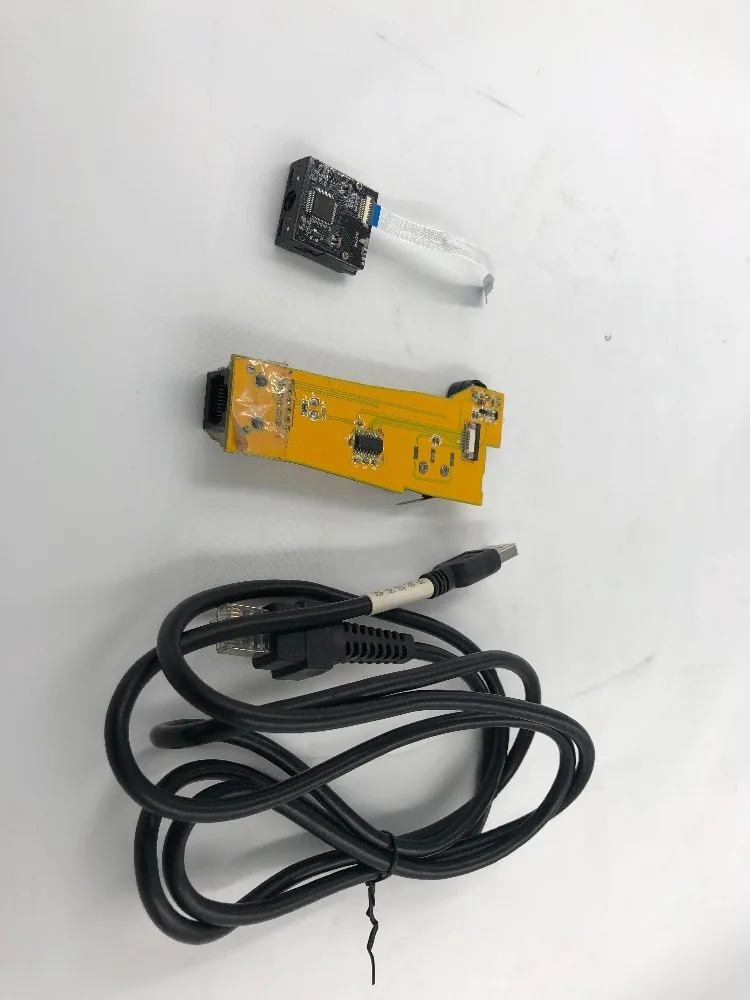

USB With Board :

RS232 With Interface board:





Packaging Details

•
  Unit Type:
  piece



•
  Package Weight:
  0.3kg (0.66lb.)



•
  Package Size:
  19cm x 12cm x 8cm (7.48in x 4.72in x 3.15in)
