New Android 7 PDA Rugged Handheld Terminal Data Collector Terminal Wireless 1D 2D QR Laser Barcode Scanner Reader Terminal 4G

Special Price New Android 7 PDA Rugged Handheld Terminal Data Collector Terminal Wireless 1D 2D QR Laser Barcode Scanner Reader Terminal 4G

Product ID : 32916036197

Price : $282.86 - 425.71

Discount Price : $195.17 - 293.74

* Price Update at : Jully, 25 2019 *

VISIT WEBSITE NOW

Item specifics

•
  Scan Speed:
  100 scans/second



•
  Interface Type:
  USB



•
  Type:
  Barcode Scanner



•
  Colour Depth:
  48 Bit



•
  Model Number:
  GZPDA05



•
  Product Type:
  Portable Scanner



•
  Novelty:
  New



•
  Time to market:
  Mar-13



•
  Scanning Light Source:
  Laser Light



•
  Brand Name:
  GZQIANJI



•
  Optical Resolution:
  720X1280



•
  Scan Element Type:
  1D Laser



•
  Scan Breadth:
  1D 2D QR HONEYWELL Scanner optional PDA Handheld Terminal Rugged PDA



•

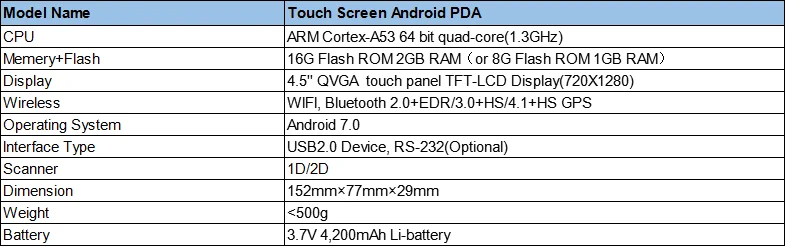

  Model Name::
  Touch Screen Android PDA



•
  CPU::
  ARM Cortex-A53 64 bit quad-core(1.3GHz)



•
  Memery+Flash:
  16G Flash ROM 2GB RAM (or 8G Flash ROM 1GB RAM)



•
  Display::
  4.5'' QVGA touch panel TFT-LCD Display (720X1280)



•
  Wireless::
  WIFI, Bluetooth 4.0+EDR/3.0+HS/4.1+HS



•
  Battery: :
  3.7V 4,200mAh Li-battery



•
  Optional::
  QR scanner and NFC



•
  1D Scanner::
  Mingde966(Standard),HoneywellN4313(Optional, add $10)



•
  2D Scanner:
  Newland 3090(Standard), HONEYWELL N6603 (Optional, add $40)


Product Description

New Android 7 PDA Rugged Handheld Terminal Data Collector Terminal Wireless 1D 2D QR Laser Barcode Scanner Reader Terminal 4G


Optional: 1D Scanner or 2D Scanner

               1GB RAM 8G Flash ROM or 2GB RAM 16G Flash ROM

• 8.0M mega pixel camera


• Multiple languages


• Support Google Play Store

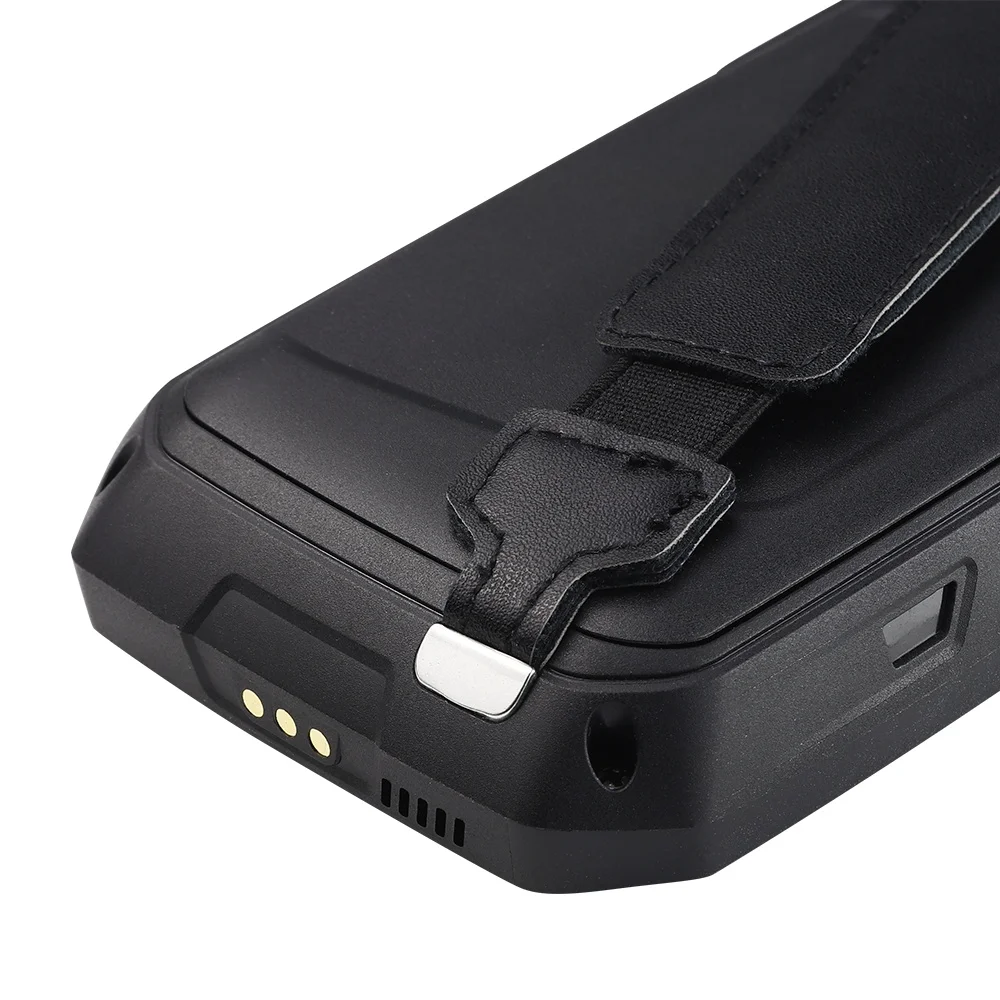

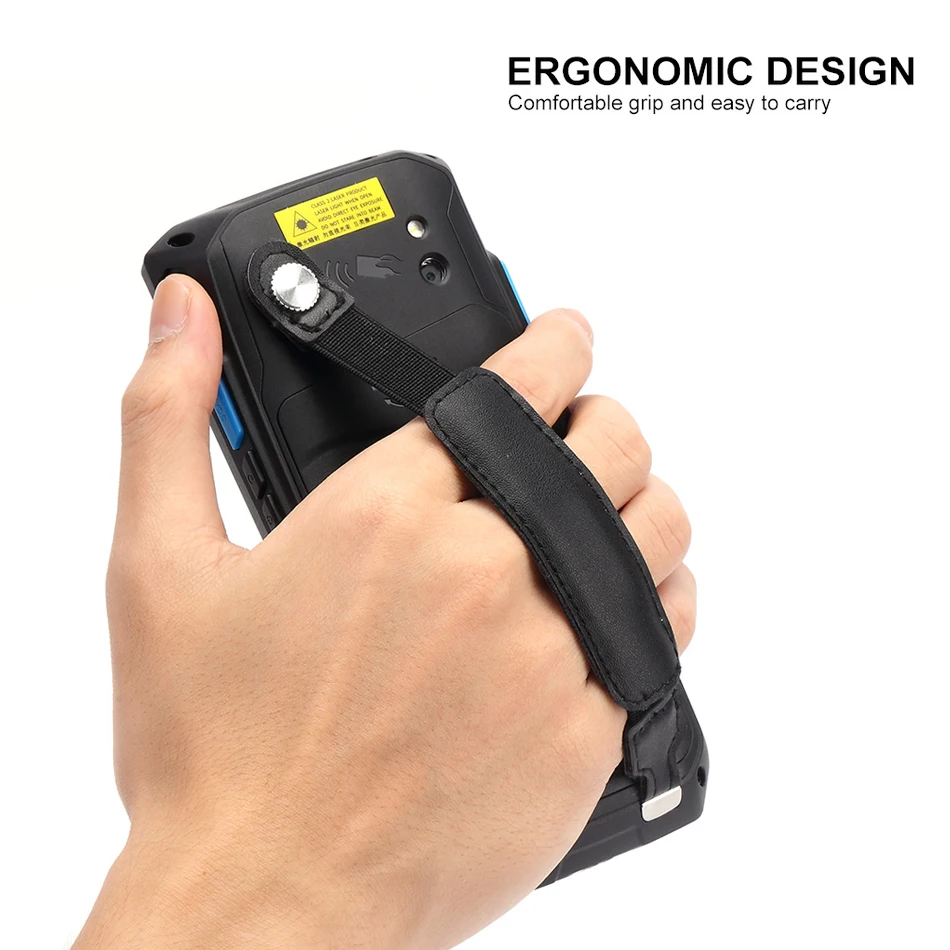

• Compact and Portable Ergonomic Design with wrist strap

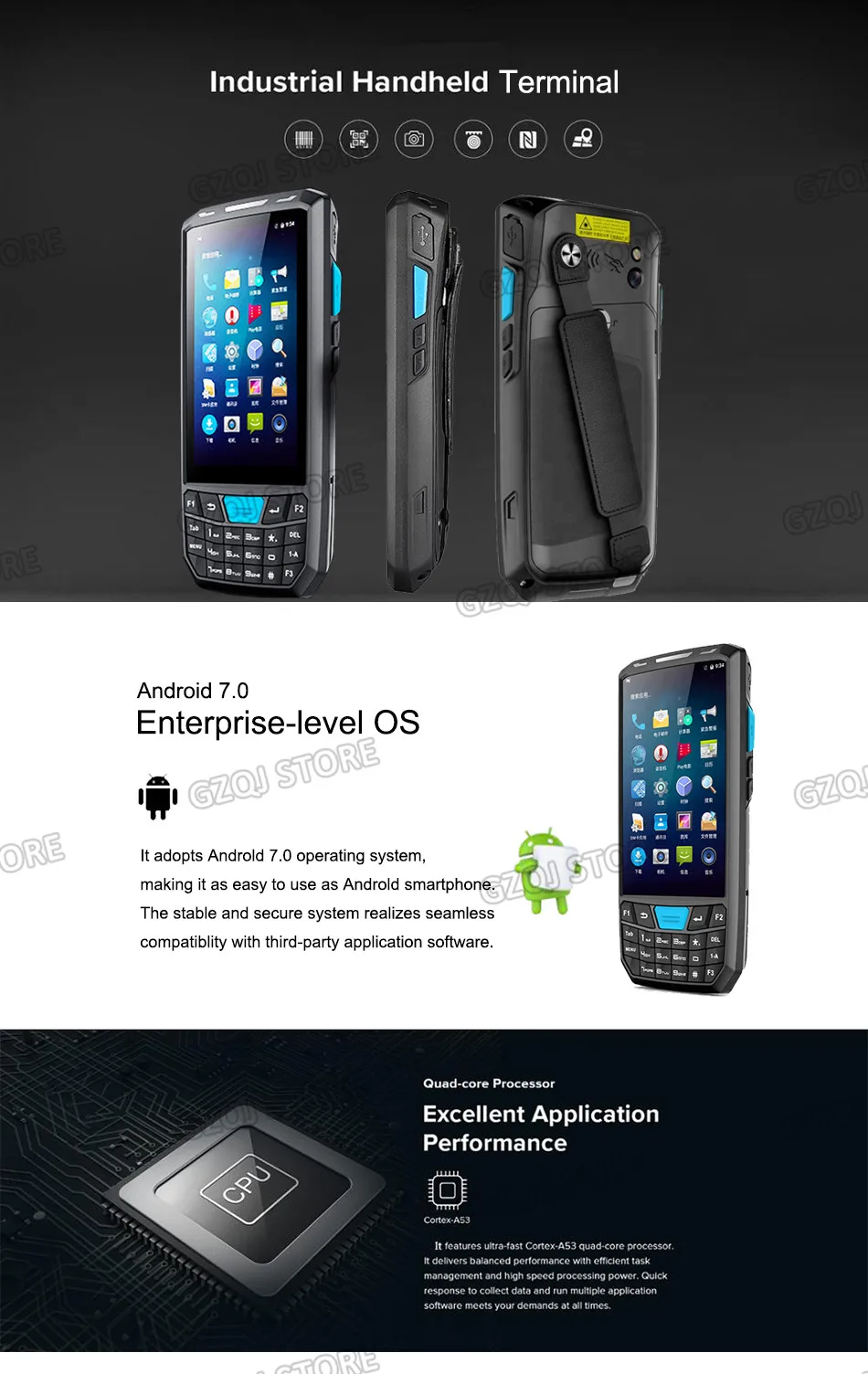

• Safe OS (Android 7.0) Highly optimized Android operating system


• High capacity 4200mA large capacity battery for critical requirements

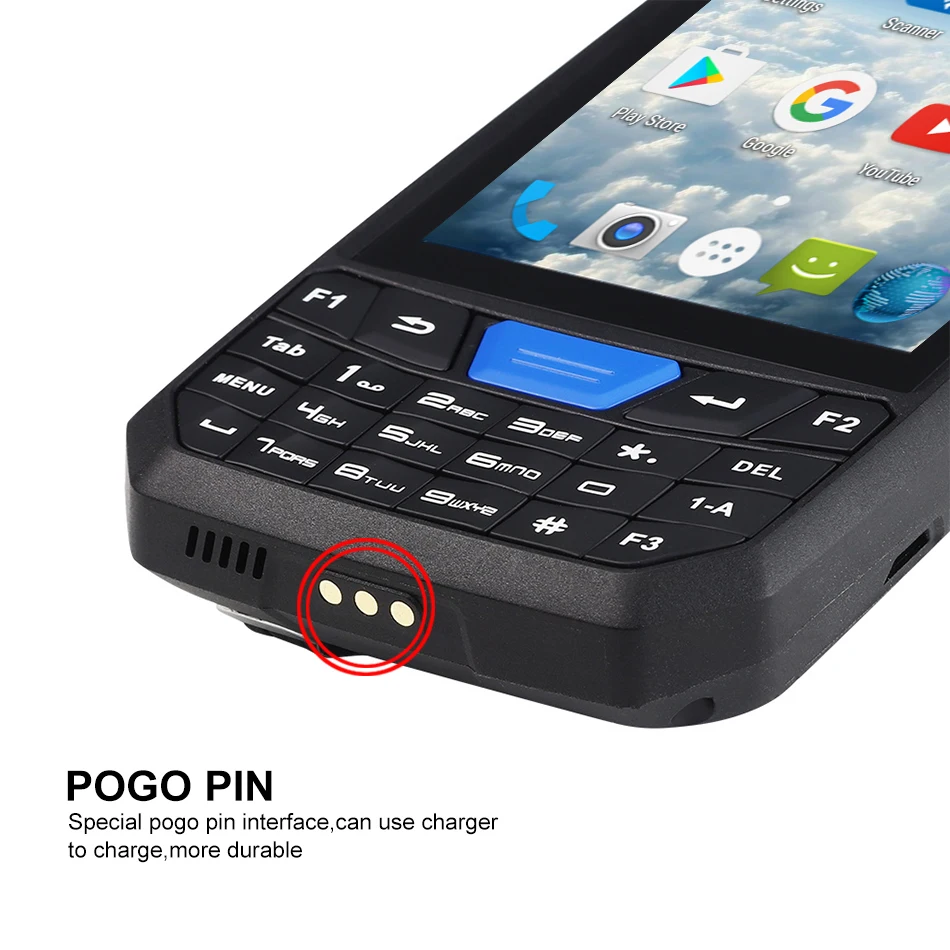

• Pogo Pin interface for convenient charging with optional charge cradle

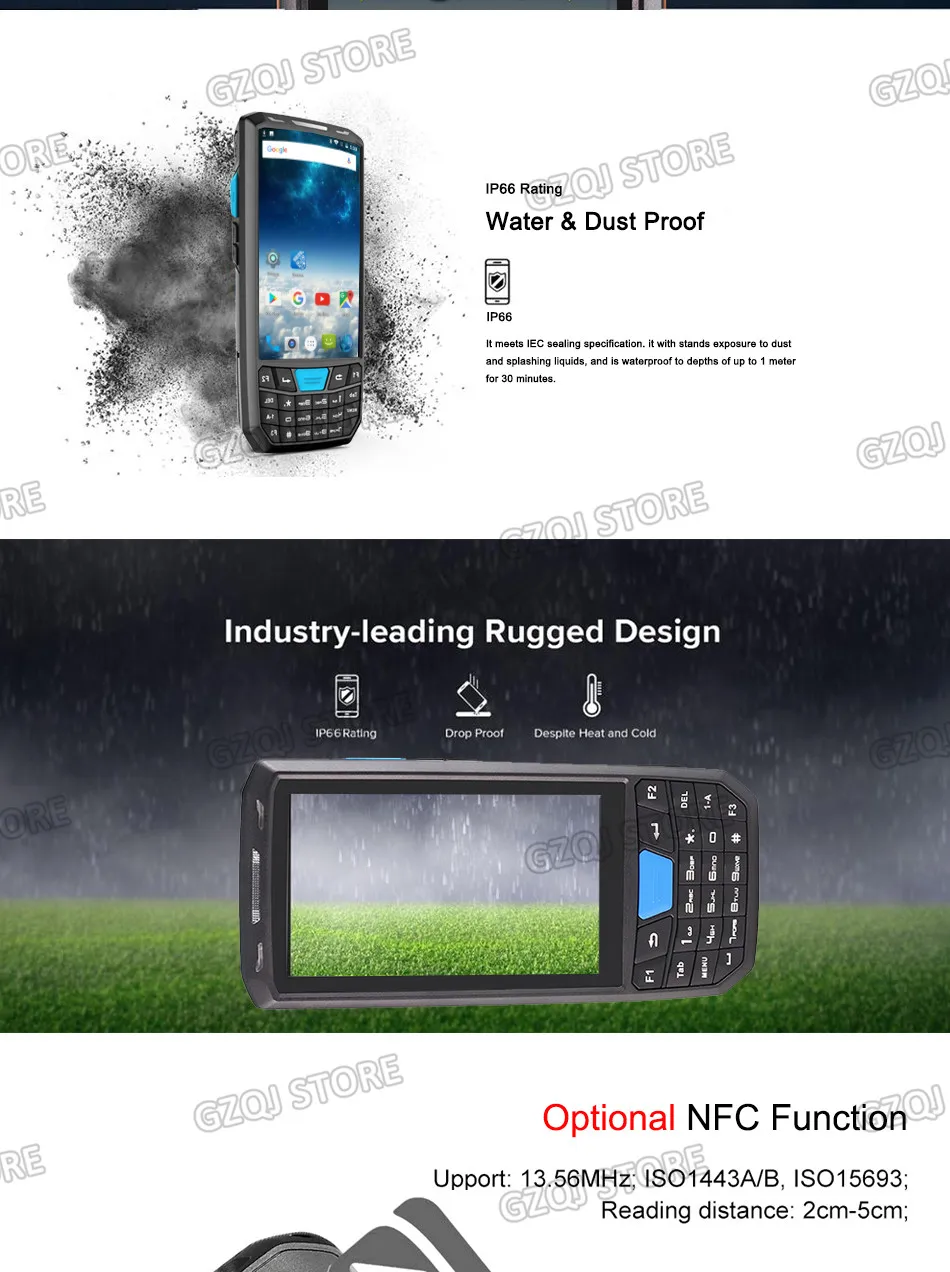

• Industrial rugged design, waterproof and protection grade(IP66)



Physical Parameter

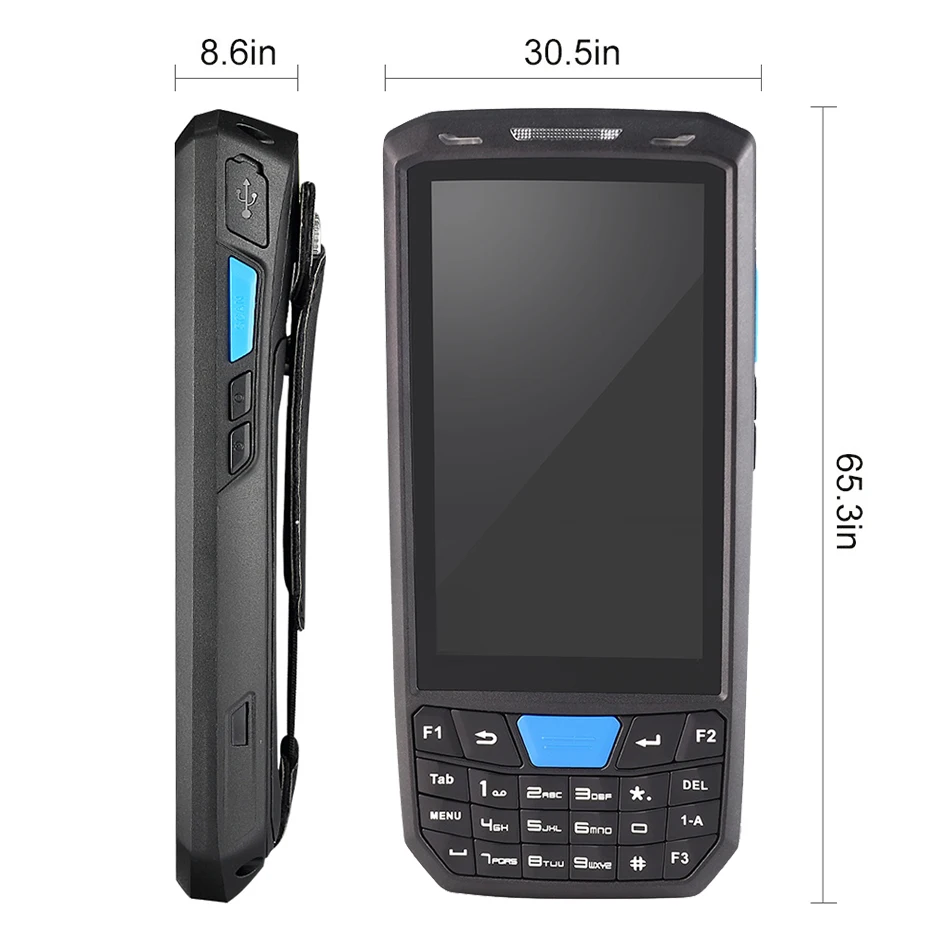

Dimensions	166mm(L)X77.5mm(W)X22mm(D)
Weight	<500g
Display Screen	Color 4.0 inch QVGA imitative glass durable touch screen
	TFT-LCD, 650000 colors, 480*800 (QVGA size)
	The brightness of LED Backlight is adjustable
Expand Port	SIM card, Micro SD (TF) Card
Communication Interface	USB2.0 Device,
Input Mode	Standard Stylus, Handwriting, touching input or keyboard input
Battery Capacity	Rechargeable Li-polymer Battery 3.7V 4000mAh Optional
Frequency	8 1W speaker
Buttons	21pcs soft silicon key
Data Communication

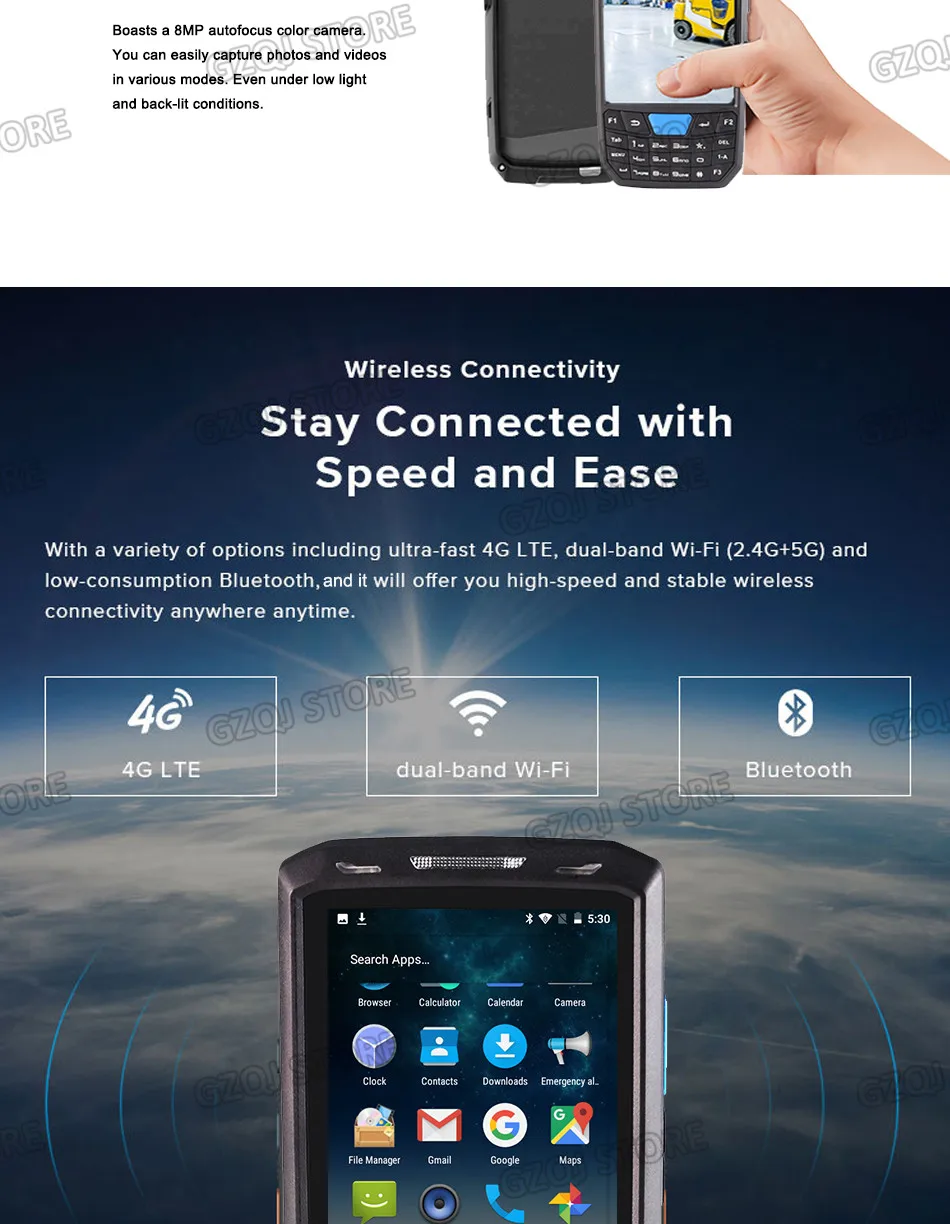

WI-FI	Support IEEE802.11b/g/n protocol, it needs effective wireless LAN signal cover
FDD-LTE  4G	Uplink:  1920MHZ-1980MHZ;  Downlink:  2110MHZ-2170MHZ
	Uplink:  1710MHZ-1785MHZ;  Downlink:  1805MHZ-1880MHZ
	Uplink:  2496MHZ-2690MHZ;  Downlink:  2496MHZ-2690MHZ
WCDMA  3G	Uplink:1850MHZ-1910MHZ;  Downlink: 1930MHZ-1990MHZ
	Uplink:880MHZ-915MHZ;  Downlink: 925MHZ-960MHZ
GSM   2G	850MHZ,  Uplink:824MHZ-849MHZ;  Downlink: 869MHZ-894MHZ
	900MHZ,  Uplink:880MHZ-915MHZ;  Downlink: 925MHZ-960MHZ
	1800MHZ,Uplink:1710MHZ-1785MHZ;  Downlink: 1805MHZ-1880MHZ
	1900MHZ ,Uplink:1850MHZ-1910MHZ;  Downlink: 1930MHZ-1990MHZ
Bluetooth	Support Bluetooth 2.0+EDR/3.0+HS/4.1+HS, transmission distance is 5-10m
Operating Environment
Operating Temperature	—20C to 50C
Storage Temperature	—25C to 70C
Environment Humidity	5%RH--95%RH(no condensation)
Drop Specifications	6 sides can bear impact from 1.5m drop to cement floor in the range of operating temperature
Roll Specifications	1000 times/0.5m, roll on 6 sides contact area
Sealed Environment	IP65
Development Environment
Operating System	Android 7.0
SDK	exclusive use software development kit
Supported Language	JAVA
Development Tool	Eclipse

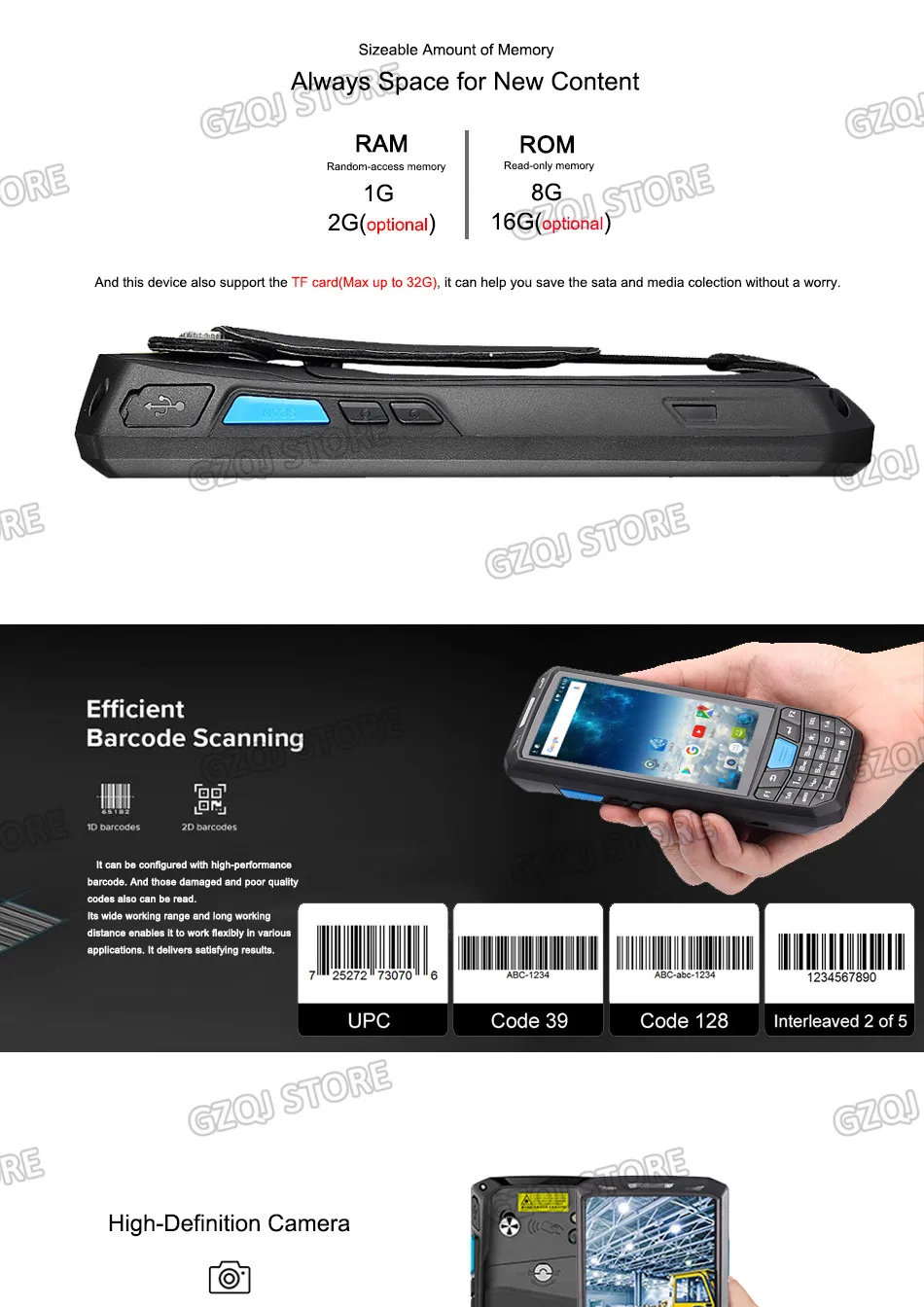

1D Laser Scanner
One dimensional laser scanner	Mingde966(Standard) HoneywellN4313 (contact us to add $10)
Resolution	4Mil minimum width
Ambient Light	10000ft.candles(107640 lux)
Scanning Speed	104(±)12/sec (both way)
Scanning Angle	47o±35o(Standard) / 35o±3o(narrow angle)
Support Bar Code Type	UPC/EAN, Code128, Code39, Code93,Code11, Interleaved 2 of 5,  Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS
2D CMOS (Optional)
CMOS Scanner	Newland 3090(Standard) HONEYWELL N6603 (contact us to add $40)
The Sensor Resolution	752(level)×480(vertical)pels(gray level)
Ambient Light	All dark 9000ft.candles/96900 lux
Focus element (VLD)	655nm ± 10nm
Support bar code type	PDF417,MicroPDF417,Composite, RSS,TLC-39, Datamatrix,  QR code, Micro QR code, Aztec, MaxiCode;  Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, JapanPostal Dutch Postal (KIX)3
NFC(Optional)
NFC	13.56MHz
If you need the NFC	Please contact us to add the $20
Camera	Hd 8 million pixels, with LED, automatic focusing
GPS	Support A-GPS
Android 7.0 System
CPU	ARM Cortex-A53 64bit Quad-Core 1.3G
RAM	1G or 2G RAM
Flash ROM	8G NAND Flash Storage
	or 16G NAND Flash Storage

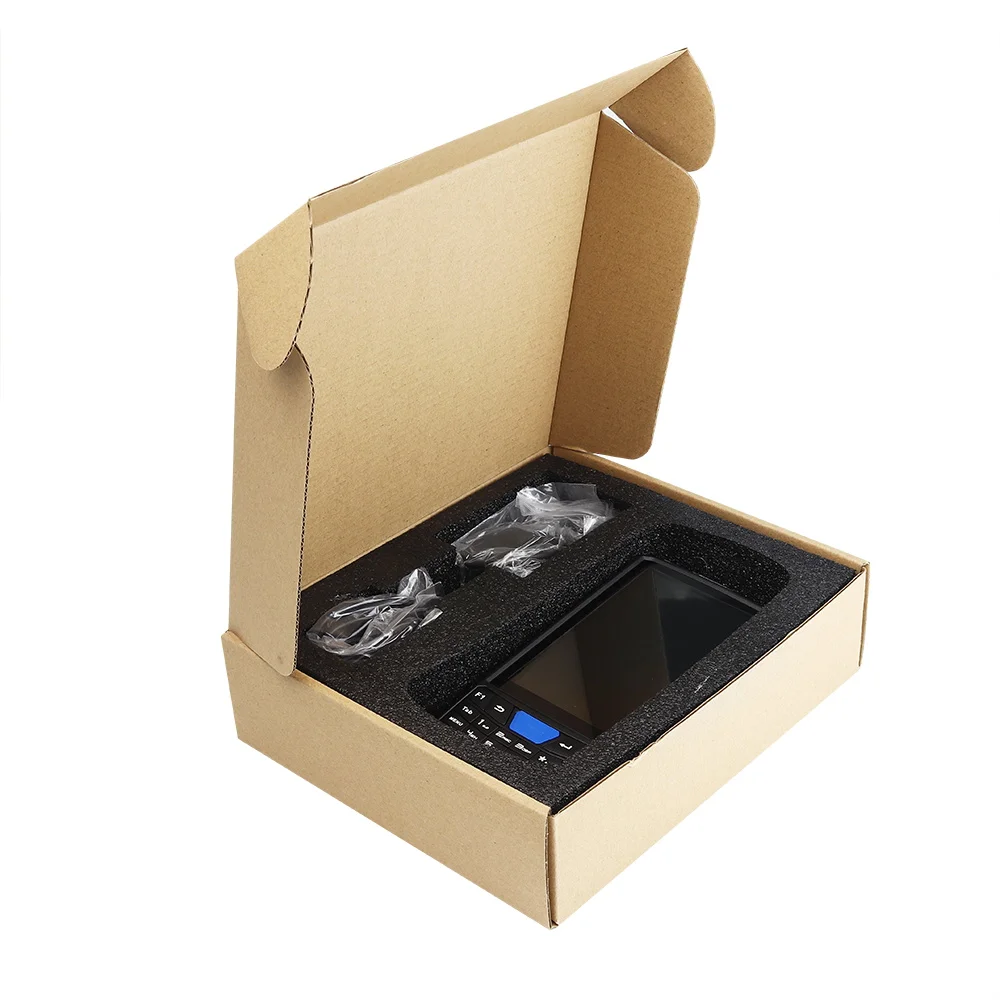

Packaging Details

•
  Unit Type:
  piece



•
  Package Weight:
  0.8kg (1.76lb.)



•
  Package Size:
  24cm x 20cm x 8cm (9.45in x 7.87in x 3.15in)
